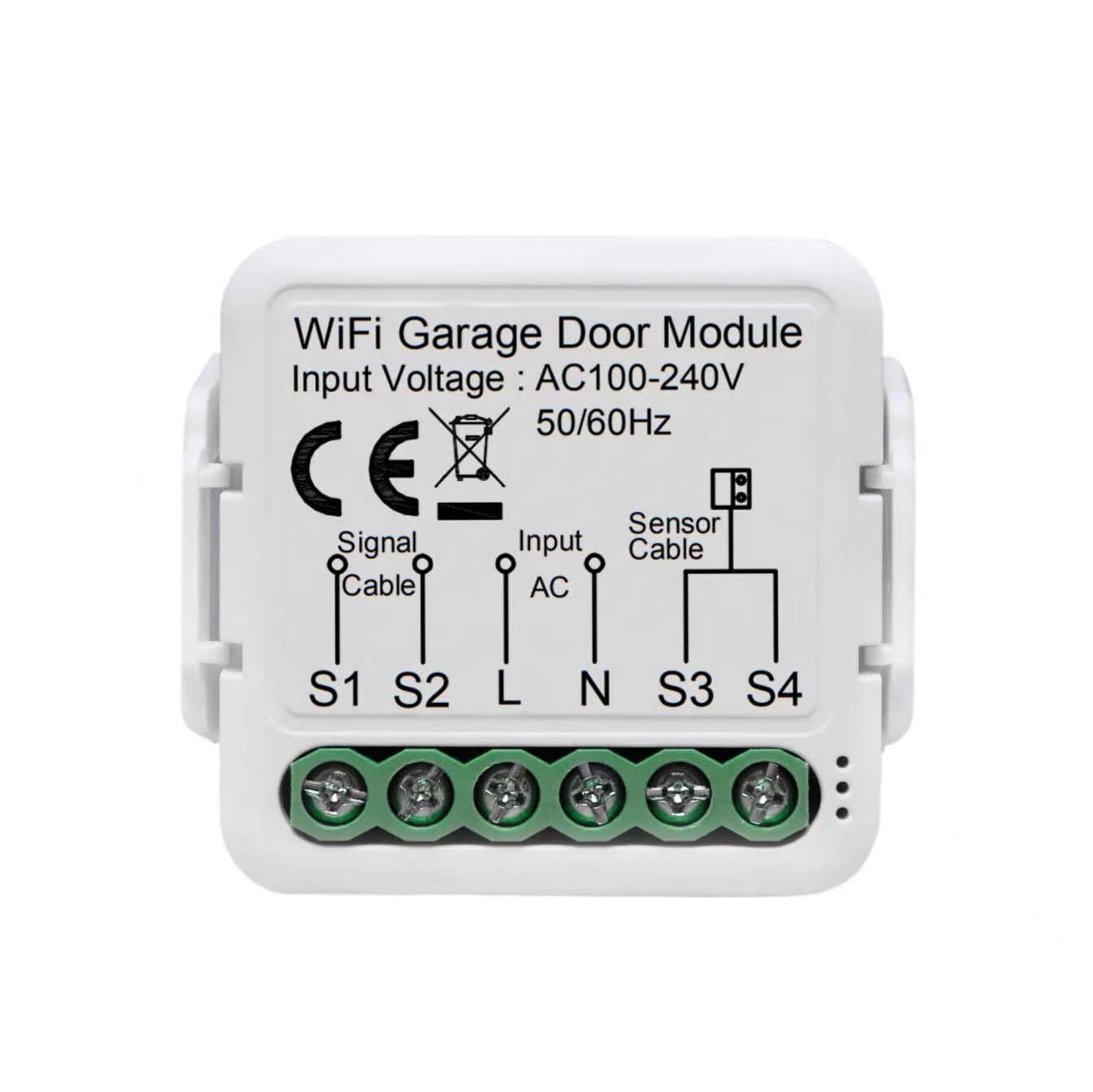

WIFI Garage Door Switch

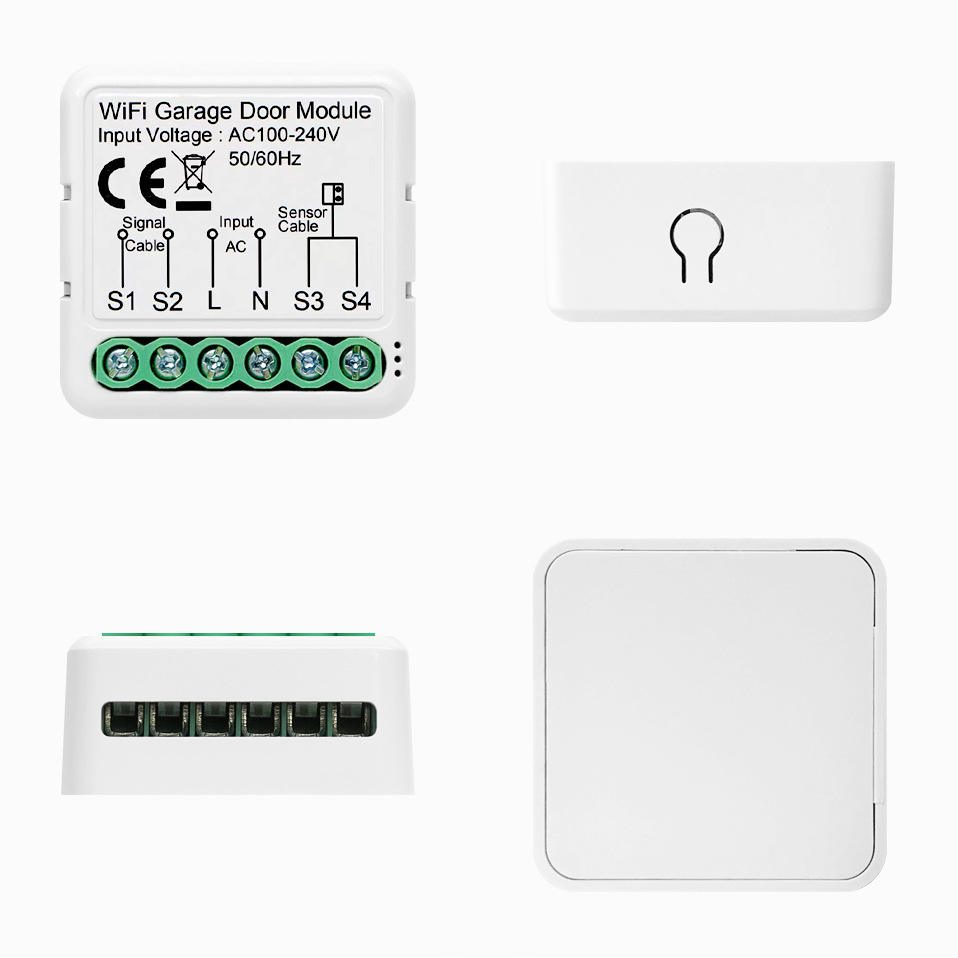

Basic Information
| Voltage | AC100-240V 50/60MHz |
| Operation frequency | 2.4G |
| Operation temp | -10℃~+40℃ |
| Operation range | <100m |
| Dims (WxDxH) | 39.2x39.2x18 mm |
| App | Smart Life, TuyaSmart |
Key Selling Points &Key Features
Smart Control & Voice Integration — Use the Tuya / Smart Life app or voice commands (Alexa, Google Assistant) to open/close your garage door from anywhere.
Compatibility & Universal Module — Works with most existing garage door openers via dry contact / parallel wiring — no need to replace your existing system.

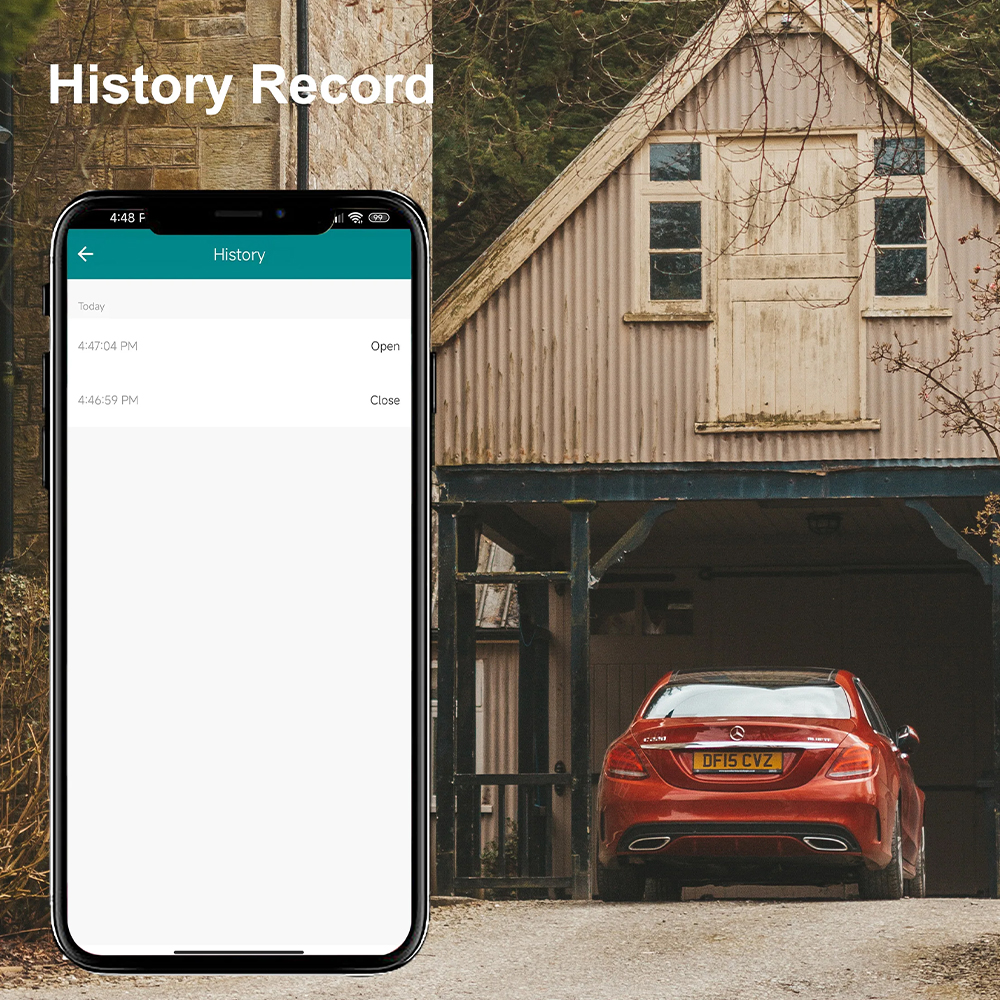

Secure & Customizable Operation — Add voice pin protection, share access with family, log history, set schedules, countdown timers, and alerts.

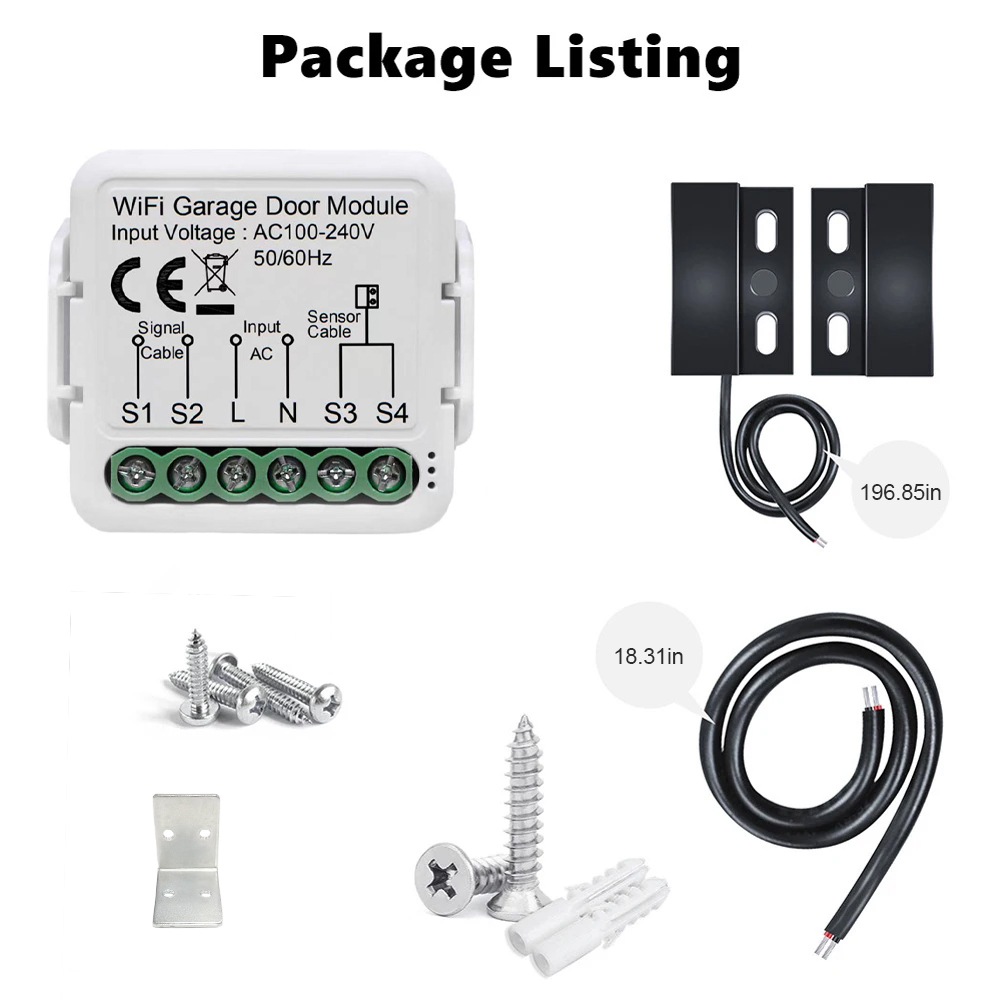

Door Sensor — Includes sensor to detect door open/closed status reliably (range ~15 m) — no extra wiring in many cases.
2.4 GHz WiFi, No Hub Needed — Easy setup via your home’s WiFi (2.4 GHz), no additional hub required.
Low Power & Durable Design — Minimal power consumption, ABS flame-retardant casing, designed for long-term use in garage environments.

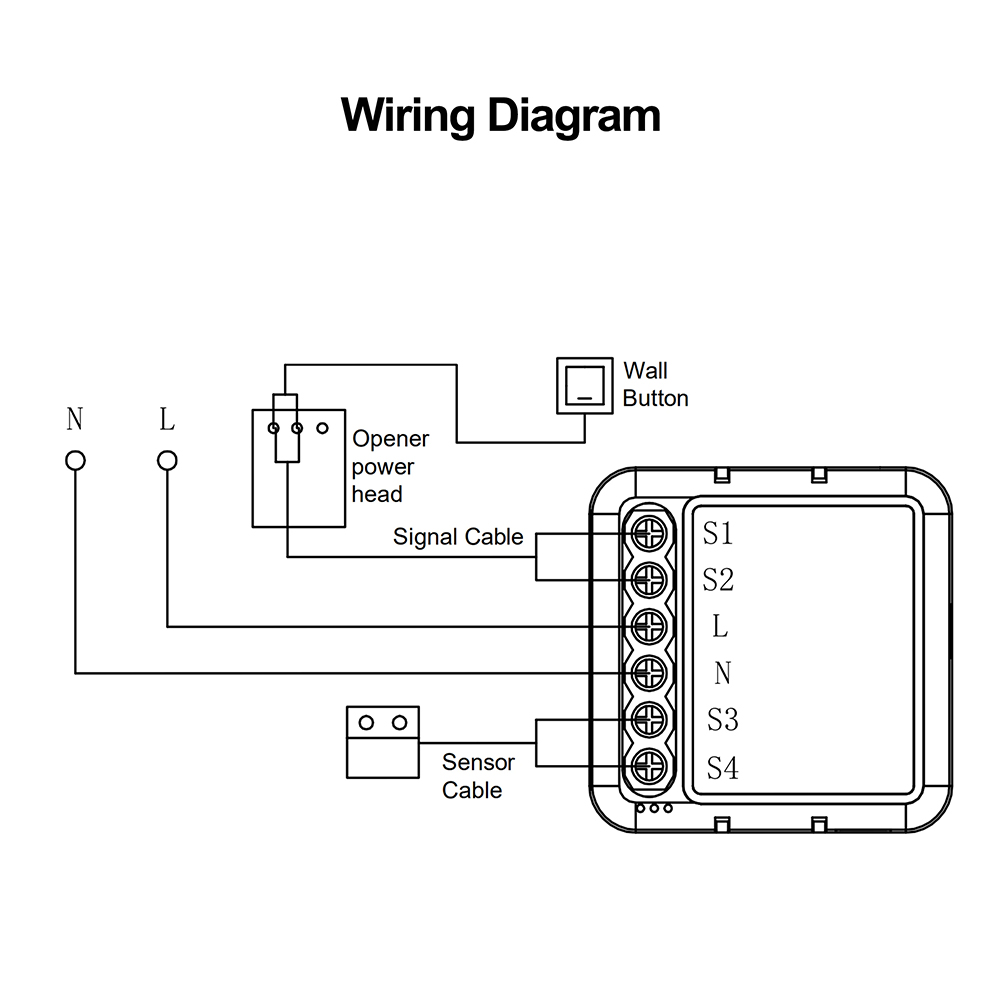

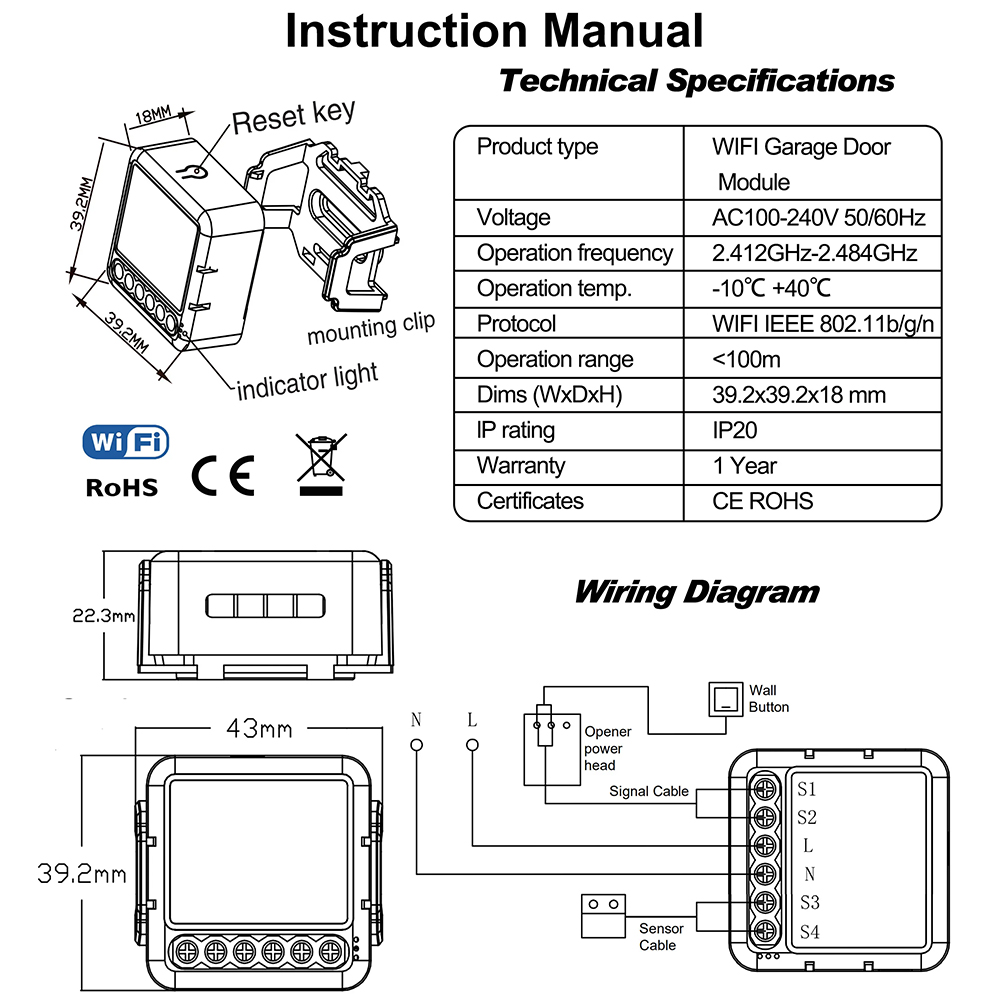

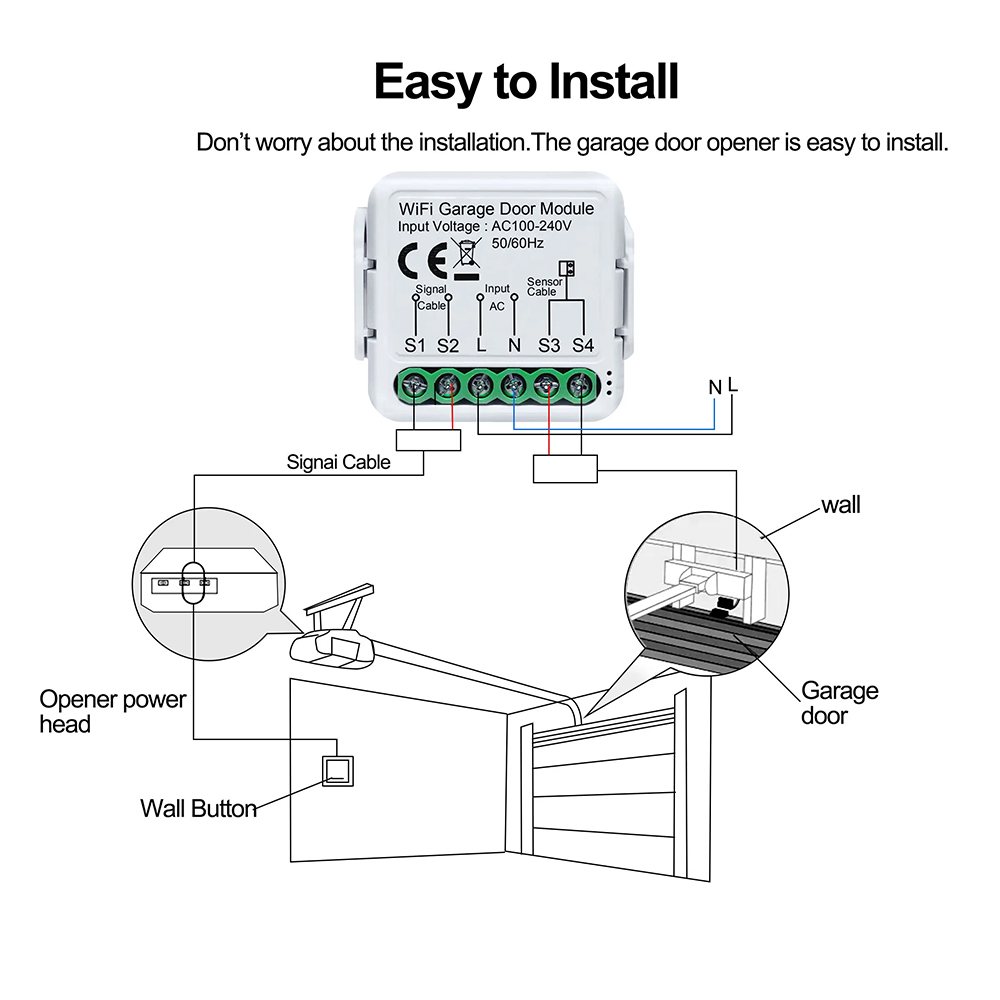

Easy Installation — Connects in parallel to your wall push button; the relay is isolated. Mount sensor on door. Simple wiring diagram included
Installation
Warnings:
1. Installation must be carried out by a qualified electrician in accordance with local regulations.
2. Keep the device out of reach of children.
3. Keep the device away from water, damp or hot environment.
4. Install the device away from strong signal sources such as microwave oven that may cause signal interruption resulted to abnormal operation of the device.
5. Obstruction by concrete wall or metallic materials may reduce the effective operation range of the device and should be avoided.
6. Do NOT attempt to disassemble,repair or modify the device.

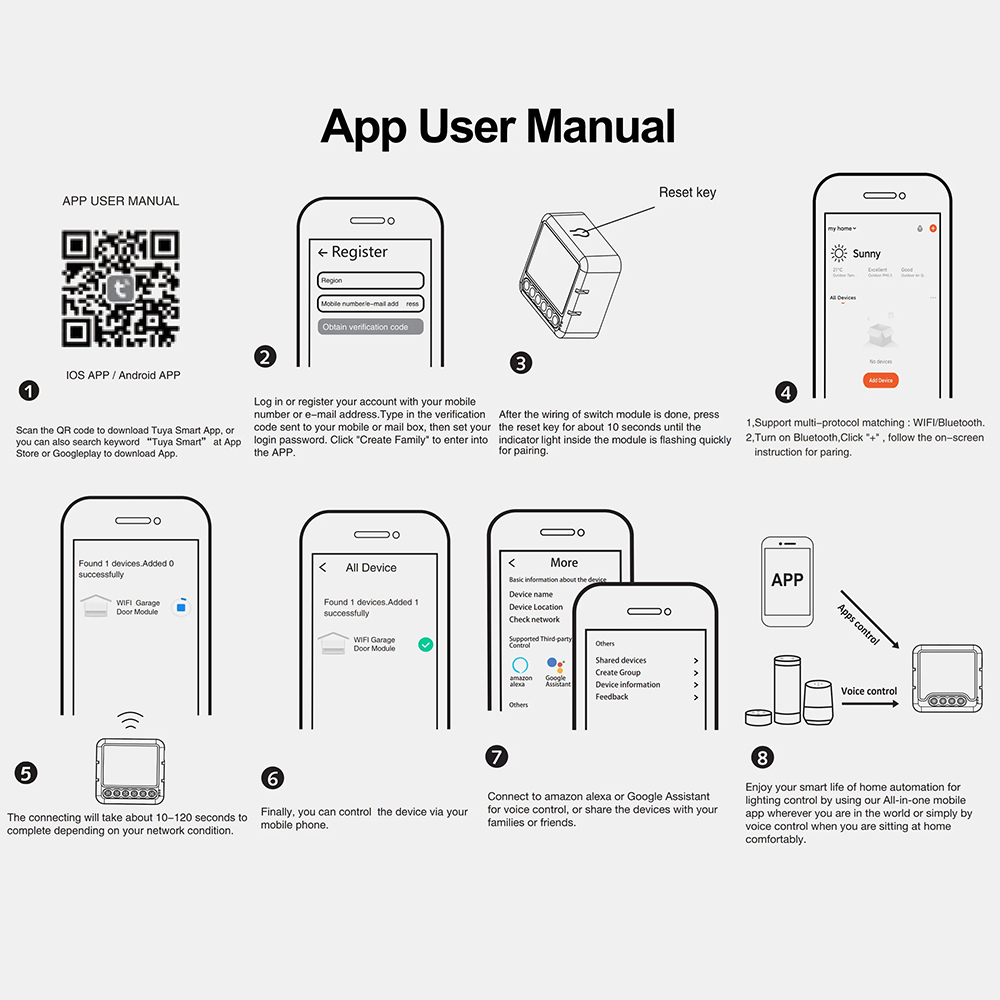

User Manual
1. Scan the QR code to download Tuya Smart App, or you can also search keyword "Tuya Smart" at App Store or Google play to download App.
2. Log in or register your account with your mobile number or e-mail address.Type in the verification code sent to your mobile or mail box, then set your login password. Click "Create Family" to enter into the APP.
3. After the wiring of switch module is done, press the reset key for about 10 seconds until the indicator light inside the module is flashing quickly for pairing.
4. 1,Support multi-protocol matching: WIFI/Bluetooth.
2,Turn on Bluetooth,Click "+",follow the on-screen instruction for paring.
5. The connecting will take about 10-120 seconds to complete depending on your network condition.
6. Finally, you can control the device via your mobile phone.
7. Connect to amazon alexa or Google Assistant for voice control, or share the devices with your families or friends.
8. Enjoy your smart life of home automation for lighting control by using our All-in-one mobile app wherever you are in the world or simply by voice control when you are sitting at home comfortably.
FAQ
Q1: What should I do if I can't configure the switch module?
a. Please check whether device is powered on.
b. Make sure your mobile and switch module are under the same 2.4 Ghz WIFI network.
c. Whether it's in good internet conditions.
d. Make sure the password entered in App is correct.
e. Make sure the wiring is correct.
Q2: What device can be connected to this Wi-Fi switch module?
Only the garage door works
Q3: What happens if the WIFI goes off?
You can still control the device connected the switch module with your traditional switch and once WIFI is active again the device connected to module will connect automatically to your WIFI network.
Q4: What should I do if I change the WIFI network or change the password?
You have to re-connect our Wi-Fi switch module to the new Wi-Fi network accordingly as per the App User Manual.
Q5: How do I reset the device?
press the reset key for about 10 seconds until the indicator light flash.
