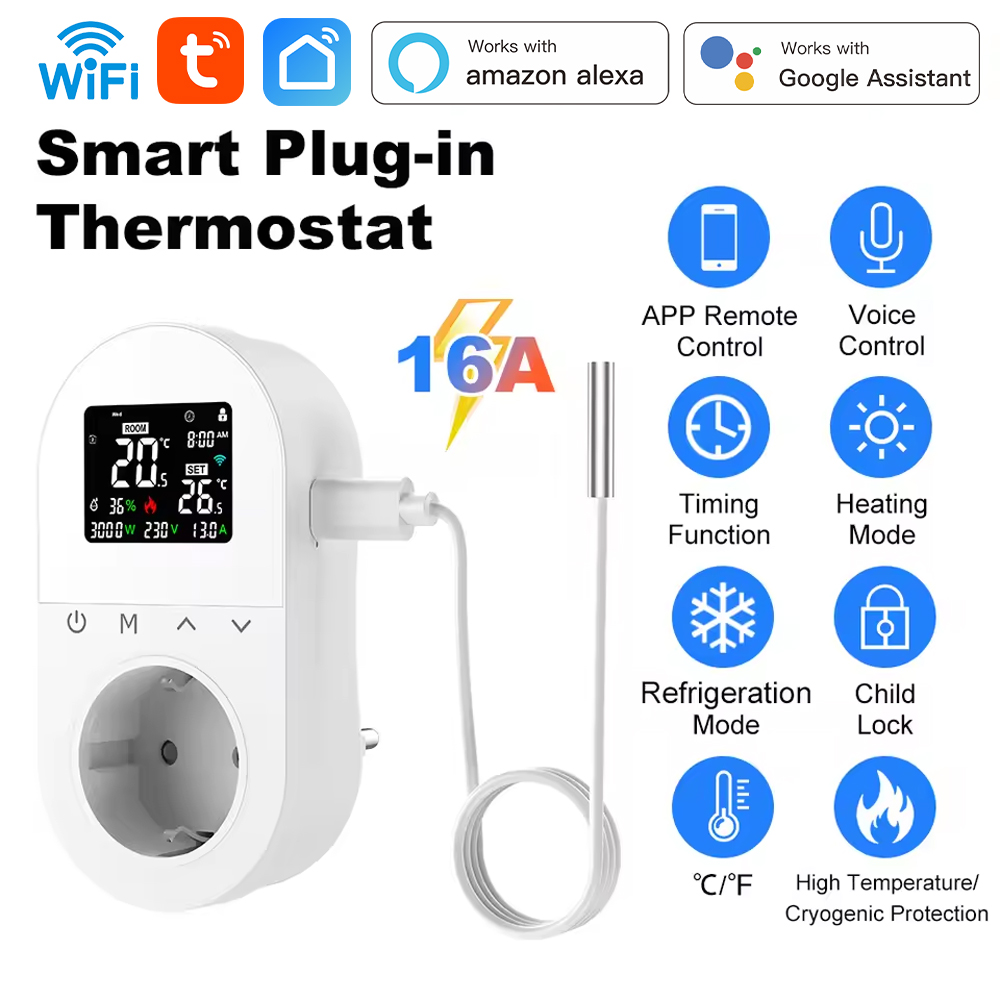

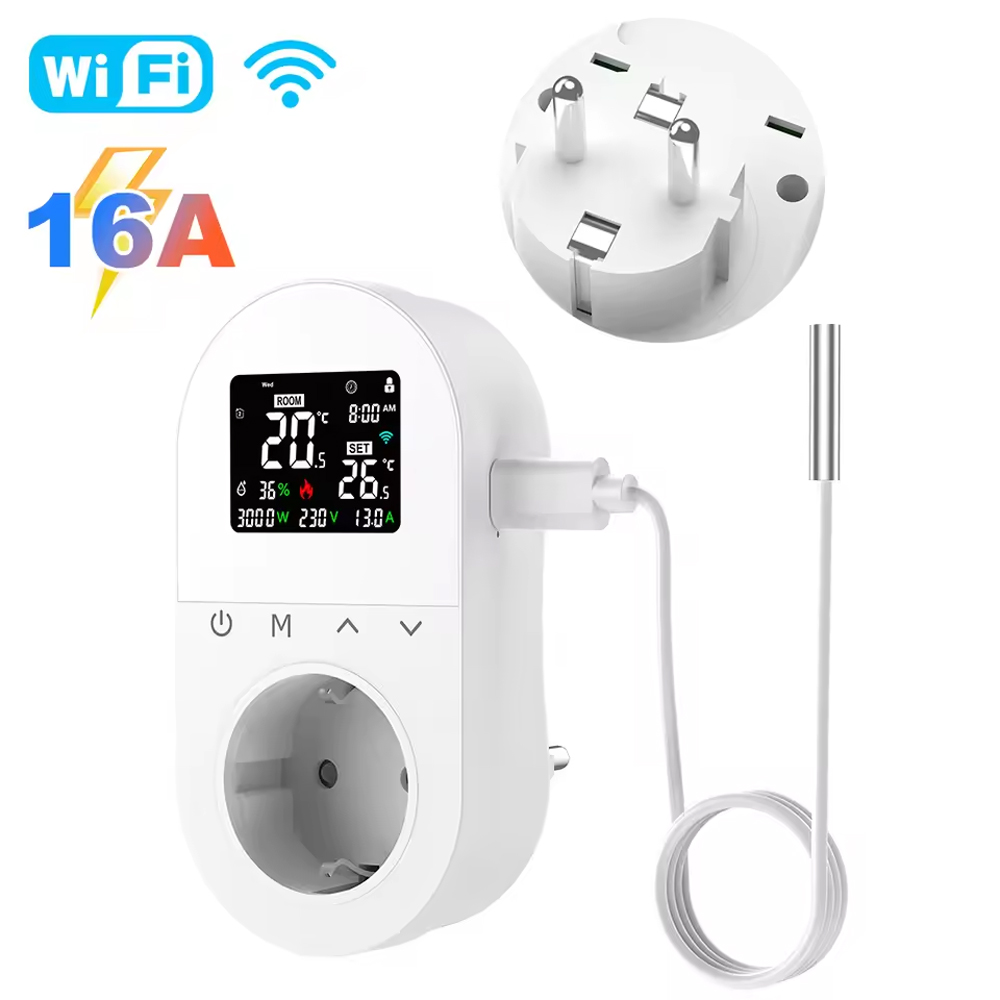

WiFi LCD EU Socket Thermostat

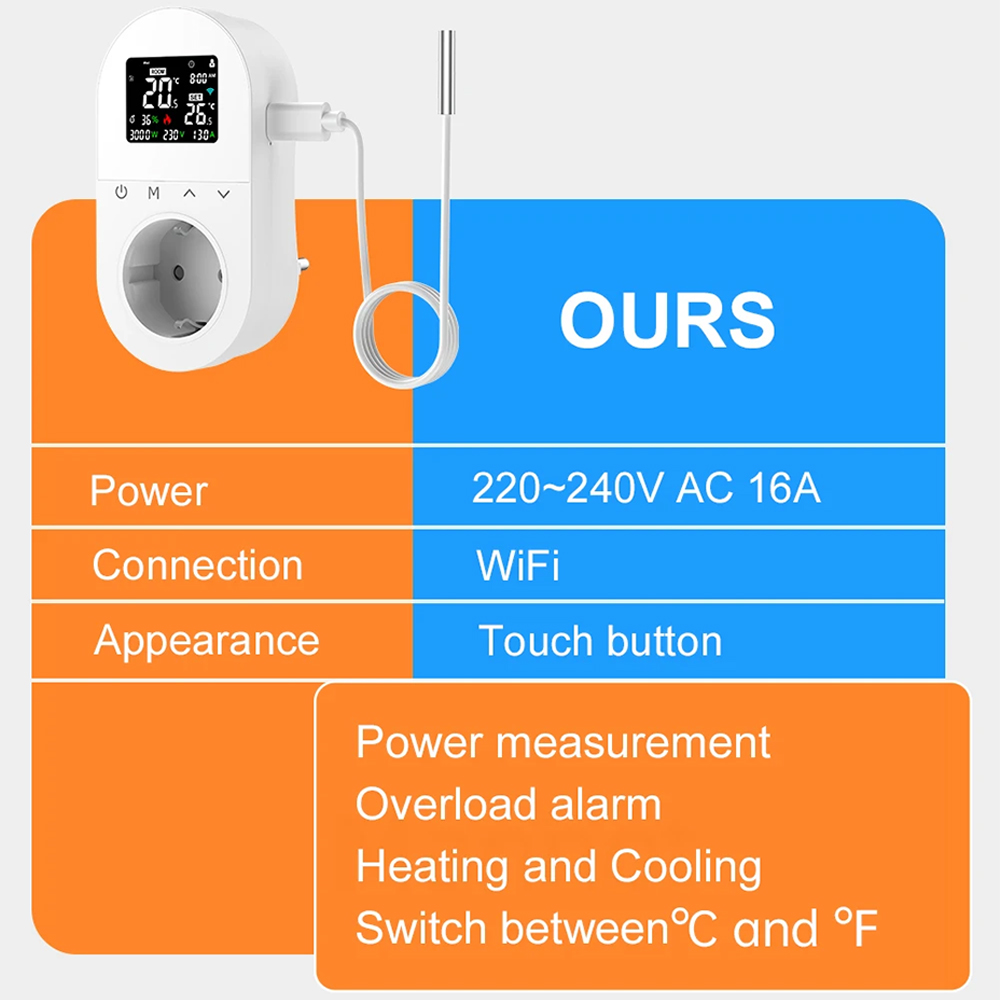

Specifications
Input Voltage: 220-240V AC, 50-60Hz
Temperature Control Accuracy: ±0.5°C
Maximum Load :3000W
Storage Temperature: -10 to 55°C
Temperature Control Range: -5°C to 45°C&23°F to 113°F
Temperature Display Range: -5°C to 90°C&23°F to 194°F
Waterproof Rating: IP20
Environmental Humidity: 5-95% RH

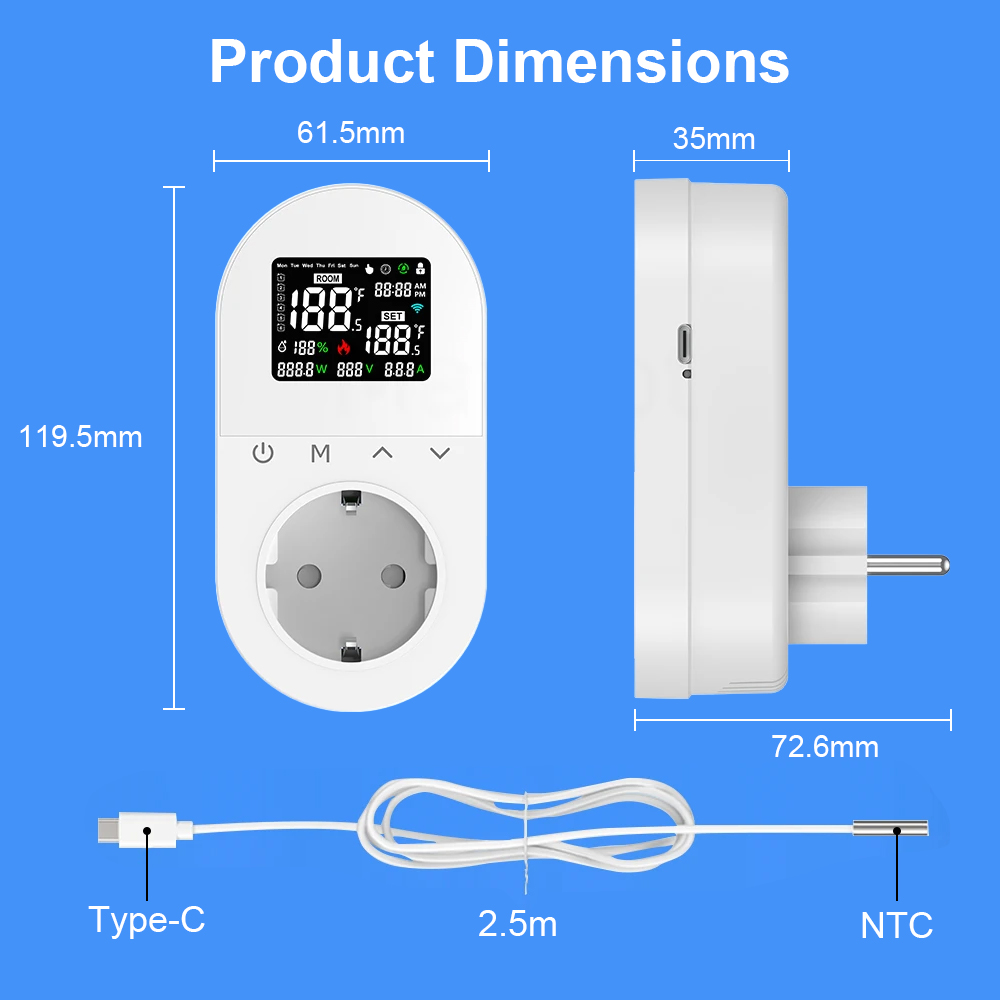

Dimensions: 72.6 x61.5x119.5mm

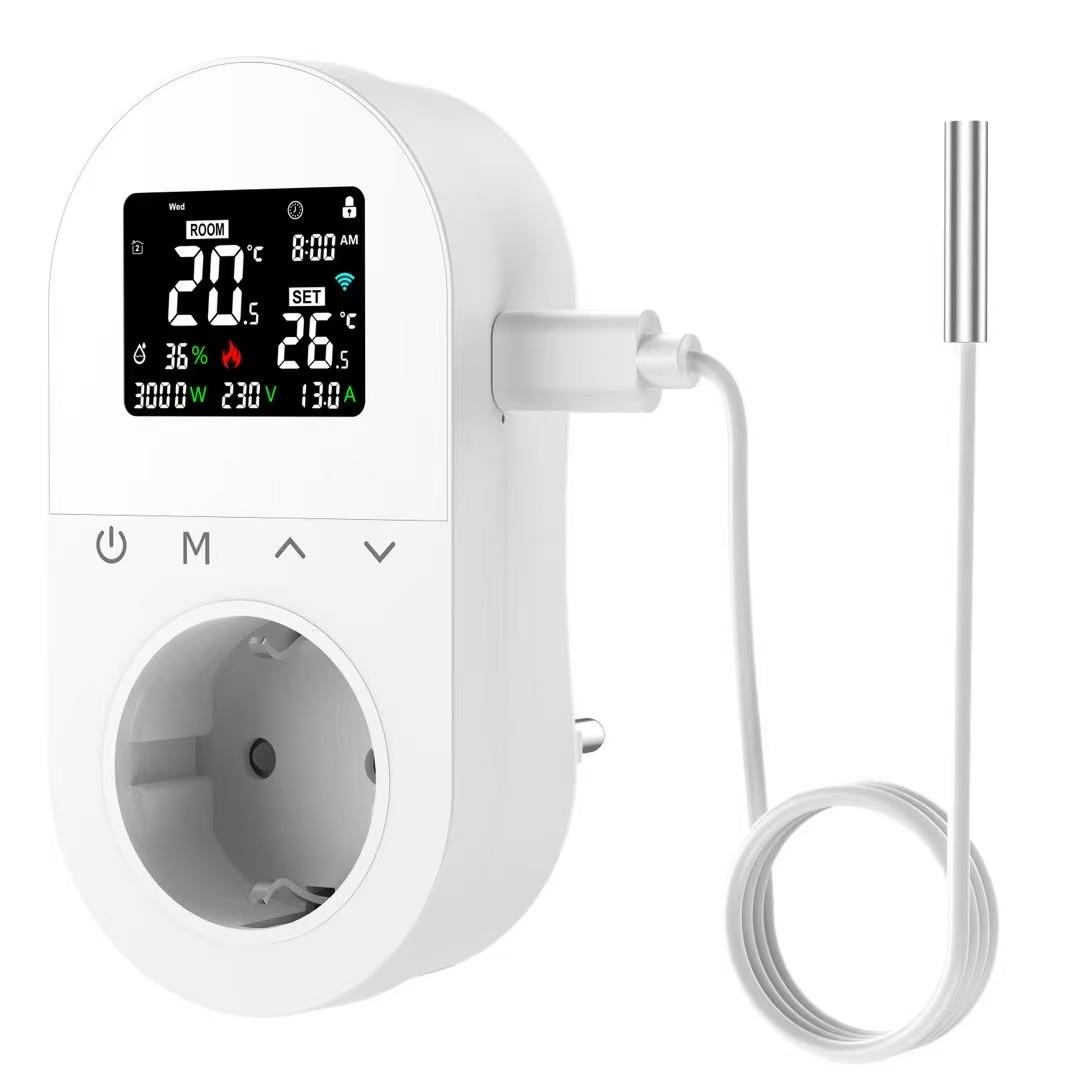

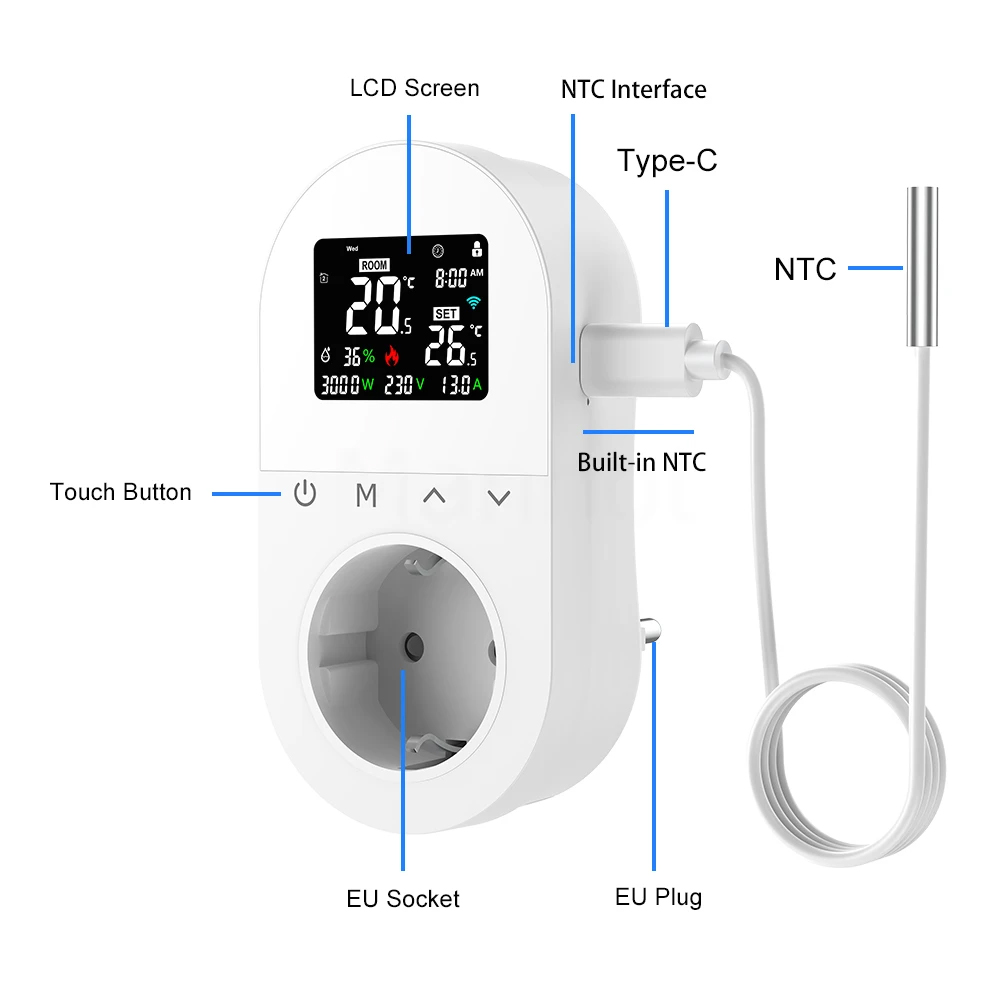

External Sensor Parameters: 2.5M NTC 10K
Button: Touch button

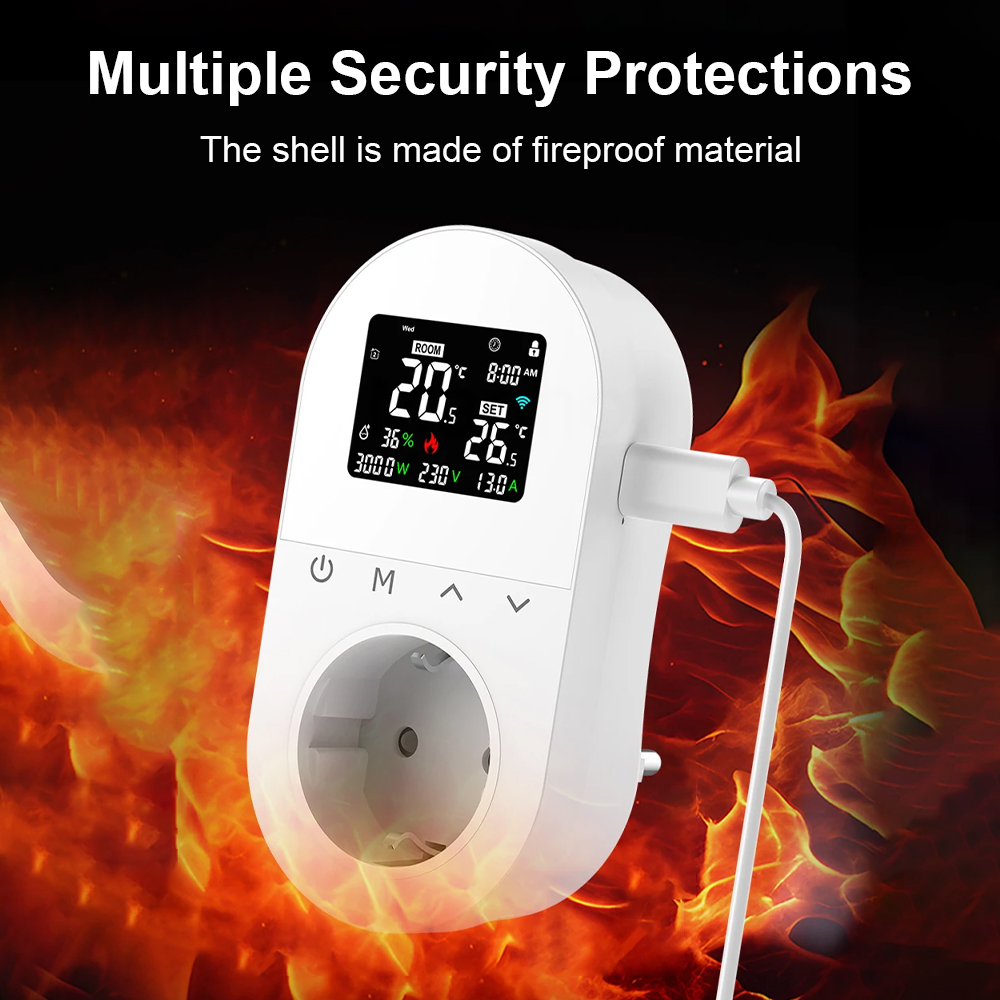

Shell material: PC+ABS (flame-retardant and fireproof)
APP: Tuya Smart/Smart Life
Product function
1. Temperature Monitoring
Built-in and external temperature sensors detect the ambient temperature in real time.
2. Threshold Control
Users set the target temperature (such as 25'C)or temperature range (such as 20C to 28C).When the actual temperature exceeds,When the set value is exceeded,the temperature controller automatically cuts off or restores the power supply of the connected electrical appliances.
3.Intelligent linkage

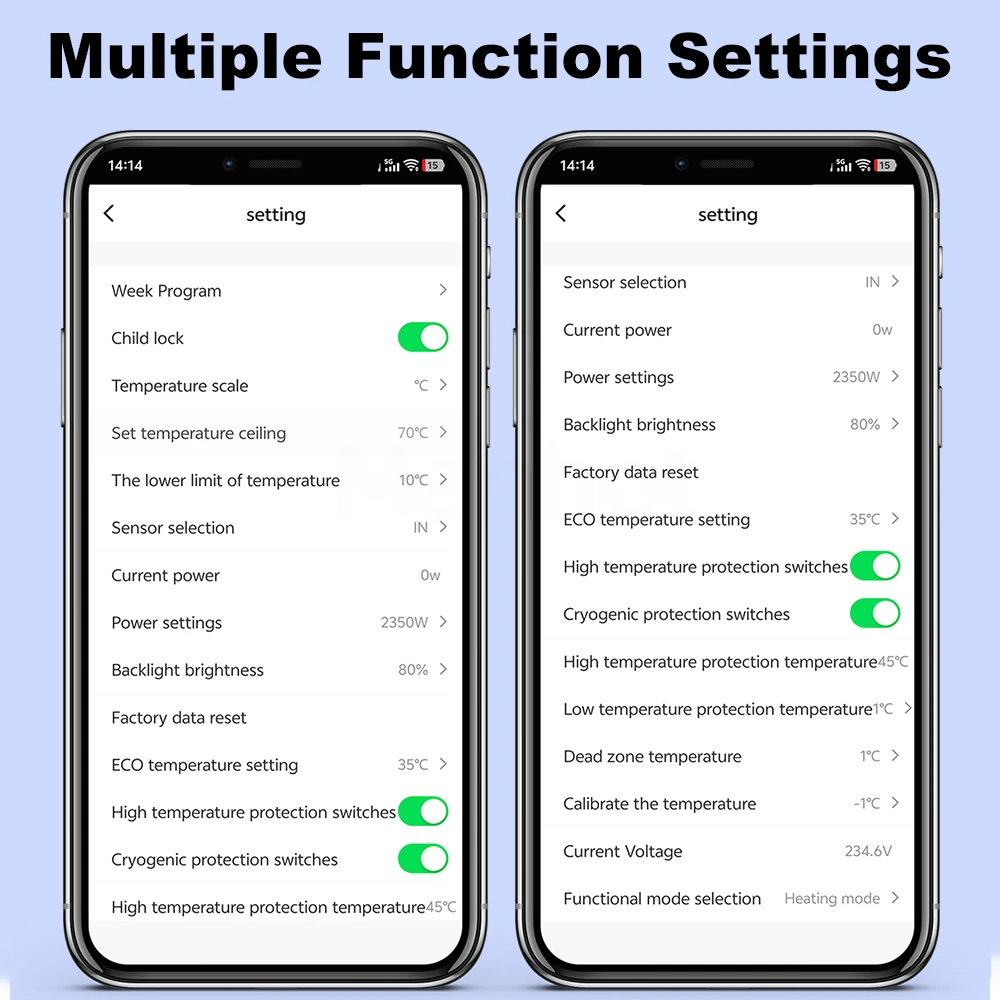

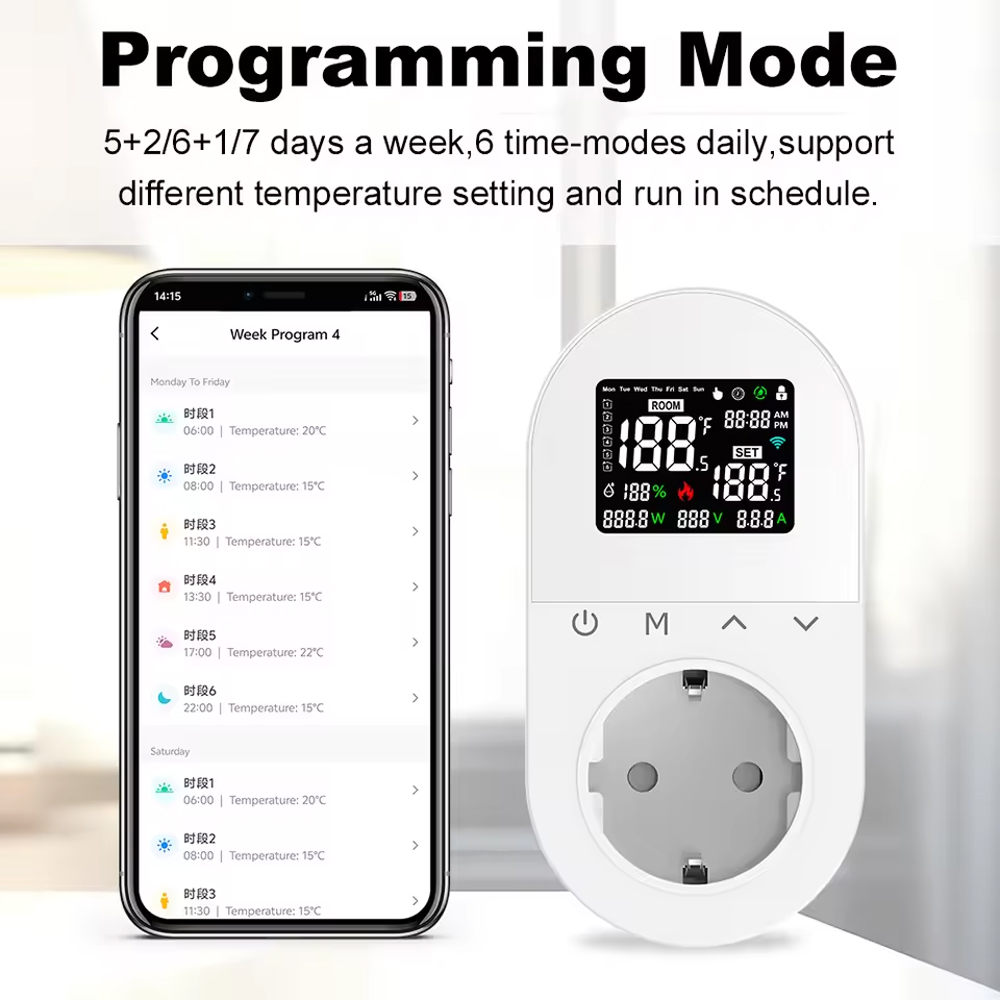

Supports remote control via the Tuya APP on mobile phones,voice assistants (such as Alexa),or scheduled tasks Now more flexible management.
4. Constant temperature environment
Maintain a stable temperature in rooms,pet boxes,greenhouses and other places.
5. Energy and electricity saving
Prevent electrical appliances from over operating (such as automatic power-off when an electric heater overheats).
6. Safety protection
Prevent equipment from catching fire or getting damaged due to abnormal temperatures (such as automatic power-off at high temperatures).

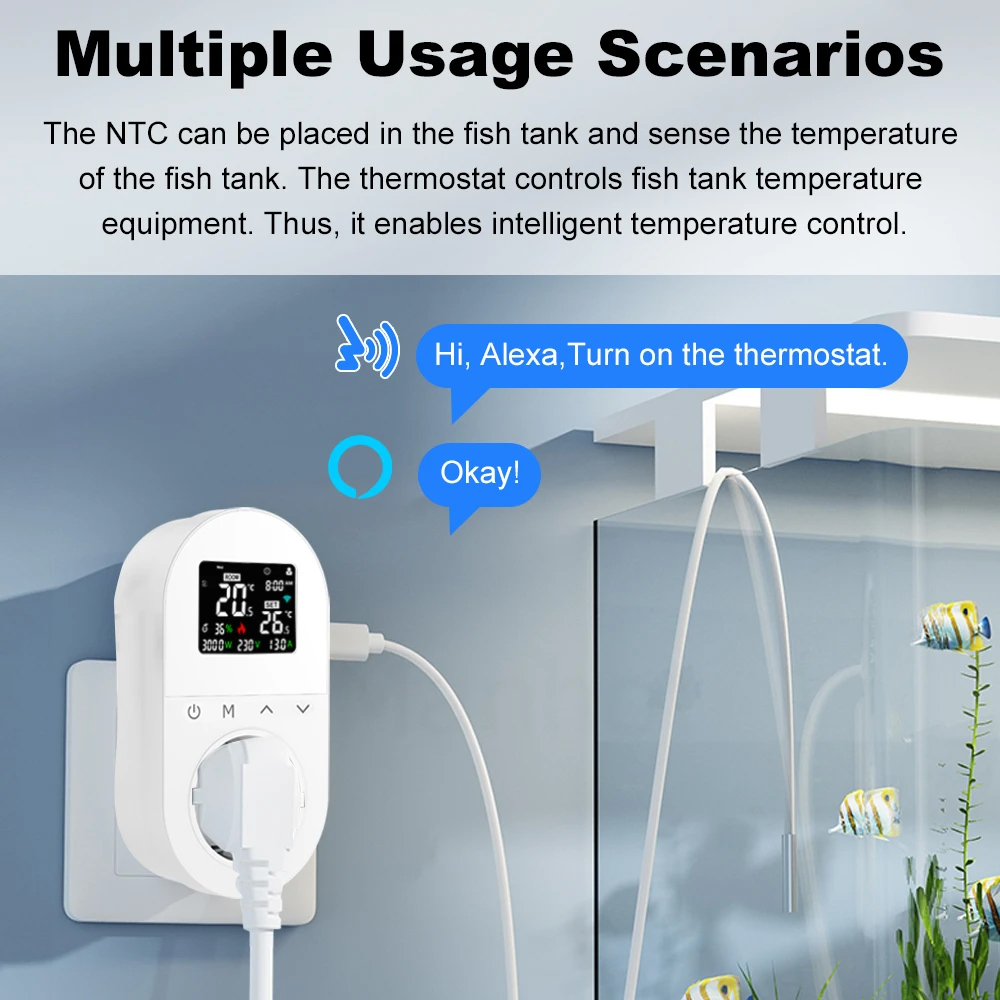

7. Wide range of application scenarios

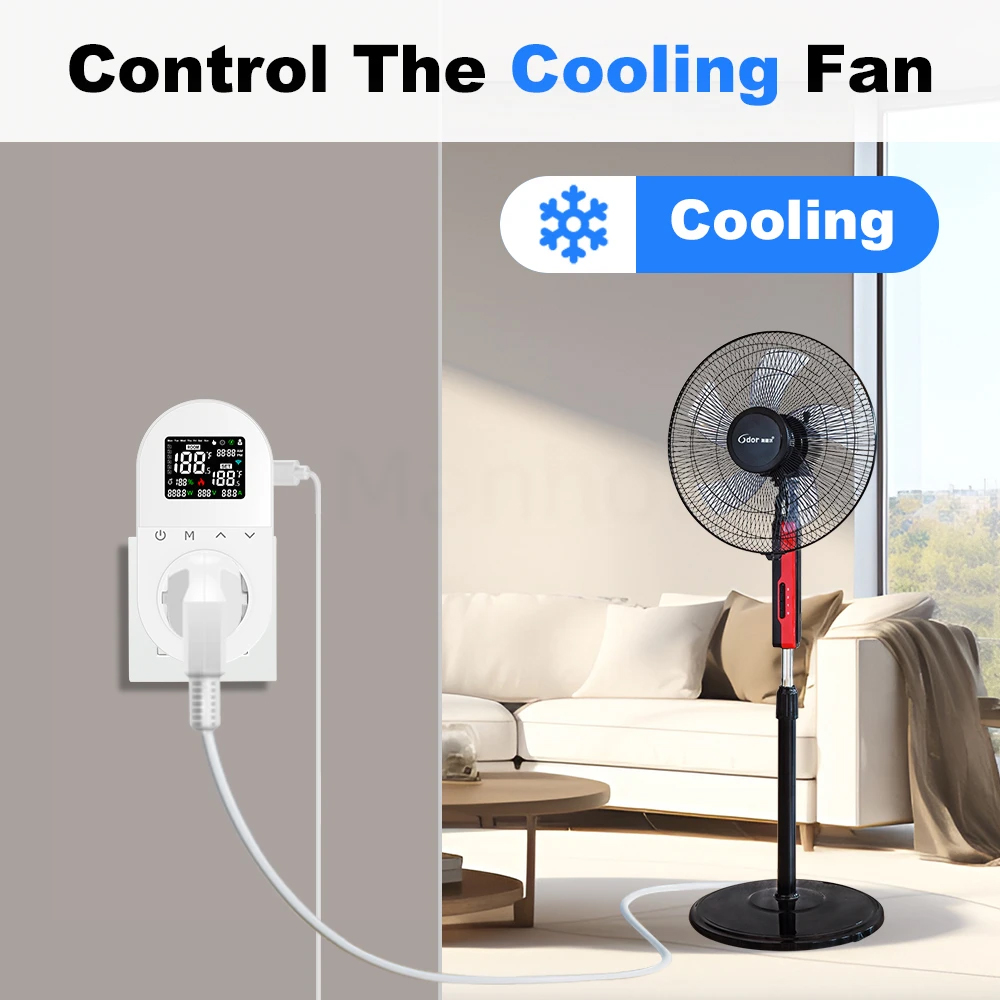

a. Control electric heaters and fans to prevent the room from being too cold or too hot.
b. Provide stable temperature for climbing pet boxes and seedling greenhouses.
c. Protect temperature-sensitive items such as food and medicine.
d. Assist in maintaining a constant temperature environment for small scale experimental equipment.
8. Novel design
It adopts touch buttons,with a simple and elegant appearance and easy and convenient temperature adjustment.
Installation
1.Insert the external NTC into the thermostat.
2.Insert the plug-in thermostat into the socket.Do not put your hands into the socket hole.
3.Insert the plug of the electric heating device or other equipment into the socket thermostat.
