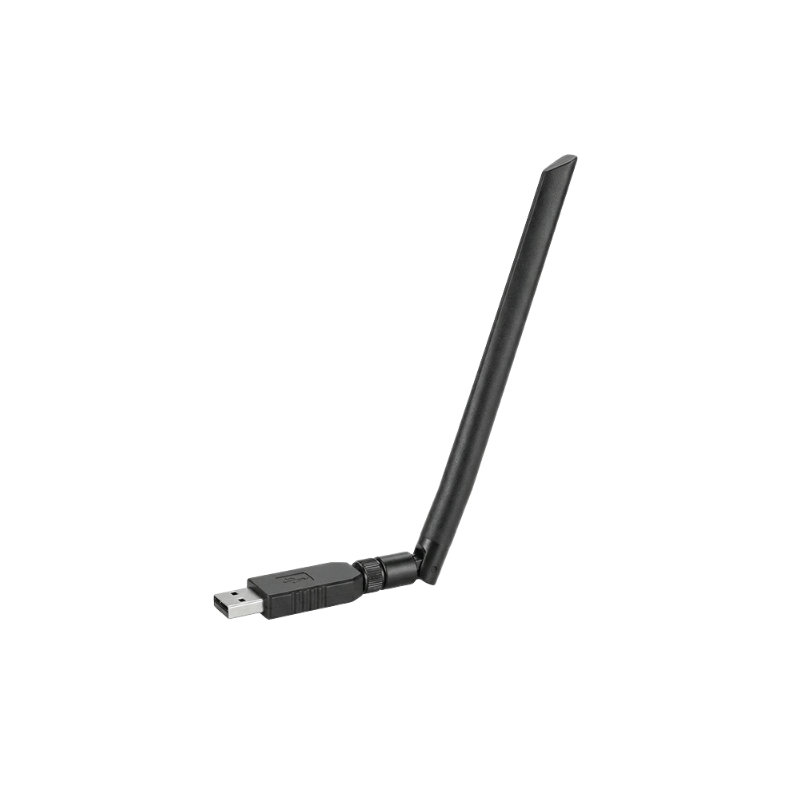

Zigbee 3.0 USB Dongle

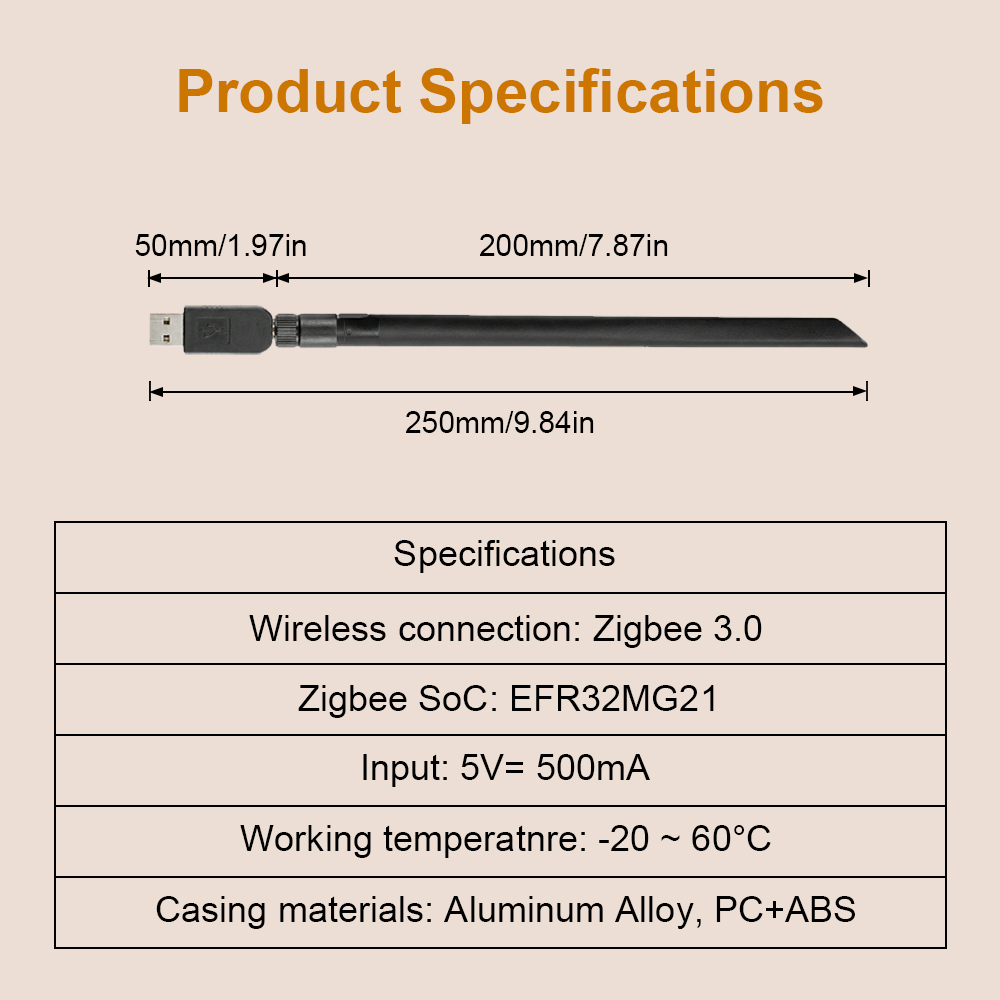

Products Main Specifications
Main Specifications | |
Wireless Communication Frequency |
2.4GHz-2.48GHz |
Supported Protocols |
Thread, Zigbee 3.0, Bluetooth 5.2 LE |
PORT config |
/dev/ttyUSB0 |
ESD protection |
Yes |
Applicable systems |
Home Assistant-ZHA, Home Assistant-Zigbee2Mqtt, OpenHAB |
Communication Distance |
200M(Without obstruction) |
SoC Amplifer |
20dBm |

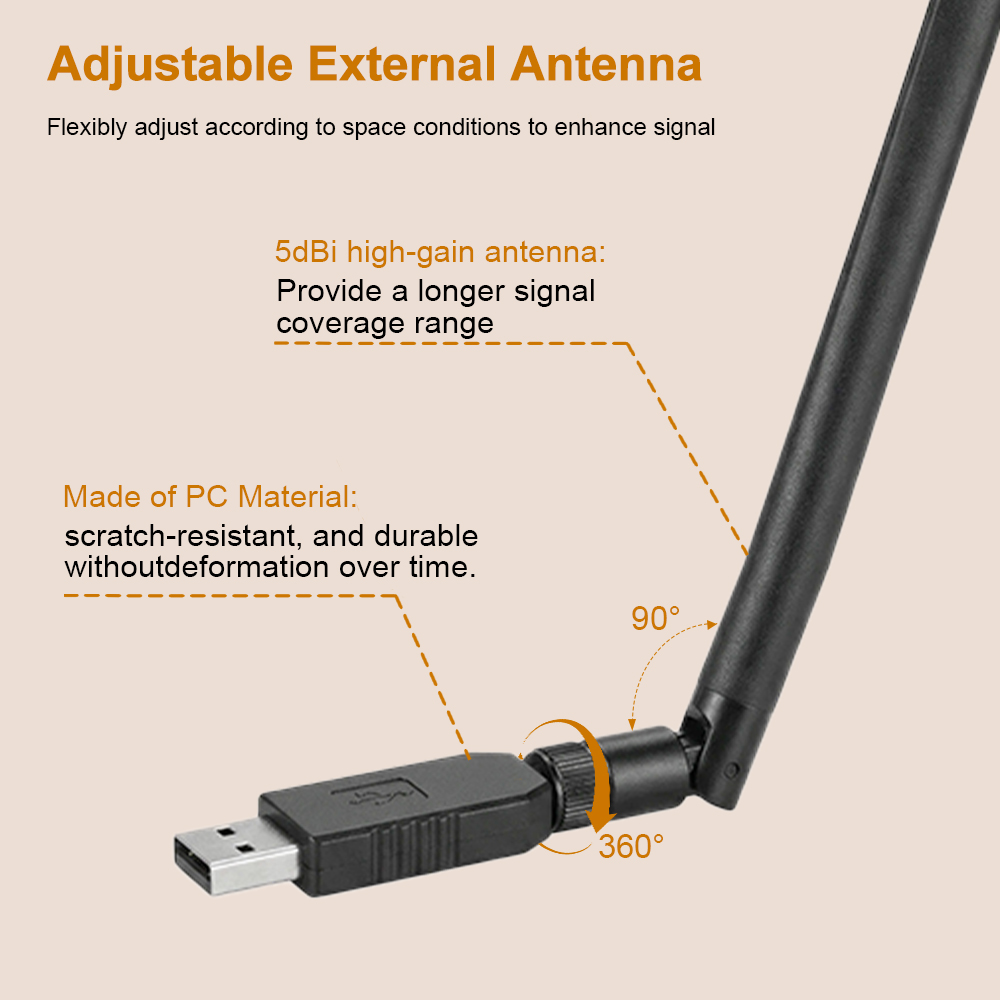

Antenna |
5dBi high-gain |
Maximum number supported device |
32 |
Products Description
Universal Translator: Its ability to overcome brand barriers is what makes it so appealing. Zigbee devices from several brands, including Tuya, may be connected and controlled by a single dongle, removing the need to buy pricey proprietary gateways for every brand.
Strong Local Processing: Instead of using external cloud servers, all device communications and data are handled locally. This guarantees that your home automation scenes—such as one-touch "Movie Mode"—remain stable even in the event of an internet interruption, providing quicker, more secure replies.
Adaptable "Software-Defined" Roles: It goes beyond being a coordinator. It can instantly become a Zigbee signal repeater to increase network coverage or a network packet sniffer for expert troubleshooting and analysis by flashing new firmware.
Outstanding Signal Coverage: Powerful chips, high-gain external antennas, and up to +20dBm transmit power are features of mainstream models that guarantee seamless, dead-zone-free whole-home coverage.
Sturdy Device Connectivity: It can scale to hundreds of devices through network-relay devices and directly oversees dozens of devices as a coordinator.
Typical Use Cases
The "Core Gear" For advances do-it-yourselfers
This dongle is ideal for smart home enthusiasts who want to construct systems like Home Assistant or Zigbee2MQTT on a Raspberry Pi or NAS, seeking the highest level of customisation and localized management. All of your current devices, including bulbs, sensors, magnetic scene switches, and more, are easily integrated into a single administration interface.
The Cross-brand smart home "integration powerhouse"
A universal dongle combined with an open-source platform provides the most simple way to dismantle device silos and create unified whole-home intelligence when you have sensors from Brand A, lamps from Brand B, and switches from Brand C.
The debugging tool for developers and testers
This dongle functions as a Zigbee network packet sniffer for Internet of Things developers. It becomes an essential tool for debugging and development when combined with packet capture software for network communication analysis.
