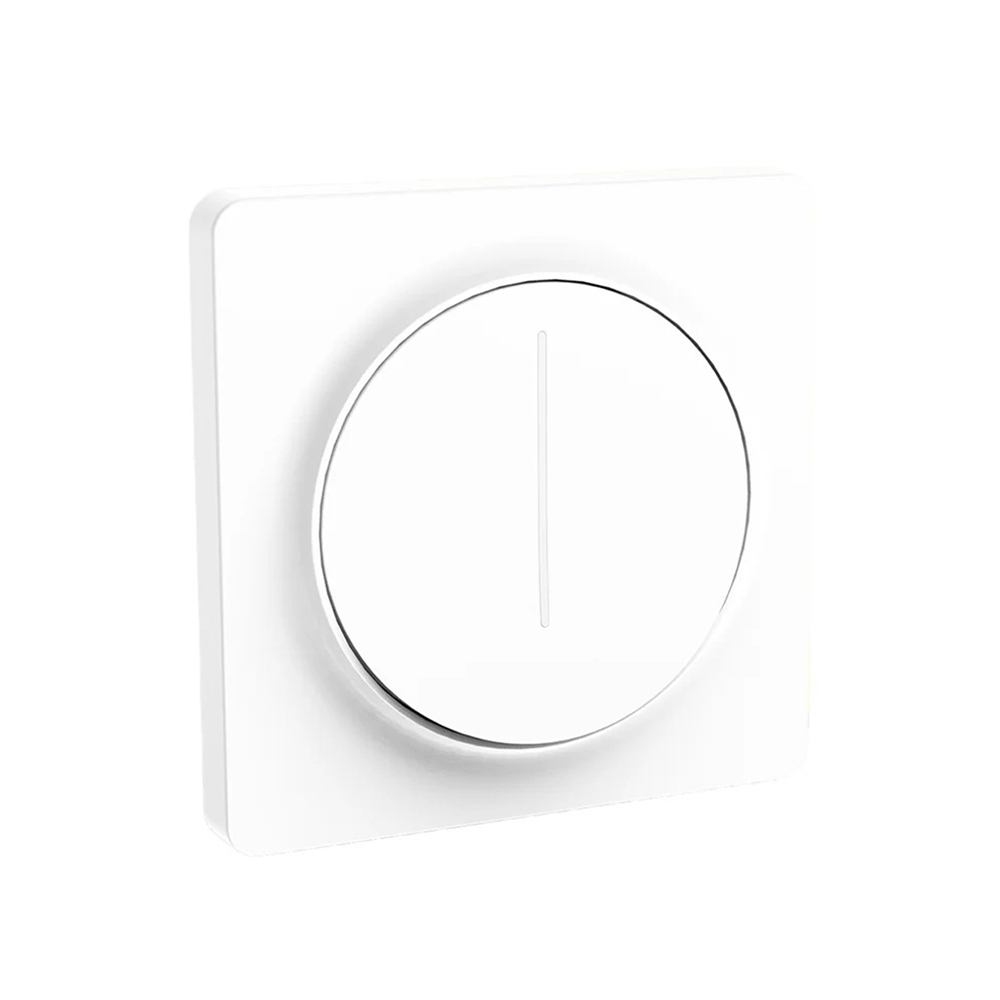

EU WIFI Smart Touch Dimmer Switch

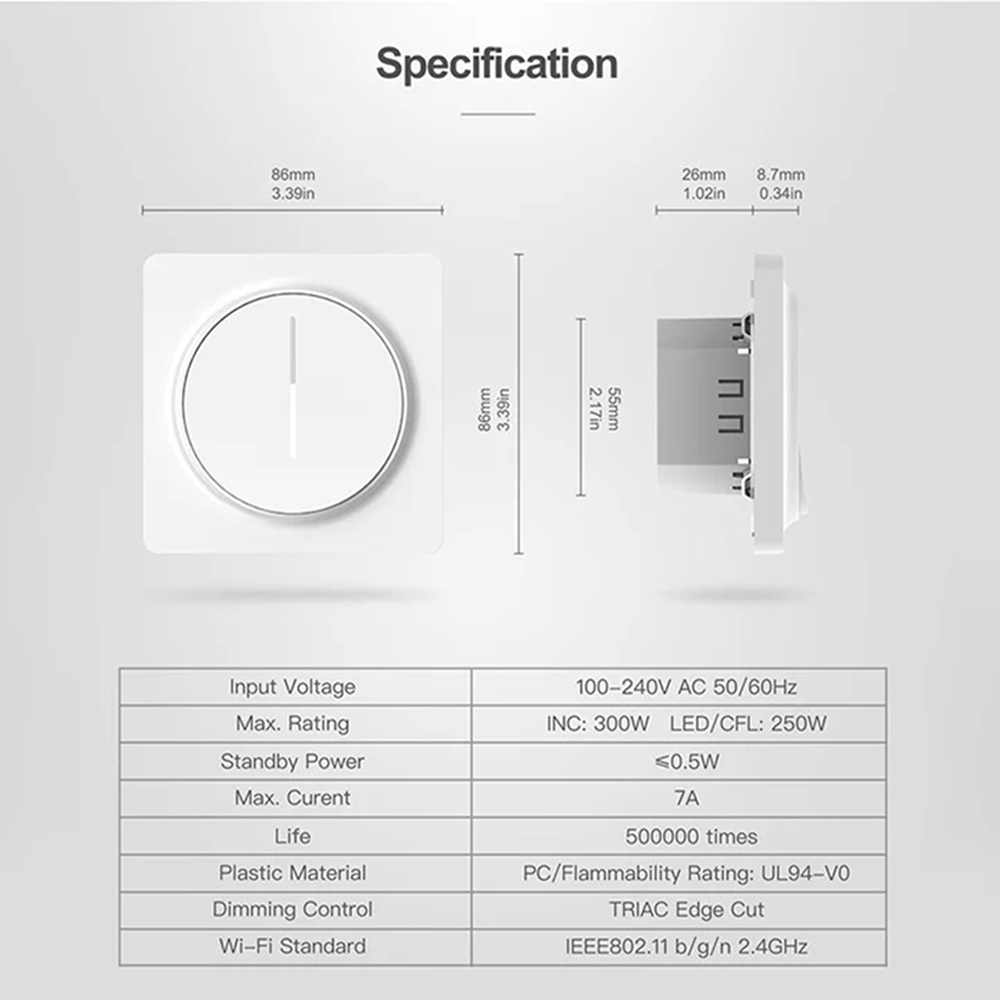

Basic Information
Input Power |
100-240V AC 50/60HZ |
Dimming Control |
Trailing Edge Cut |
Inductive load (LED/CFL) |
<220W |
Resistive load (Incandescent) |
<300W |
Communication |
WiFi 2.4GHz / BLE |
Control Channel |
1CH |
Standby Power |
≤0.5W |
Working Temperature |
-10℃ to 45℃ |
App |
Tuya Smart/Smart Life |
Working Humidity |
<90% |

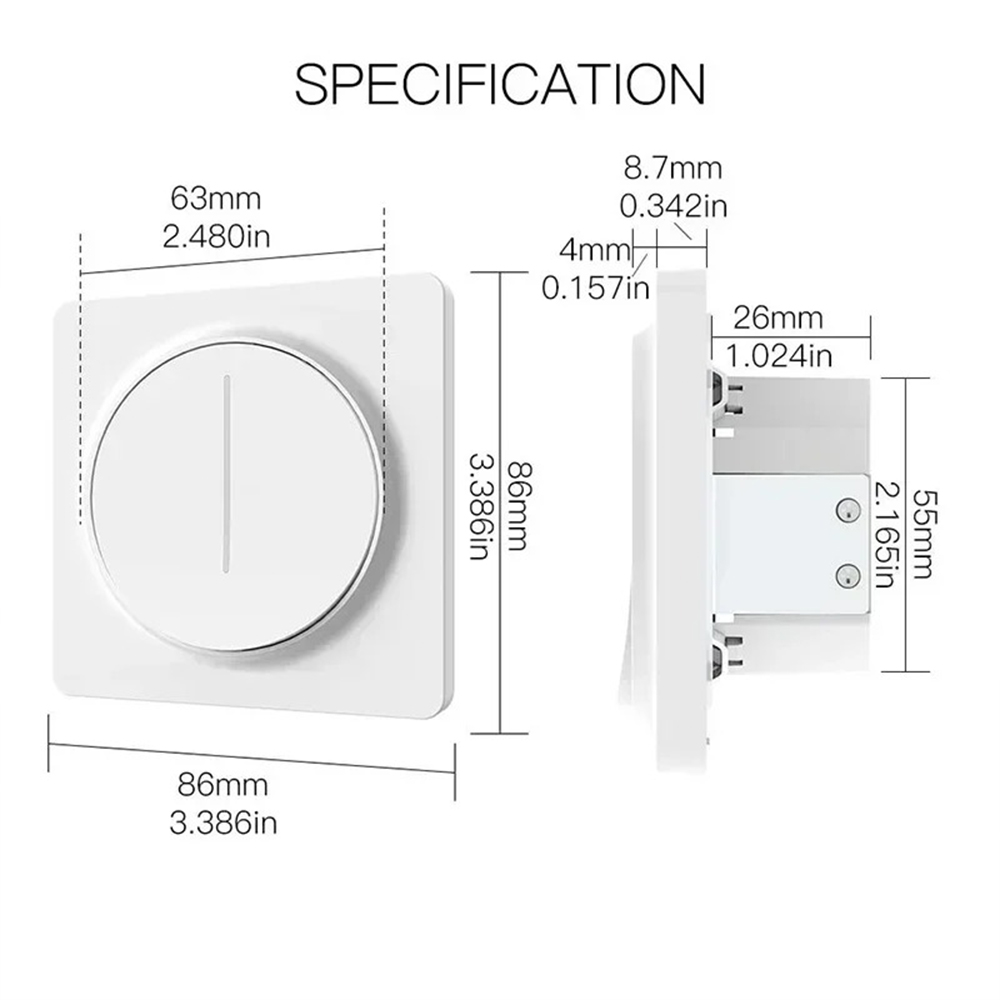

Dimension |
86*86*43mm |
Lifetime |
100000 times |
Features & Functions
Indicator Light Status
Light Color is White
LED bar with brightness level, Switch Status Light turn on,
Brightness indicator blink slowly (Breathing),Switch Status Light turn off
Bottom LED blink fast, Switch Status Network disconnected
Bottom LED blink Switch Status, Quick configure mode
Bottom LED blink slowly Switch Status, AP configure mode
App Remote Control
Remote control lighting of your house via Smart Life app from anywhere at anytime. No hub required.
Voice Control
The wifi dimmer switch works with Alexa and Google Home Assistant to conveniently control the light with simple voice command when you are on go.
Timing Function
Create schedules to automatically turn the light on with the preset brightness or off at specific times. Perfect to create different mood lights with specified brightness for your daily activities, bedtime or TV time, sunrise or sunset, etc.

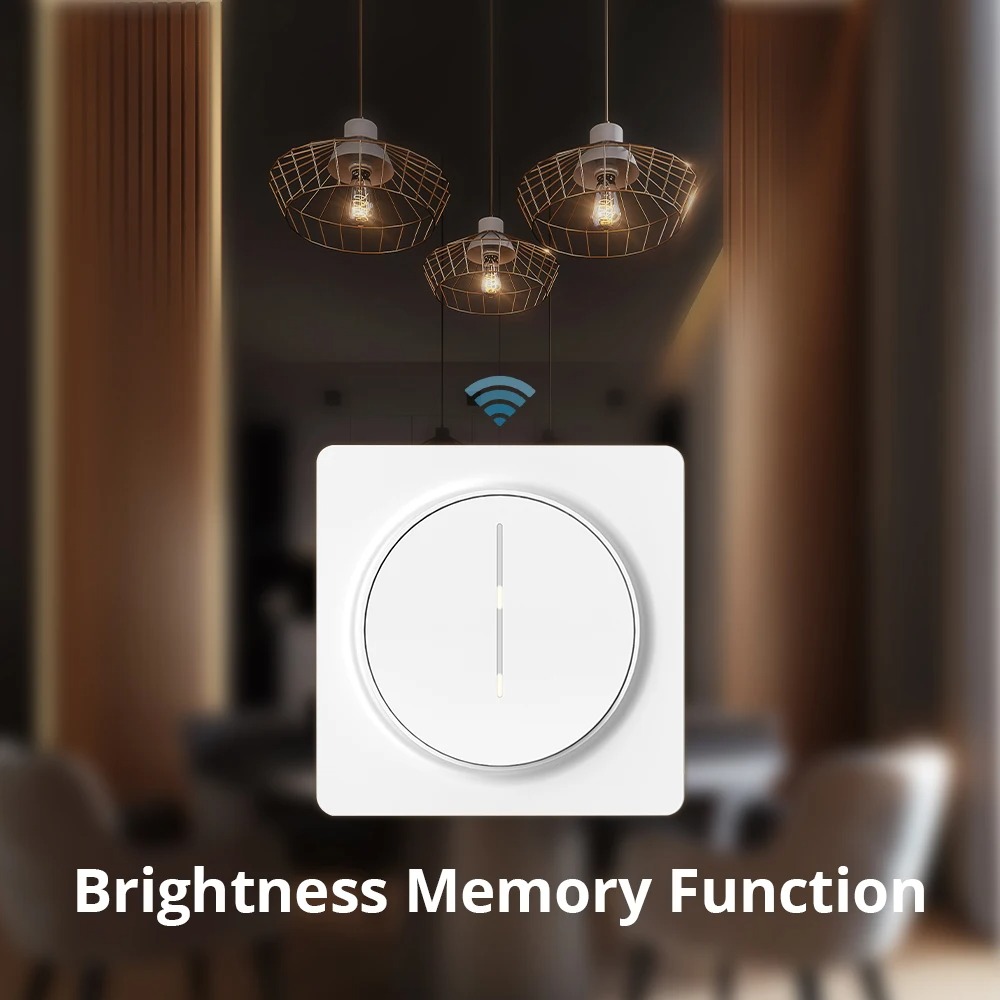

Memory Function

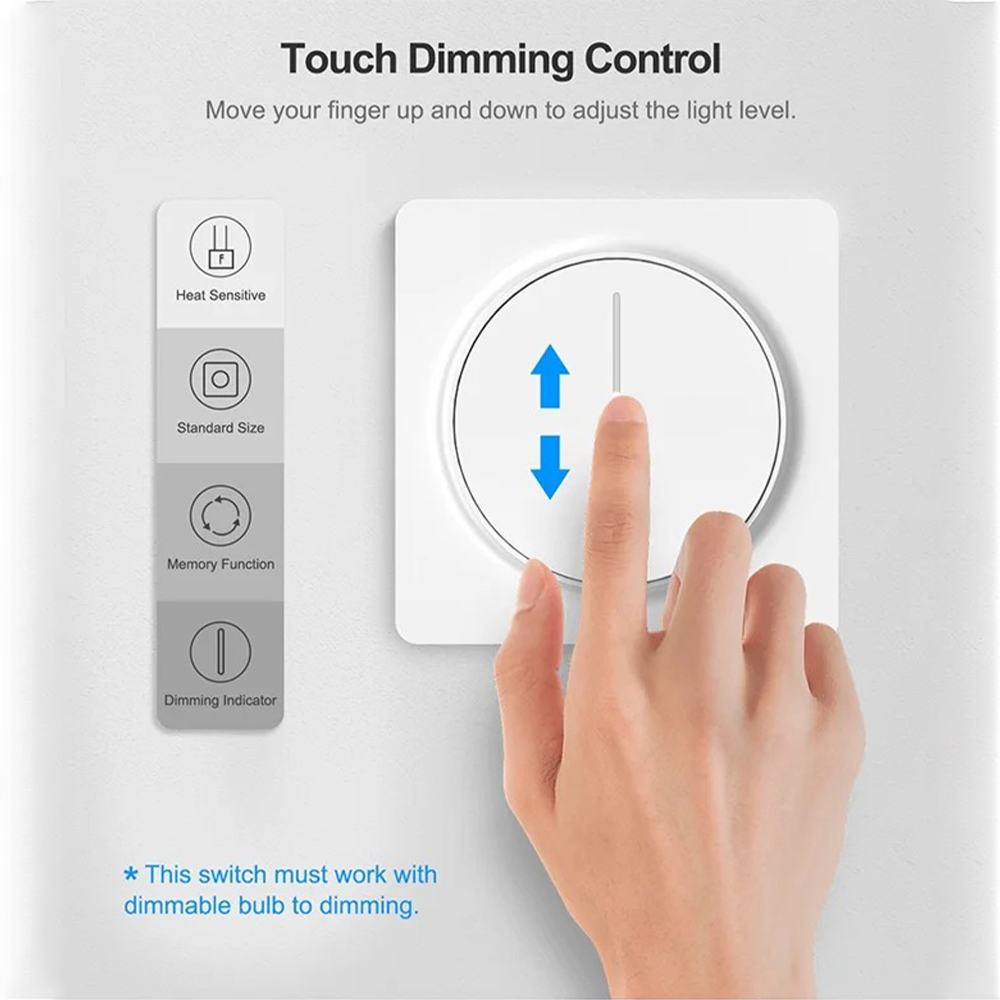

Adjust the light to a certain percentage by moving your finger up or down on the front and center of the switch, by Smart Life App or voice command; get the right light intensity while watching movies, reading, wearing makeup, etc. The switch remembers and turns back on to the last light setting when powered off.
Send a message
