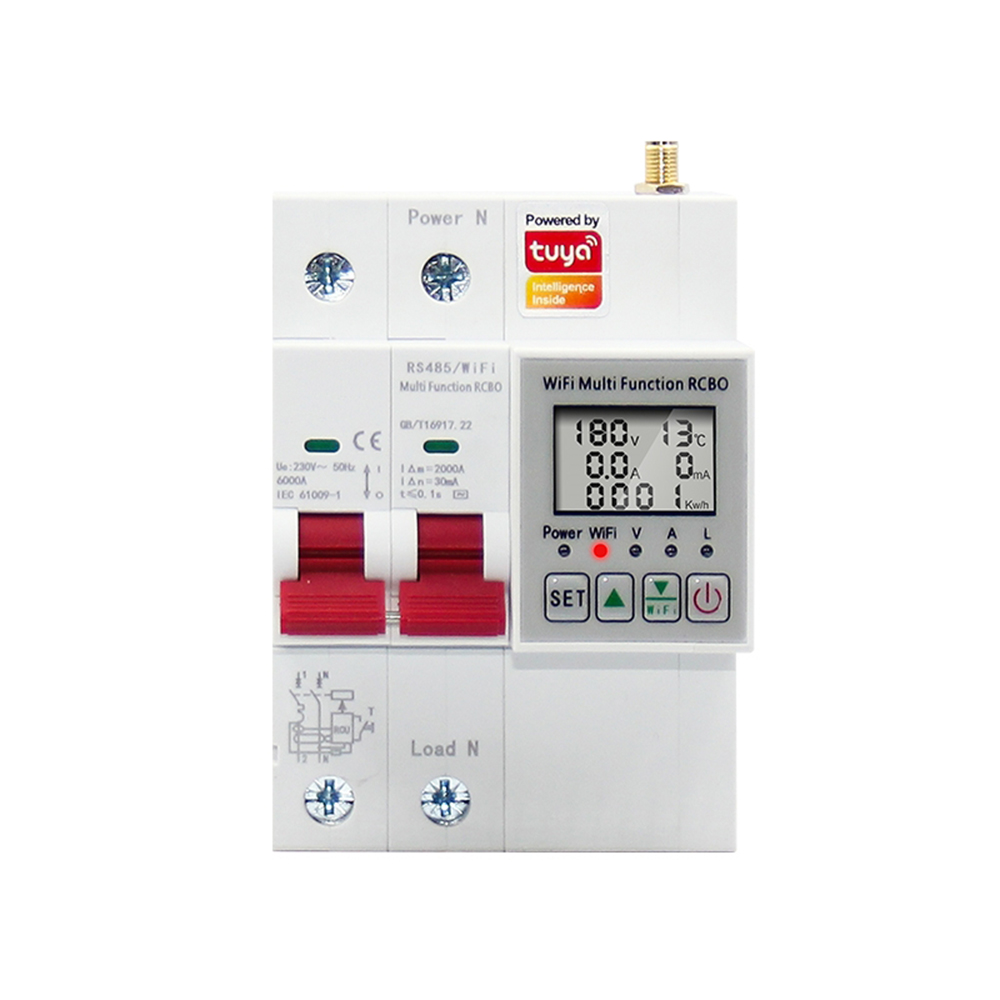

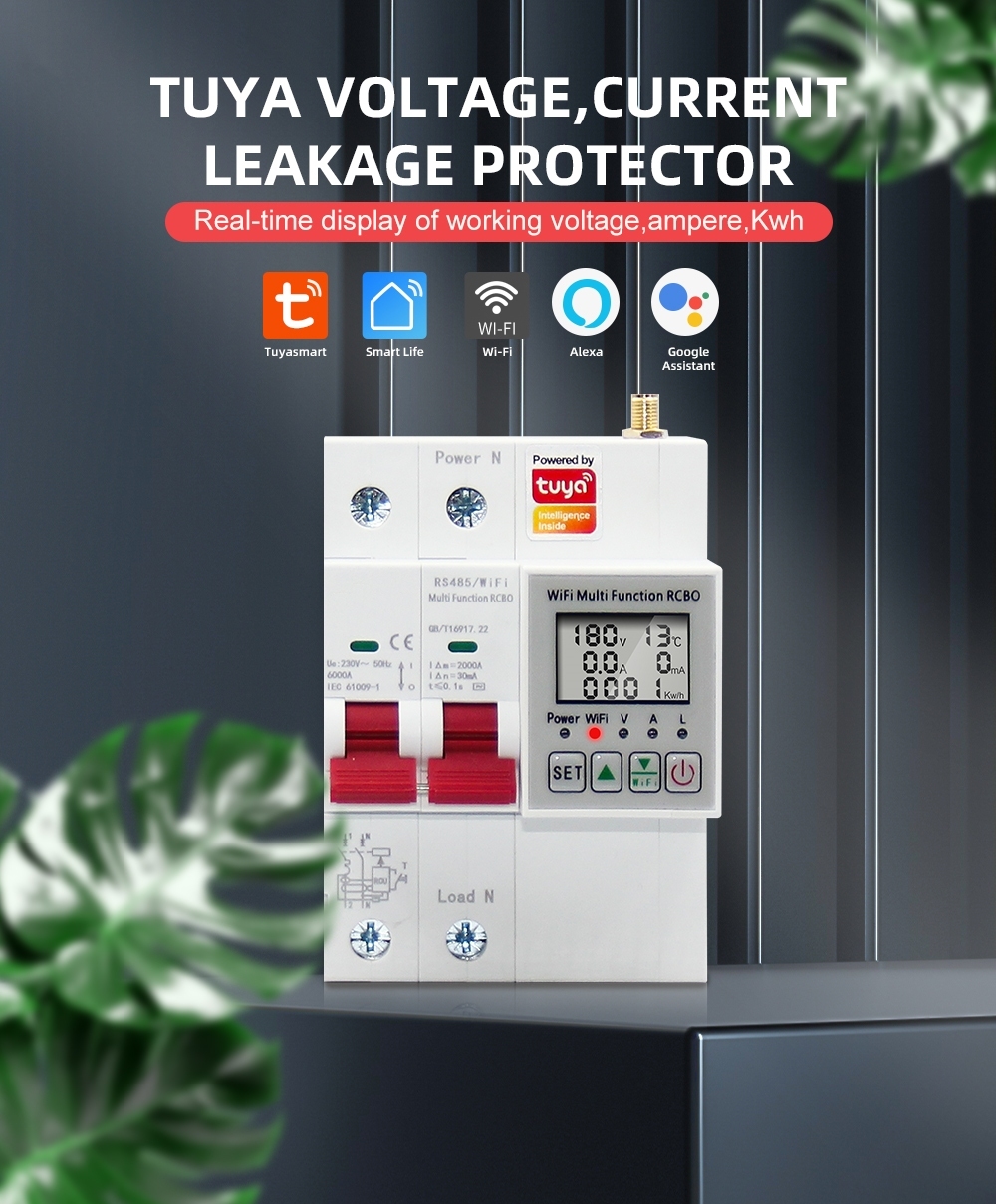

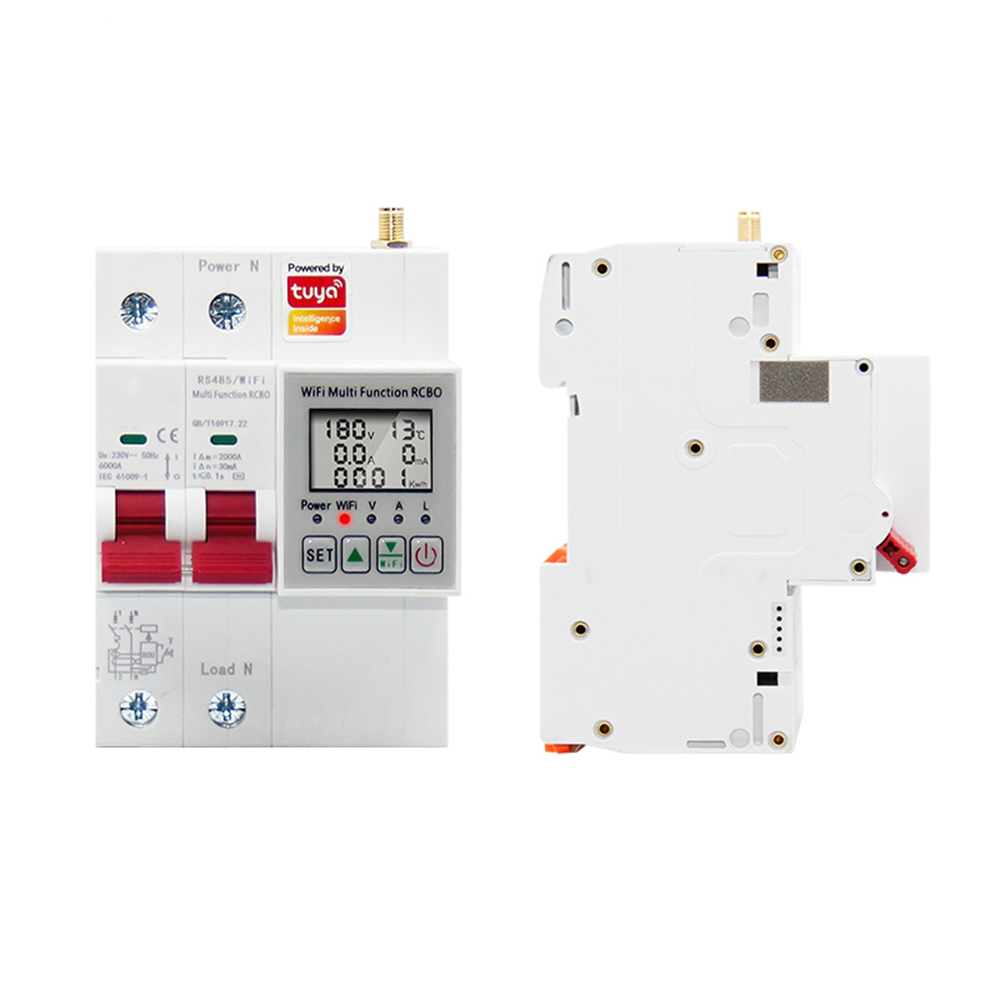

63A Smart WIFI Energy Meter
Products Main Specifications

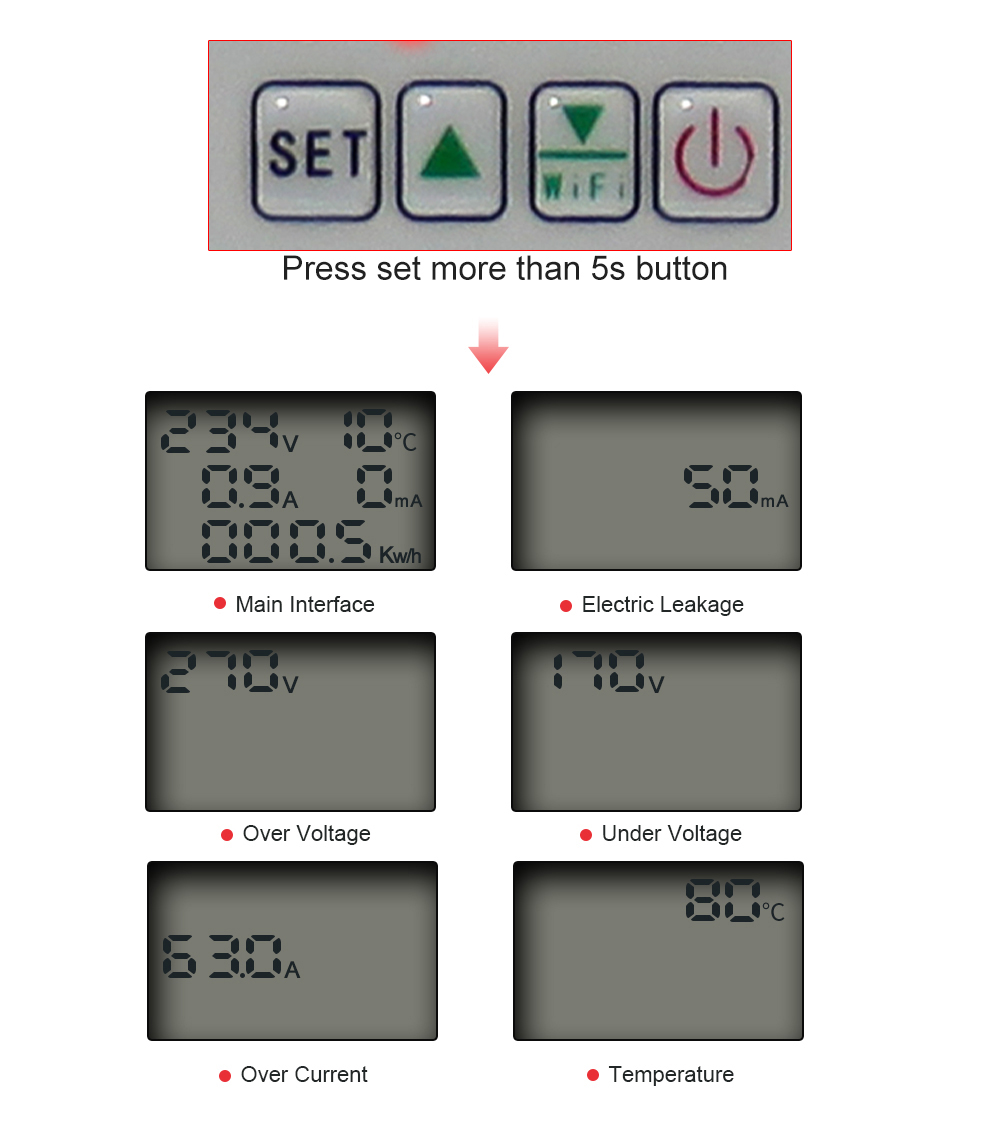

| Under voltage protection | 150V-200V (adjustable) (default: OFF) |
| Over voltage protection |
250V-300V (adjustable) (default: 275V) |

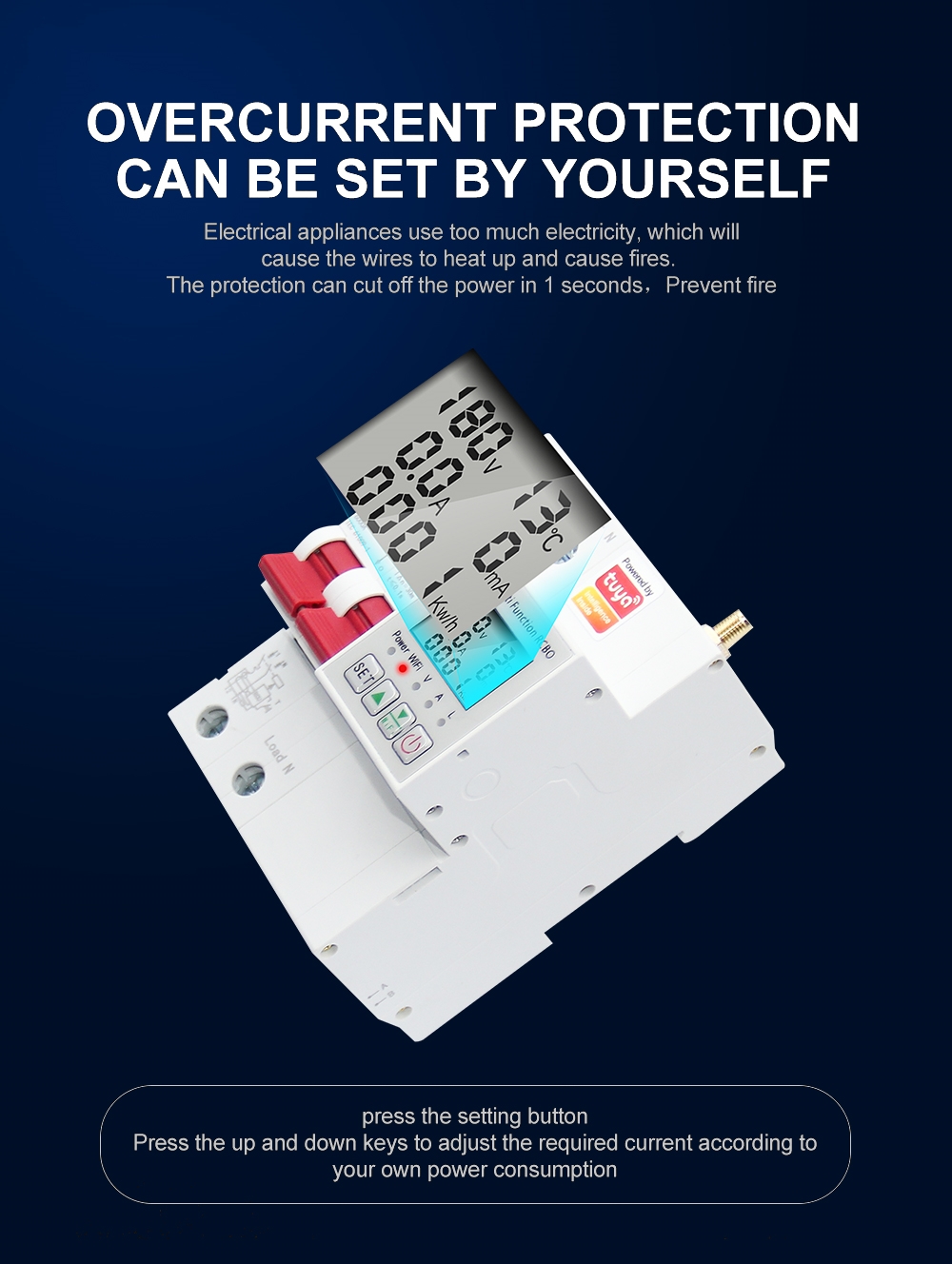

| Over current protection |
1-63A (adjustable) (default: 63A) |
| Overload alarms |
1-13kW (adjustable) (default: 13kW) |
| Leakage alarm | 10-90mA(adjustable) (default: 30mA) |
| High temperature alarm |
40-150℃(adjustable) (default: 80℃) |
| Error in real-time current, voltage |
≤5% |
Products Description
High Current Capacity (63A): Allows high-power appliances, such as instant water heaters, underfloor heaters, and central air conditioners, to operate simultaneously without the risk of overload tripping.
Adjustable Current Limit Range: Offers precise control with adjustable current limit range from 1-63A, ensuring optimal protection.
High Accuracy Monitoring: Features a ≤5% error in real-time current and voltage for reliable performance.

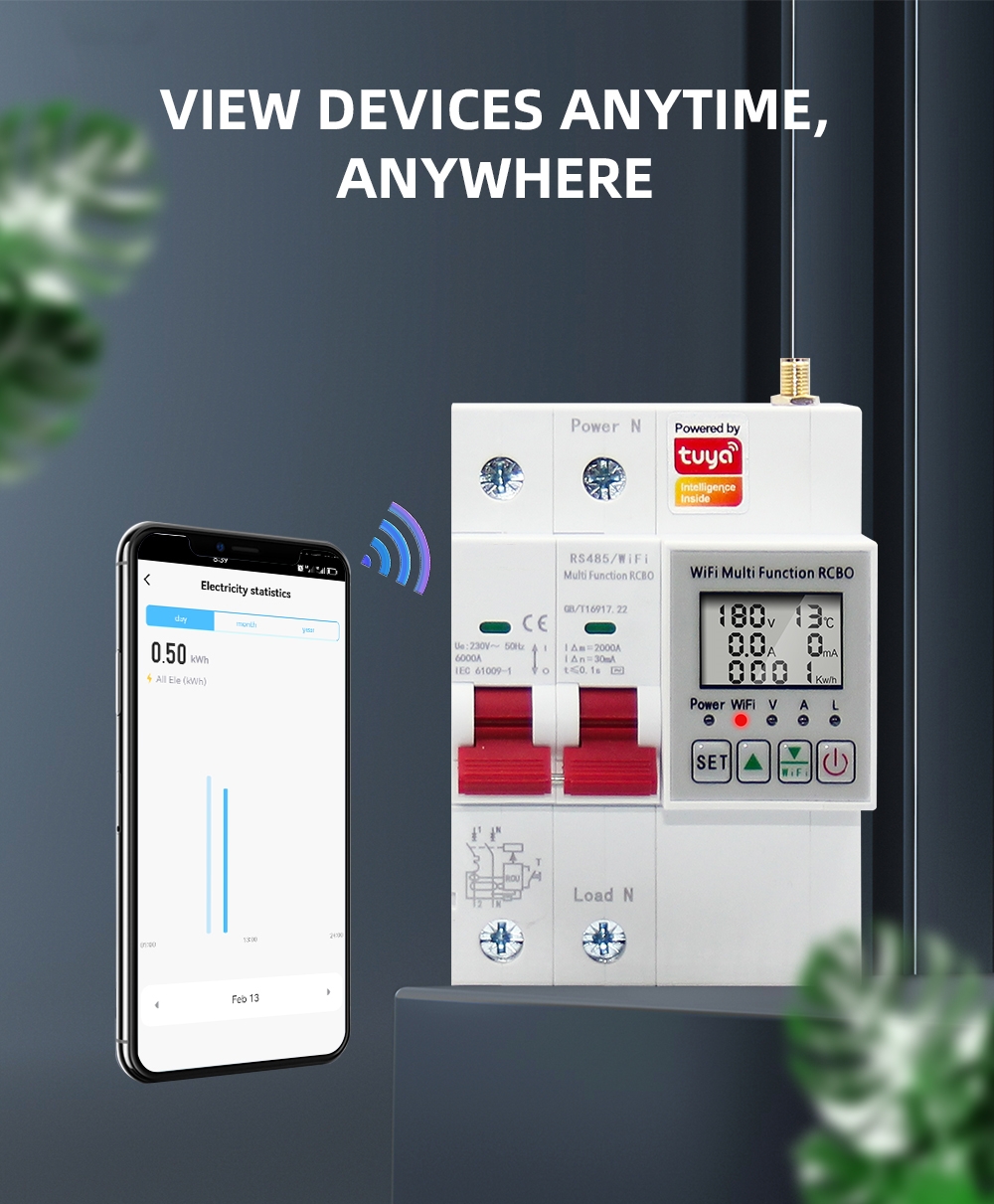

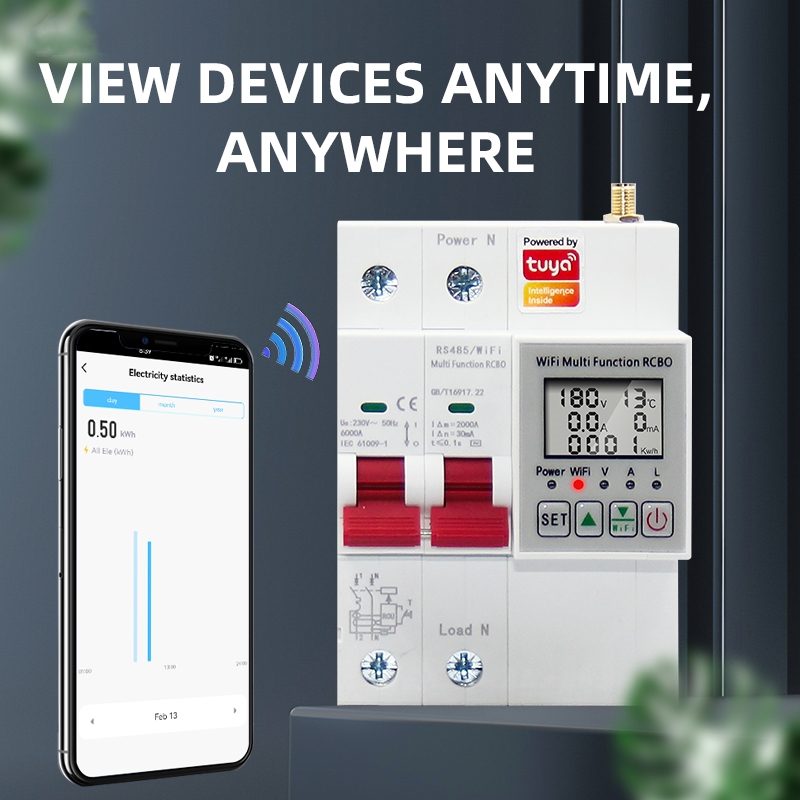

Smart WIFI Connectivity: Seamless remote monitoring with WIFI connectivity via TUYA Smart life app for real-time control.

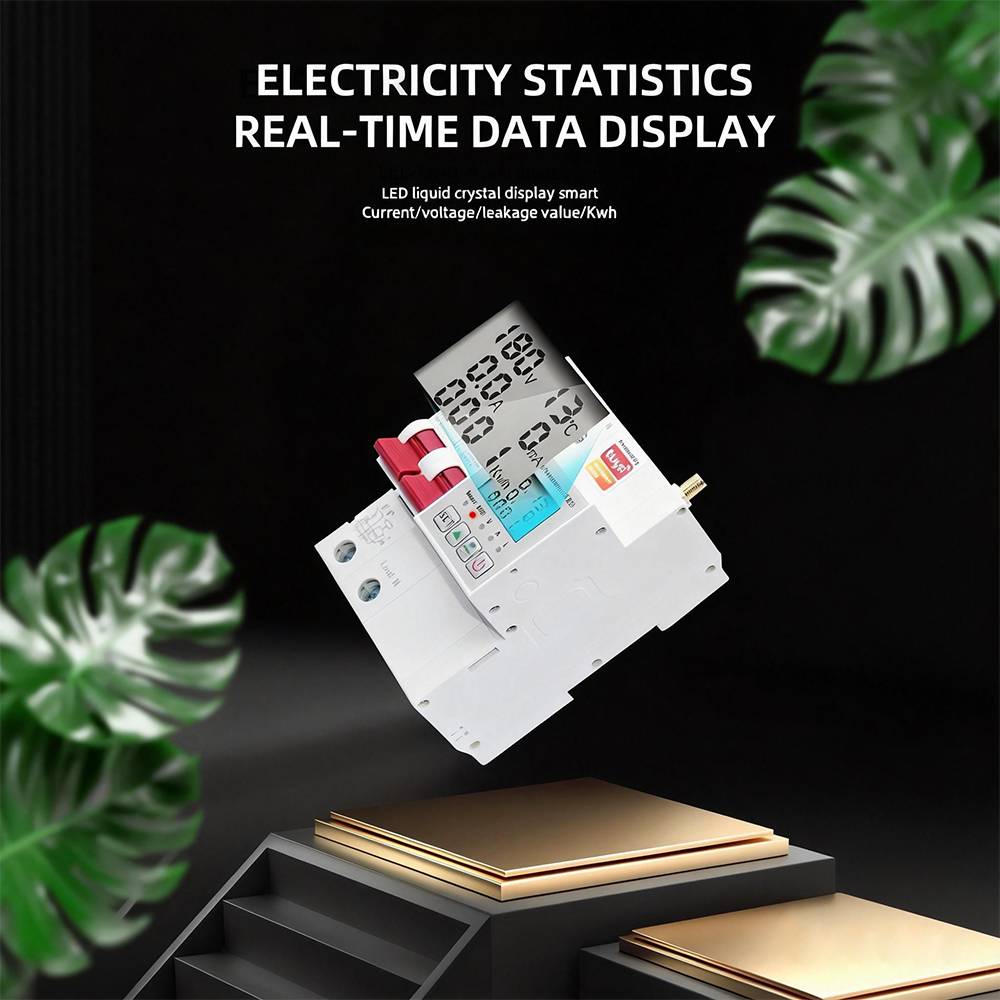

Precise Metering (Electricity Meter Function): It shows voltage, current, power, and electricity usage in real time thanks to a high-precision metering chip. In order to identify energy-guzzling gadgets, the software also displays time-of-use consumption curves.

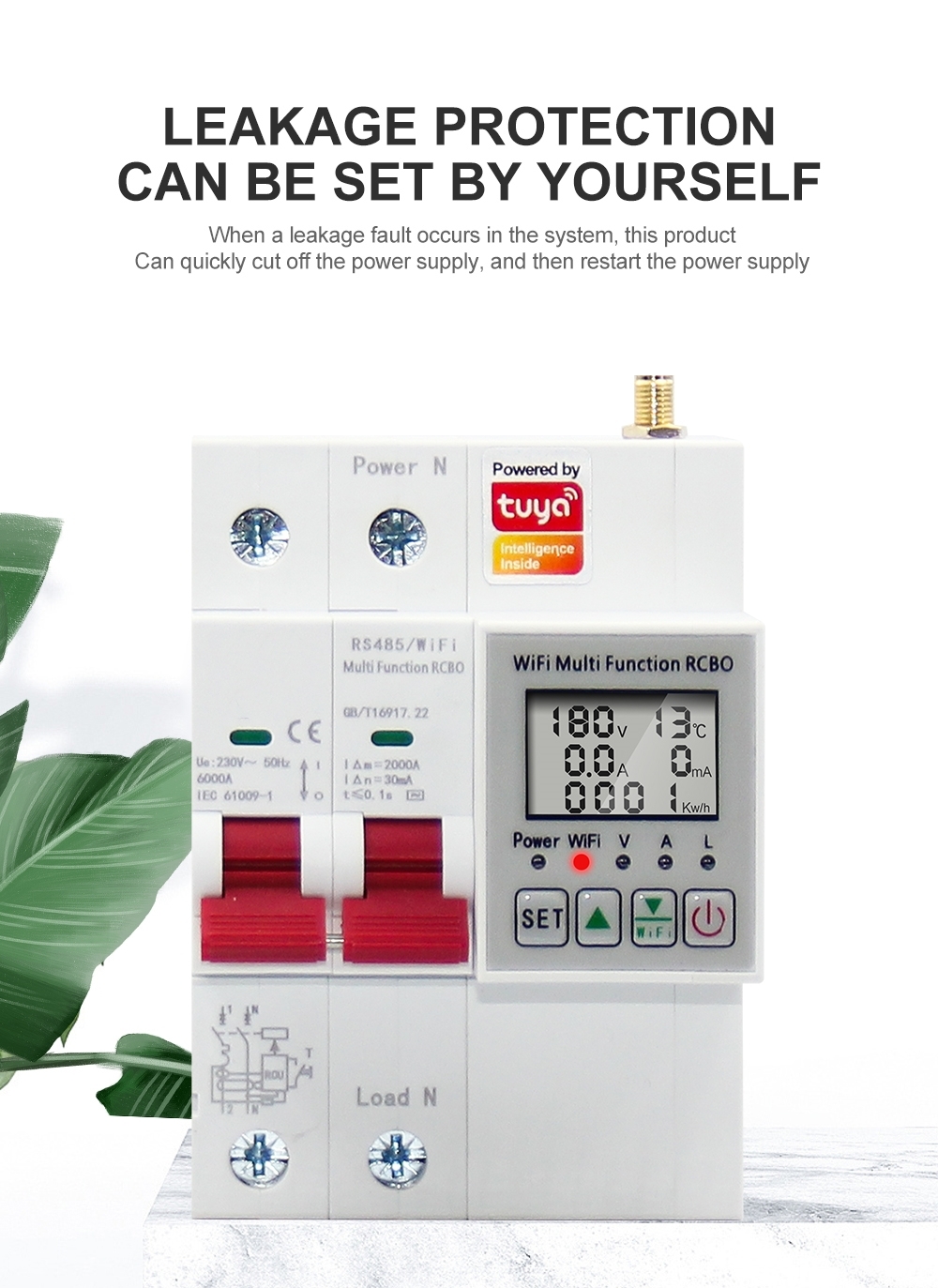

Earth Leakage Protection: Prevents electric shock by instantly tripping upon detecting a leak (usually 30mA).

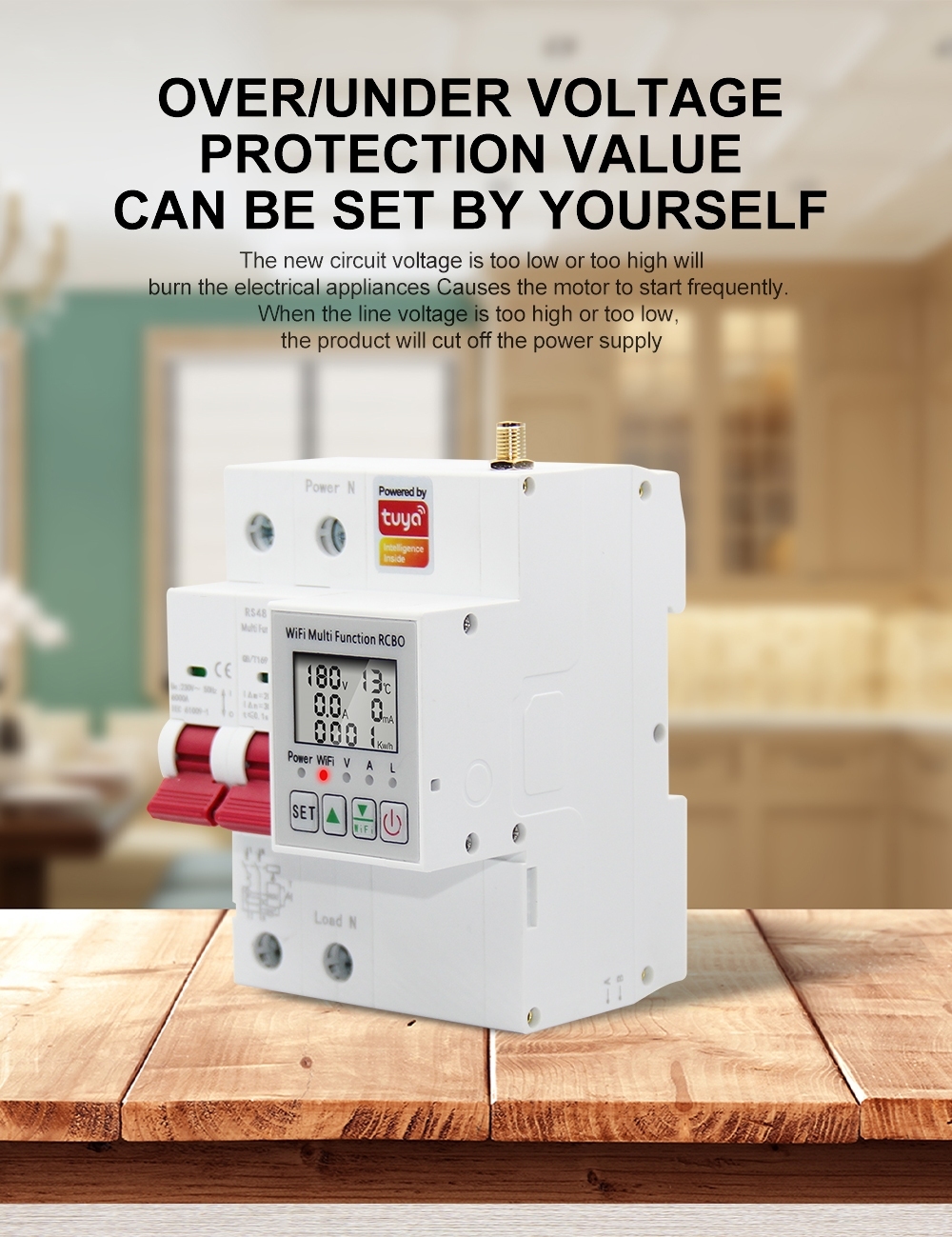

Over/Undervoltage Protection: Prevents costly appliances like air conditioners and refrigerators from burning out by automatically cutting power during voltage spikes or decreases.
Overheating Protection: Keeps an eye on the internal device temperature to stop overheating-related fires.
Remote Switching: Forgot to turn off the AC when leaving? One-tap power cut via your phone.

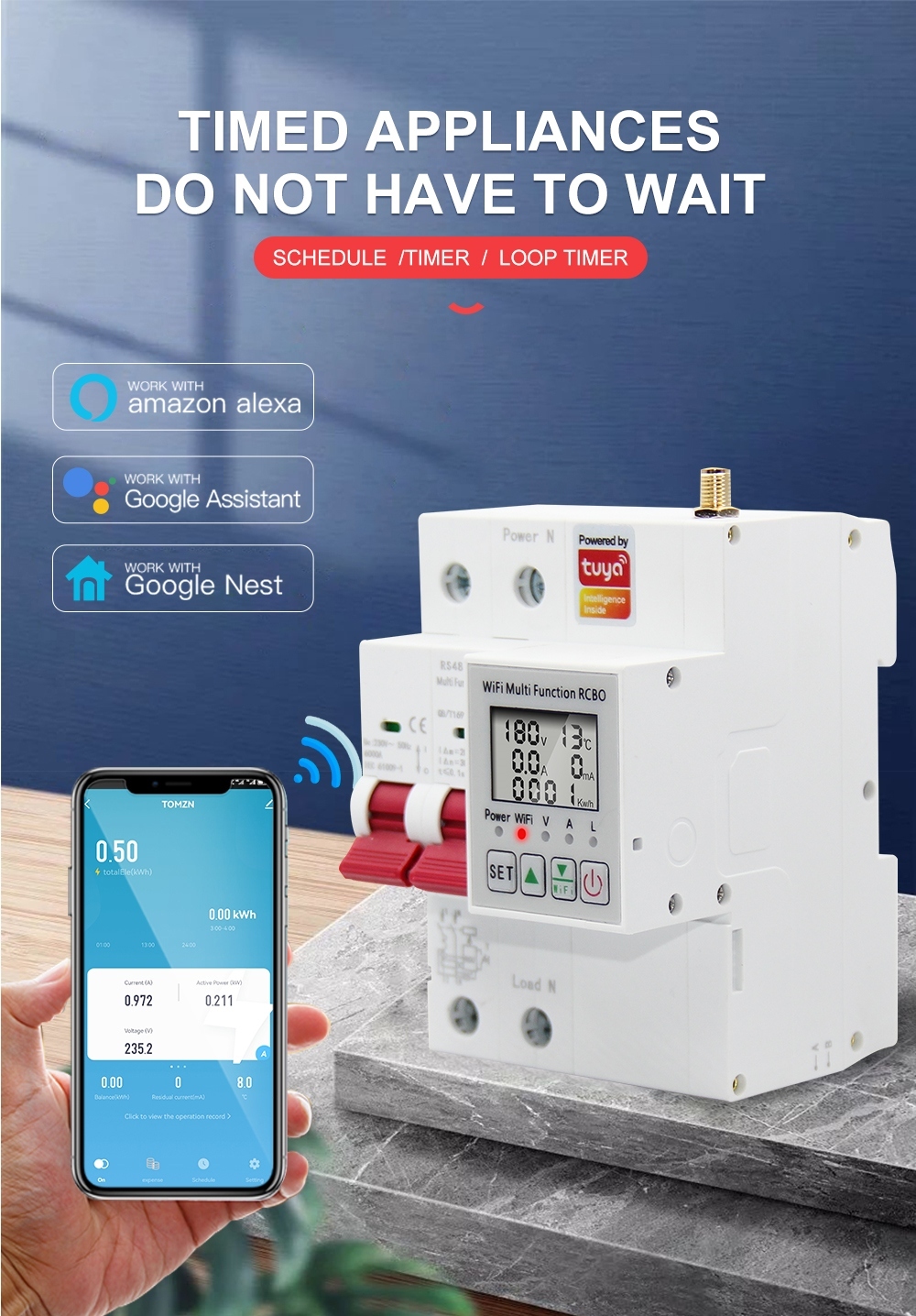

Scheduling/Countdown: Set automatic power-off at 11 PM or countdown shutdown for water heaters.
Voice Control: Supports voice commands via Alexa or Google Assistant
Reliability: Long-term accuracy retention, no requirement for rotating calibration, no effects from installation or transit, etc.
Precision: Sensitive startup, wide power factor, wide range, etc.
Protection of data: All-solid-state integrated circuit technology is used for data preservation, and after a power outage, data can be preserved for more than ten years.
Primary Use cases
This product is perfect for situations where remote management and great electrical safety are required.
Large Homes/Villas: With so many high-power appliances, the 63A capacity guarantees steady operation throughout the house while enabling the app to monitor overall energy usage.
Rental properties and vacation homes: To prevent arguments, landlords can remotely read meters and initiate a one-touch power shutdown upon tenant checkout.
Renovated older communities: It displays voltage readings to aid in the diagnosis of grid problems and immediately cuts off anomalous electricity to prevent appliance damage due to ageing wiring and unpredictable voltage in older homes.
Smart home integration: Enables automated situations such as "lights off when no one is home" or "air conditioner shuts down during voltage fluctuations" by integrating with platforms like Tuya.
