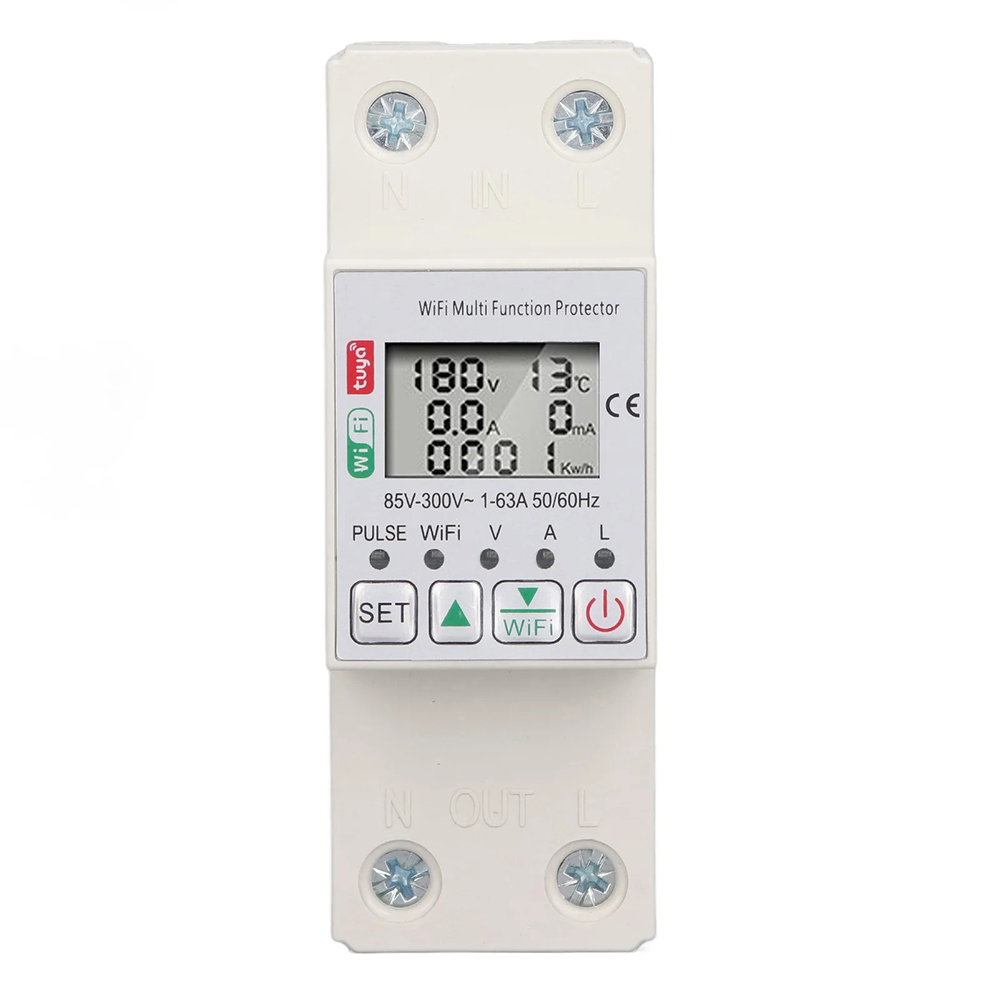

Smart Power Meter Switch
Products Main Specifications

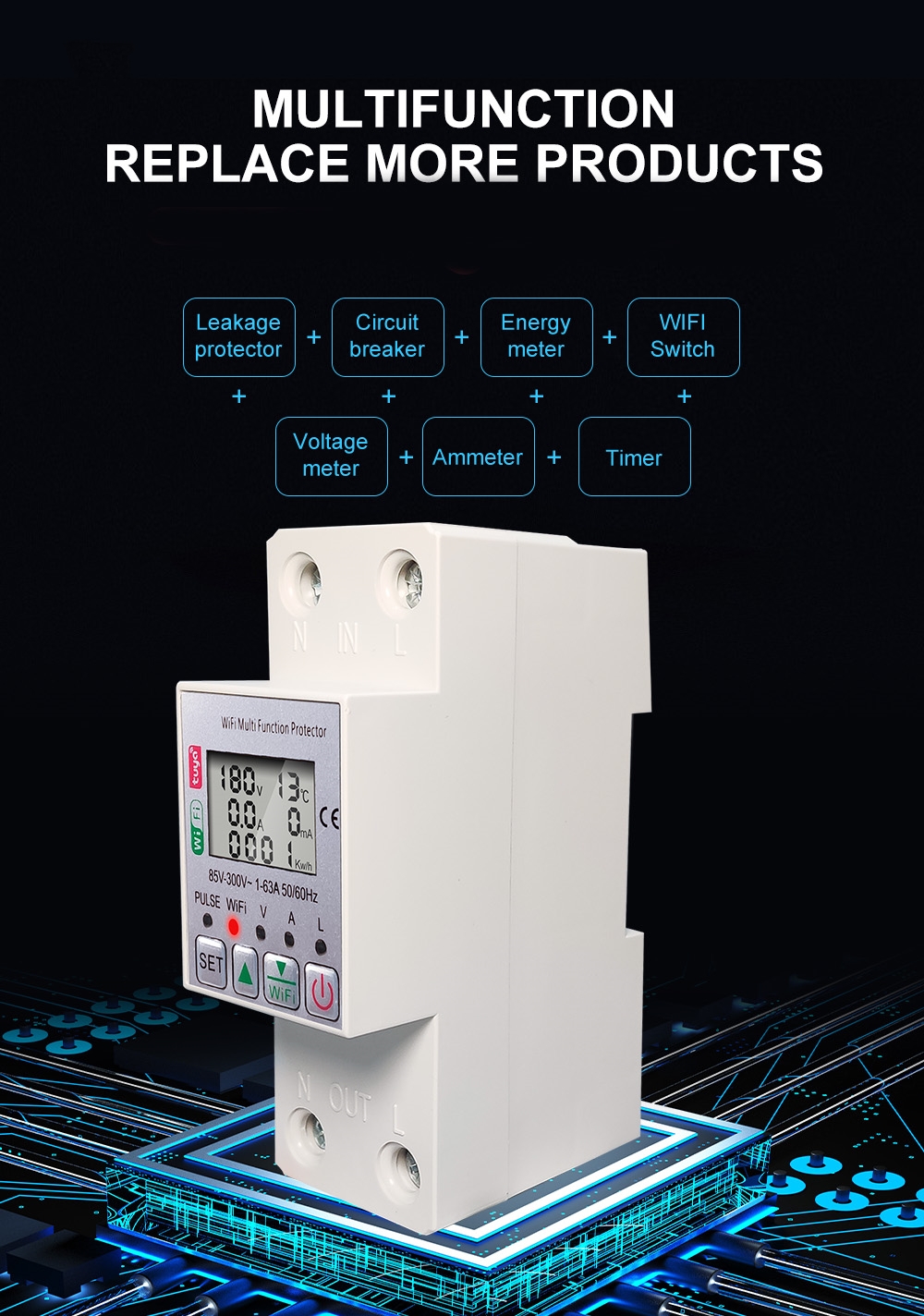

| Protective function | Leakage protector + Circuit breaker + Energy meter + Voltage + meter + Ammeter + WIFI Switch + Timer |
| Rated Voltage | 85-300V |
| Working current | 1A~63A adjustable |

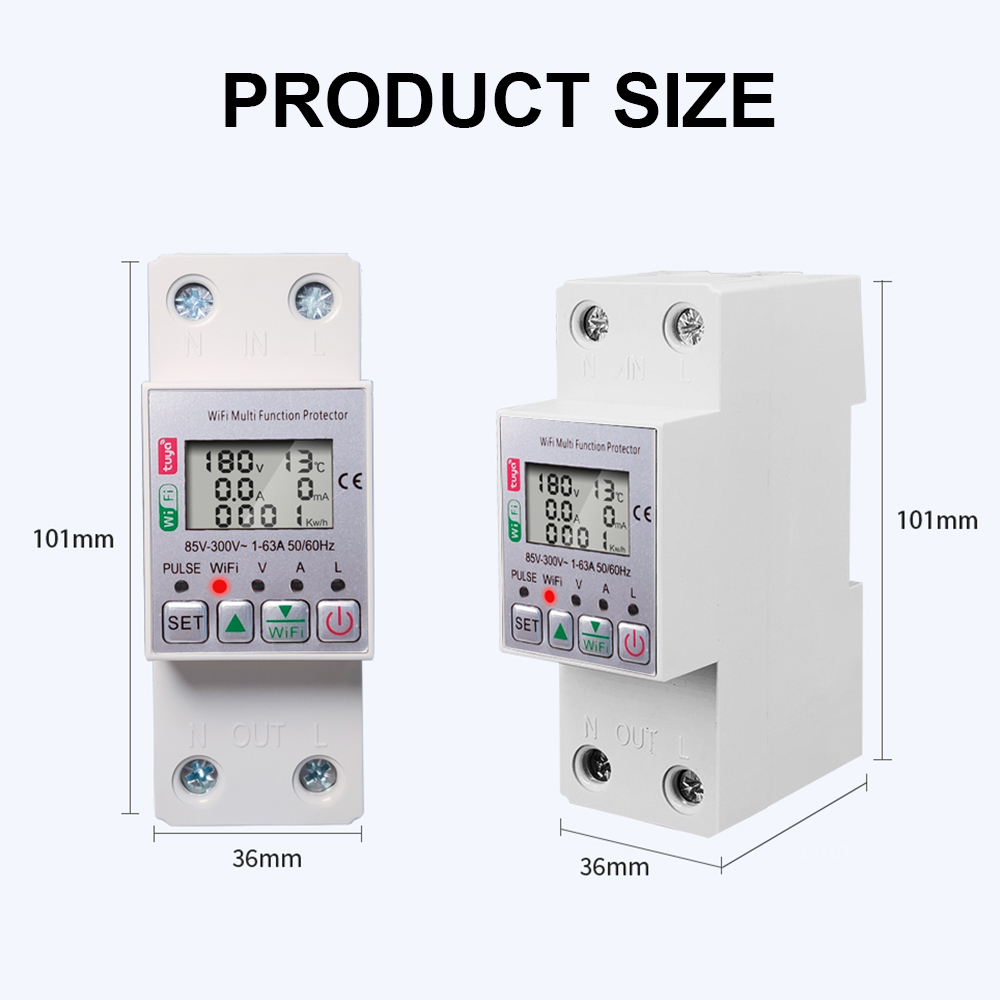

| Product Size | 36*101*66mm |
| Native power consumption | ≤2W |
| Kwh range | 1-9999.9kw/h |

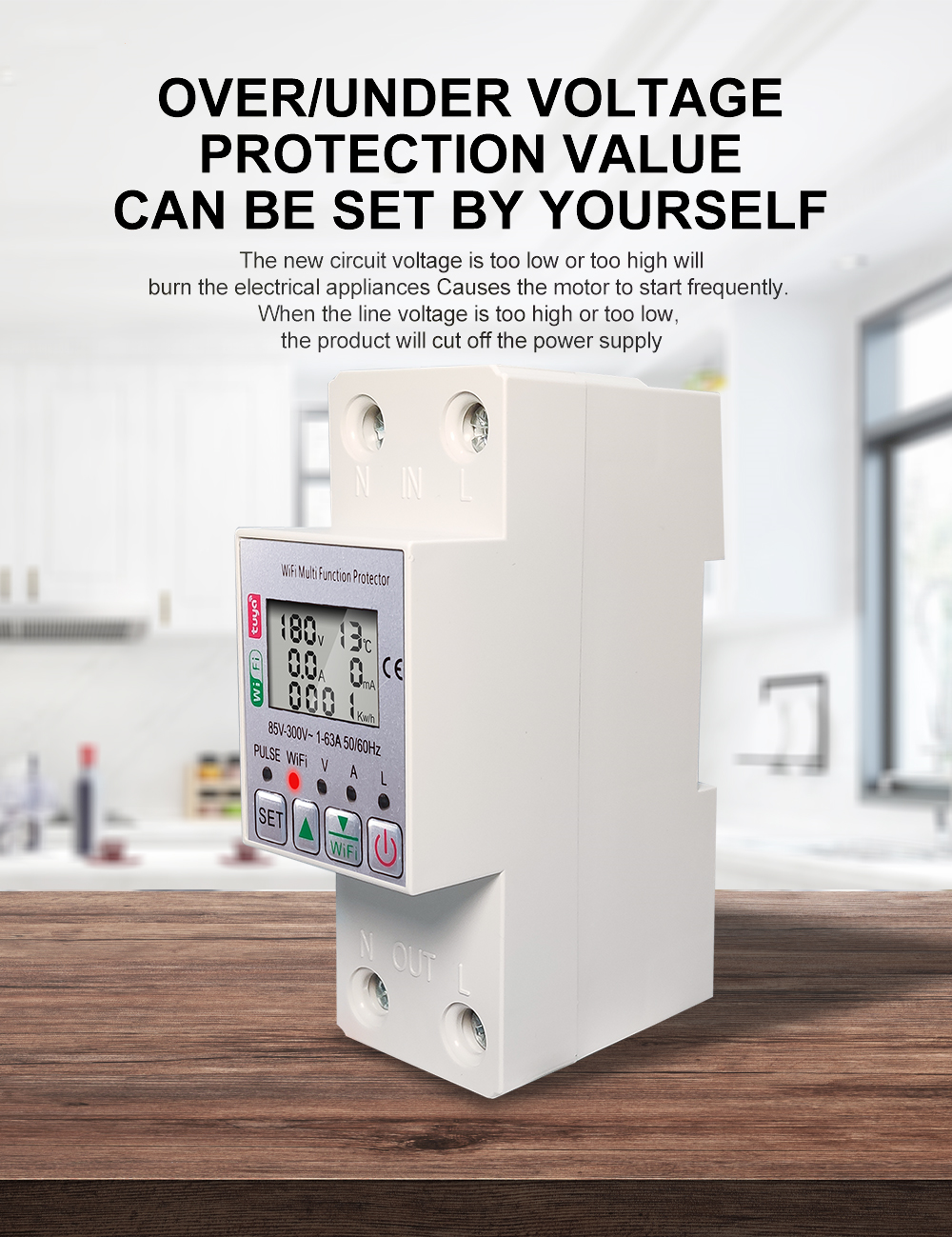

| Overvoltage protection value | 120V-300V adjustable |
| Undervoltage protection value | 85V-300V adjustable |

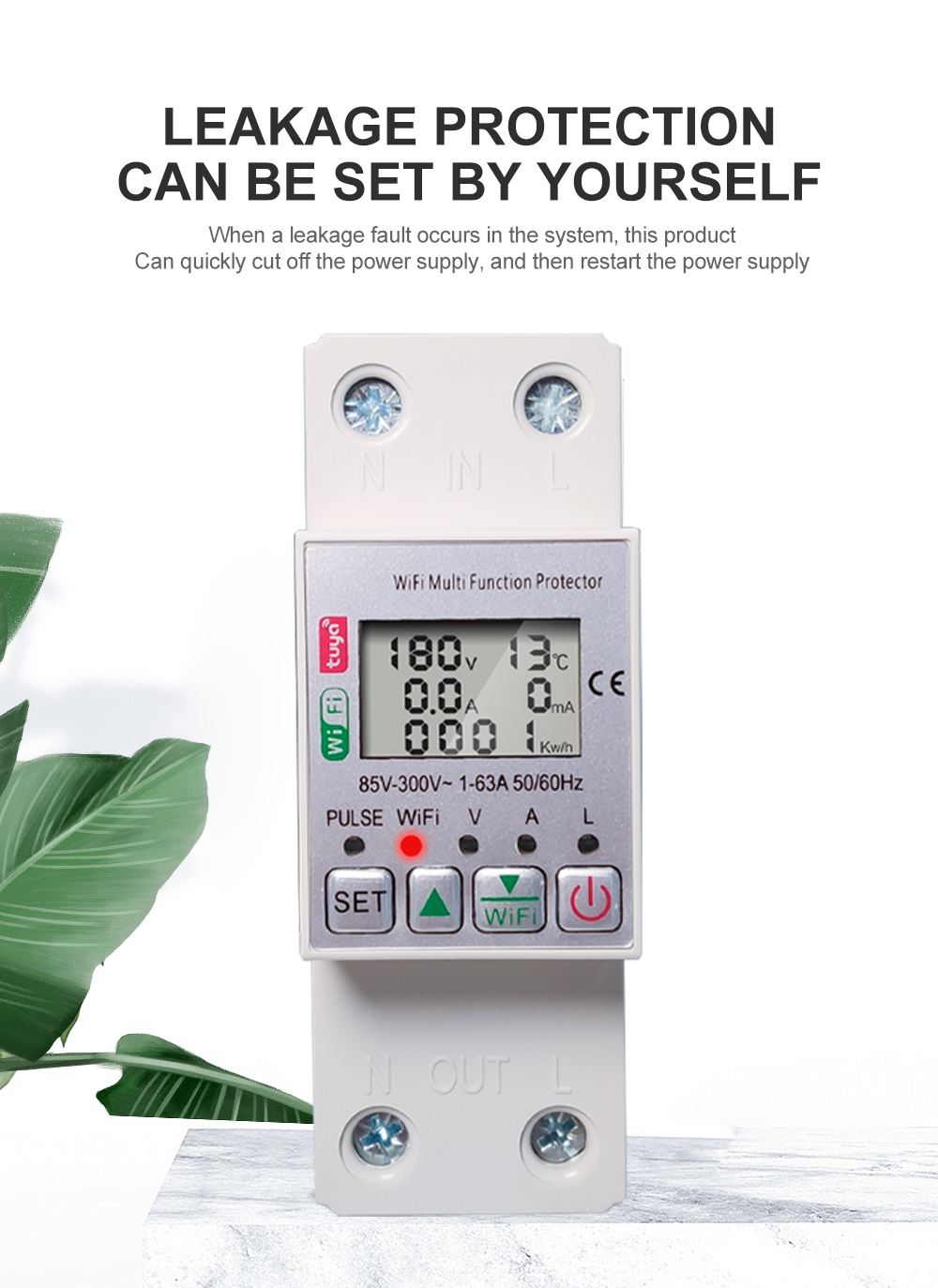

| Leakage protection value | 10-99mA adjustable |
| Self-reset time | Can be tumed off for 5 seconds to 99 |
| Temperature | -20-60°C |
| Humidity | ≤85% |
| Altitude | Up to 2000m / 6561.68ft |

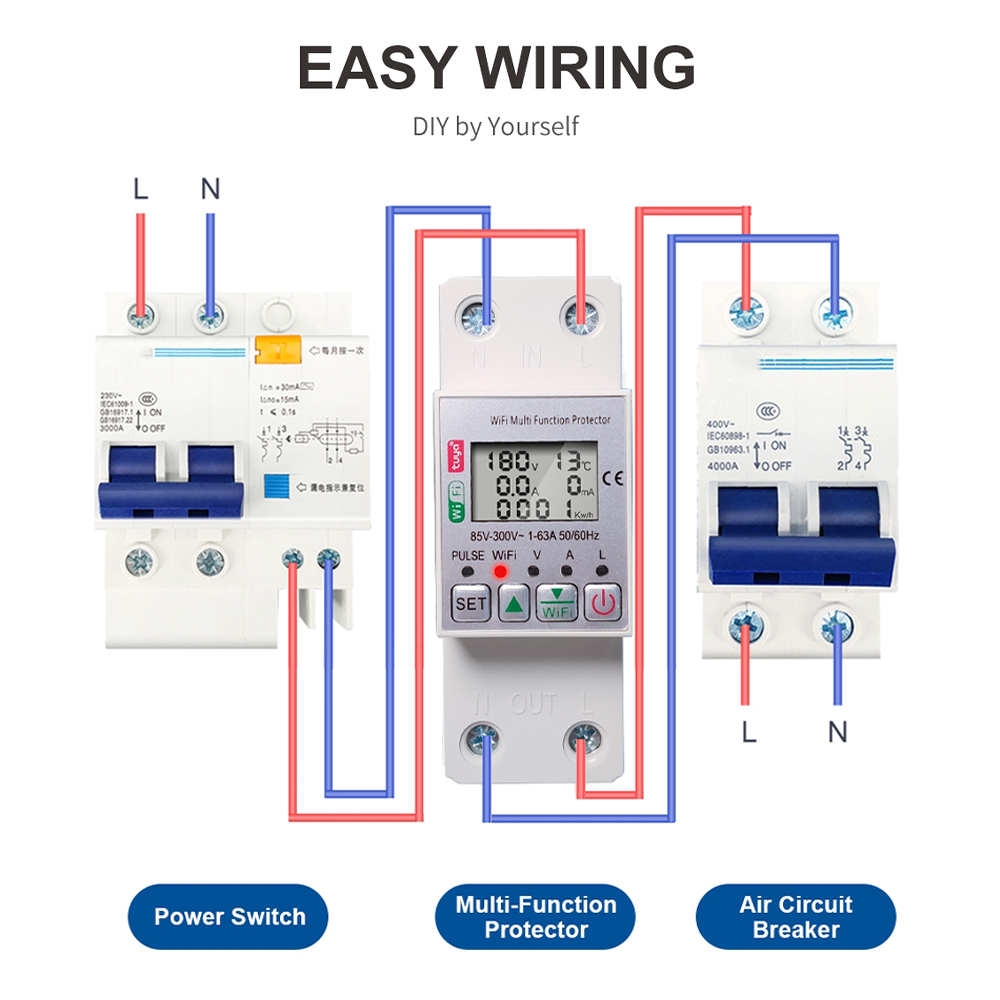

| Wiring Capacity | Insulated copper wire below 35 square millimeters |
| Installation | 35mm Guide Rail |

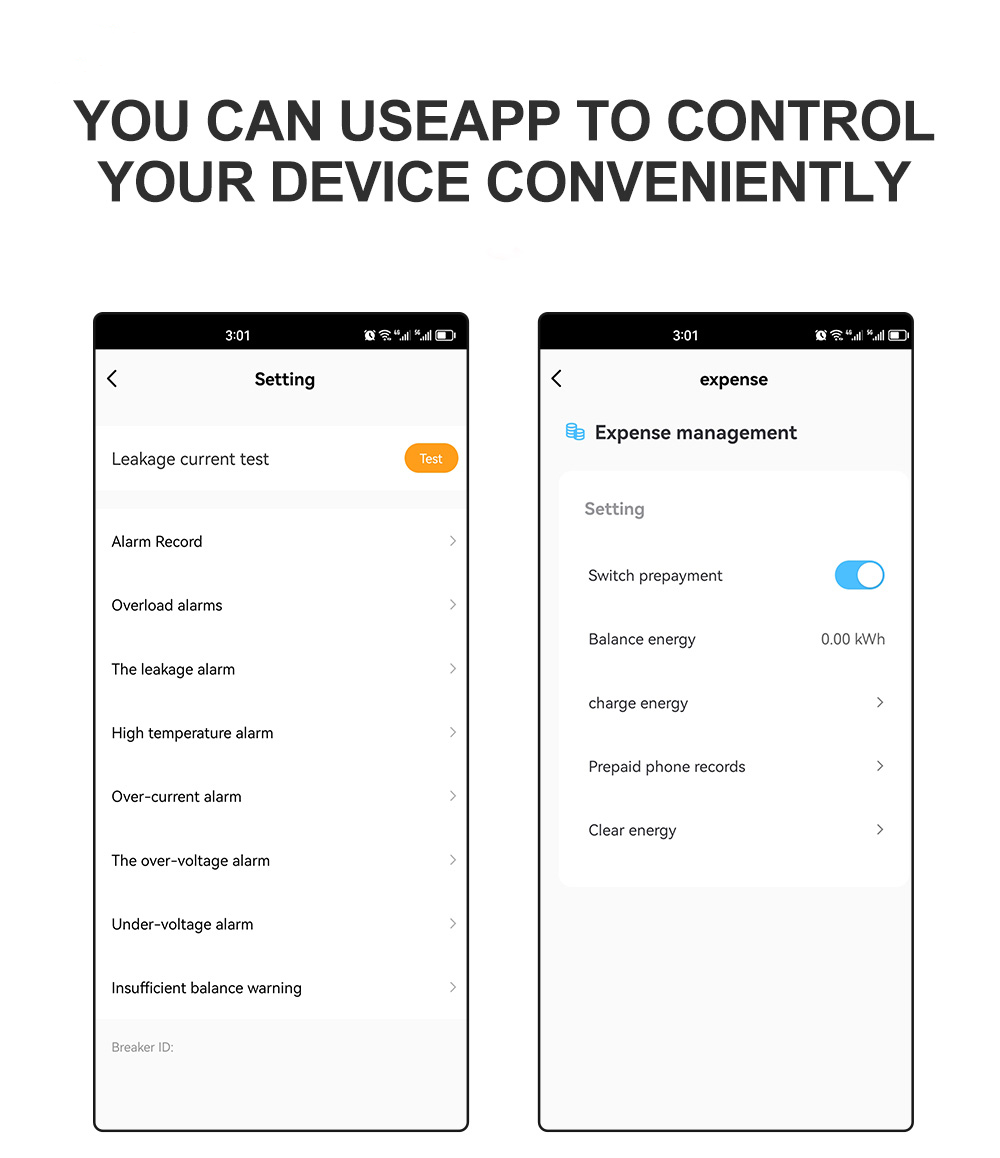

| Remote control | via for SMART LIFE, for TUYA anytime, anywhere. |
| Timer | Timing, Countdown, Cycle Time. |
| Voice control | Alexa, Assistant |
Products Description

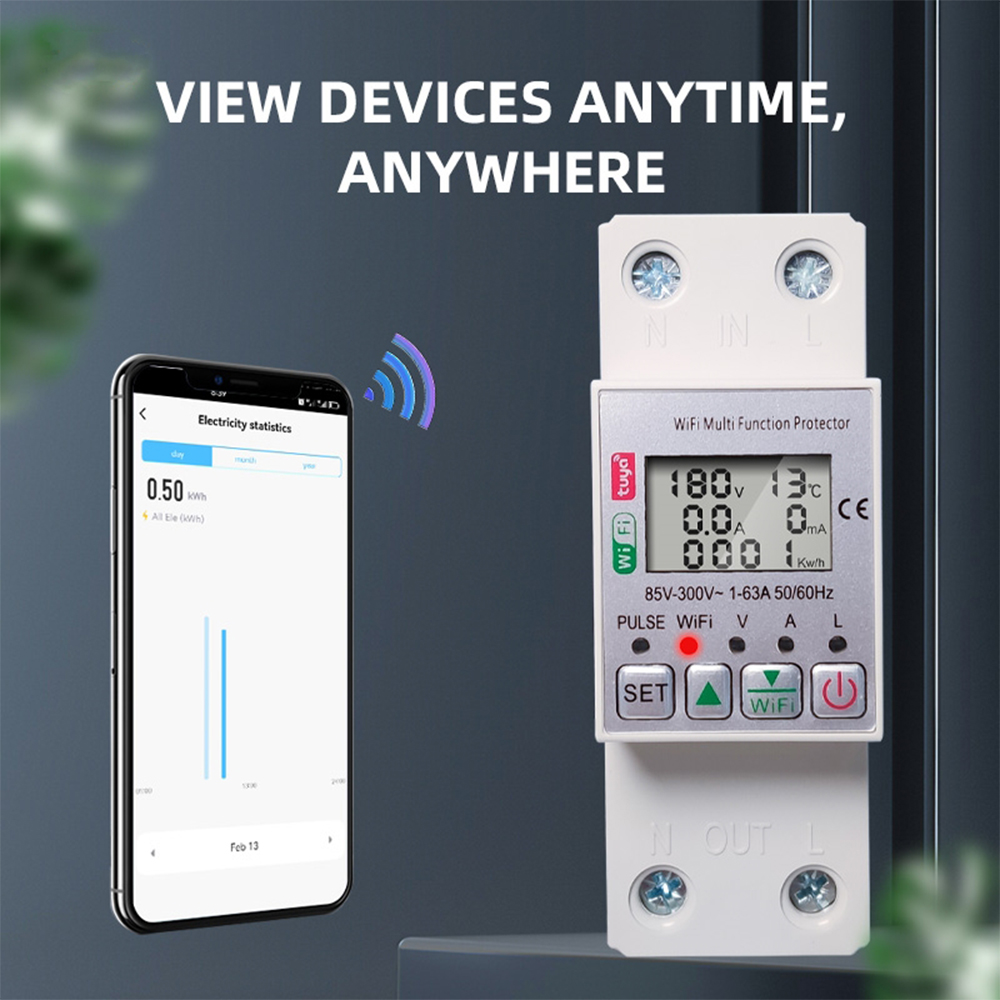

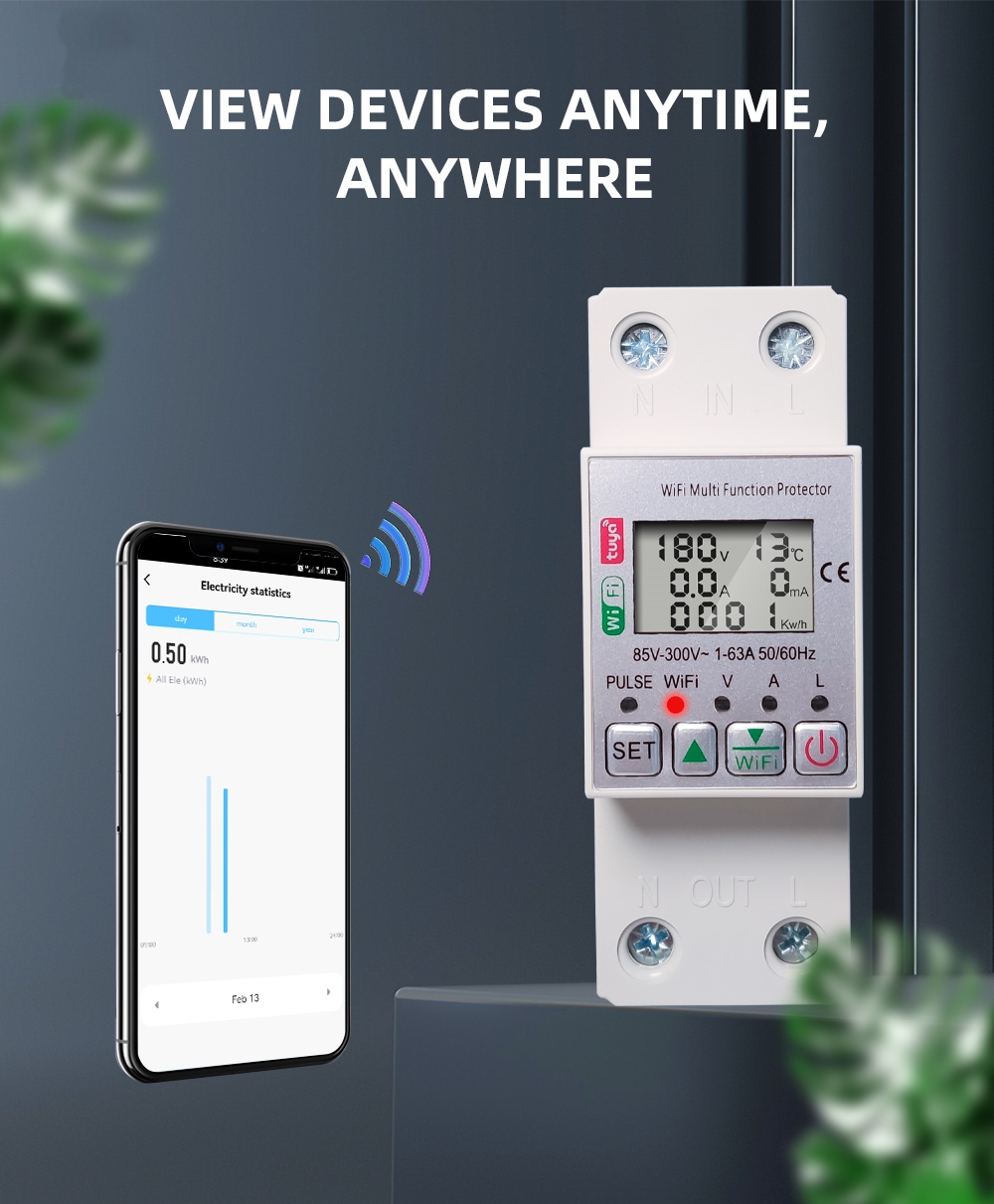

1. Wifi intelligent metering leakage protector: Binding device in WIFI state, mobile phone remote control limitless distance, real-time display of electricity, current, voltage, leakage, with prepayment function, open a new era of intelligence.

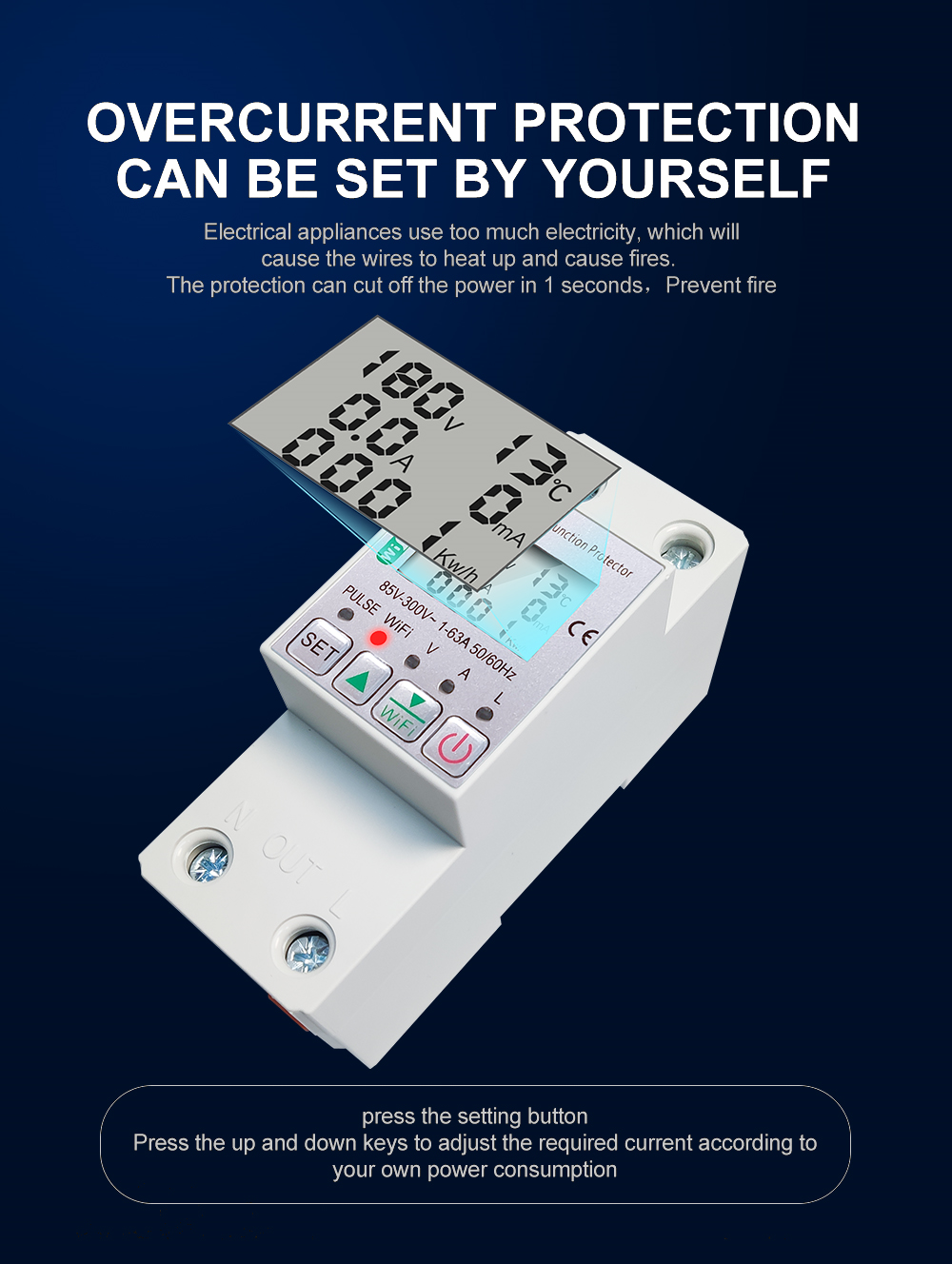

2. Multiple protection, set by you: With over current and over load protection, over and under voltage protection, and leakage protection, electrical power consumption is too large will cause wire heating to fire, overcurrent protection can be cut off in 0.1 seconds to prevent fire, troubleshooting can recover on its own.
3. Complete functions: The circuit breaker has the most basic and practical functions, such as wifi. Ble, voice control, APP control, timing control, pre-paid recharge, working status display, overcurrent protection, over and under voltage protection, real-time power display, power reset, leakage protection, configurable parameters.

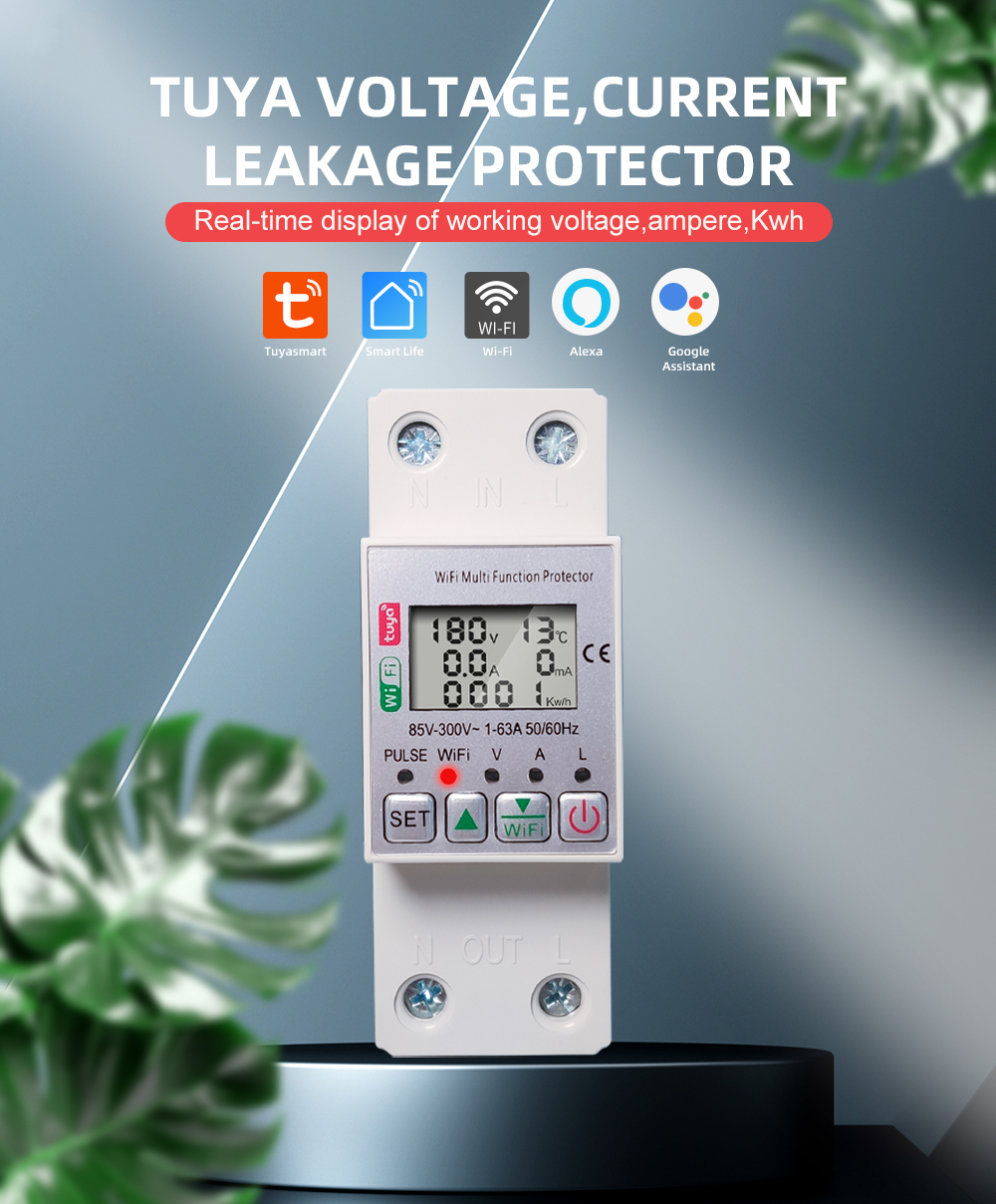

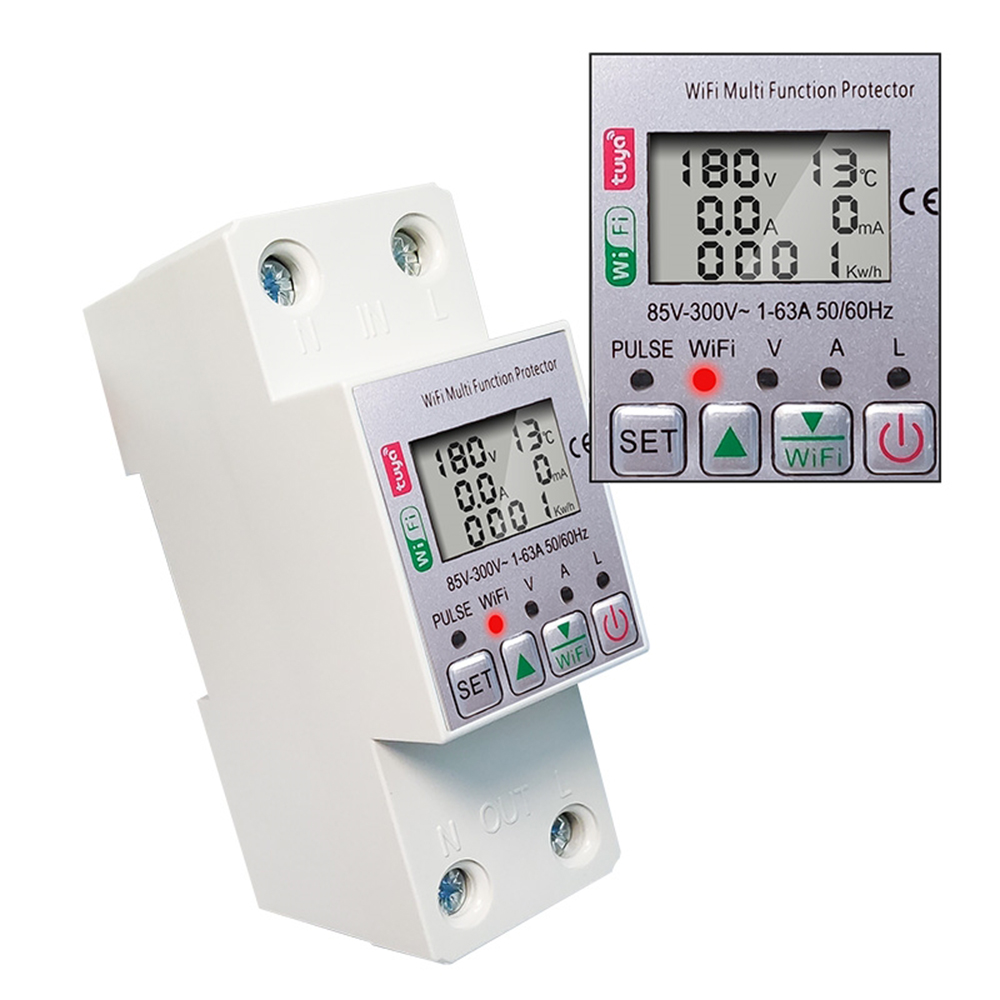

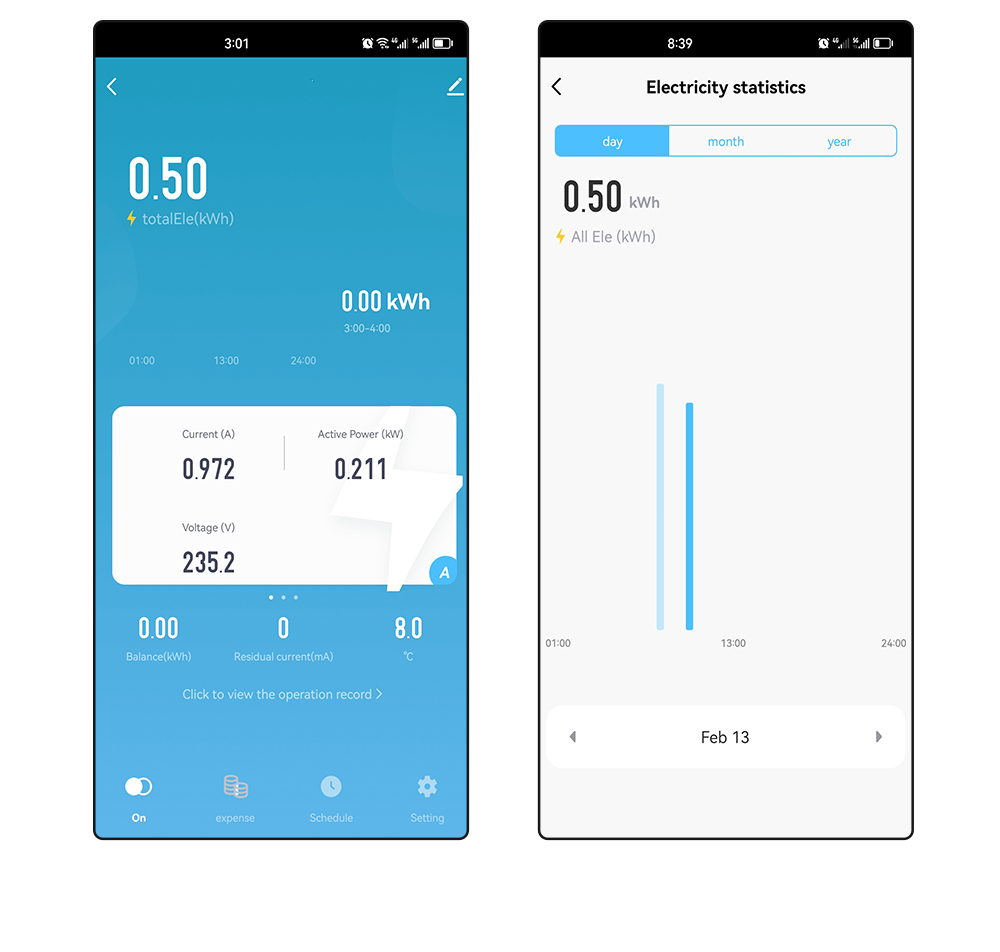

4. Real time data display: Electricity, voltage, current, temperature, leakage value display on the same interface without switching, data is more intuitive, a meter for multi purpose, can completely replace the self compound over and under voltage, electric meter, leakage circuit breaker, reclosing, current limiter, life is more convenient

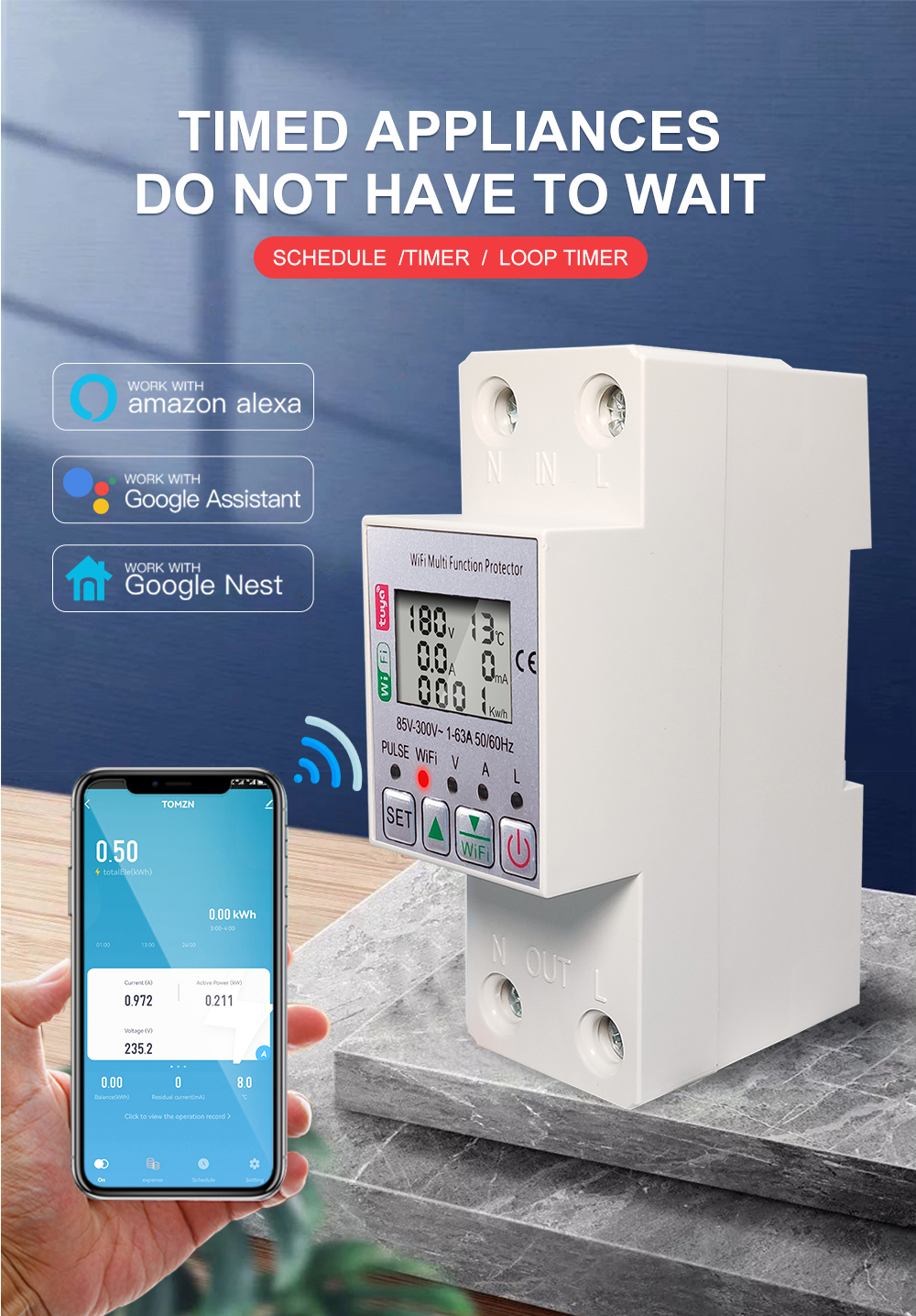

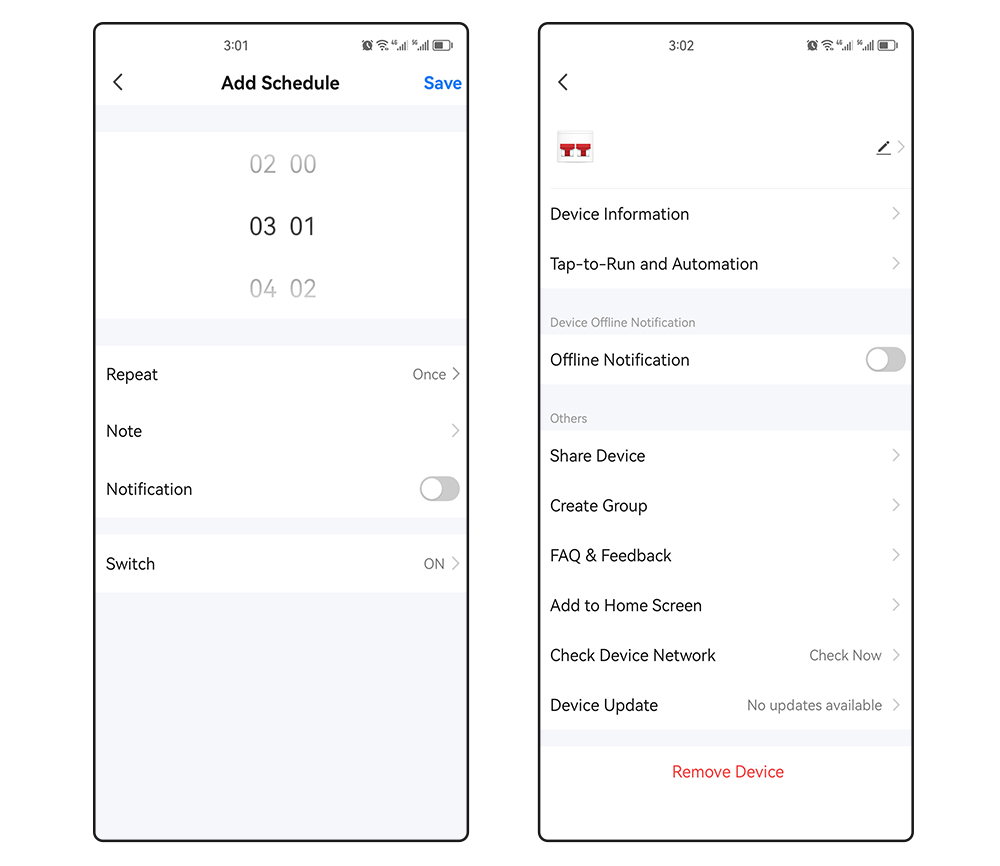

5. Timing settings and voice control: Using the app timing function, the circuit breaker intelligently controls your connected devices across the board, allowing you to plan ahead for accurate times to automatically turn them on or off. It can also be controlled by voice, adding convenience to your smart life. When your hands are not free, you can freely control the linked devices using speech.
