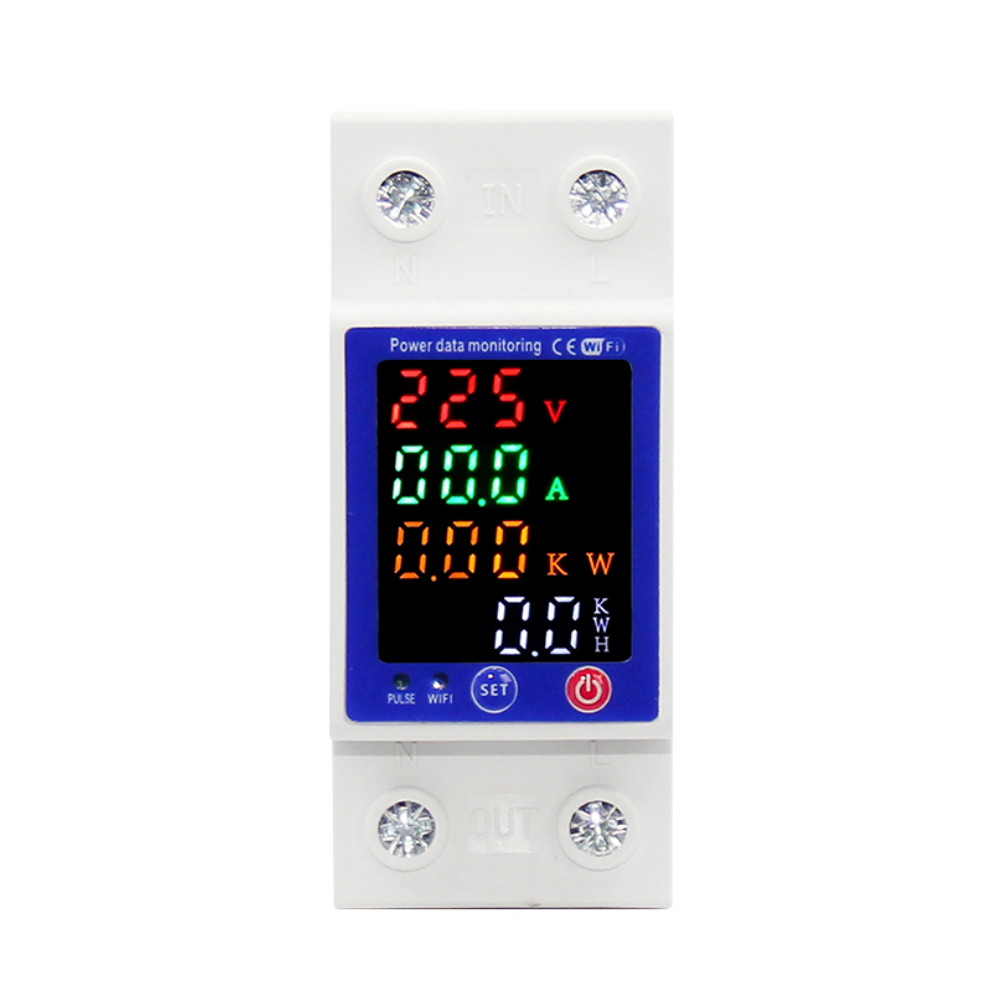

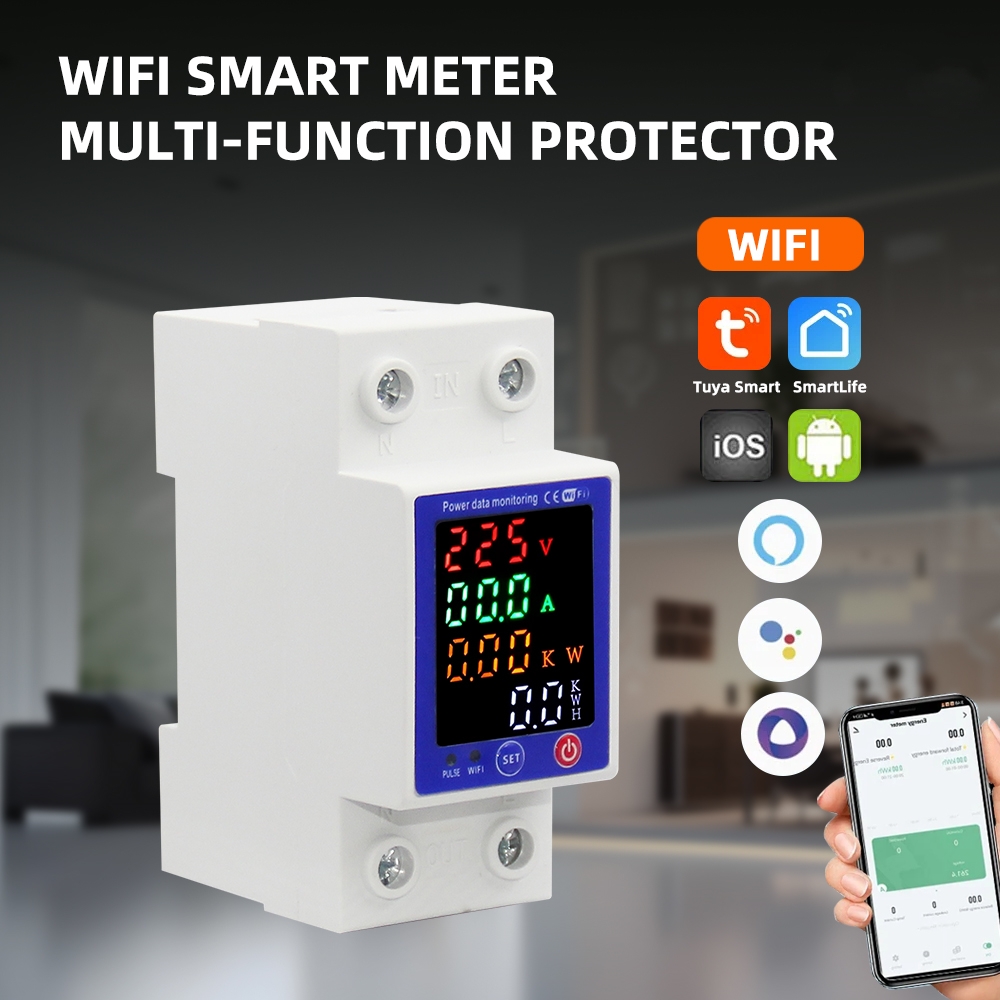

Wifi Smart Meter Multi Function Protector
Notice

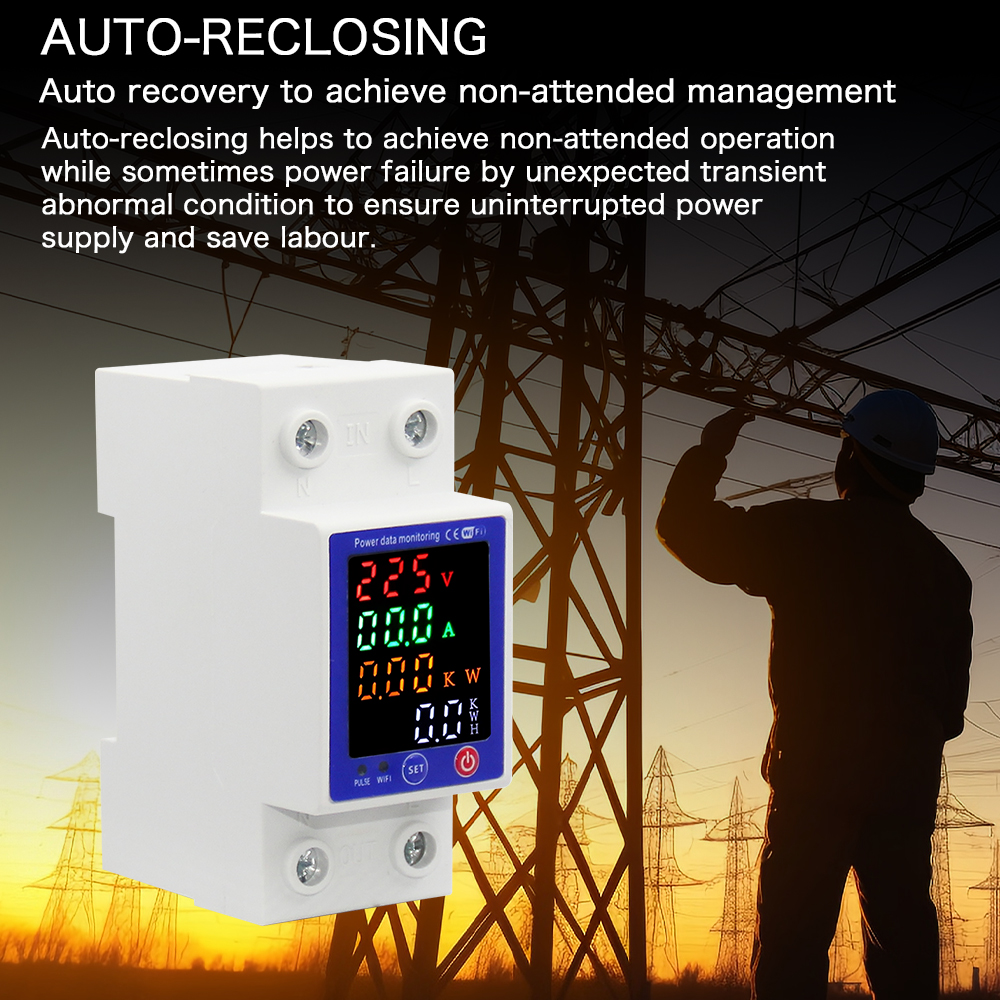

This all-in-one design smart IOT device applied to AC 230V, 50/60Hz, rated current up to 63A single circuits in resident, commercial and industrial buildings with 2.4G WiFi, to measure electricity consumption and offer prepayment as option; to remote control and set protections against over/under voltage, overcurrent, residual current(leakage), high temperature via mobile App anytime anywhere; and auto reclosing after protected conditions recovery to achieve non-attended management; programmable timing control to make your scheduled life efficiently and save electricity, and sharing device with your family or persons concerned in your team. It also supports local manual control without WiFi, and voice control through AI speaker, such as Amazon Alexa, Google Assistant, Yandex Alice, and etc.
Features
1. Four options on control

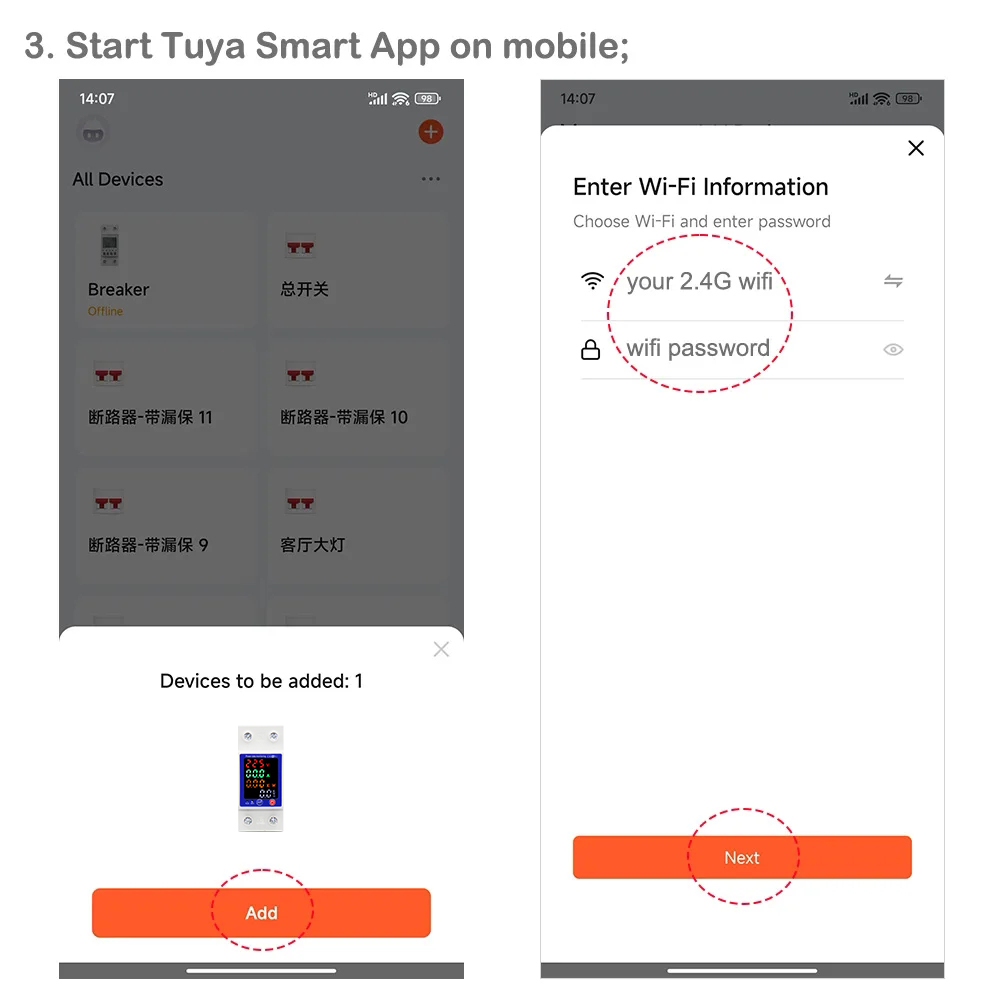

- Remote control anytime anywhere (mobile app, Tuya Smart, Smart Life)
- Voice control (AI speaker, Alexa, Google, Alice, ...)

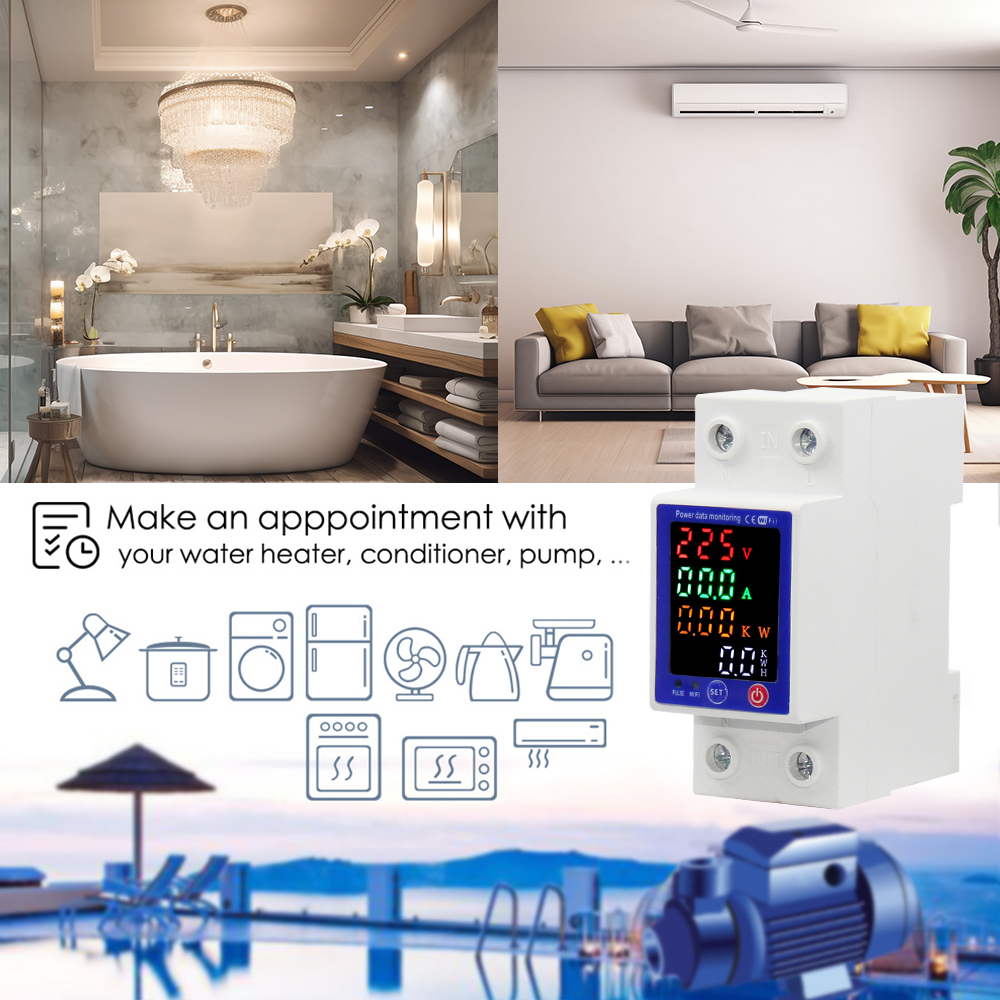

- Timing control (programmable Schedule)

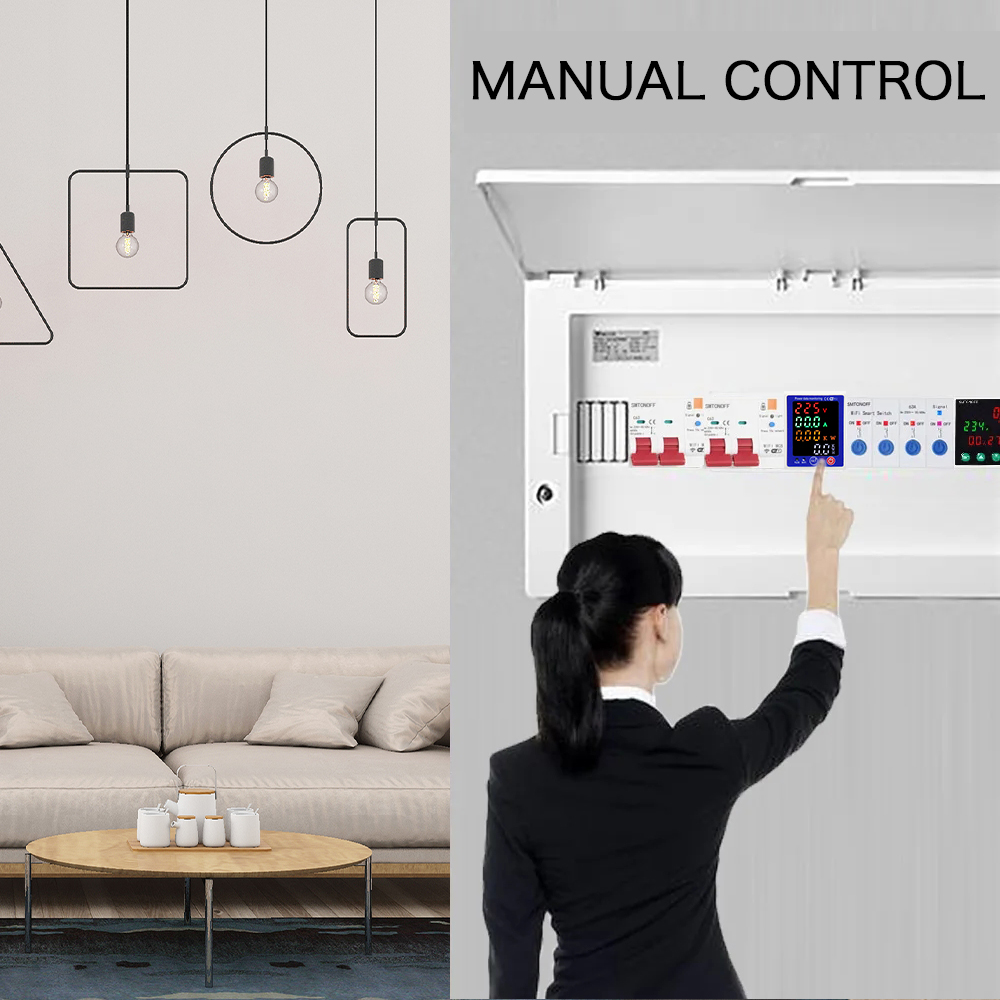

- Manual control (by keys and handle)

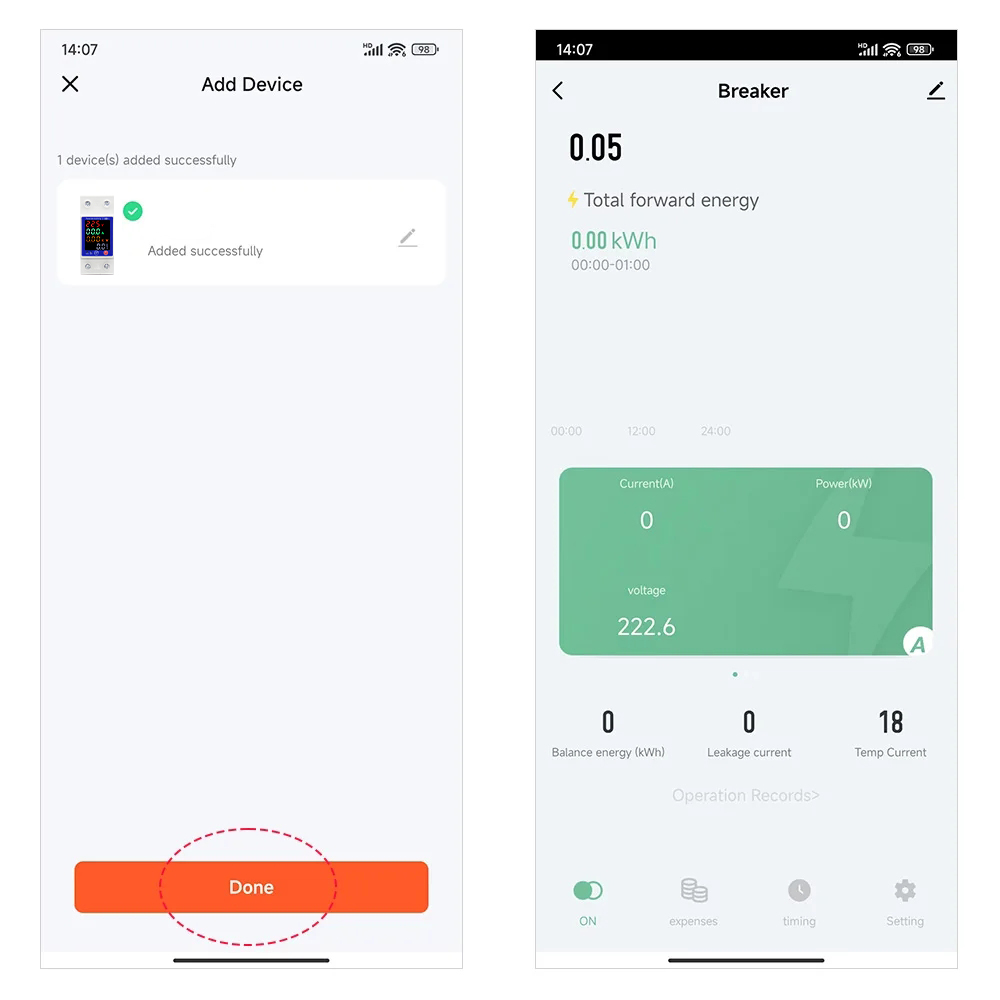

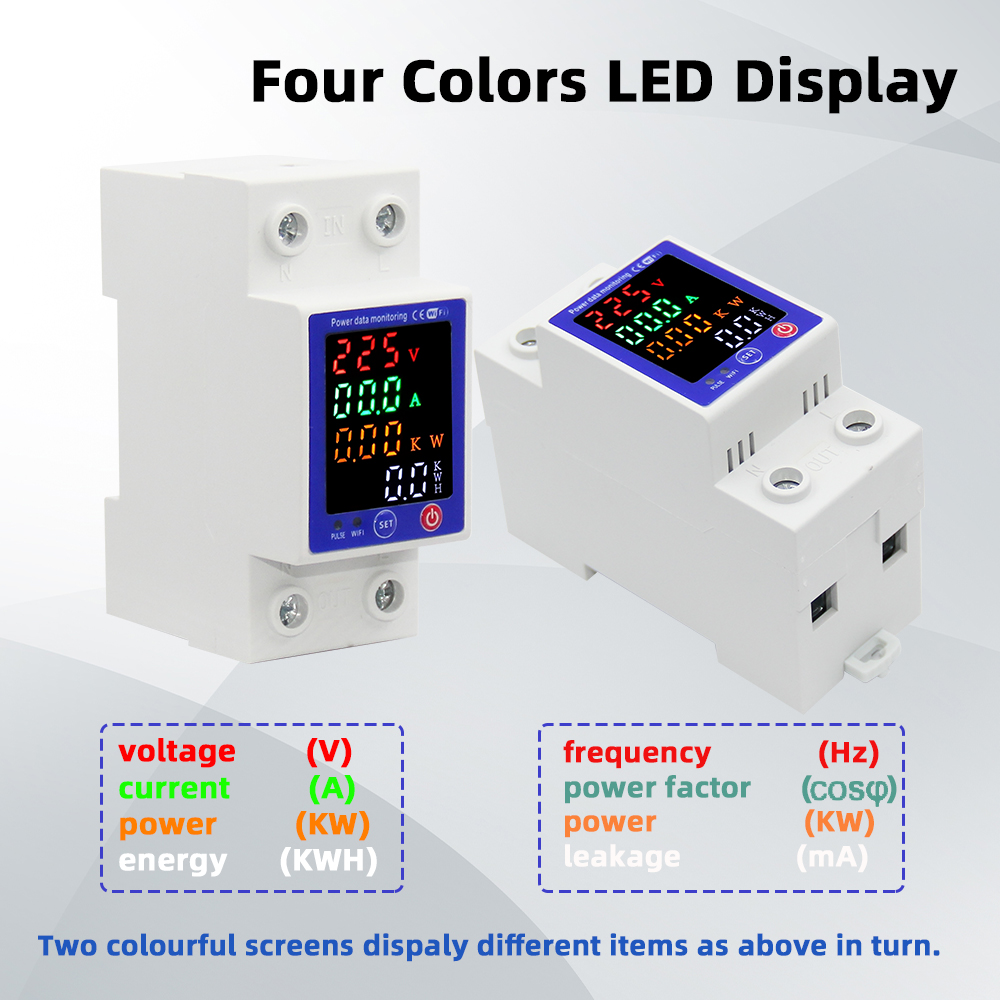

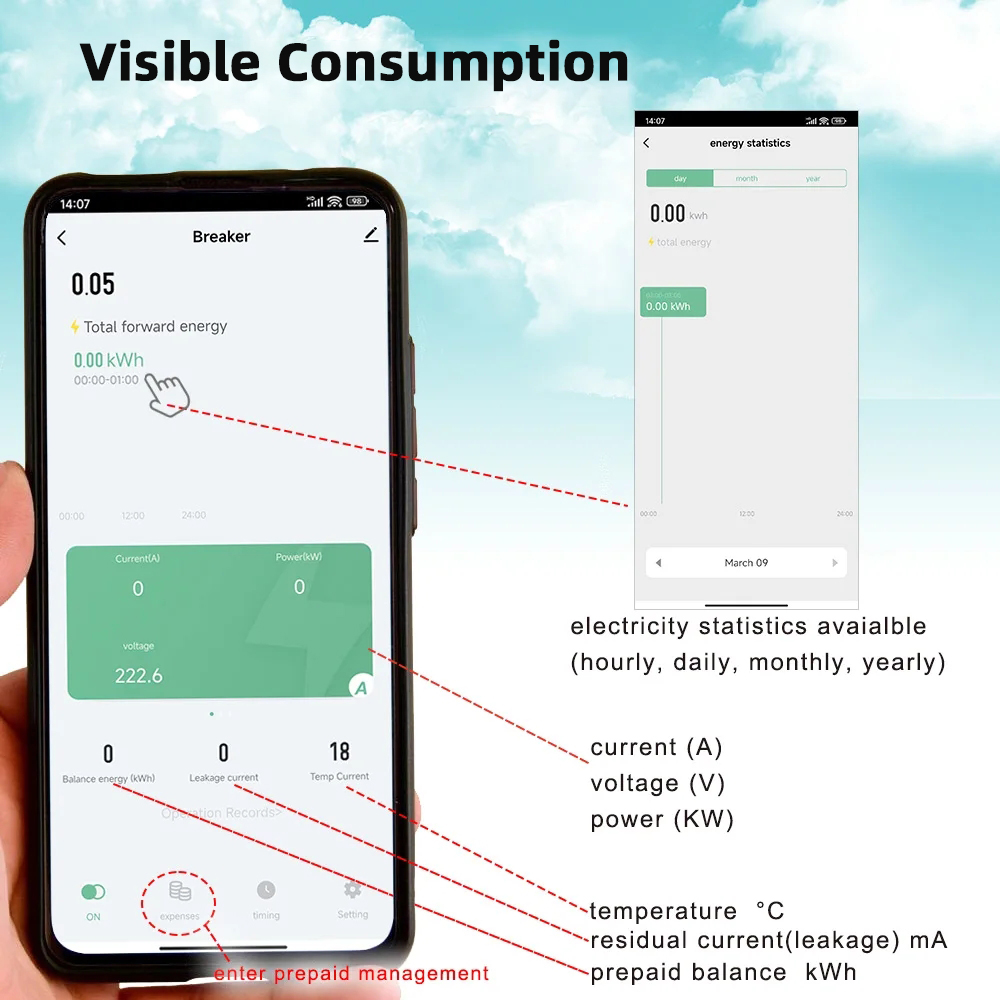

2. Monitor real-time electricity consumption and statistics on phone (A, V, mA, kW, kW/h, ℃)

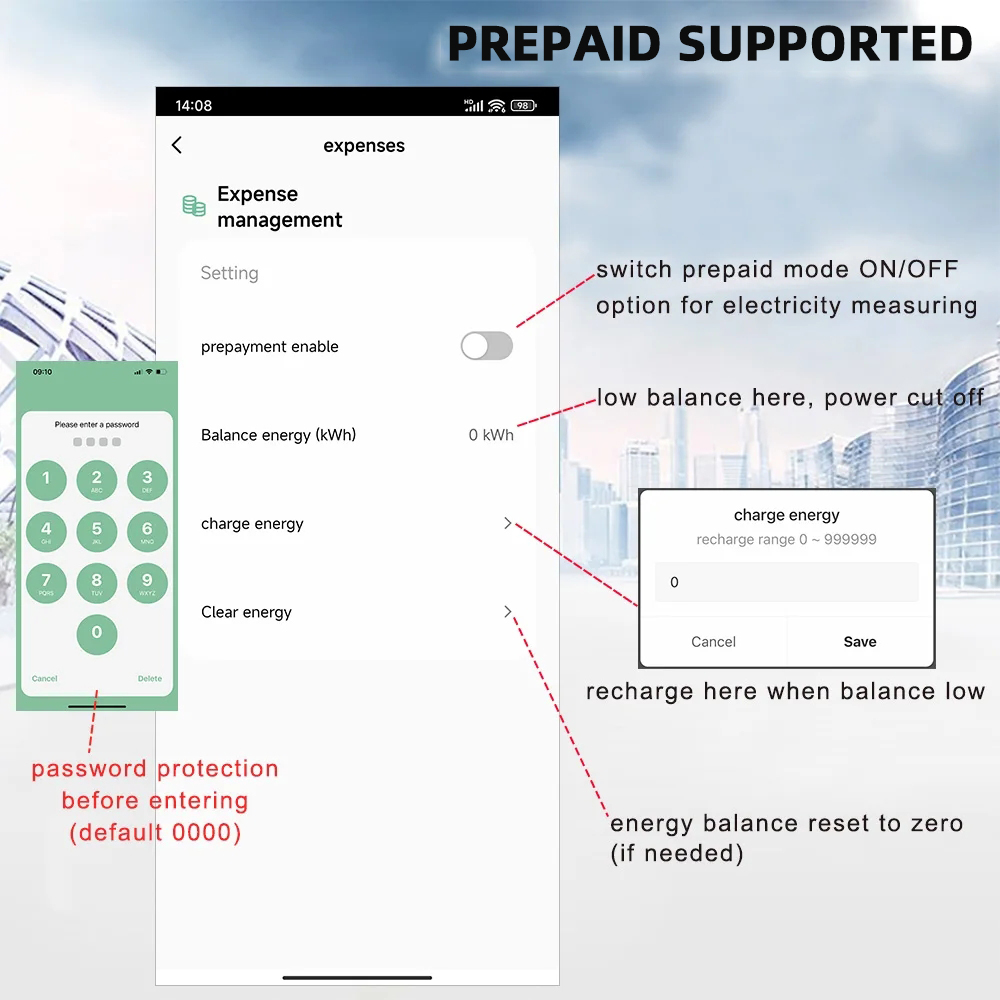

3. Prepaid metering mode available as option by switch

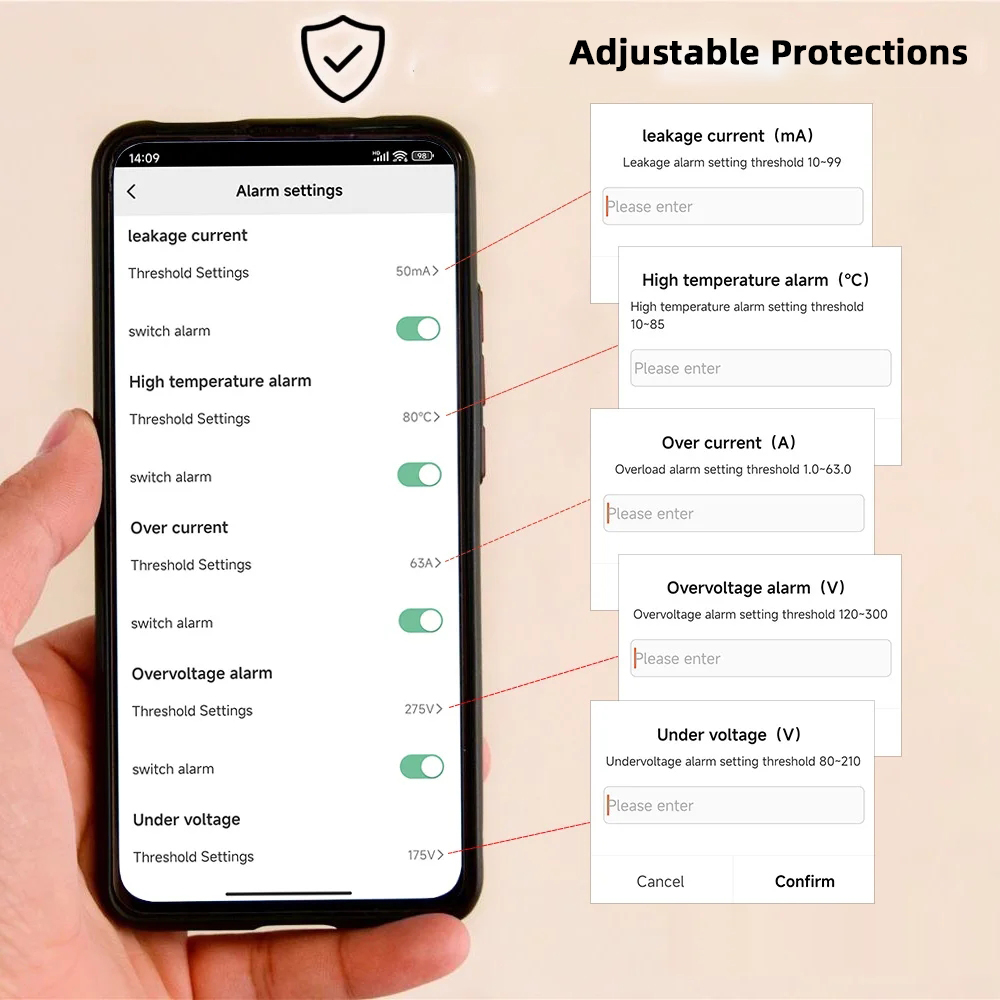

4. Adjustable protections against over/under voltage, overcurrent, residual current(leakage), high temperature
5. Overcurrent protection
1~63A adjustable, 63A as default
6. Over voltage protection
120~300V adjustable, 275V as default
7. Under voltage protection
80~210V adjustable, 175V as default
8. Residual current(leakage) protection
10~99mA adjustable, 50mA as default
9. Alarm temperature protection
10~85℃ adjustable, 60℃ as default

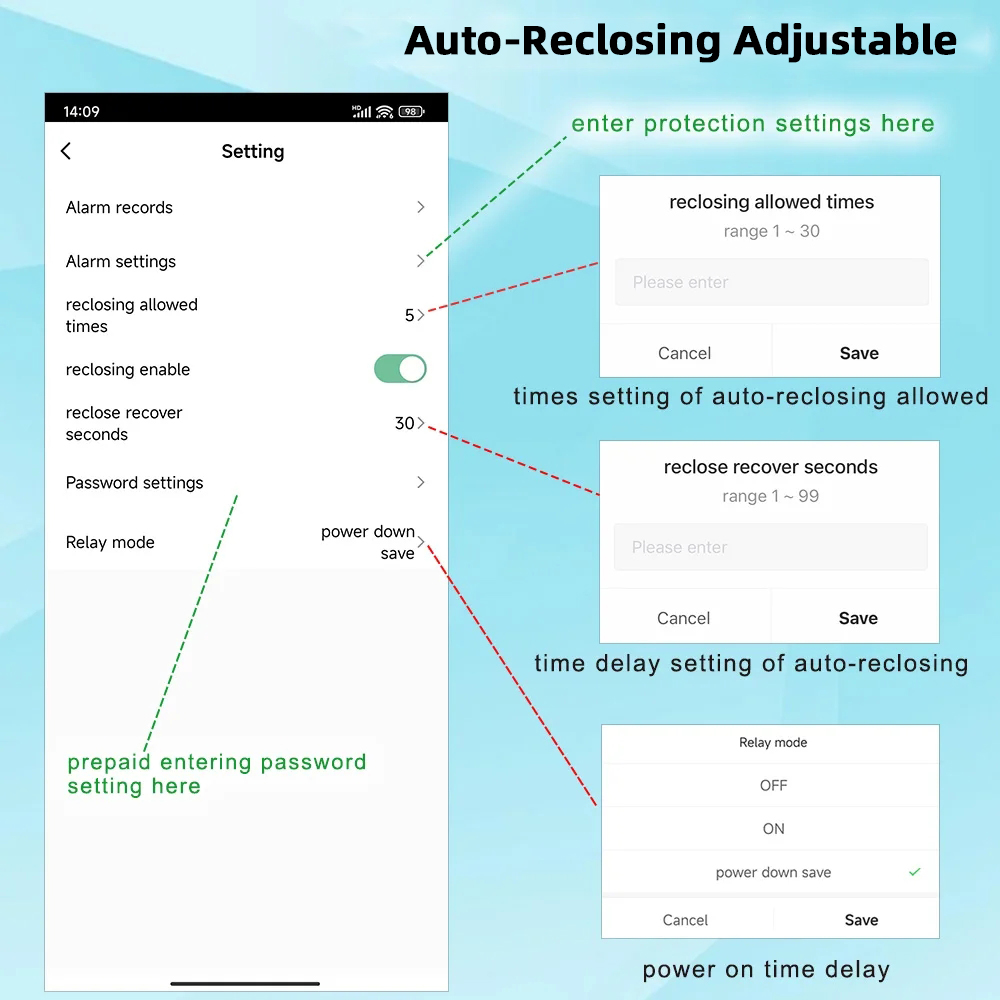

10. Recovery on-delay time
5~90s adjustable, 30s as default
