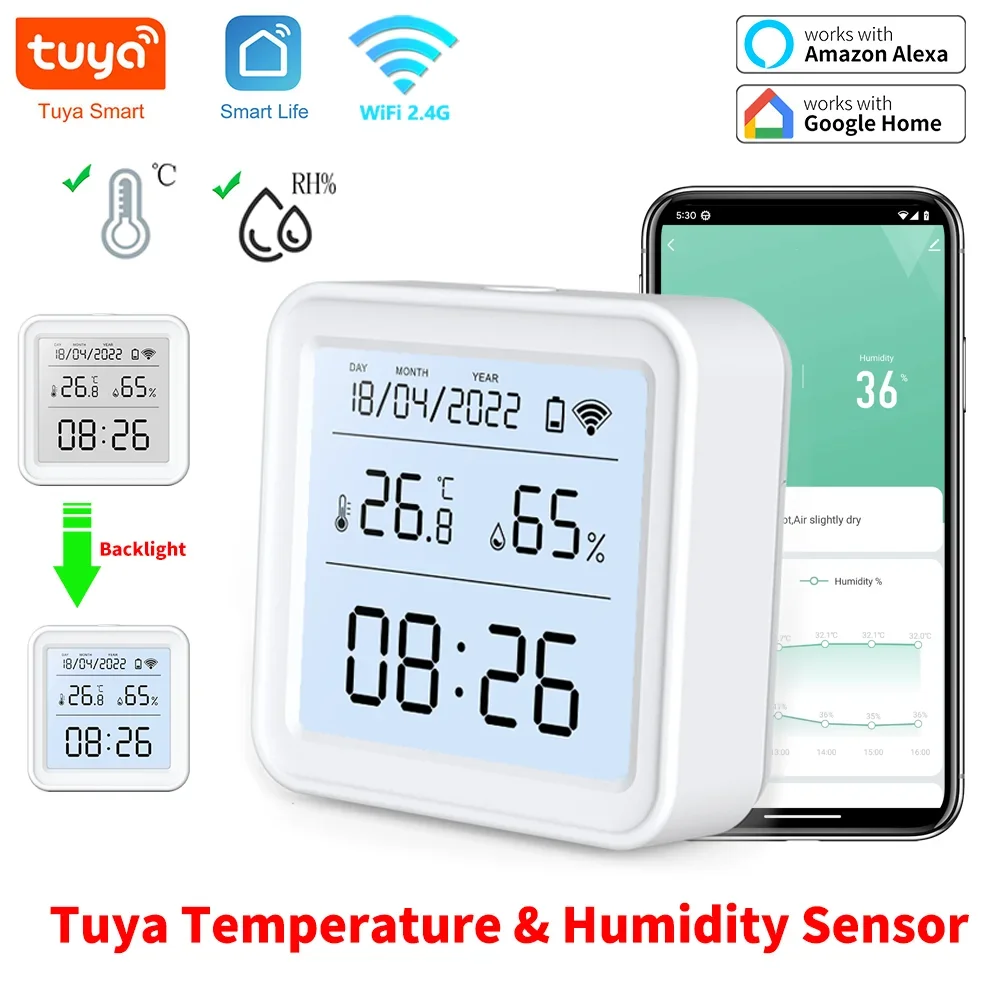

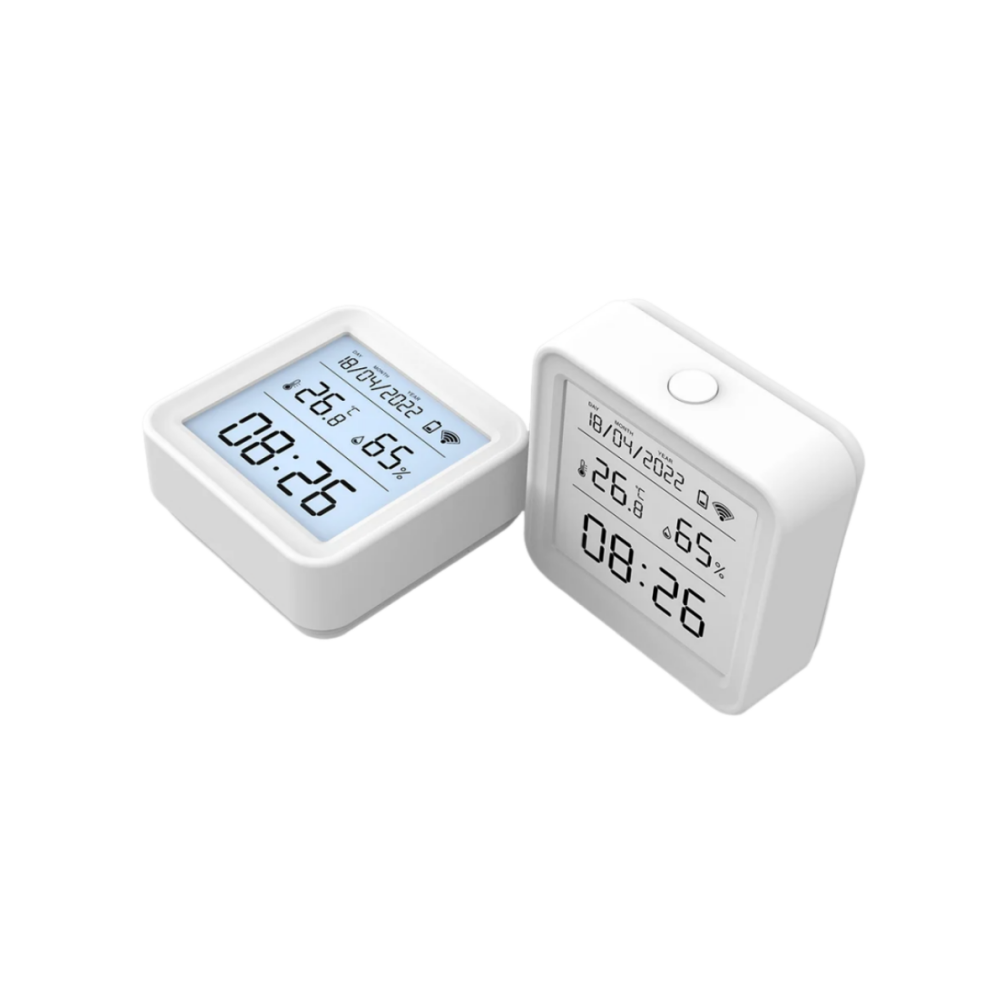

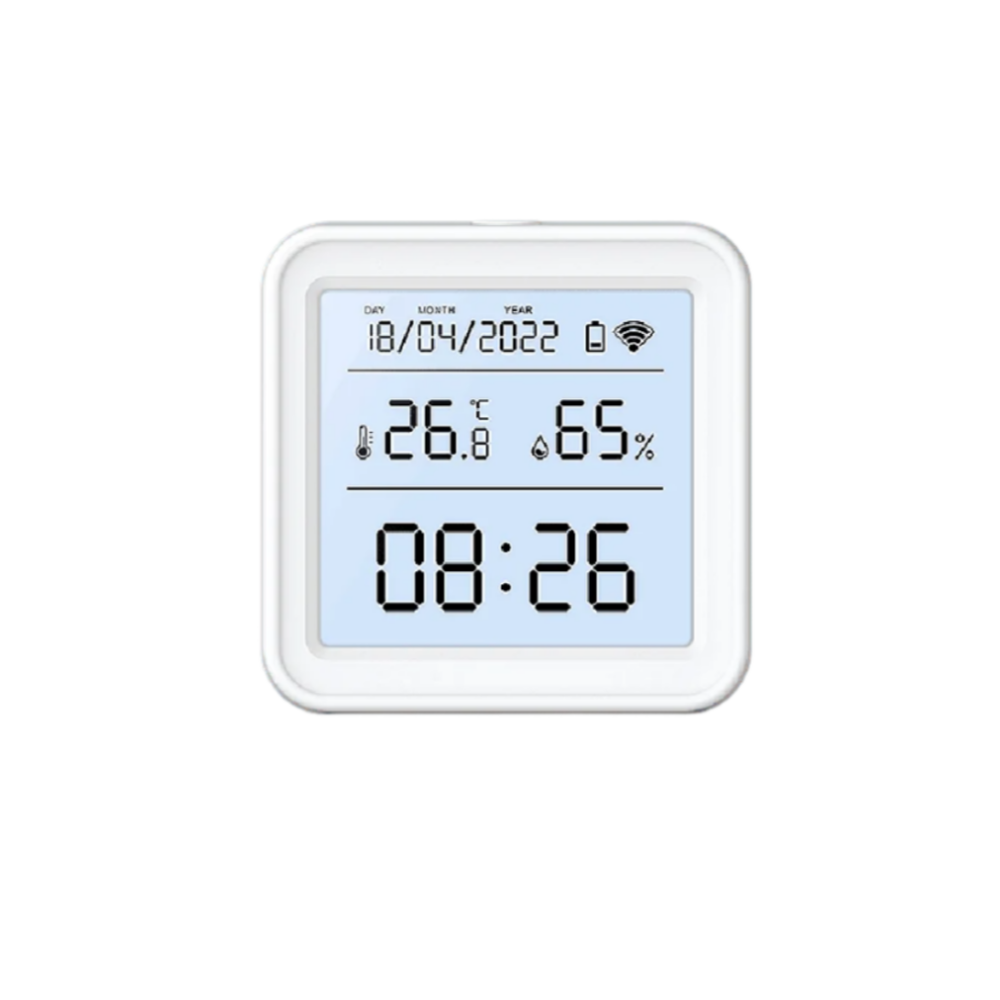

WiFi Temperature Humidity Sensor with Backlight

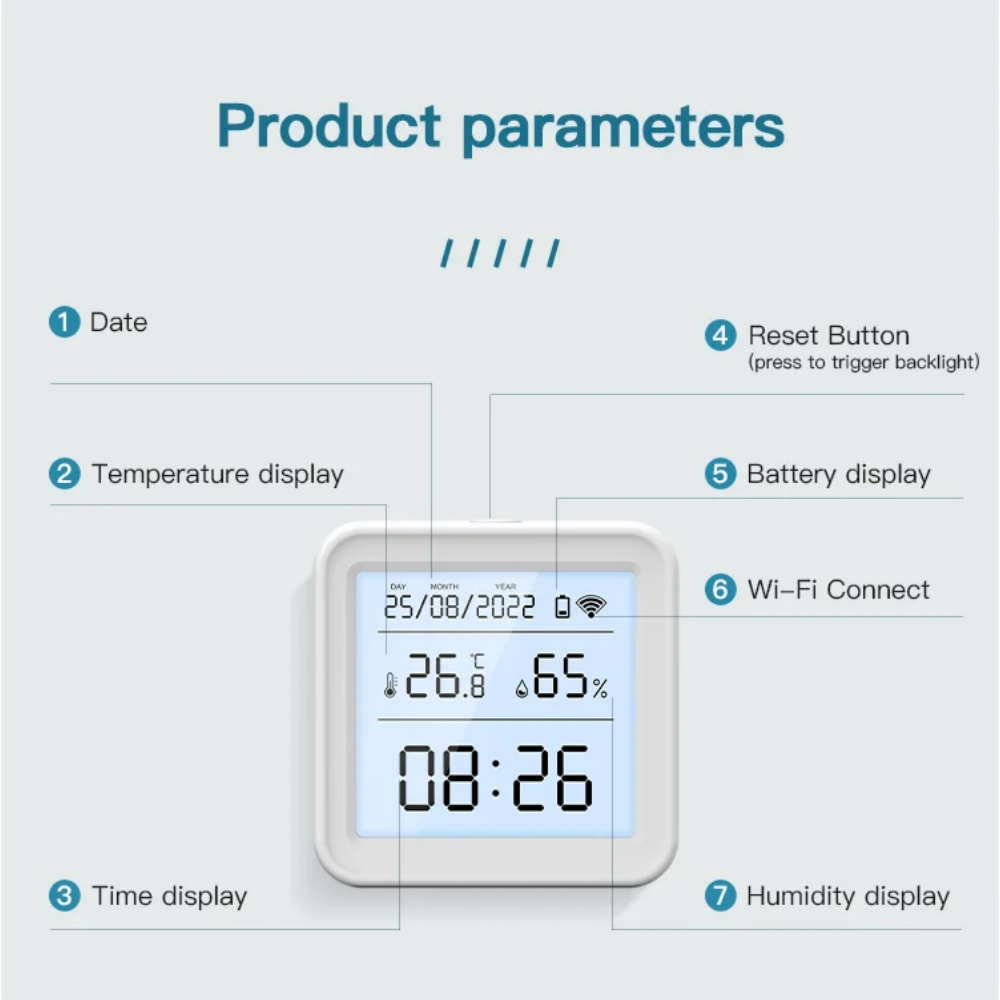

Product Parameters

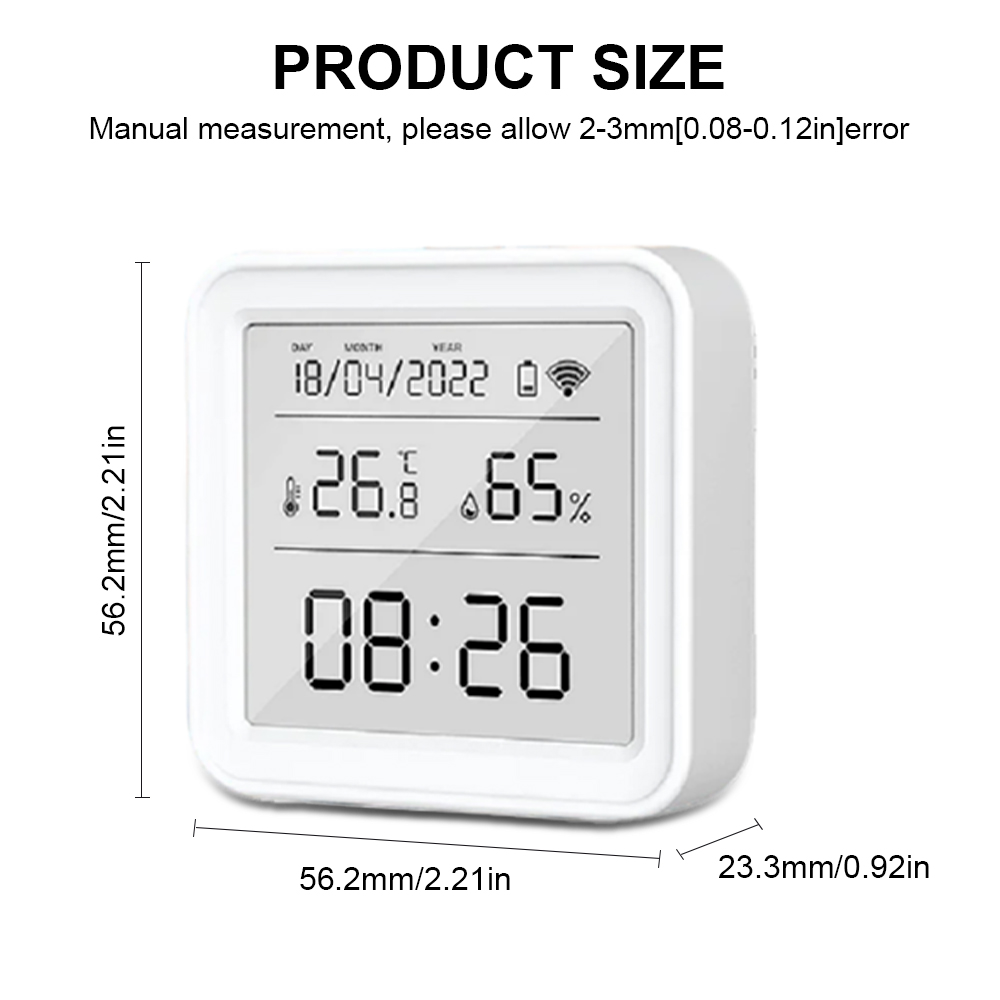

Size |
56*56*23mm |
Backlight |
Support |
Power supply |
battrey LR03-1.5V/AAA*3(not include) |
Wi-Fi support |
2.4G IEEE 802.11 b/g/n |
Temperature Measurement Range |
-9.9°C ~ 60°C |
Temperature Accuracy |
±1℃ |
Humidity measurement range |
0%~99%RH |
Humidity Accuracy |
±5% RH |

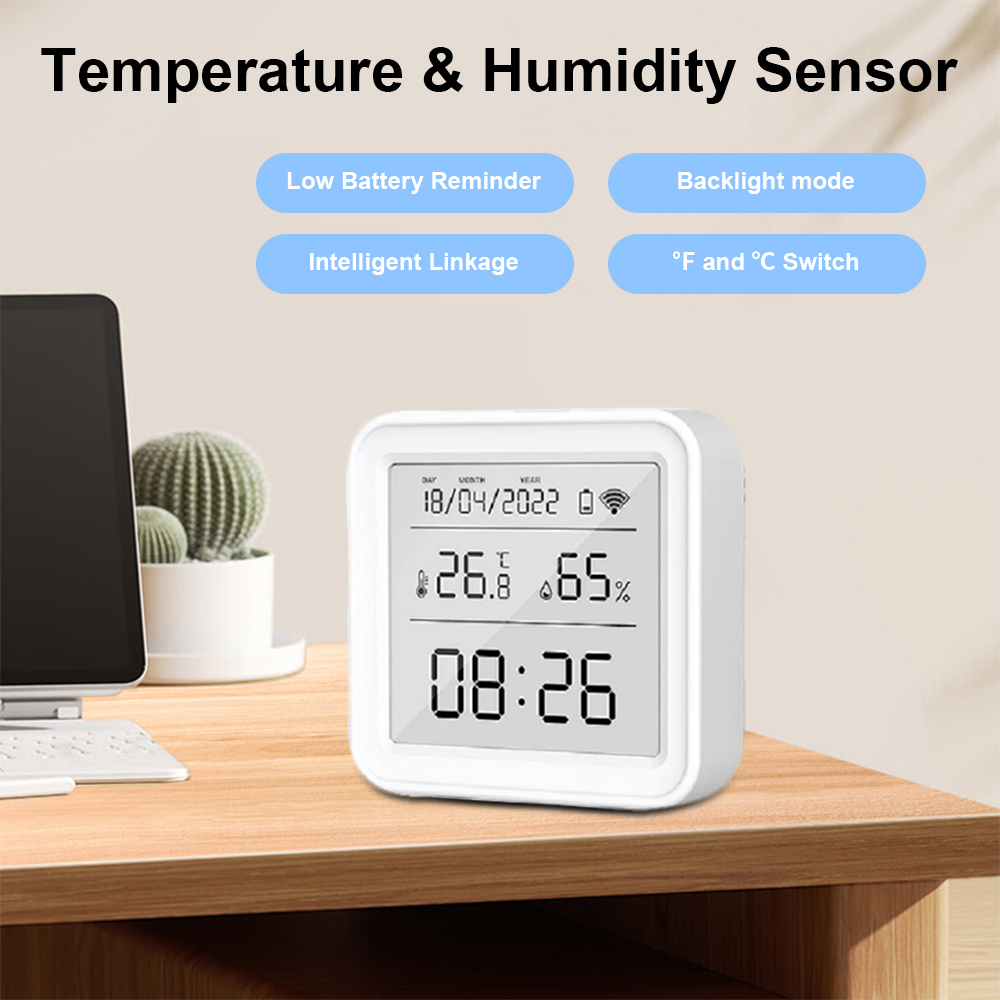

Smart home temperature and humidity sensor feature

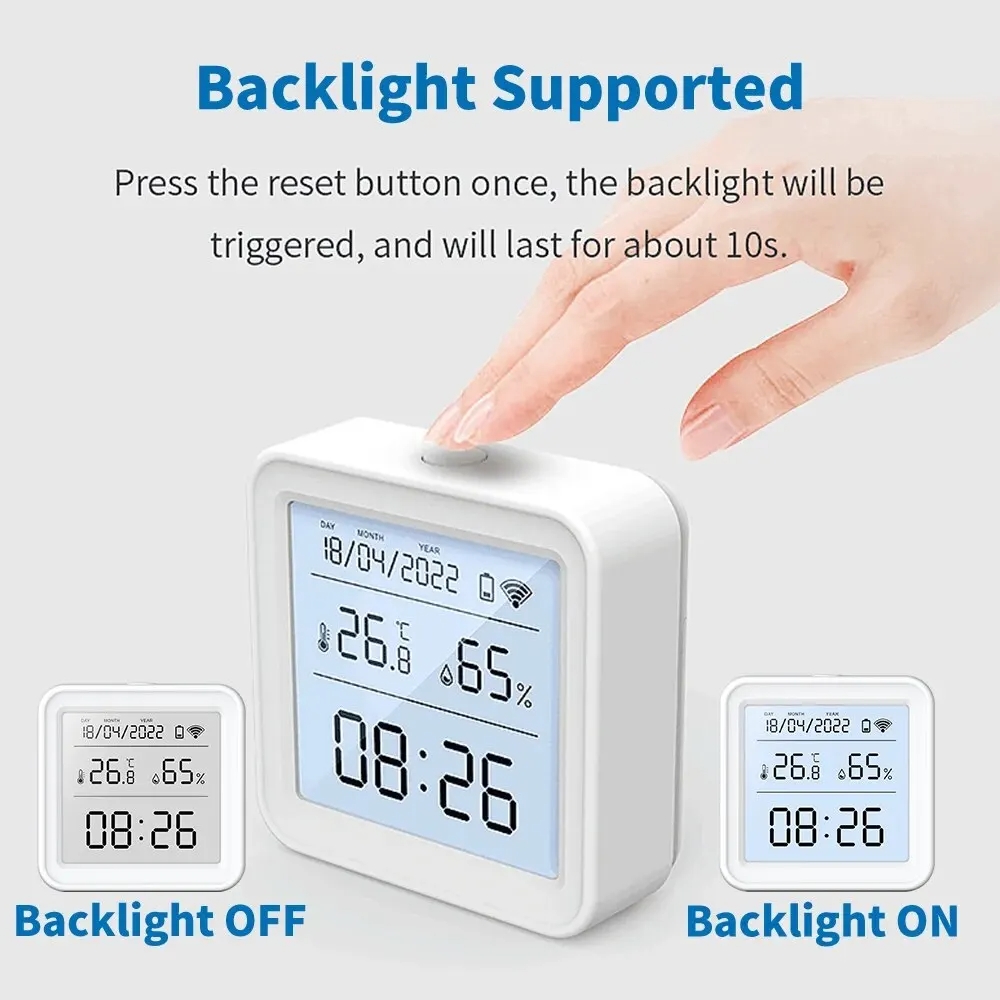

1. Backlight Display
Press the reset button on the top once, the backlight will be triggered and last for about 10s. It is more convenient to browse screen clearly in darkness.

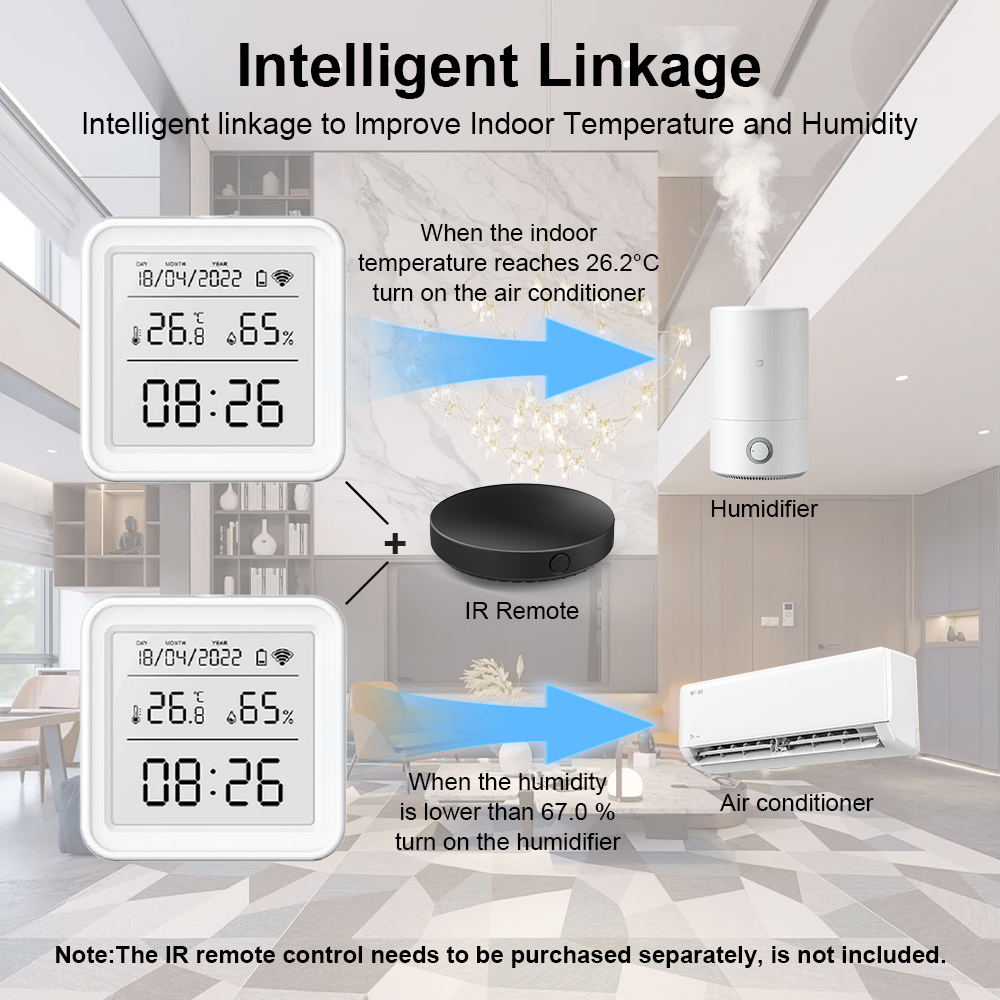

2. Smart Linkage
You can preset the condition and task in the"Scene" page, for example, when the room temperature surpass 30 Celsius, the A/C will turn on automatically.
3. Temperature Unit Switch
You can switch the temperature unit between Fahrenheit and Celsius in the set.then press the reset button once, it will sync both on the screen and in the APP

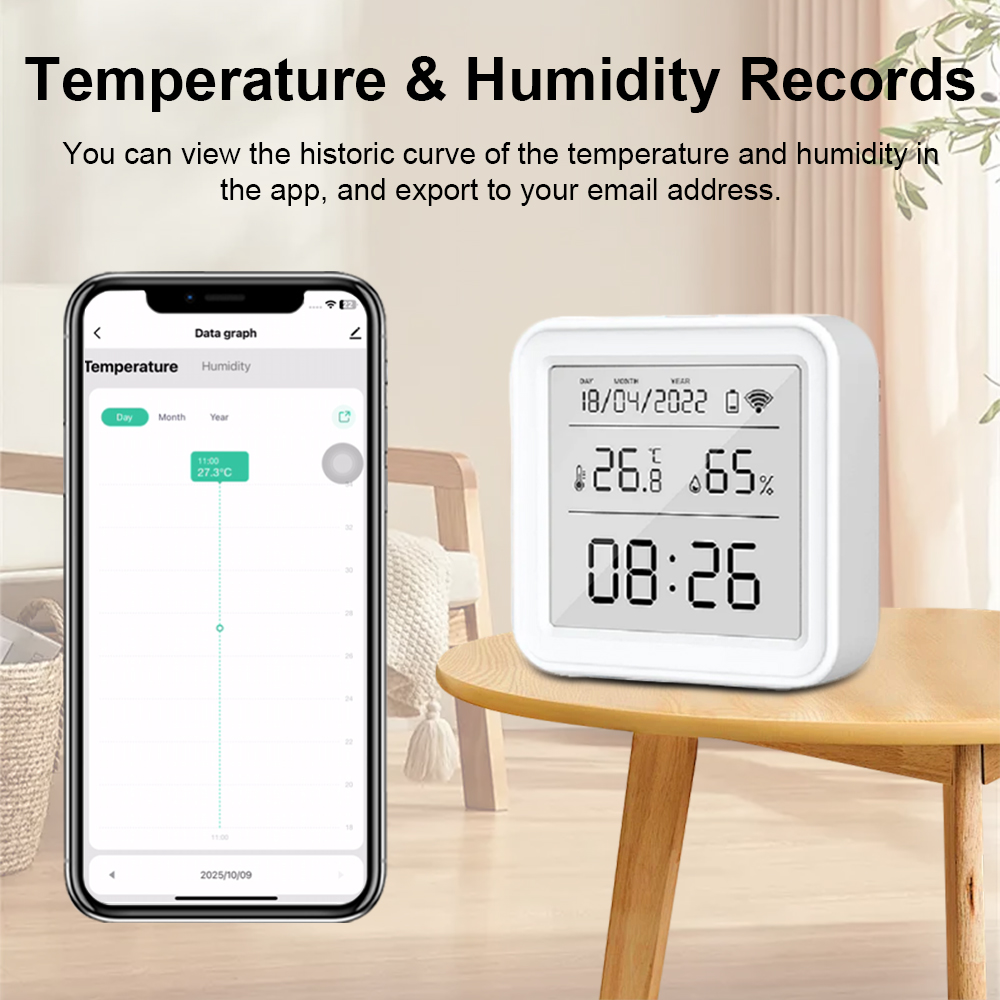

4. Temp & humidity records
You can view the historic data of temp and humidity stored for 1 year, and export fo your Email address.
5. Temp & humidity Alarm
You can preset the range for temperature and humidity in the scene page, when the temperature or humidity reaches the range it will push instant alarm message via APP.
6. Low battery Alarm
When the battery power is low, it will push alert message via APP.
7. Third-party Voice Control
Support enquiring about temp and humidity via Amazon and Google smart speaker by voice.
8. Humidity control for a more comfortable home
Automatically turn the humidifer on or off when a certain humidity is reached in the app preset.
About Automation
The sensor uses the principle of Edge Triggered
That is, the action can only be triggered if the condition crosses the set condition
For example, when the automatic setting temperature is greater than 25 ℃, then turn on the air conditioner.
1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always above 25 ℃, and the air conditioner is not turned on.
3. When the temperature drops to 25 ℃ and rises to above 25 ℃, the automatic process will be activated.
For example, when the automatic setting temperature is less than 20 ℃, turn on the air conditioner
1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger to start the air conditioner
2. After the automatic process is set, the temperature is always below 20 ℃, and the air conditioner is not turned on
3. When the temperature rises to 20 ℃ and then drops to above 20 ℃, the automatic process will be activated.
fAQ
Q:1. When the temperature and humidity is more accurate ?
A: About 30 minutes after configuration
completed , the temp and humidity is closer to actual ambient environment , so the readings are more accurate and reliable .
Q:2. When the temperature and humidity on the screen is not sync with the data in app ?
A:a ) When deviation between temperature display on screen and in app is ≤±0.5℃.
b) When deviation between humidity display on screen and in app is ≤±5%.
Q:3. When the temperature and humidity on the screen is sync with the data in app ?
a ) After network configuration completed .
b ) When the device reports the temperature and humidity to tuya cloud .
c ) When device detects the environmental temperature change is ≥0.5C or humidity change is ≥5%, and the device has been powered on for over 2 mins , the temp and humidity will be reported to tuya instantly .
d ) When device detects the environmental temperature change is <0.5'℃ or humidity change is <5%, the temp and humidity will be reported to tuya in 1 hour .
