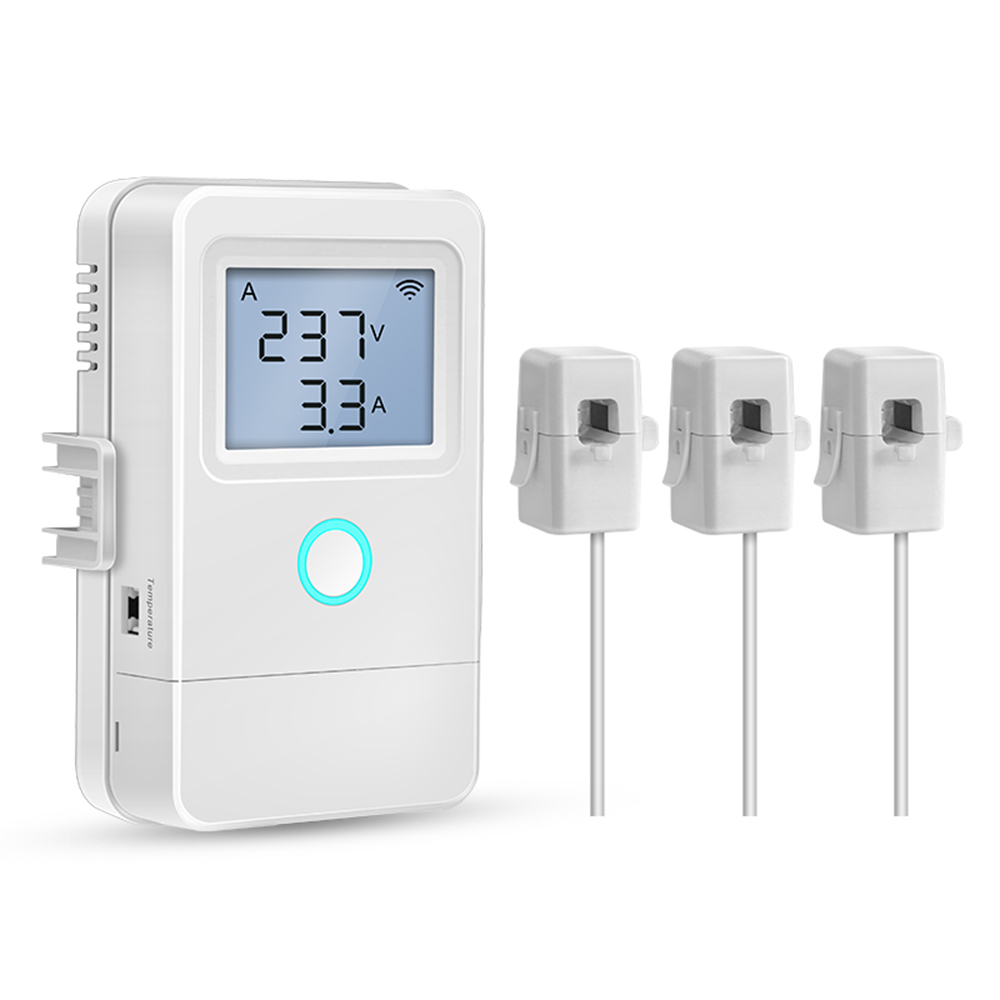

3 Phase Smart Current Transformer
Products Main Specifications
Input Voltage : Ac 100-240V 50/60Hz
Measuring Range :0.2-80A
Work Frequency: 2.412-2.484GHZ
Measurement Accuracy:+2%
Temperature Detection Range:-40C~+100°C (External temperature probe, not included as standard)
Current Transformer Aperture:10MM (Customizable large caliber)
Operating Temperature:-10℃~+55°C

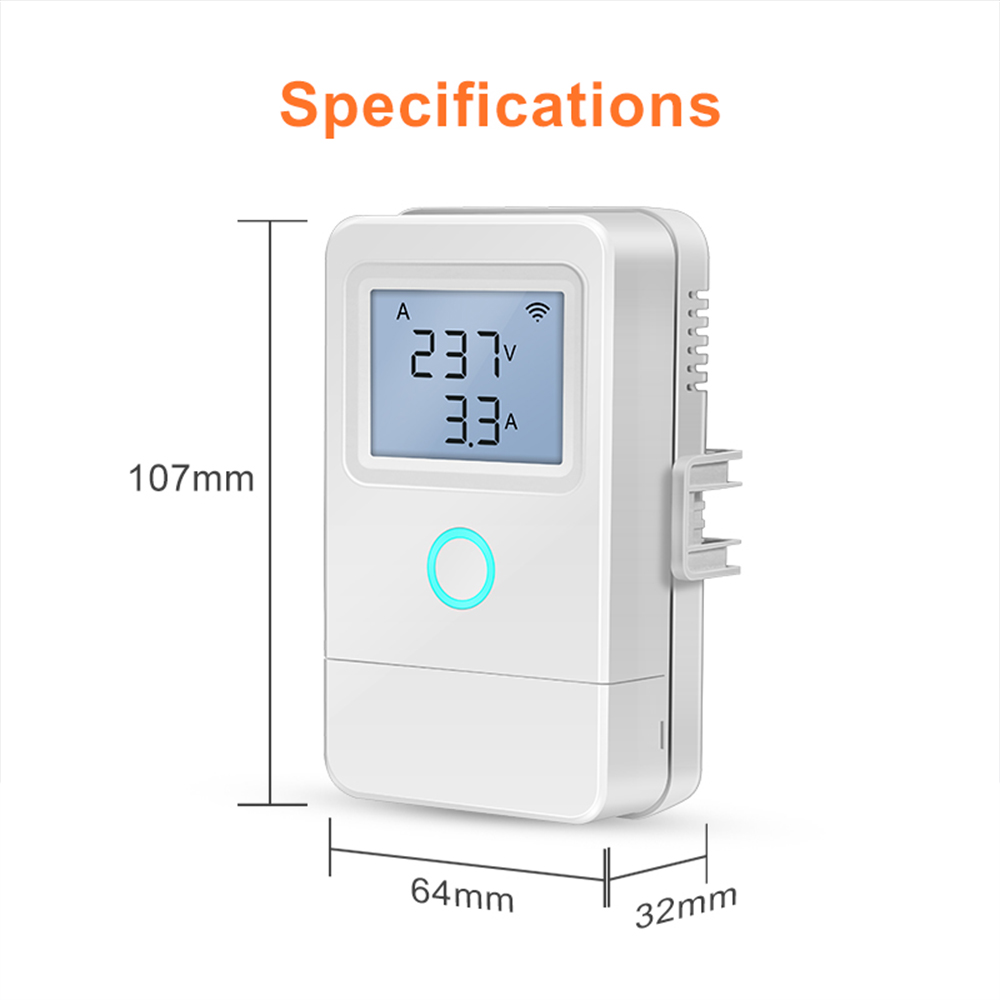

Overall Dimensions:107*64*32mm
Products Description

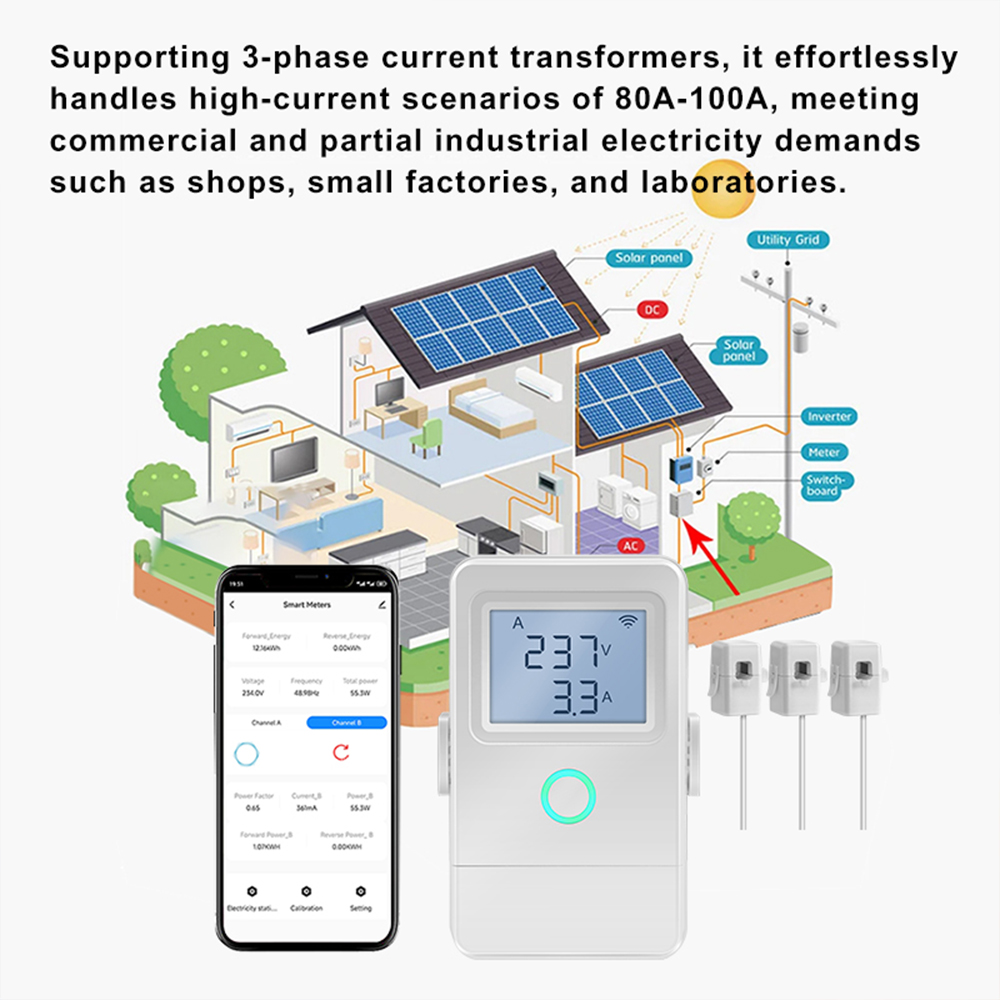

1. Supporting 3-phase current transformers it effortlessly handles high-current scenarios of 80A-100A, meeting commercial and partial industrial electricity demands such as shops, small factories, and laboratories.

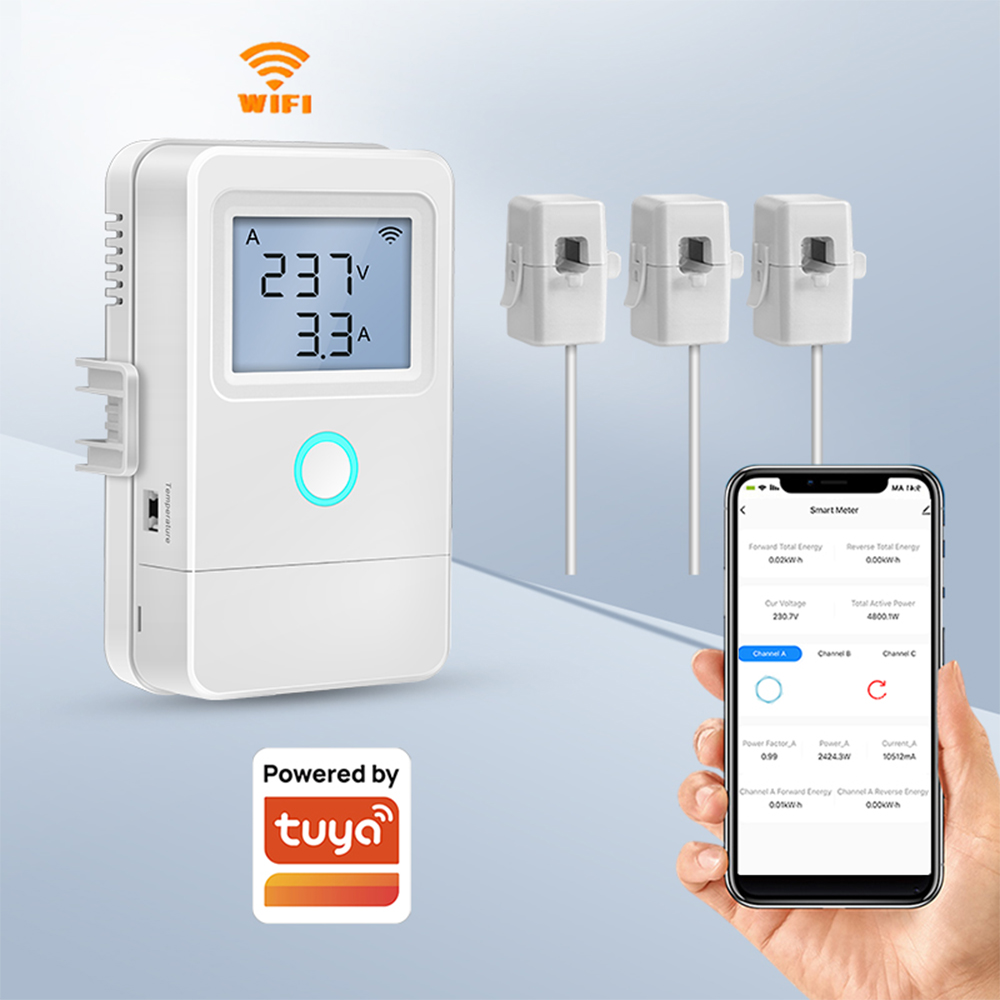

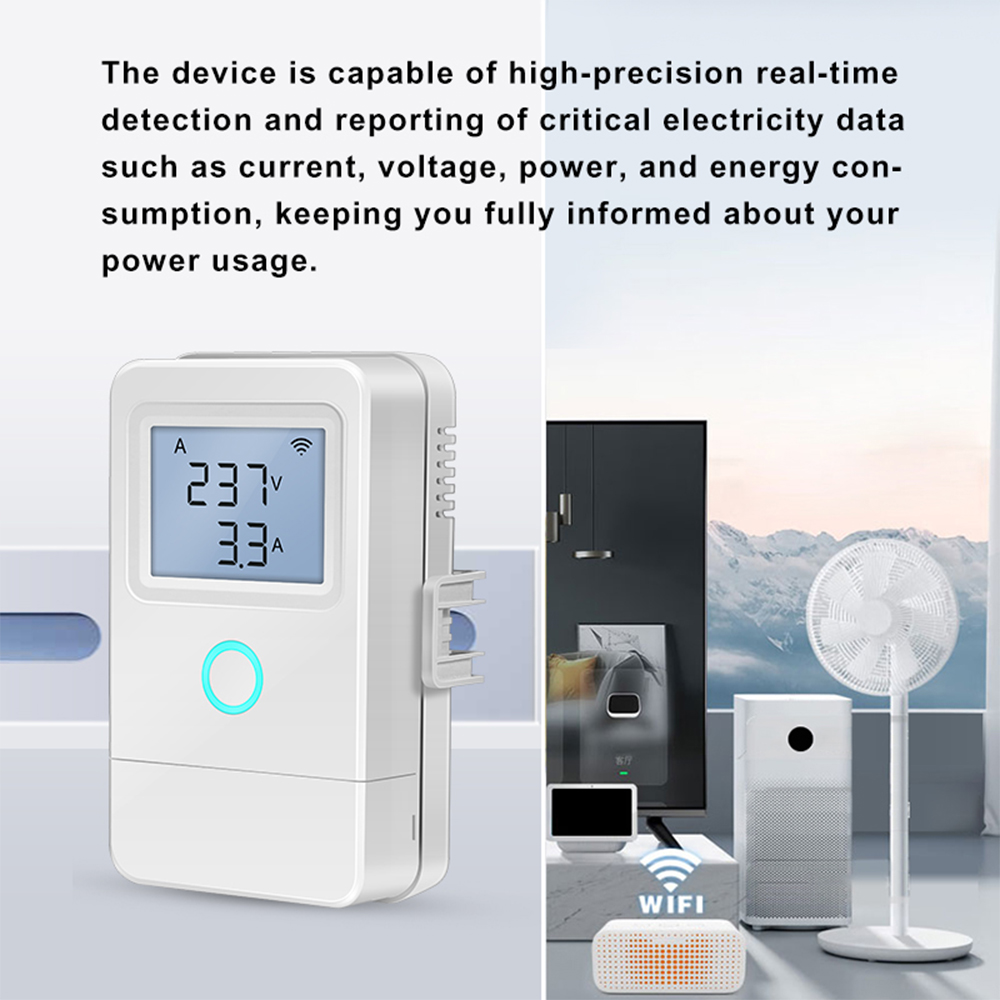

2. The device is capable of high-precision real time detection and reporting of critical electricity data such as current, voltage,power, and energy consumption, keeping you fully informed about your power usage.

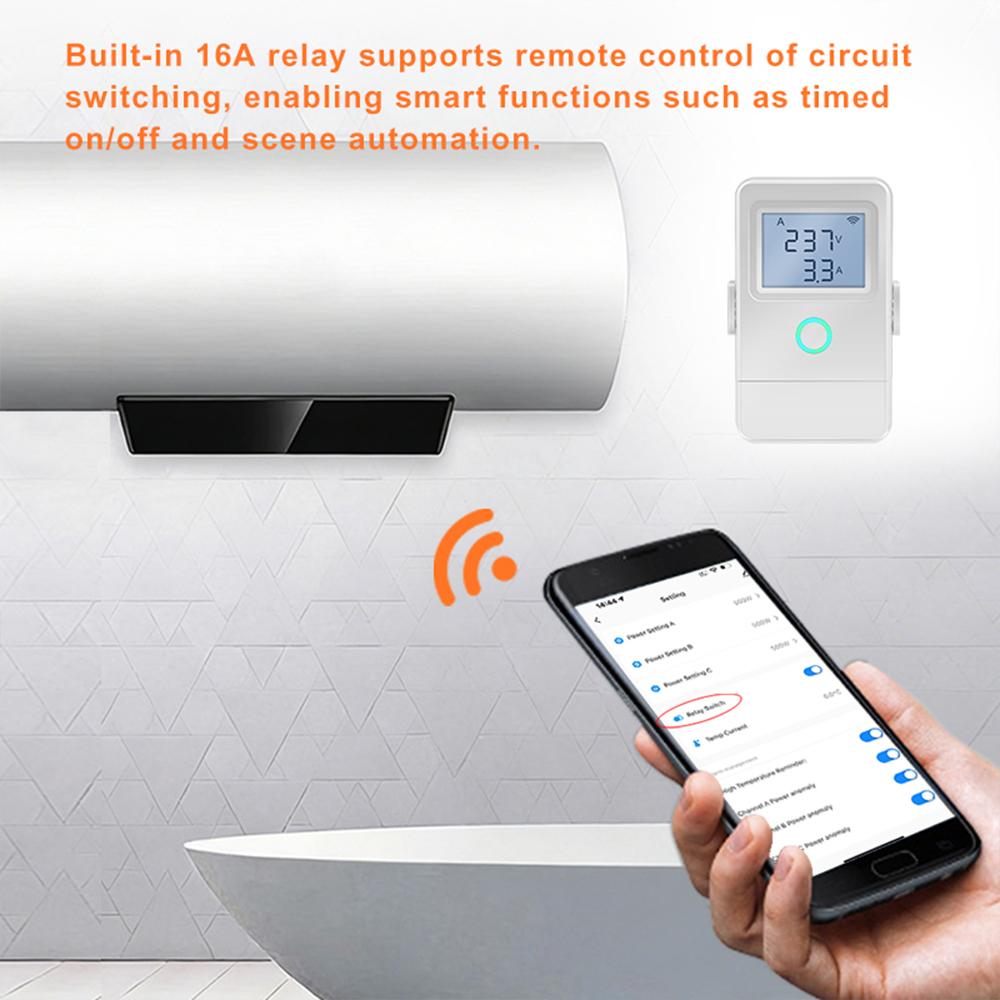

3. Built-in 16A relay supports remote control of circuit switching, enabling smart functions such as timed on/off and scene automation.

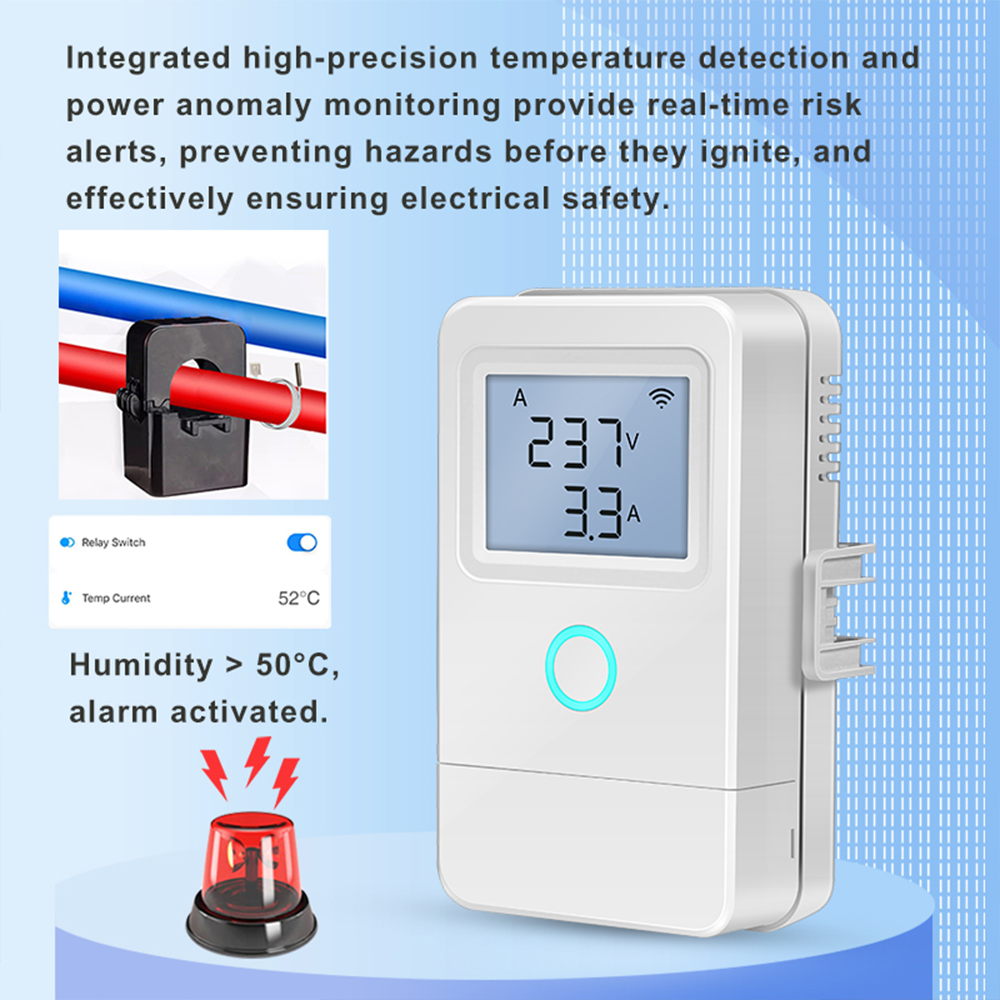

4. Integrated high-precision temperature detection and power anomaly monitoring provide real-time risk alerts, preventing hazards before they ignite, and effectively ensuring electrical safety.

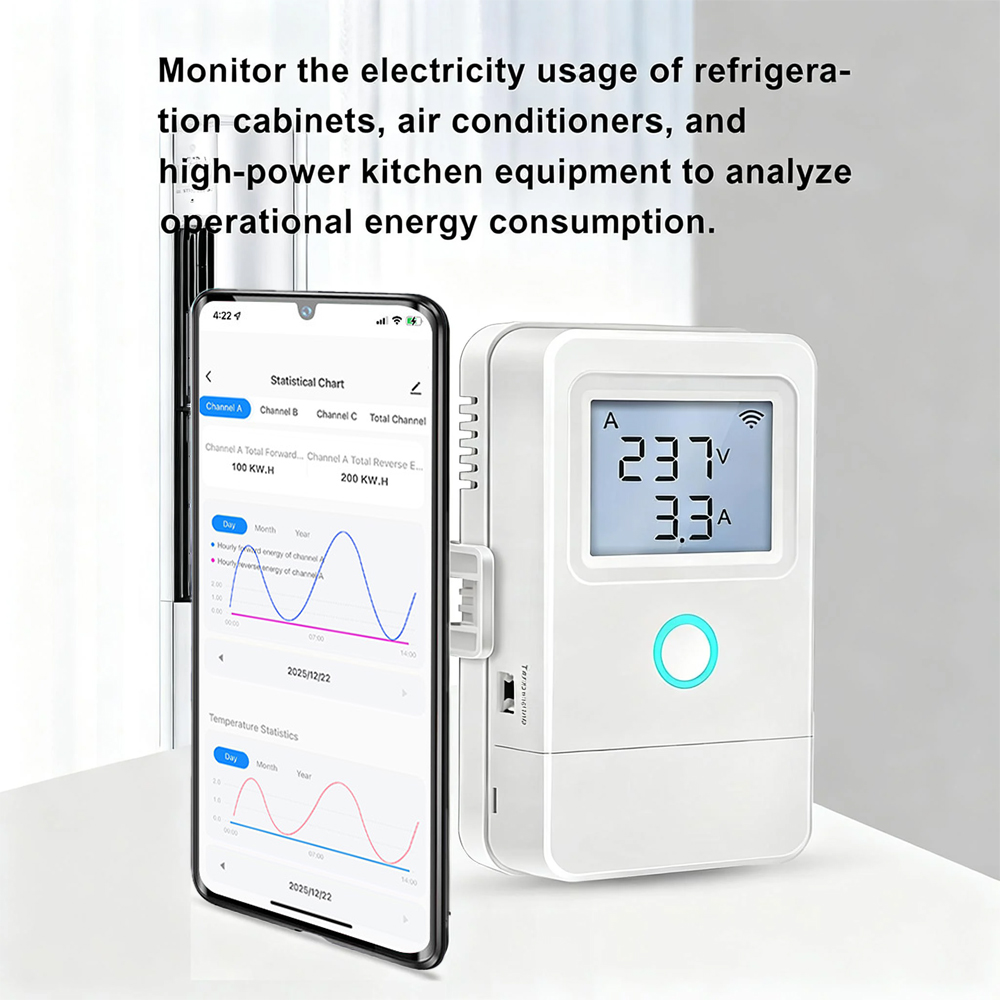

5. Monitor the electricity usage of refrigeration cabinets, air conditioners, and high-power kitchen equipment to analyze operational energy consumption.

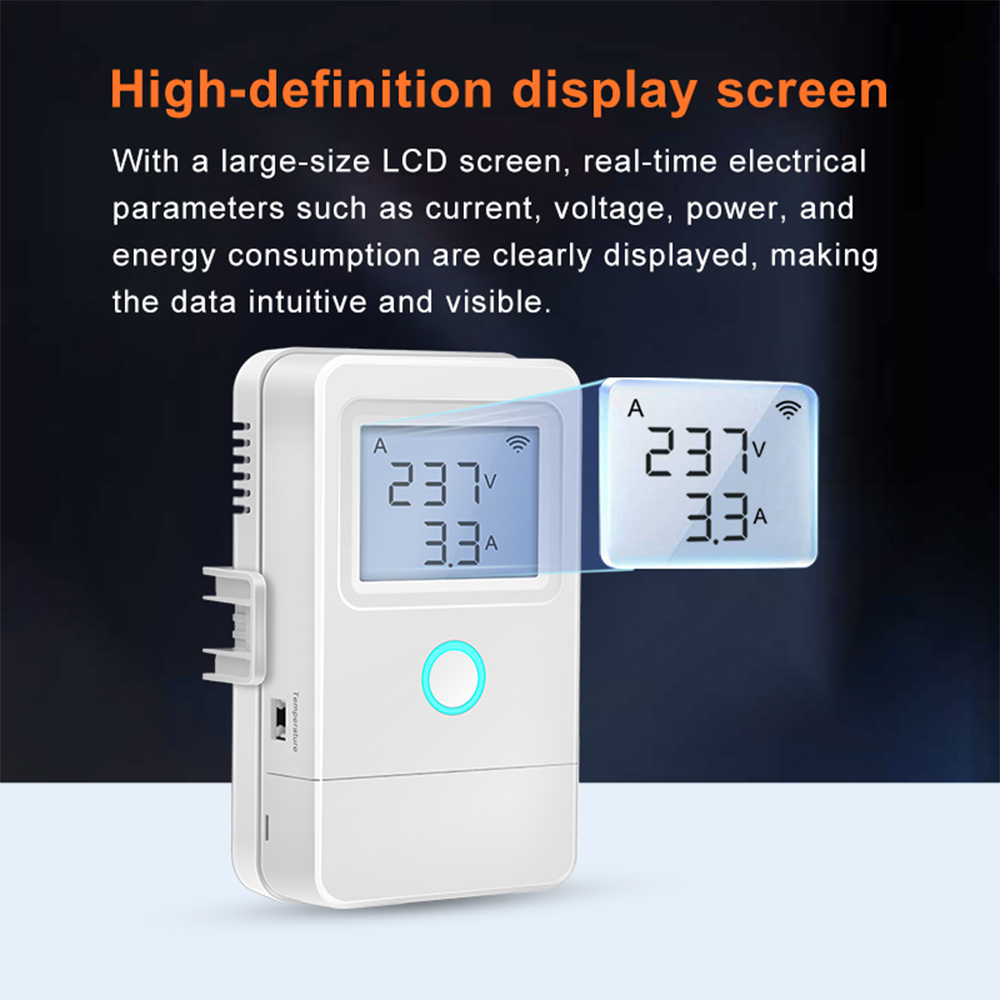

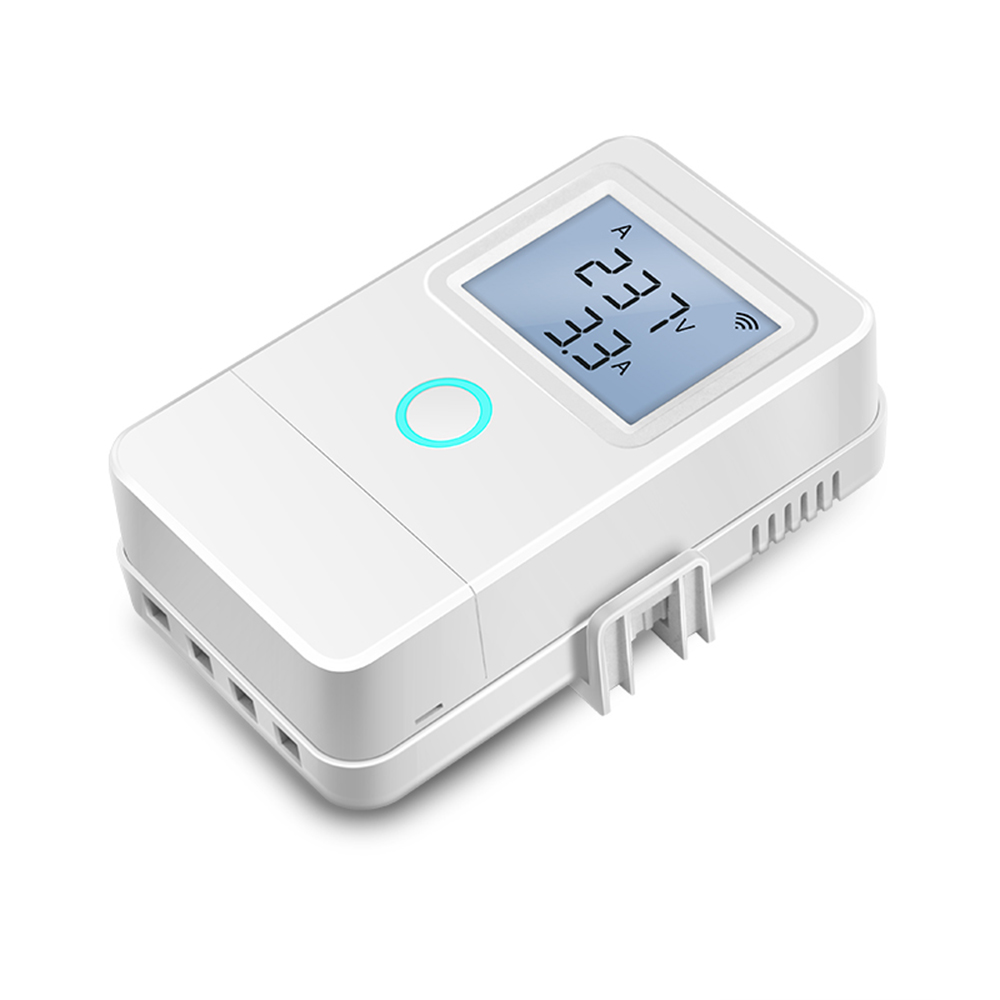

6. High-definition display screen
With a large-size LCD screen, real-time electrical parameters such as current, voltage, power and energy consumption are clearly displayed making the data intuitive and visible

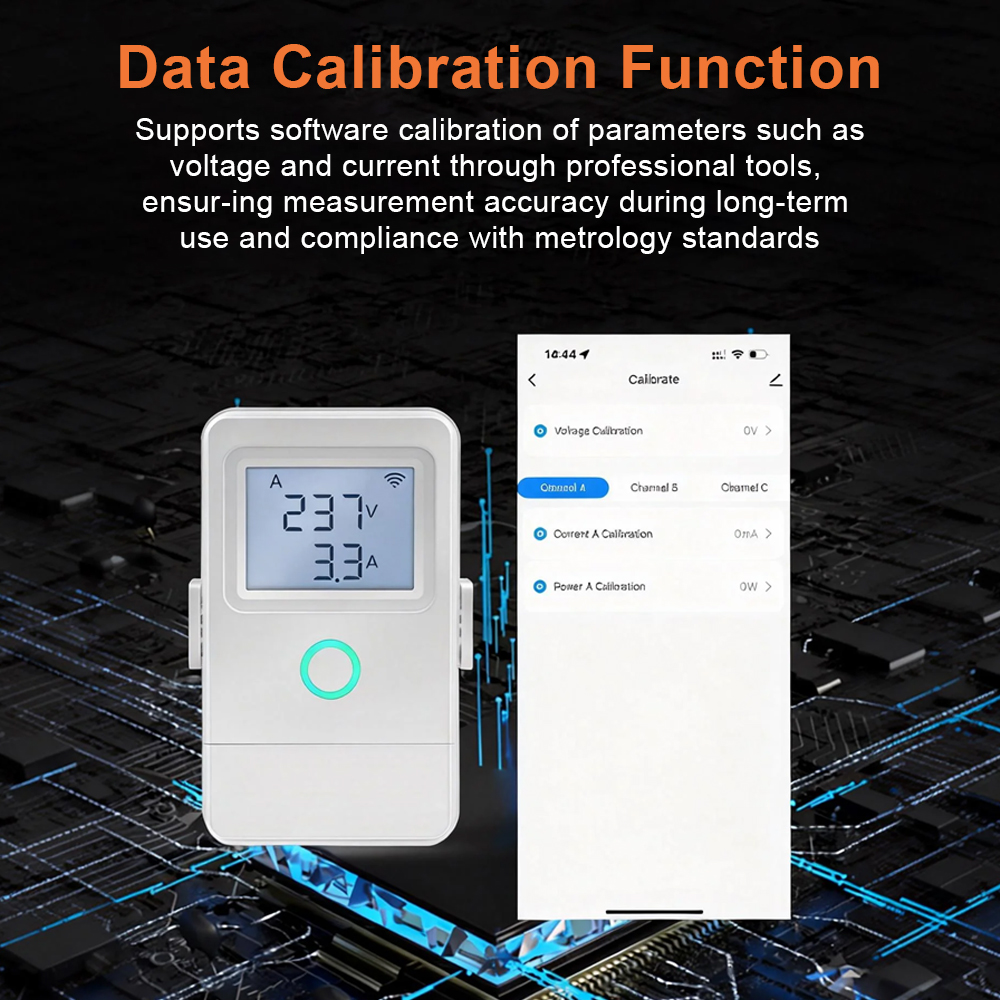

7. Data Calibration Function
Supports software calibration of parameters such as voltage and current through professional tools, ensuring measurement accuracy during long-term use and compliance with metrology standards.

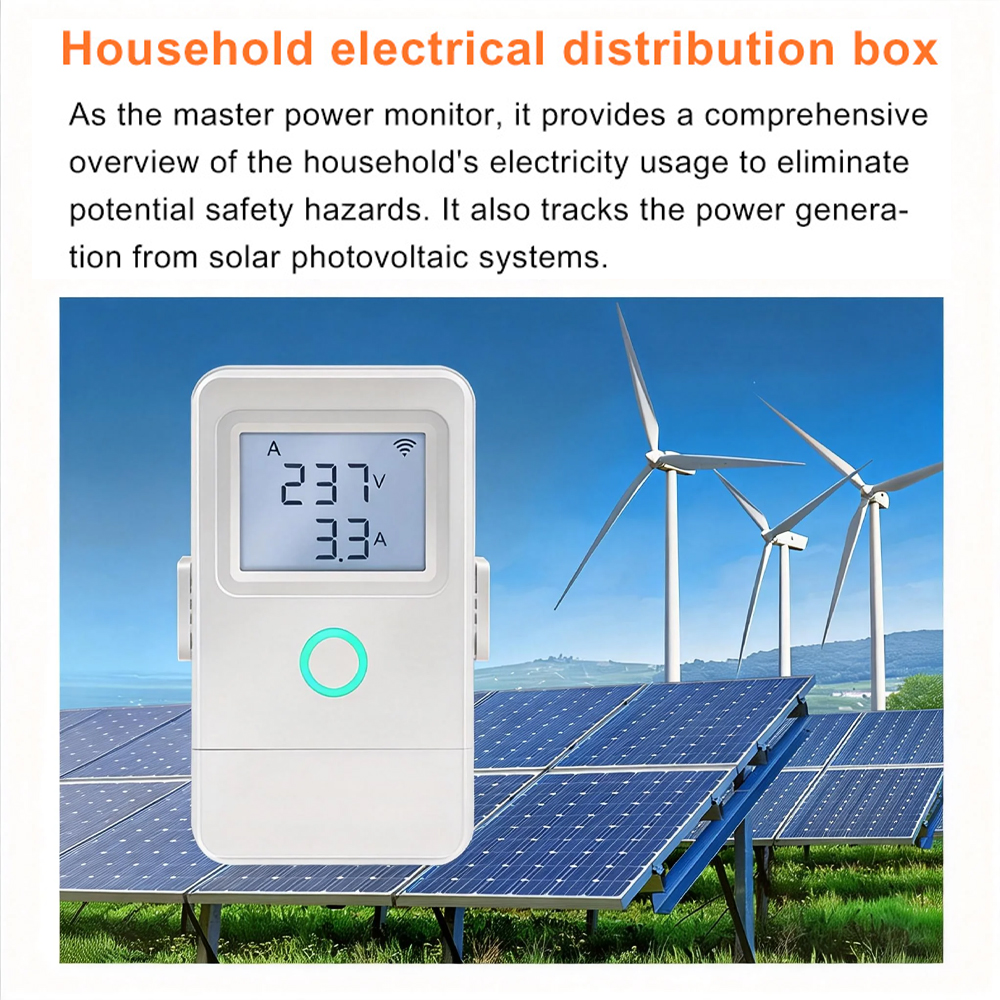

8. Household electrical distribution box
As the master power monitor, it provides a comprehensive overview of the household's electricity usage to eliminate potential safety hazards. lt also tracks the power generation from solar photovoltaic systems.
how to Check The voltage and current display of channel a/b/c?
A. Press the button once to display the voltage and current of channel A, press again to display the energy and power (pay attention to ABC on the display screen).
B. Press three times to display the voltage and current of channel B, press once more to display the energy and power(pay attention to ABC on the display screen).
C. Press five times to display the voltage and current of channel C, press once more to display the energy and power(pay attention to ABC on the display screen).
D. Press the seventh time to re-display the voltage, current,energy, and power of channel A, and continue in this cycle.
q&a
Q: Why is channel current and power on displayed as 0 after viewing the product interface?
A:You can only sense the current by passing the line of the device you want to measure through the current transformer and the APP displays the current and power values.
Q:I changed the setting item to change the value of other parameters. Why does my product interface seem to be stuck.
A: This is because of network latency or lag. Please log out the application and retype it. That's all.
Q: How to clear the electricity data of smart meters？
A: Please go to the smart meter APP interface, click the "...", slide to the bottom right corner, and click delete device.
