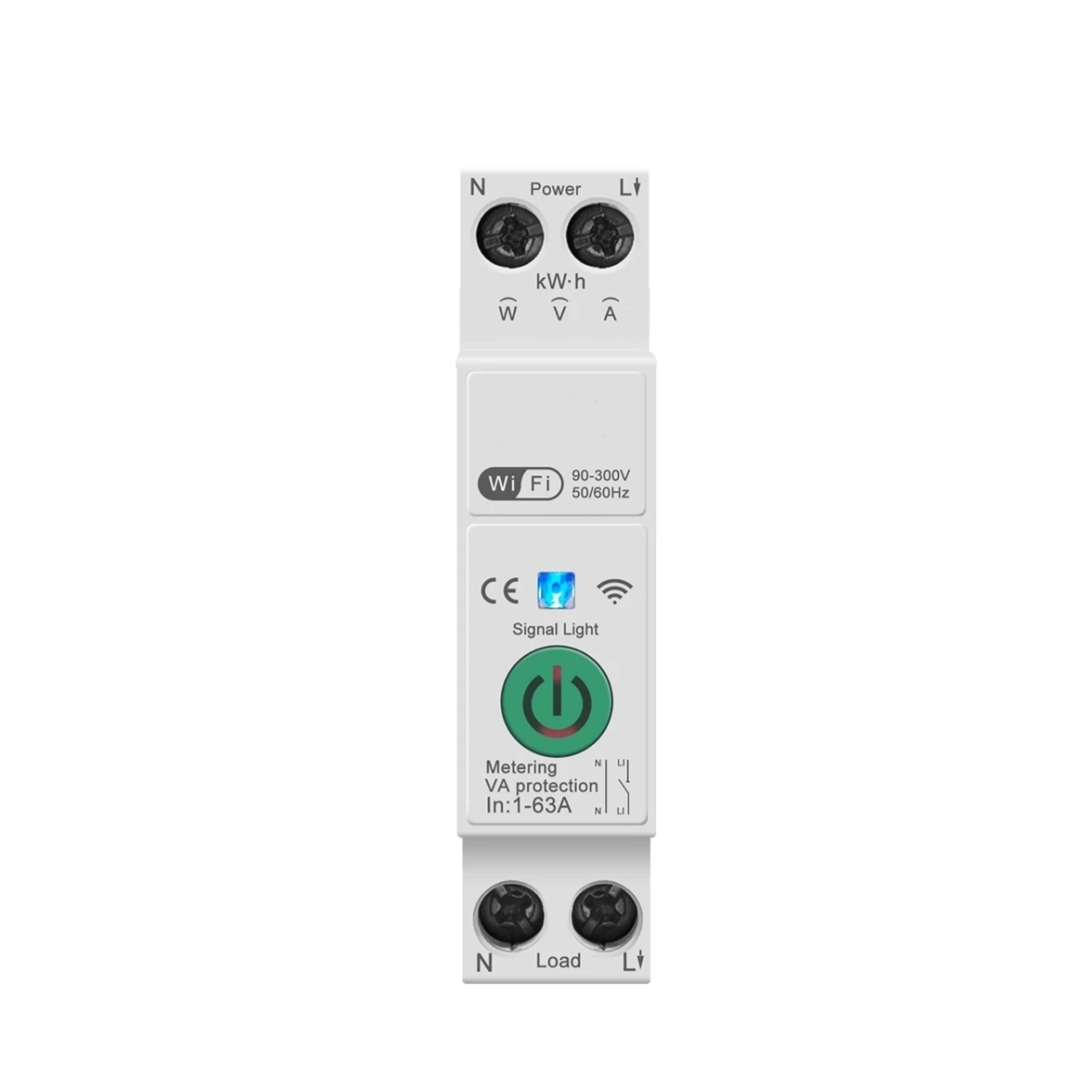

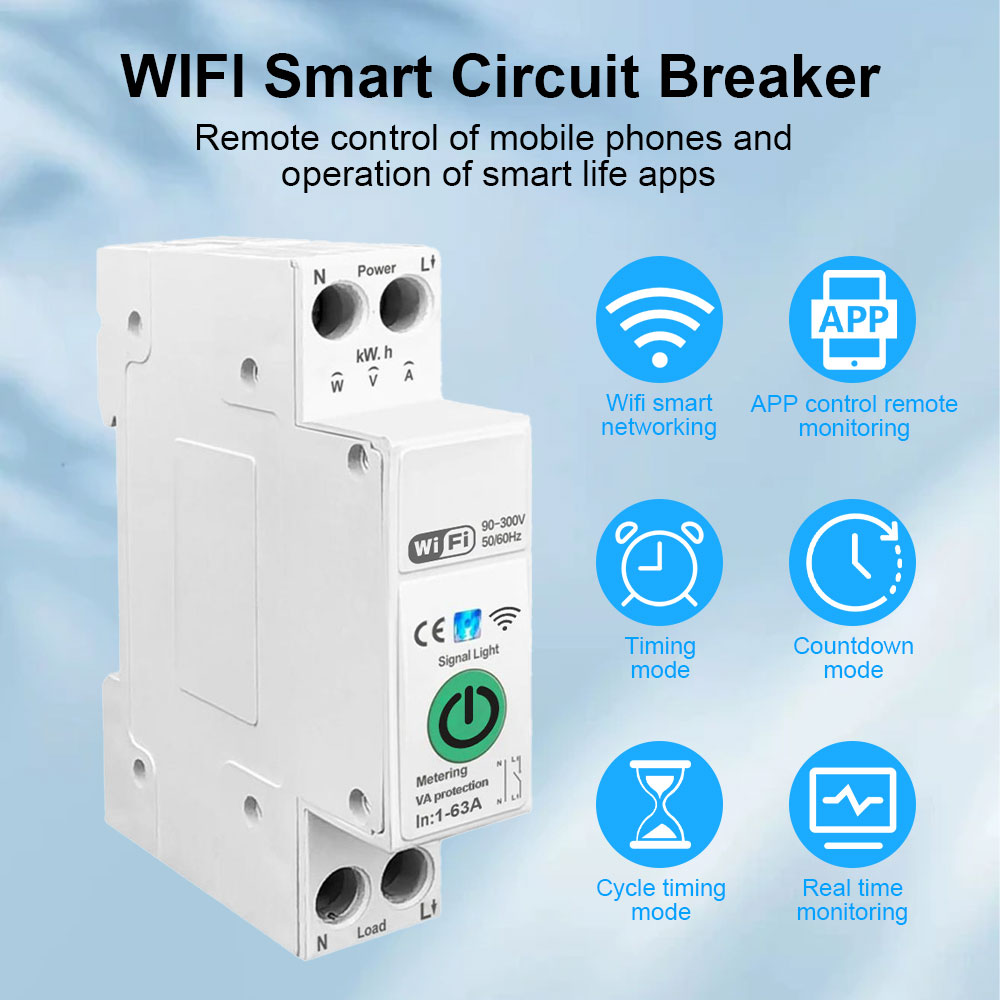

Smart Circuit Breaker With Metering Protected
Products Main Specifications
Smart Circuit Breaker With Metering Protected |
Main Data Parameter |
Protocol |
WiFi ( Default ) |
Rated operating voltage range |
100V-240V |
Control Type |
Remote control , Manual |
Poles description |
1P+ N ( N Pole Pass - through ) |
Customization |
SigMesh / ZigBee |
Model selection |
Metering Type |
Operating Procedure
Step1

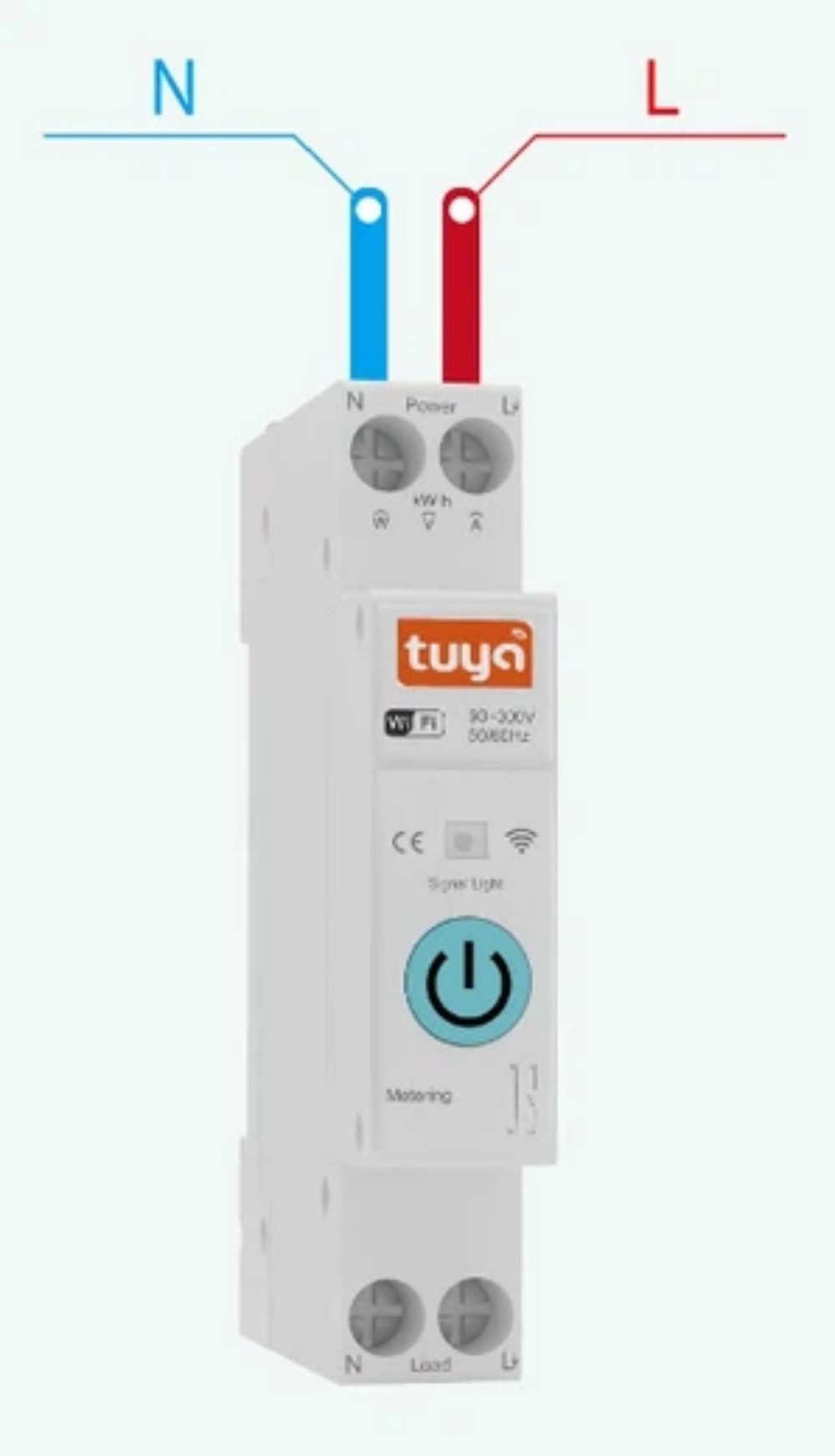

◎ Connect the wires from the top end of the smart switch.
◎ Connect the fire wire to L pole and the zero wire to N pole.
◎ Make sure the wiring is correct and the WFi signal is strong.
Step 2
◎ First: Switch on Bluetooth and WFi signal of mobile phone.
◎ Secondly: Login mobile phone APP.

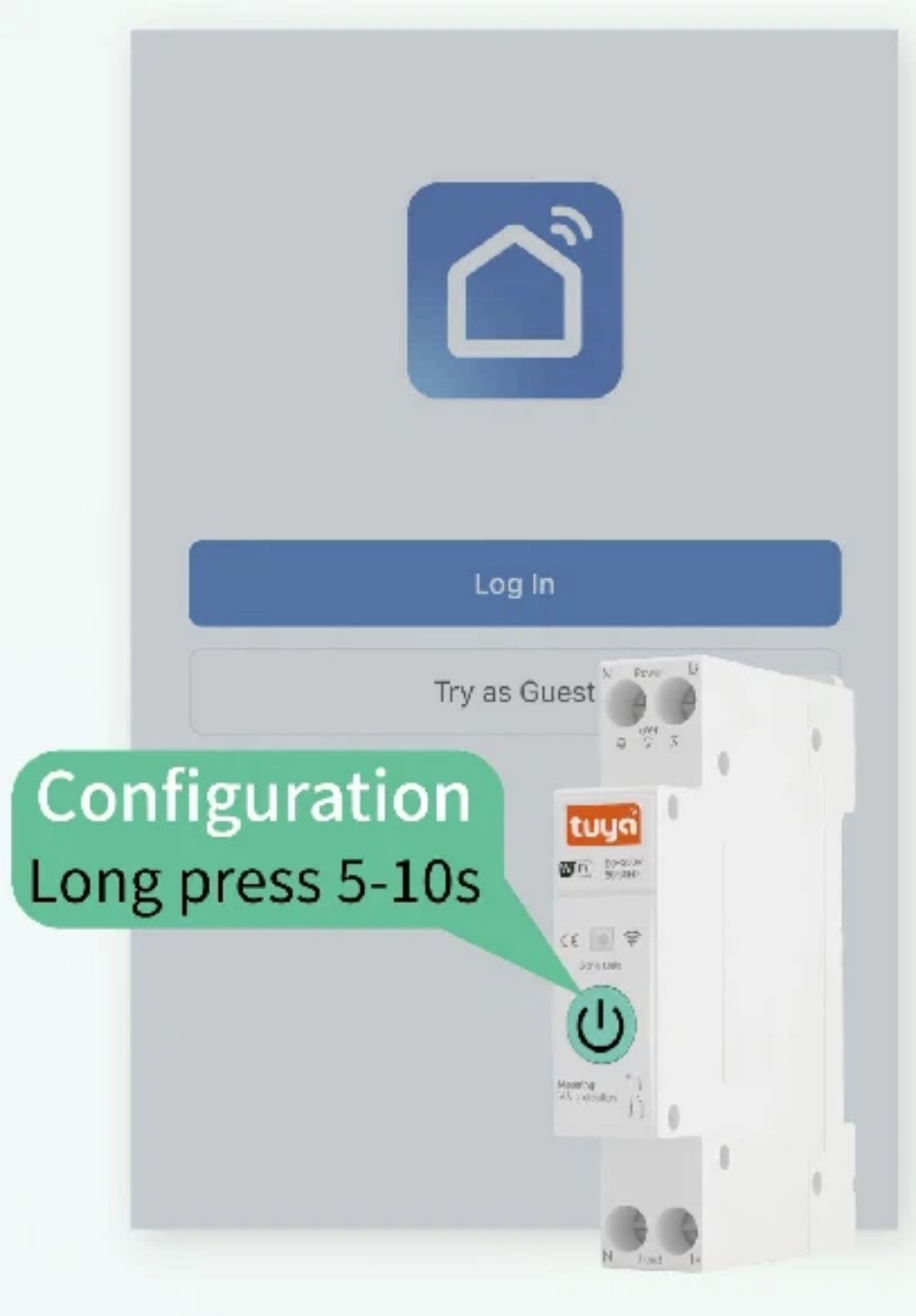

◎ Third: Long press the on/off network button.
◎ Wait for about 5-10 seconds, the LED indicator will enter into slow blinking state.
◎ Wait in the Tuya/Smart life APP interfac.
Step 3
◎ First：While waiting in Doodle APP.
◎ Matching objects or objects will be popped up automatically.

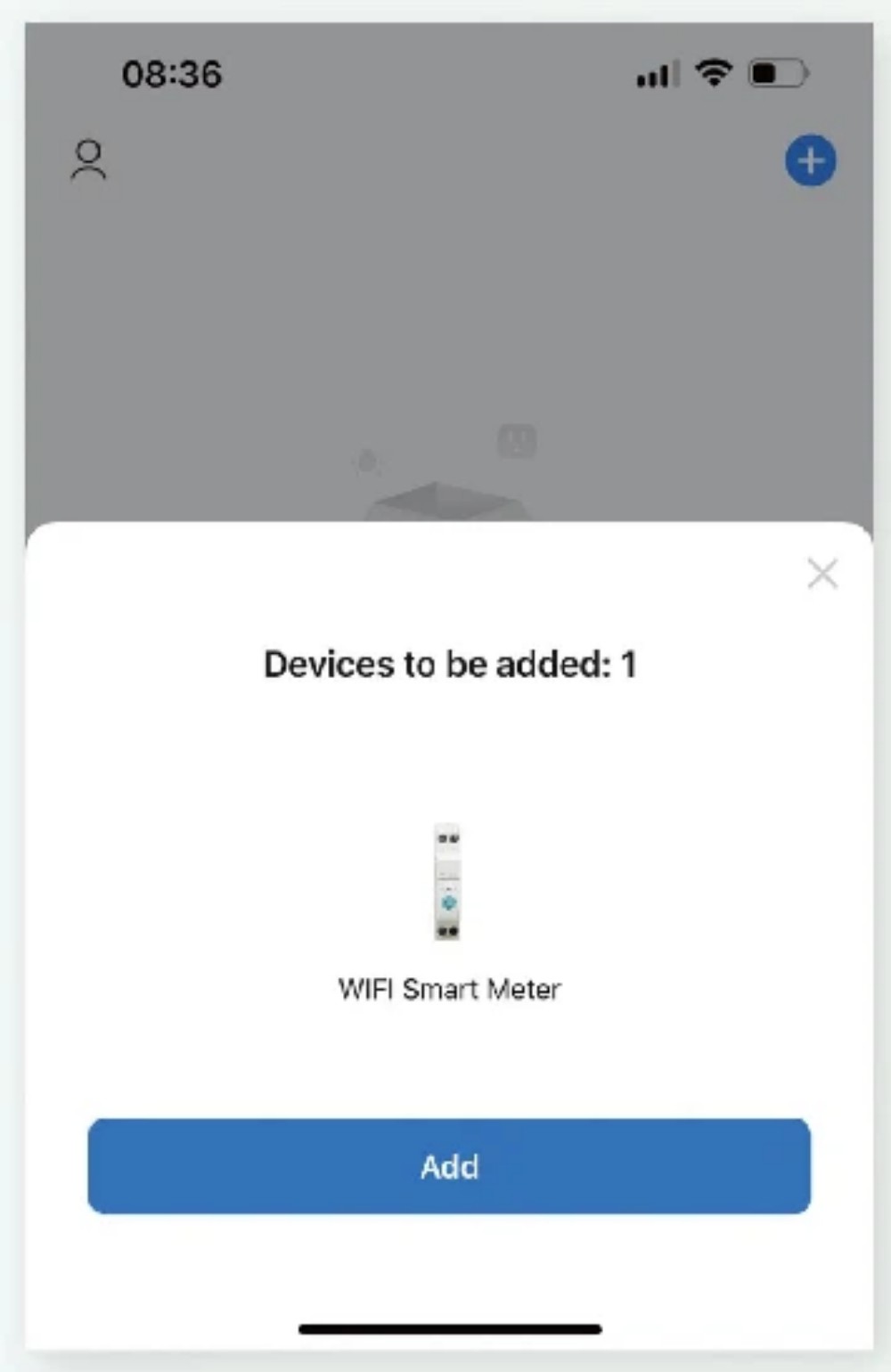

◎ Secondly: Click "+" in the upper right corner, click Add.
◎ Wait for the device to be found, then click Add.
Step 4

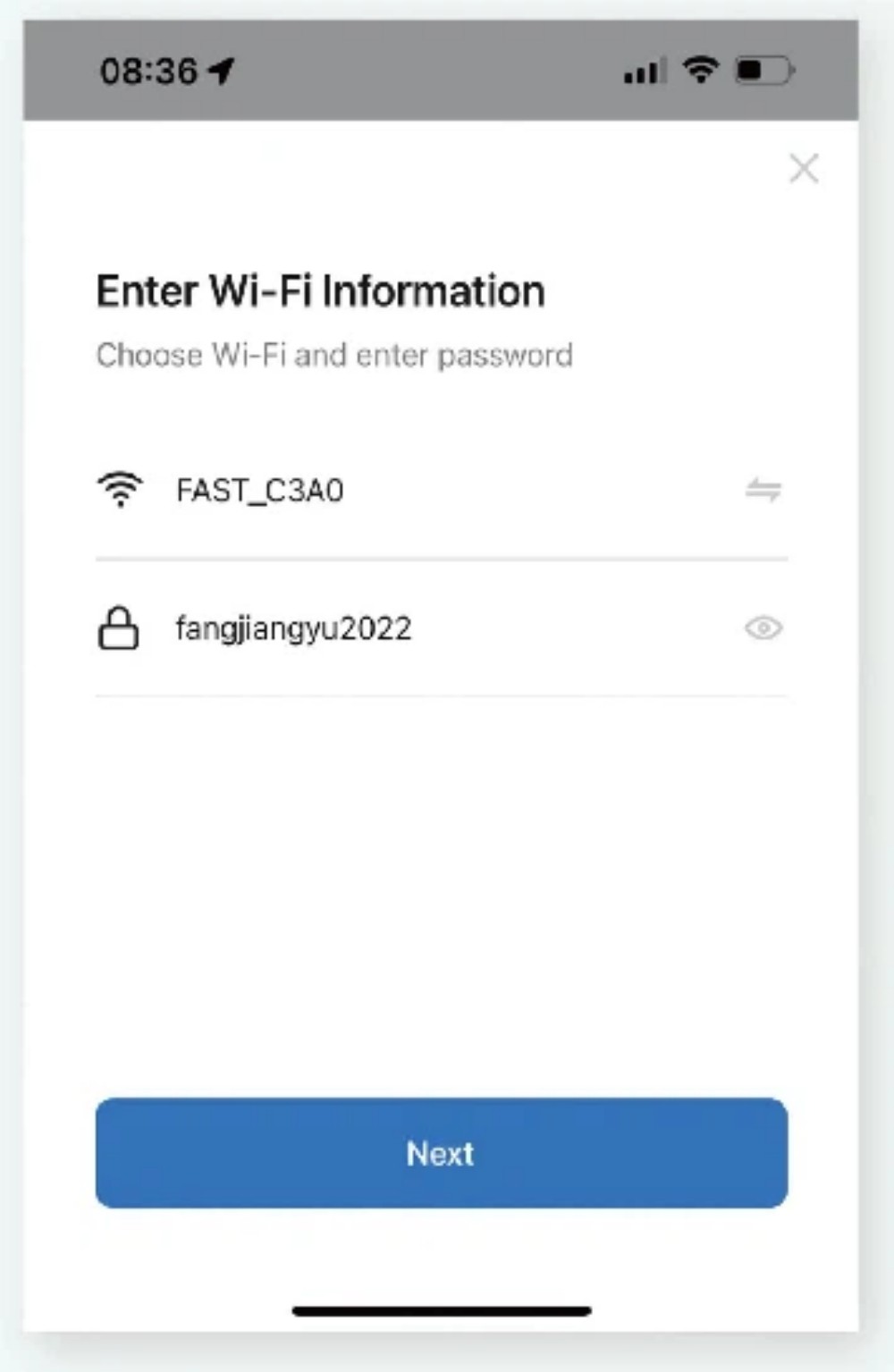

◎ First: Enter the wifi account password.
◎ Secondly: After clicking Next.
◎ Wait for the circuit breaker to connect to the network.
Step 5

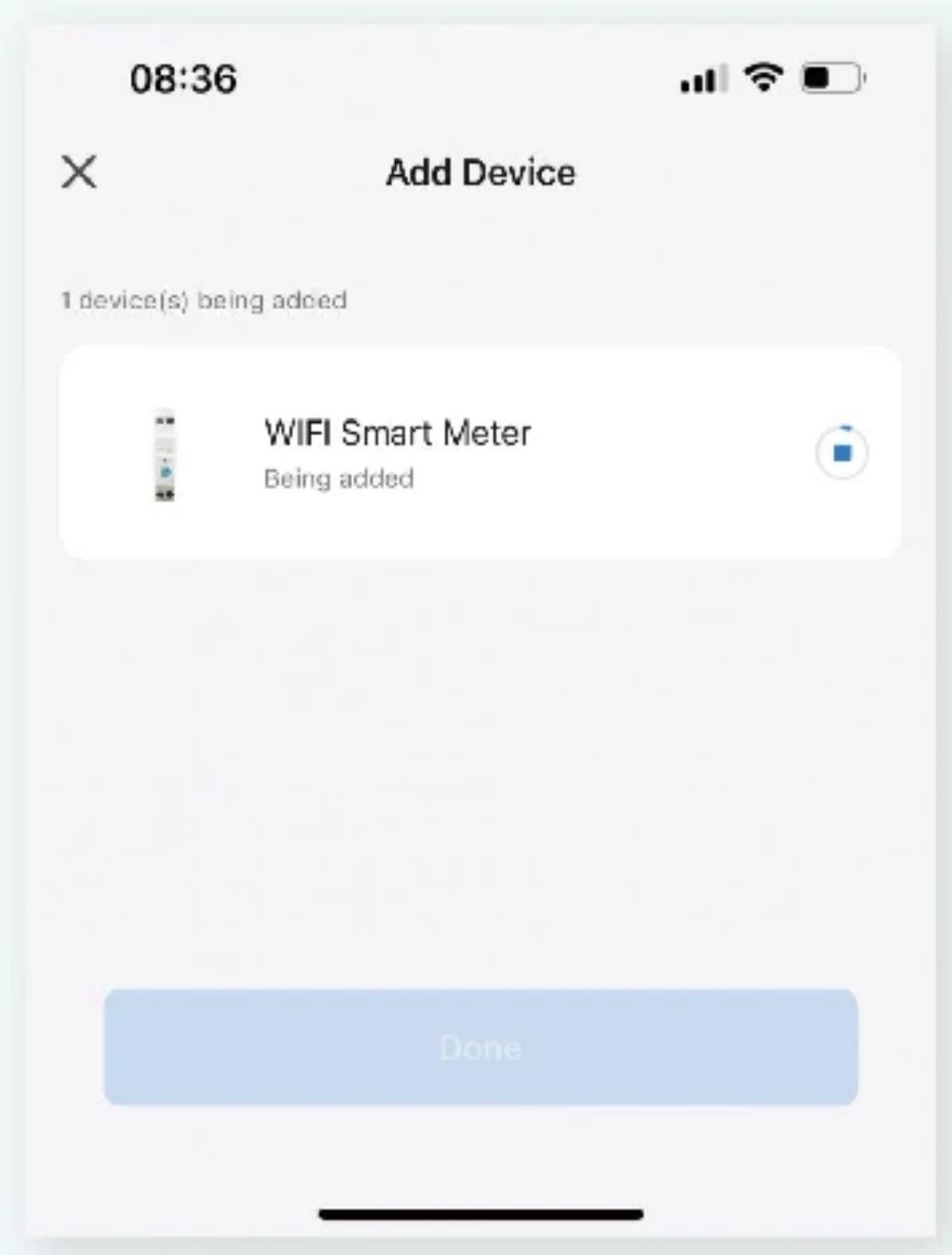

◎ Circuit breaker distribution network connection in progress.
Step 6
◎ Successfully connect to APP operation page.
◎ Indicator light changes from blue slow flash to blue constant light.
Live View

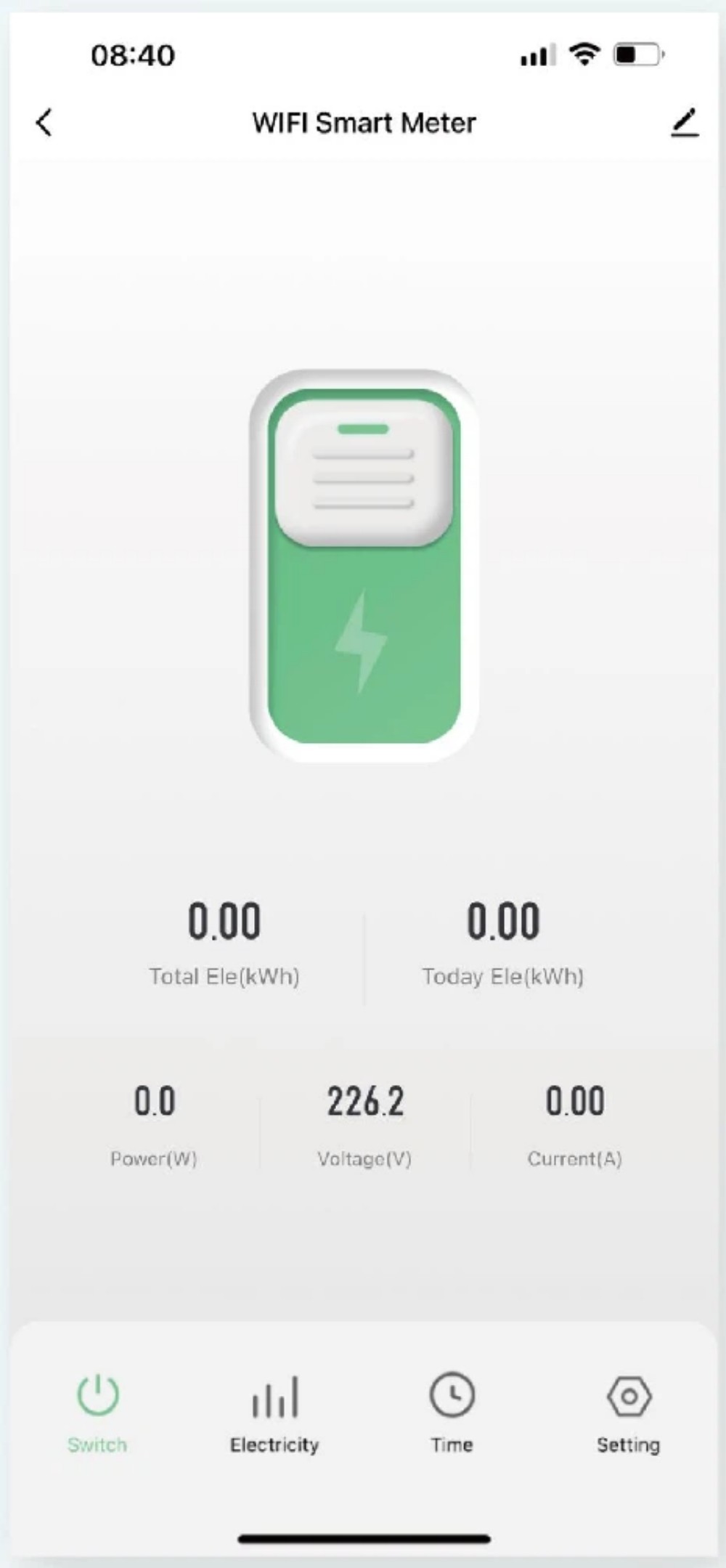

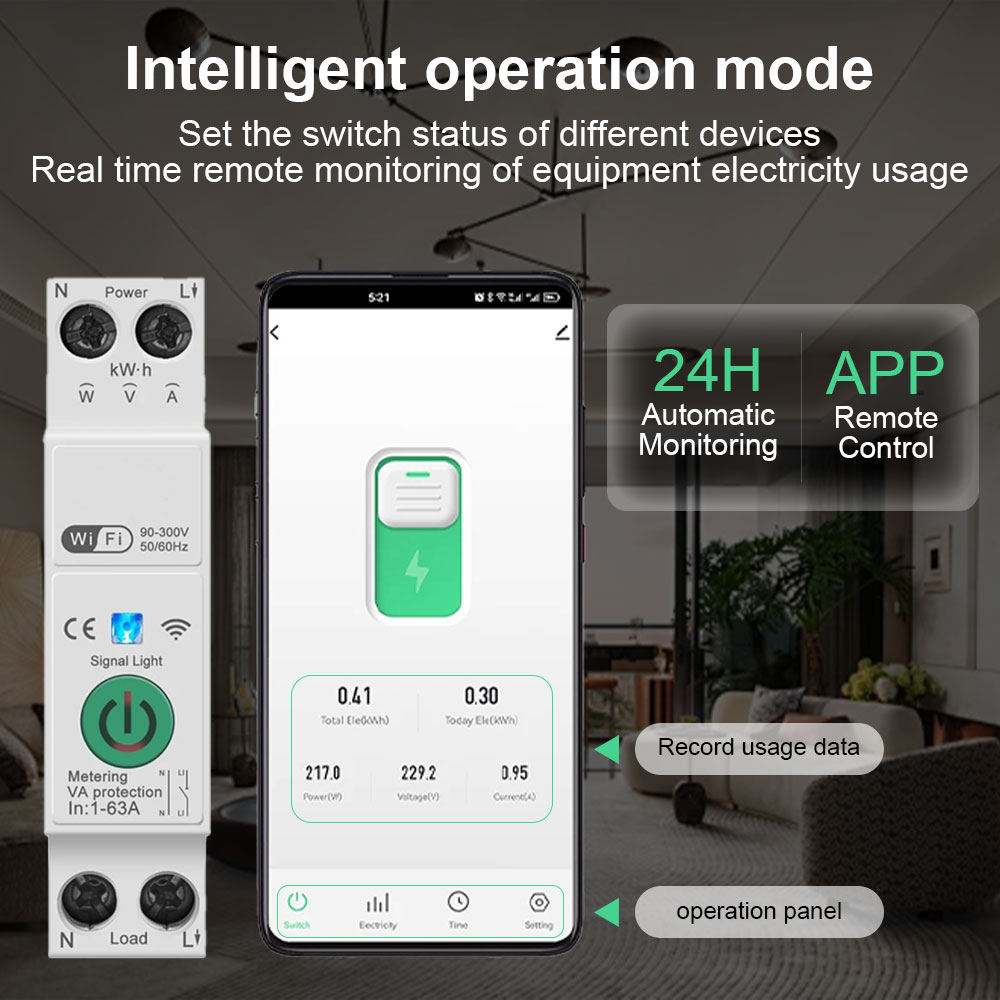

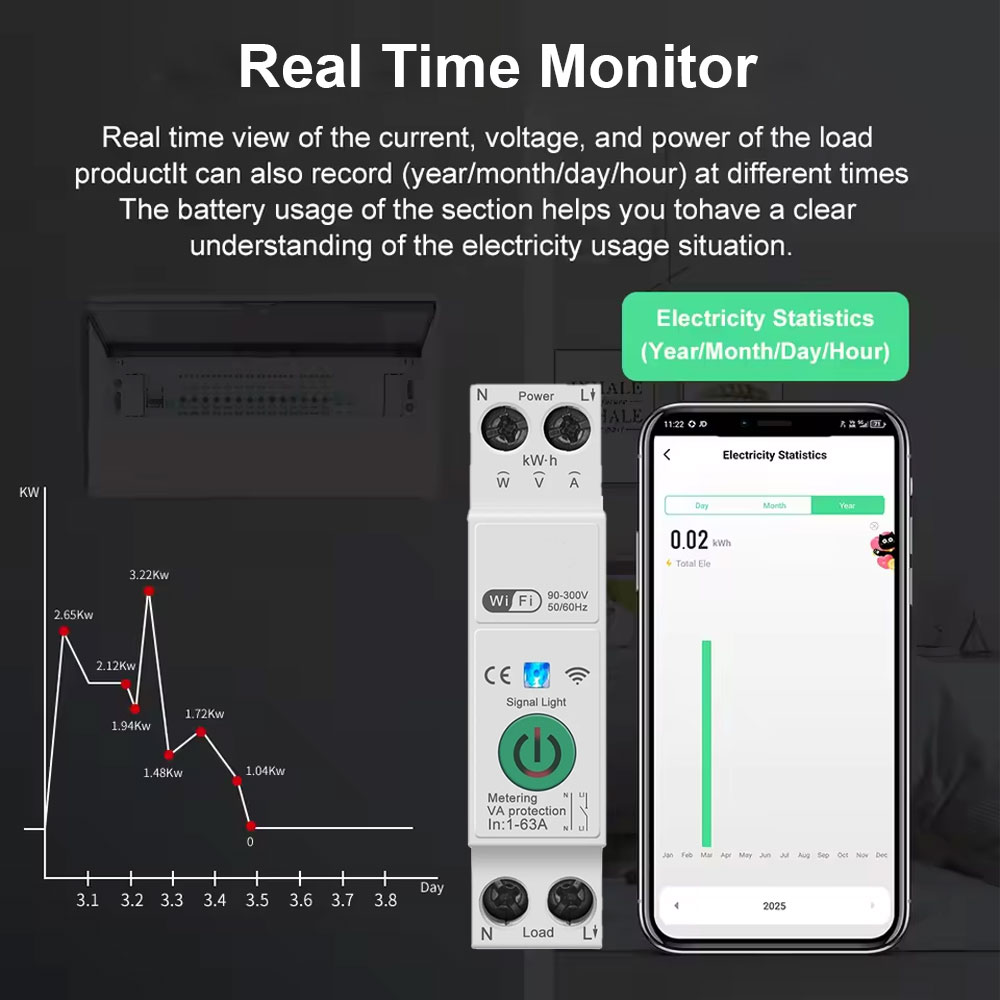

Smart circuit breaker with metering protected can monitor the current, voltage, and power of the load equipment in real time, and can also record the power consumption of the year, month, day, hour and different time neriods, helping users to check the power consumption of load equipment more clearly .

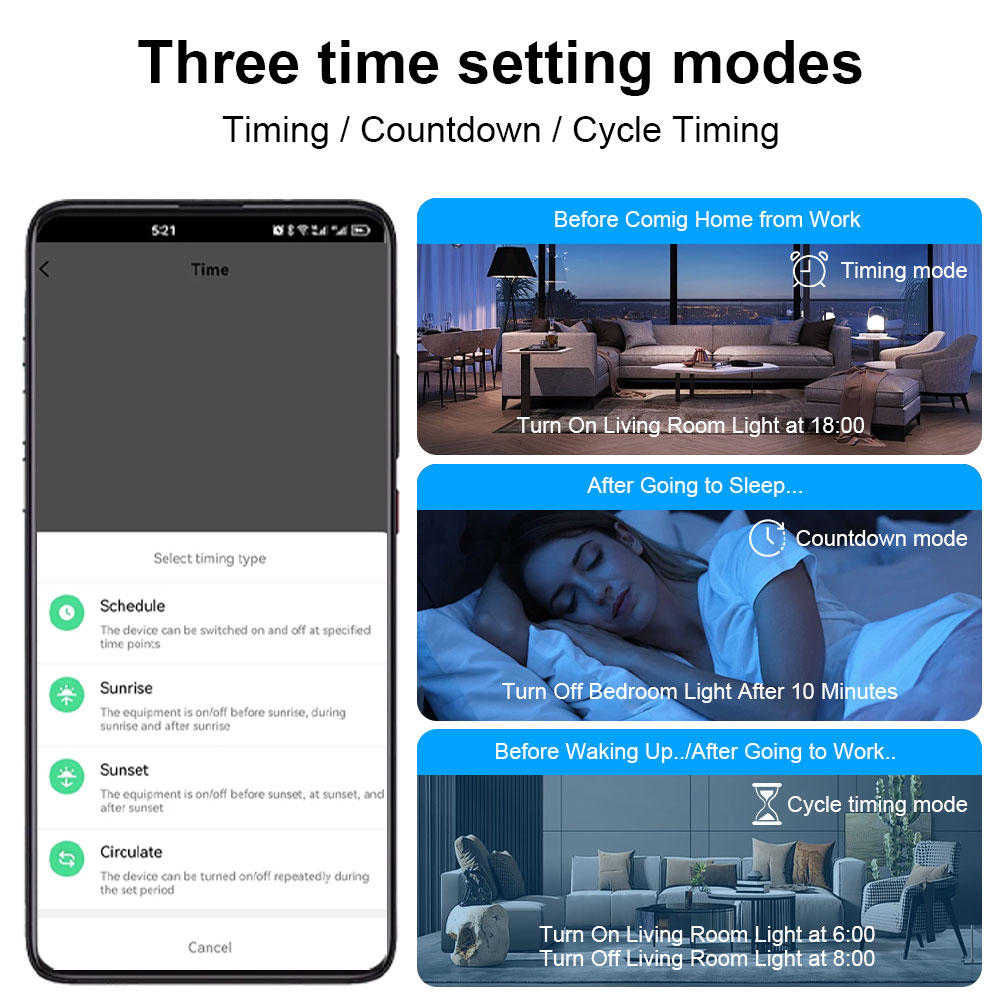

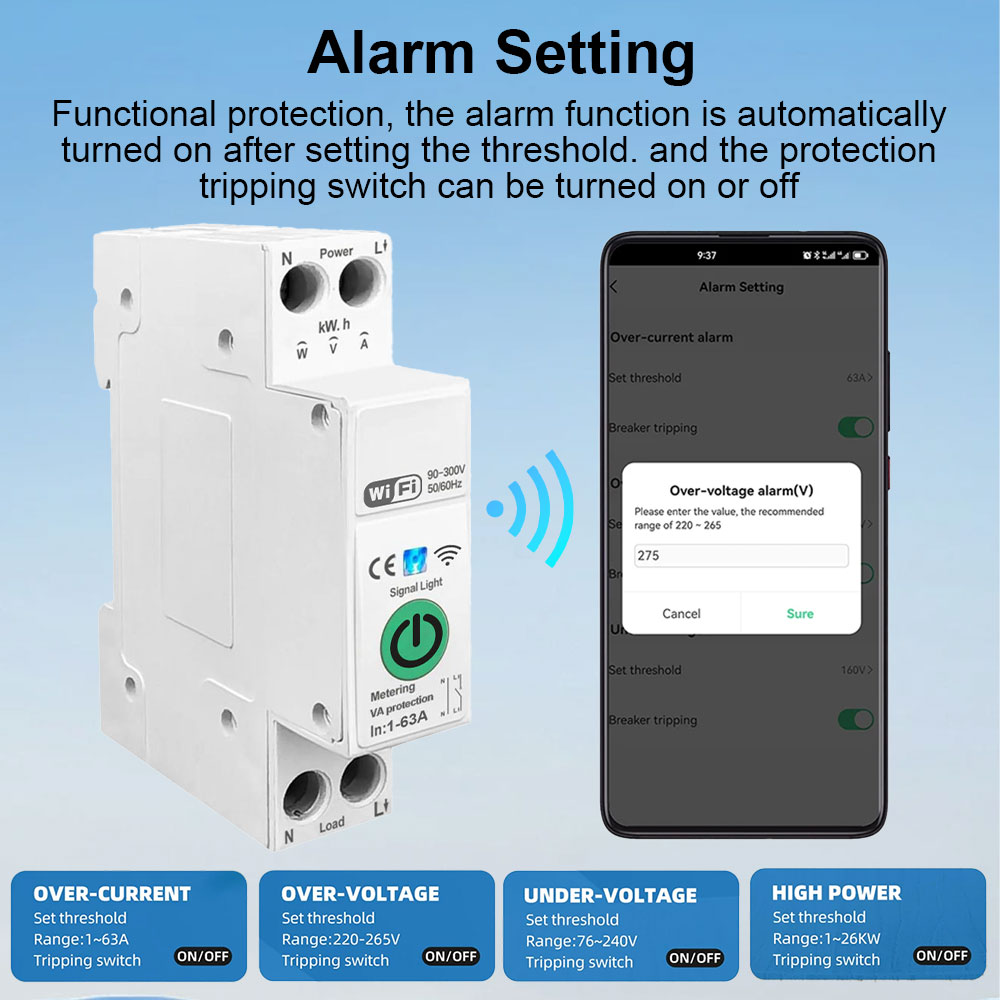

Setting the switch status of the equipment in different scenarios, and remotely monitor the real - time situation of the load electrical appliances.
