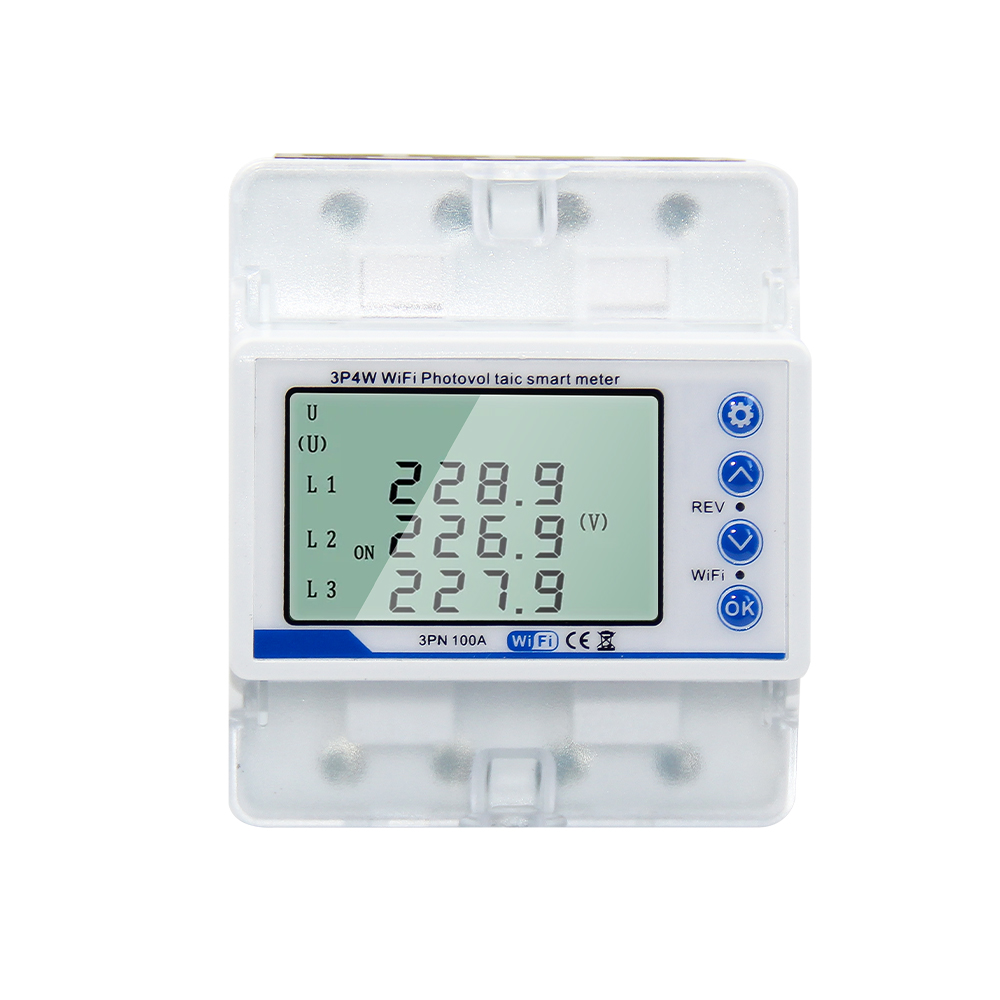

Three Phase WIFI Energy Meter Protector
Products Main Specifications
| Material | PC Flame Retardant, Red Copper |

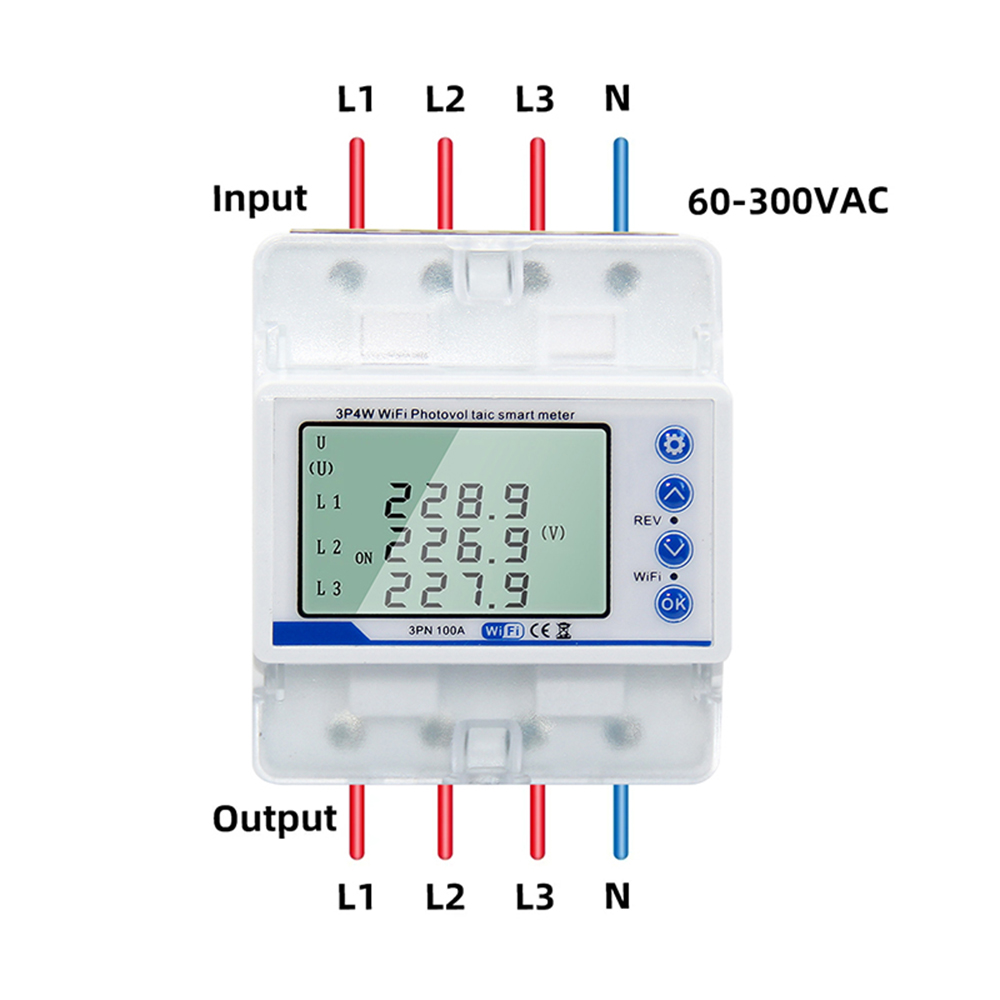

| Rated Voltage | 60-300V 50, 60HZ (Note: If your voltage is 110 VAC, the protector will provide undervoltage guard the first time you use it. Please change the overvoltage (60-300 V) and undervoltage (60-300 V) to suit your requirements.) |
| Rated Current | 100A |

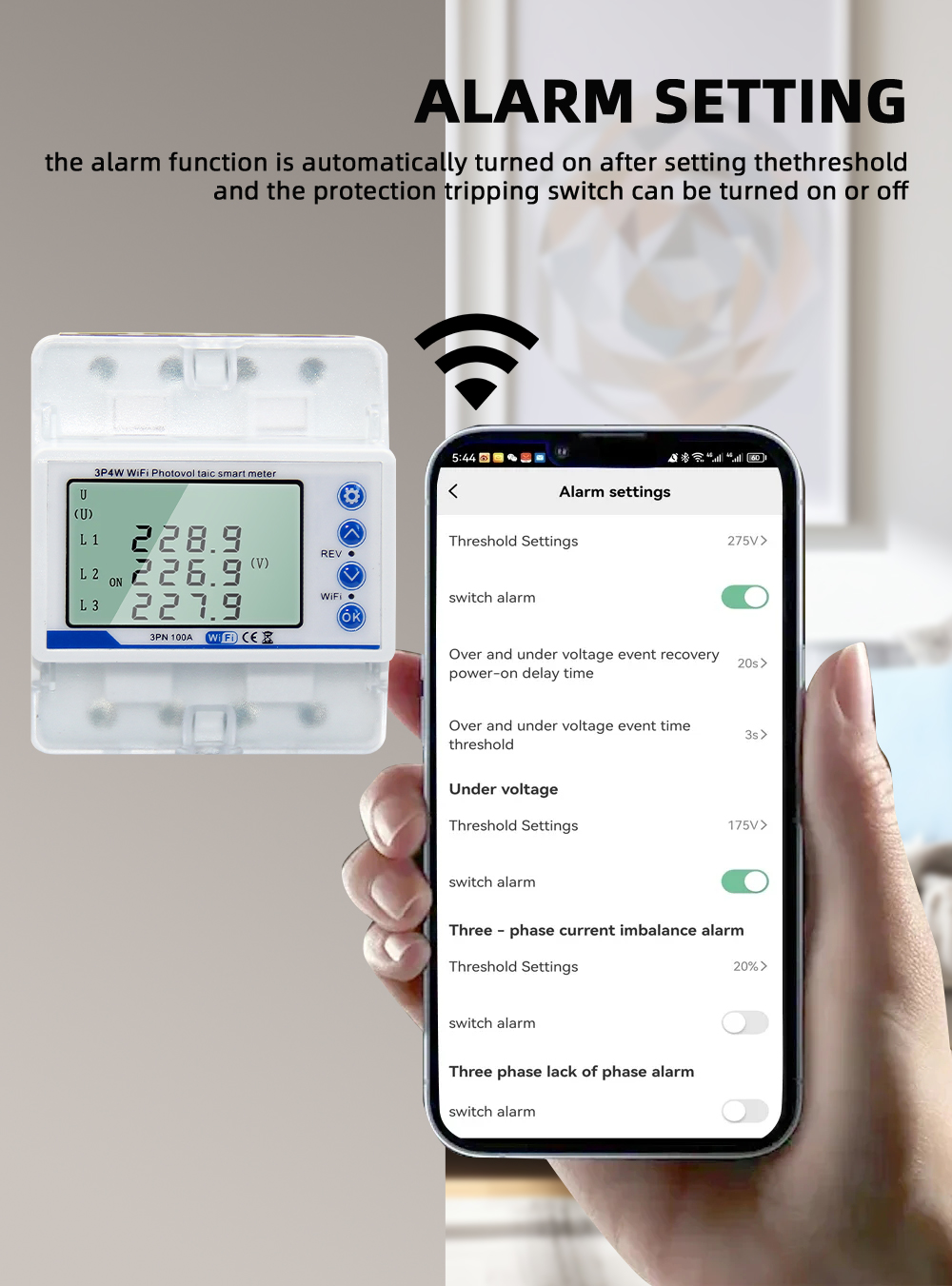

| Voltage Upper Limit | 60-300V (Default 275V) |
| Voltage Lower Limit | 60-300V (Default 175V) |
| Overcurrent Guard | 1A-100A (Adjustable) (Default: 80A) |
| Undercurrent Guard | 1A-100A (Adjustable) (Default: Off) |
| Guard Delay | Manual 0000-9999 Seconds (Default 5 Seconds) |
| Under and Over Voltage Guard Delay | Manual 0000-9999 Seconds (Default 20 Seconds) |
| Current Overload Lower Limit Delay | 0000-9999 Seconds (Default 5 Seconds) |
| Current Overload Upper Limit Delay | 0000-9999 Seconds (Default 5 Seconds) |
| Current Guard Upper Limit Delay | 0000-9999 Seconds (Default 60 Seconds) |
| Voltage Unbalance Guard | 10-100% (Adjustable) (Default Off) |
| Current Unbalance Guard | 10-100% (adjustable) (Default Off) |
| Overheat Guard | 10-85°C (Adjustable) (Default 85°C) |
| Phase Sequence Guard | On and Off (Default On) |
| Temperature | -20-60°C |
| Humidity | ≤85% |
| Altitude | Up to 2000m / 6561.68ft |
| Wiring Capacity | Insulated copper wire below 35 square millimeters |

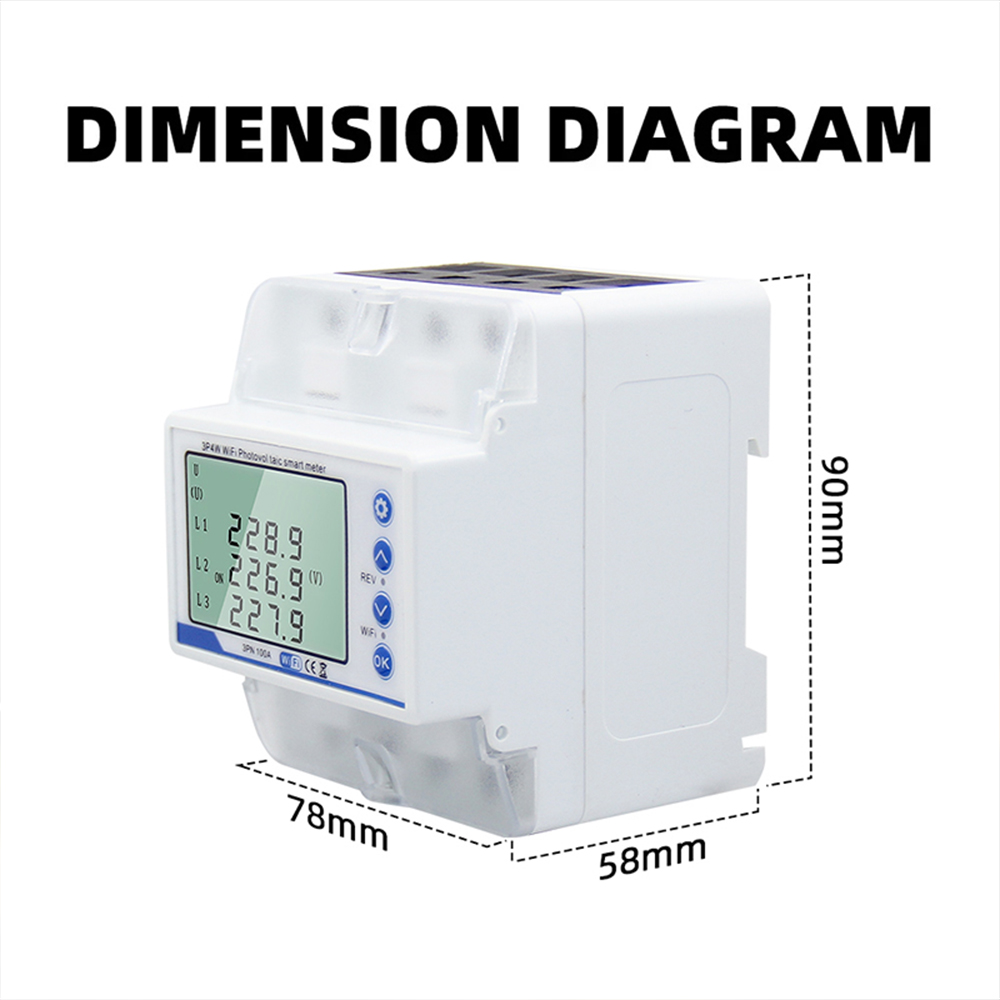

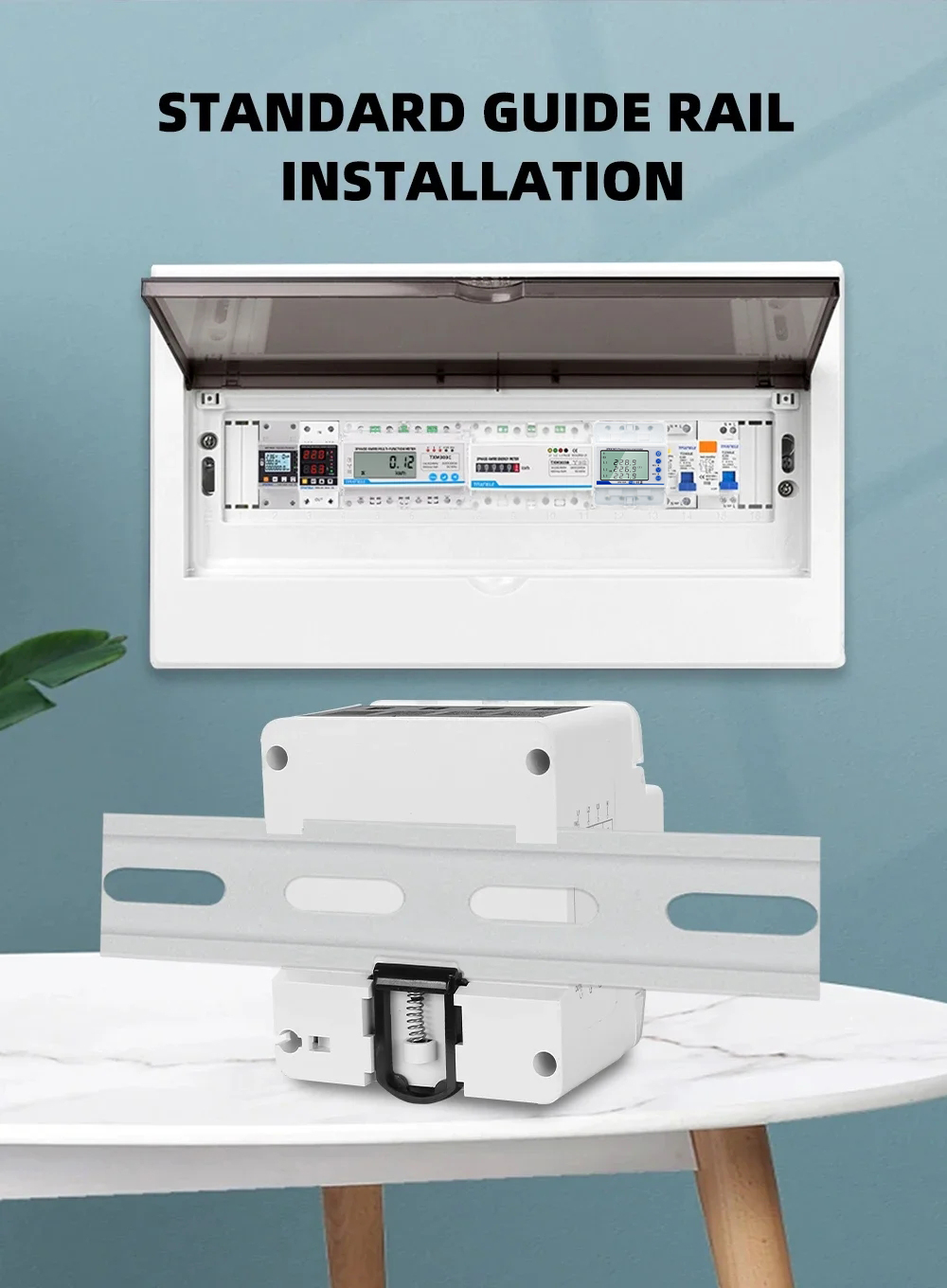

| Installation | 35mm Guide Rail |
| Remote control | via for SMART LIFE, for TUYA anytime, anywhere. |
| Timer | Timing, Countdown, Cycle Time. |
| Voice control | Alexa, Assistant |
Products Description

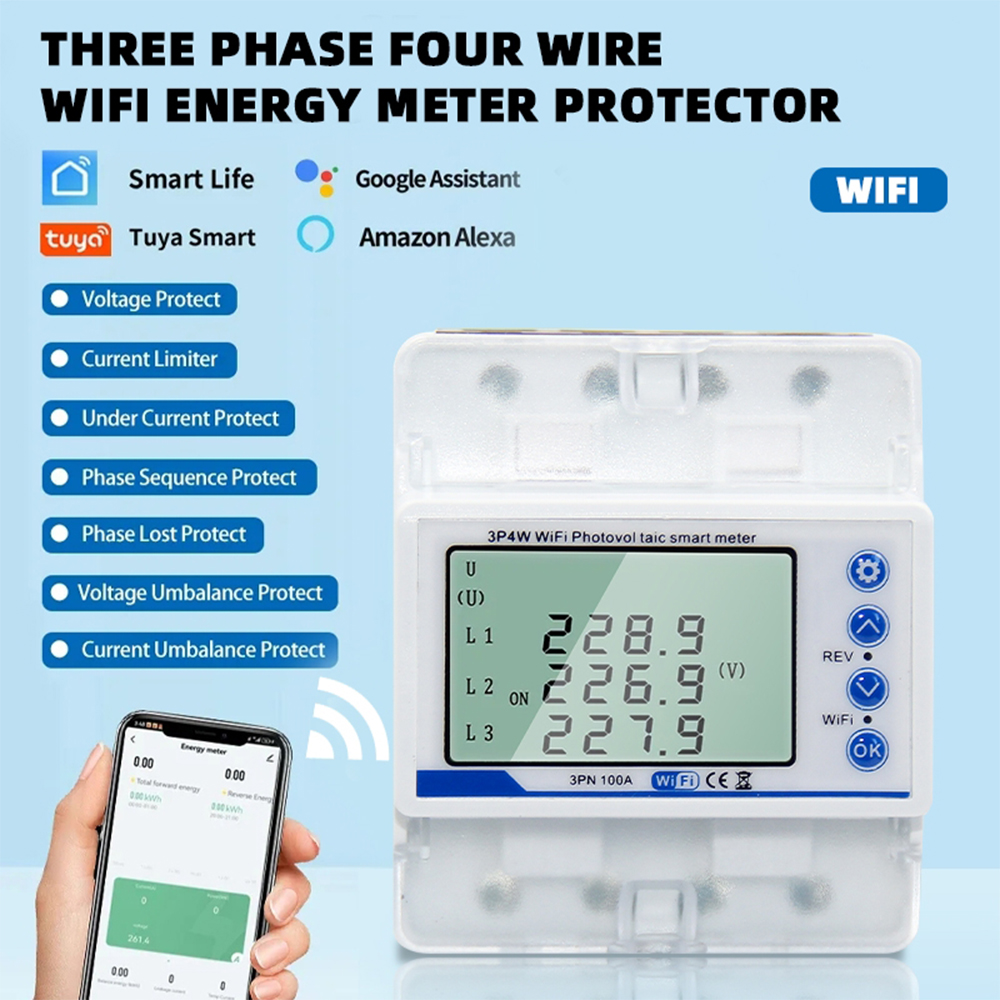

1. Multifunctional: This WIFI energy meter protector is multifunctional, which allows you to easily monitor 3 phase voltage, current, power factor, frequency and other important parameters, which is very convenient.
2. Secure And Reliable: This WiFi 3 way energy meter can provide a series of conservation functions such as surge guard, under voltage guard, overload guard, under current guard, time delay guard, voltage imbalance guard, current imbalance guard, phase loss guard, phase loss guard, etc., which are secure and reliable.

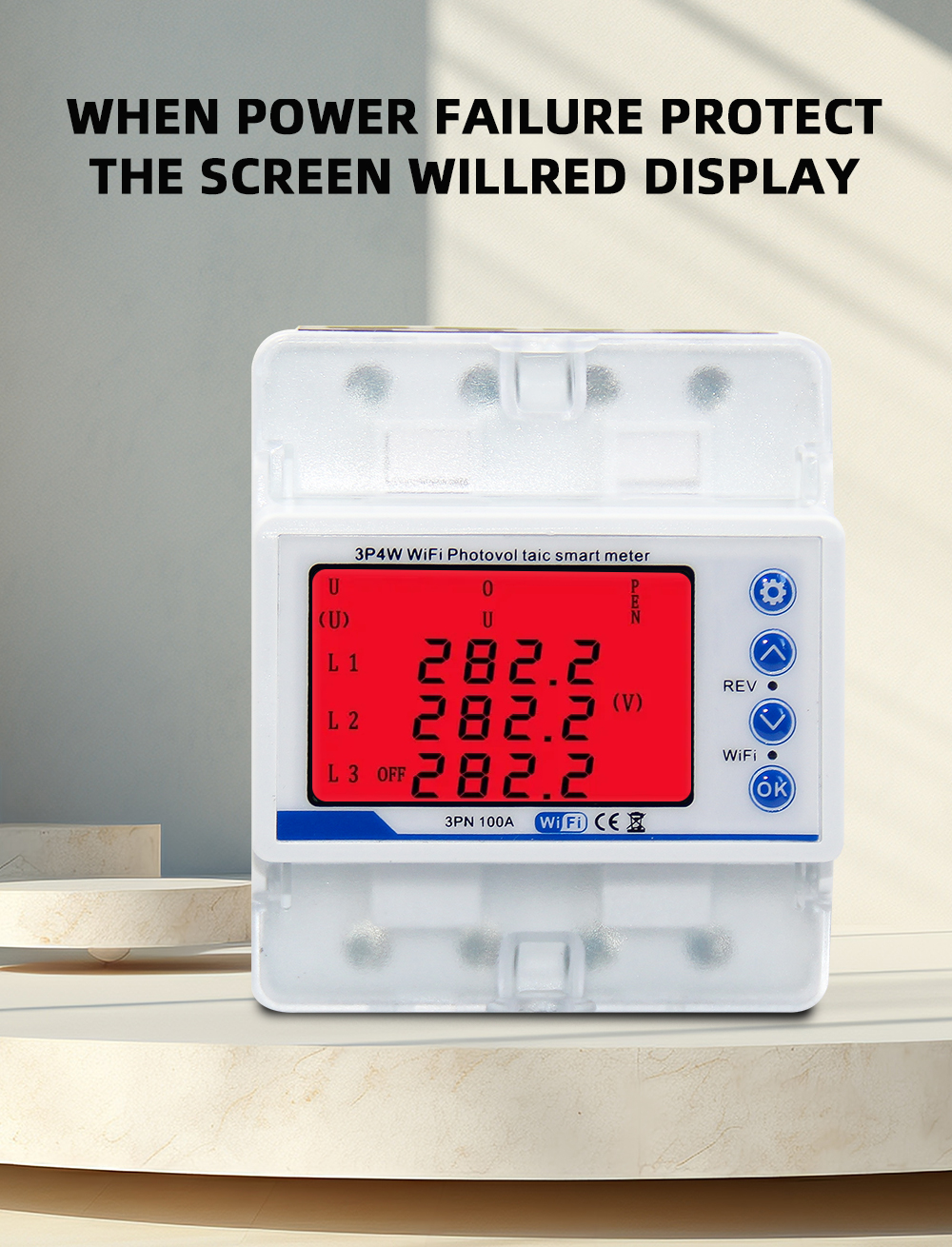

3. Quick Response: This WiFi smart circuit breaker guards against overvoltage, undervoltage or overcurrent conditions by immediately interrupting the power supply to avoid damage to your electrical equipment. Once the voltage returns to normal, the guard will automatically turn on again, which is a very quick response.

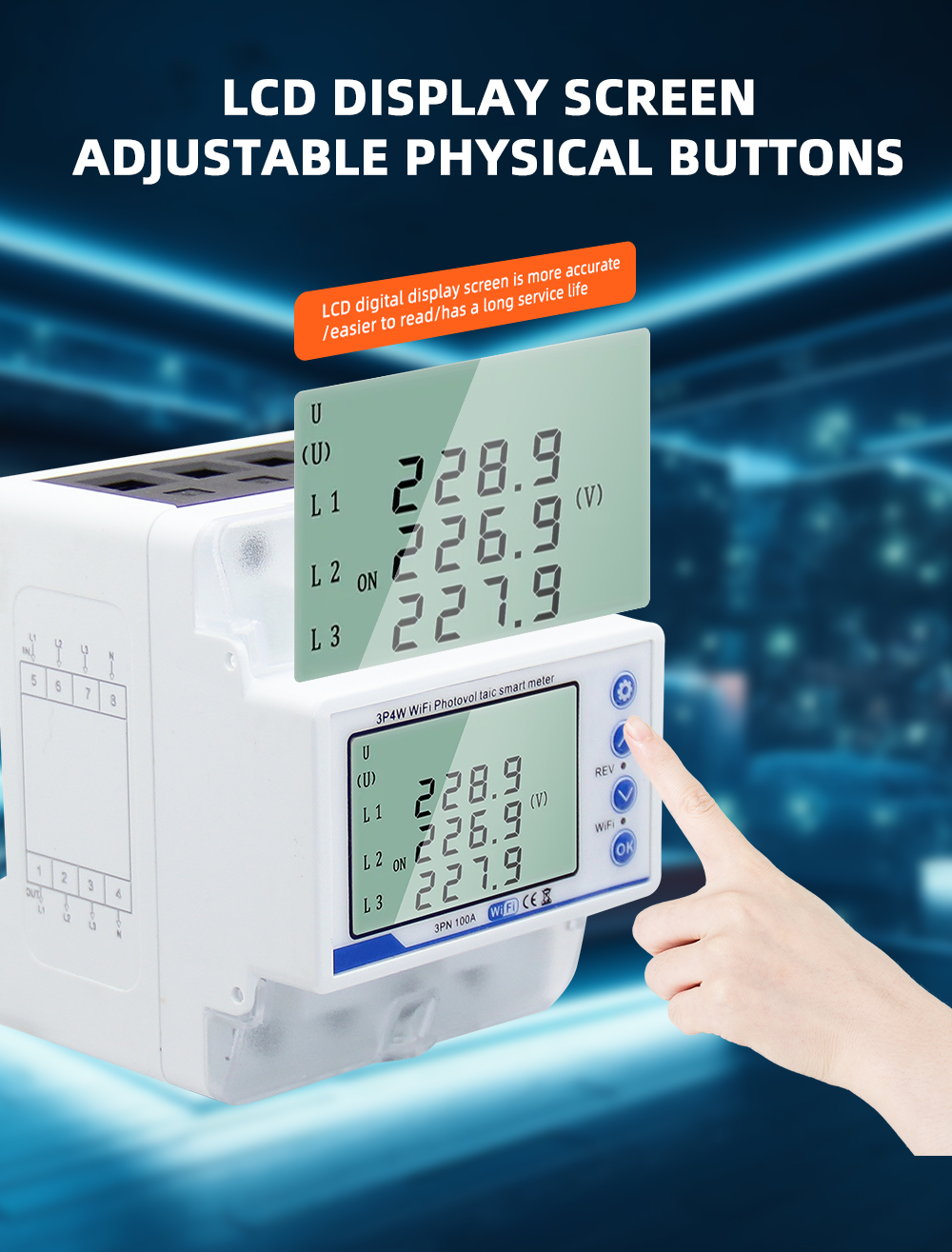

4. Backlight LCD display: This WiFi smart power meter switch has a backlight LCD display that ensures a clear view even in low light conditions, and the backlight turns white when the guard is functioning properly.
5. Sturdy And Robust: This energy circuit breaker meter is made of excellent flame retardant PC and red copper material, which is sturdy and abrasion resistant, not easy to be damaged, and has a long service life.
Primary Use cases
* Industrial Manufacturing: Factories, workshops, production lines—monitoring energy consumption of large equipment.
* Commercial Buildings: Office towers, shopping malls, hotels—for individual unit metering and energy management.
* Public Facilities: Schools, hospitals, airports, ensuring stable power supply to critical areas.
* Renewable Energy: Solar power plants, charging stations, for power generation measurement and load management.
