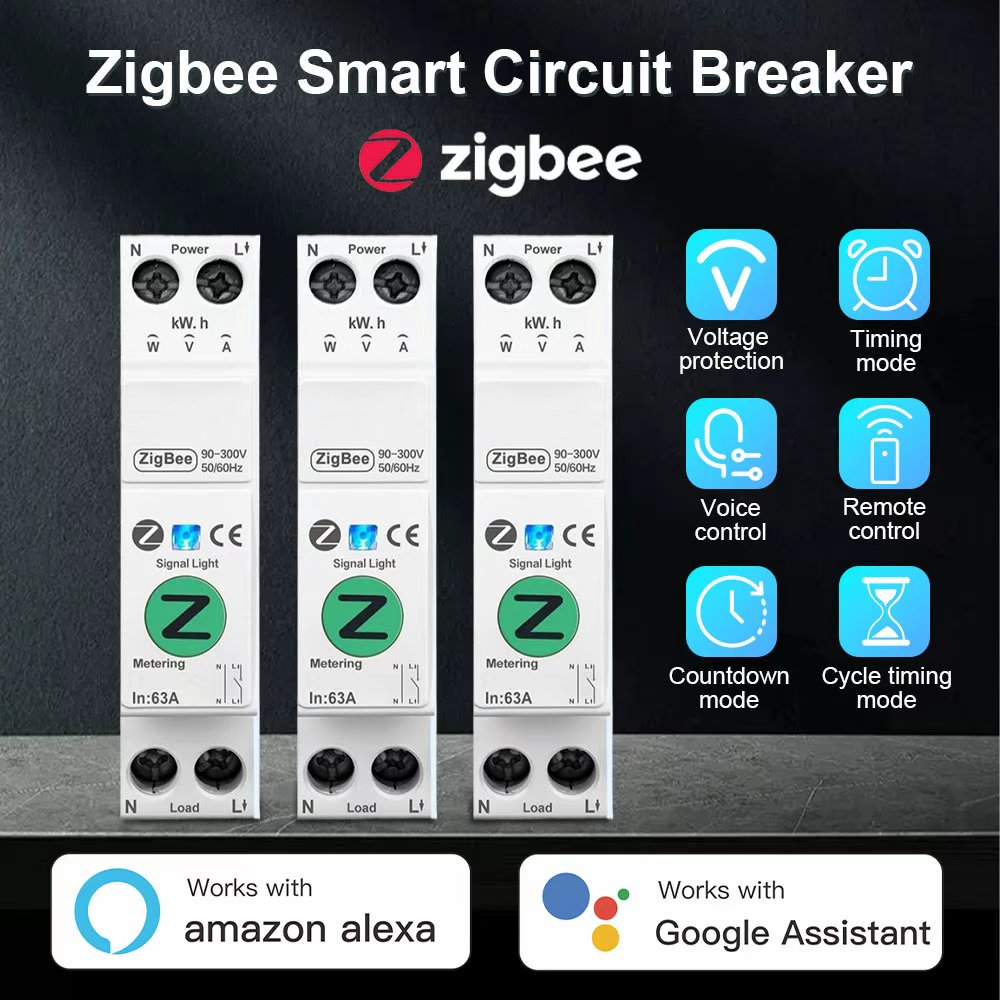

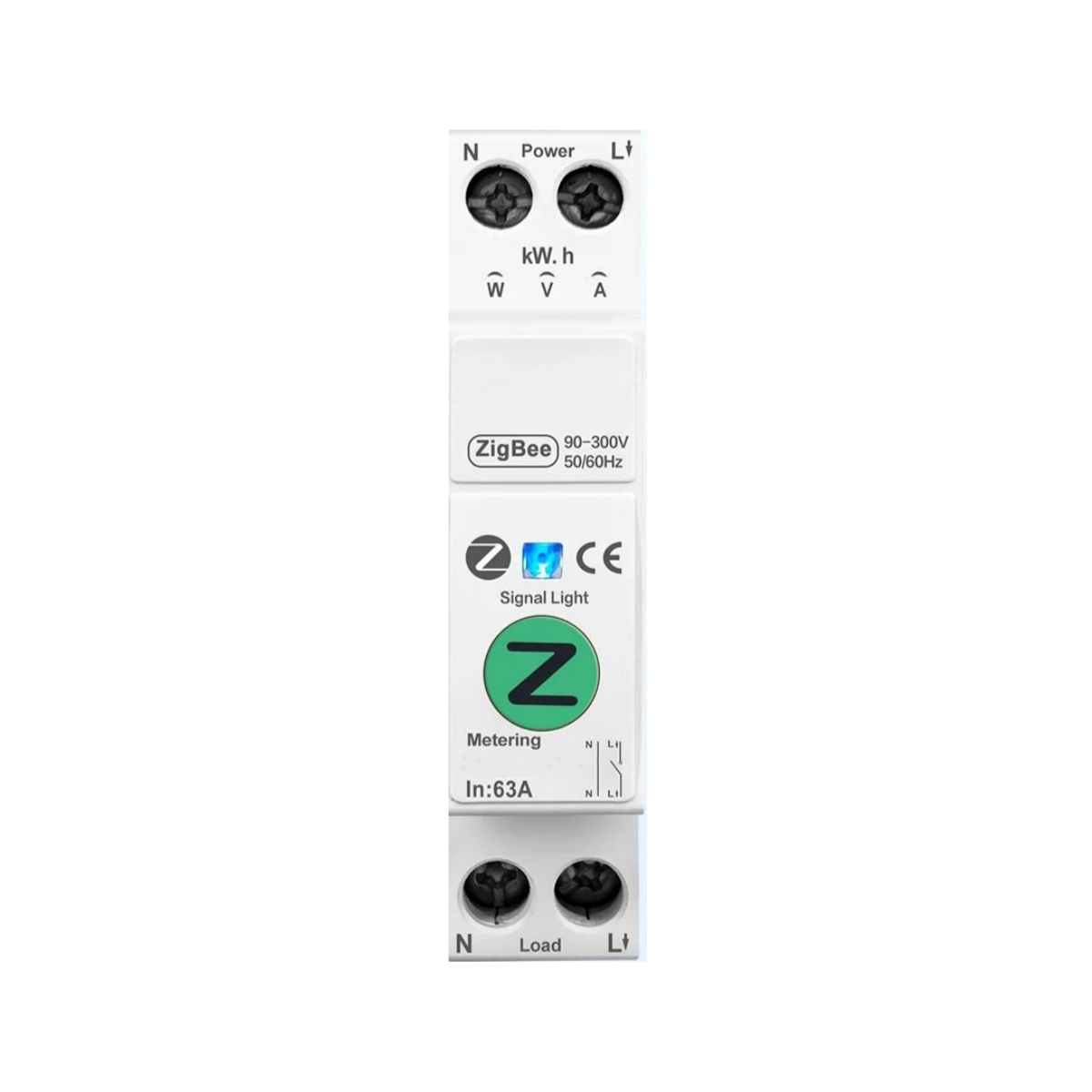

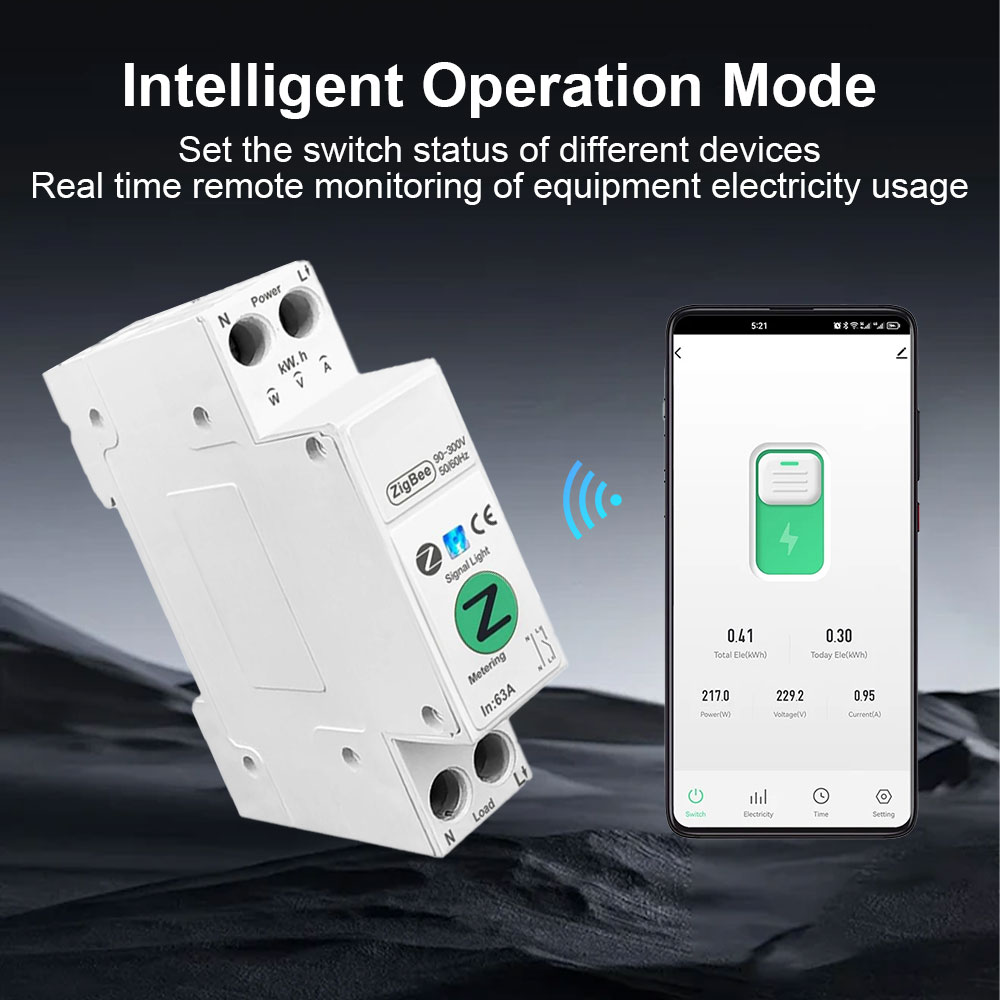

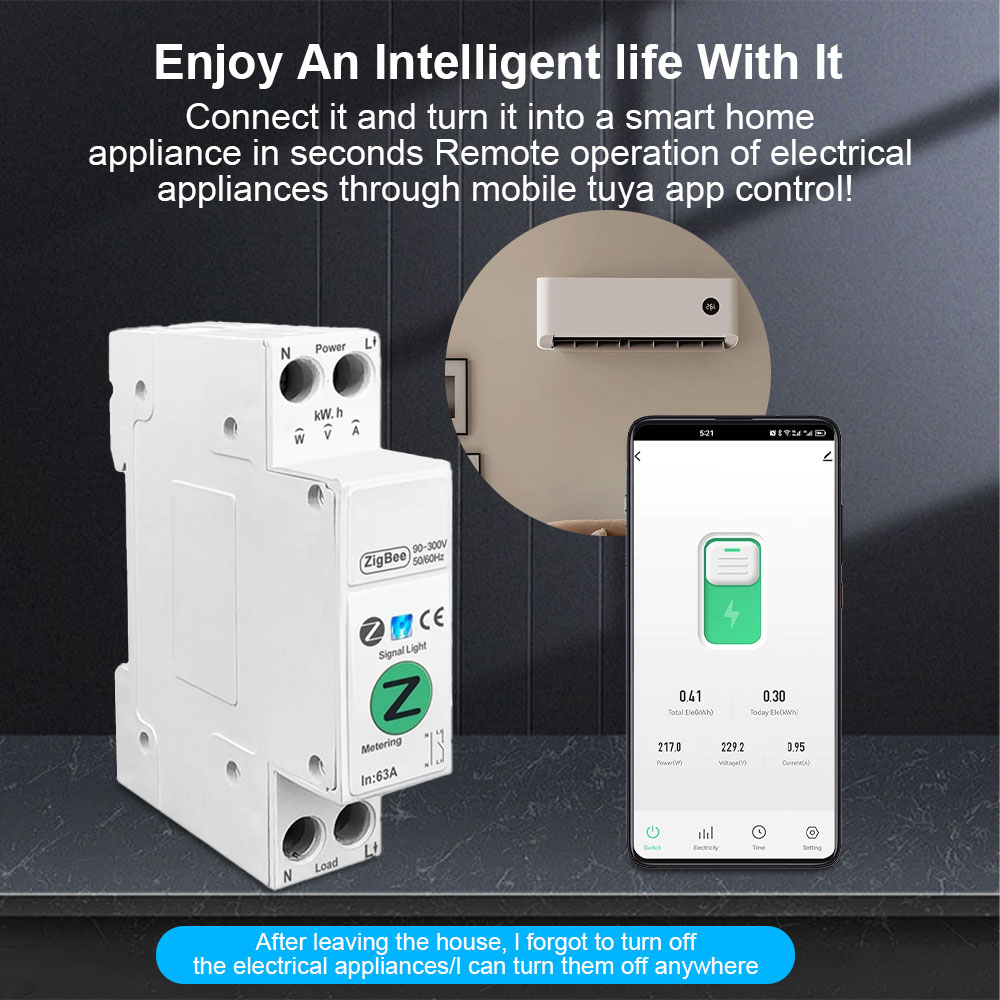

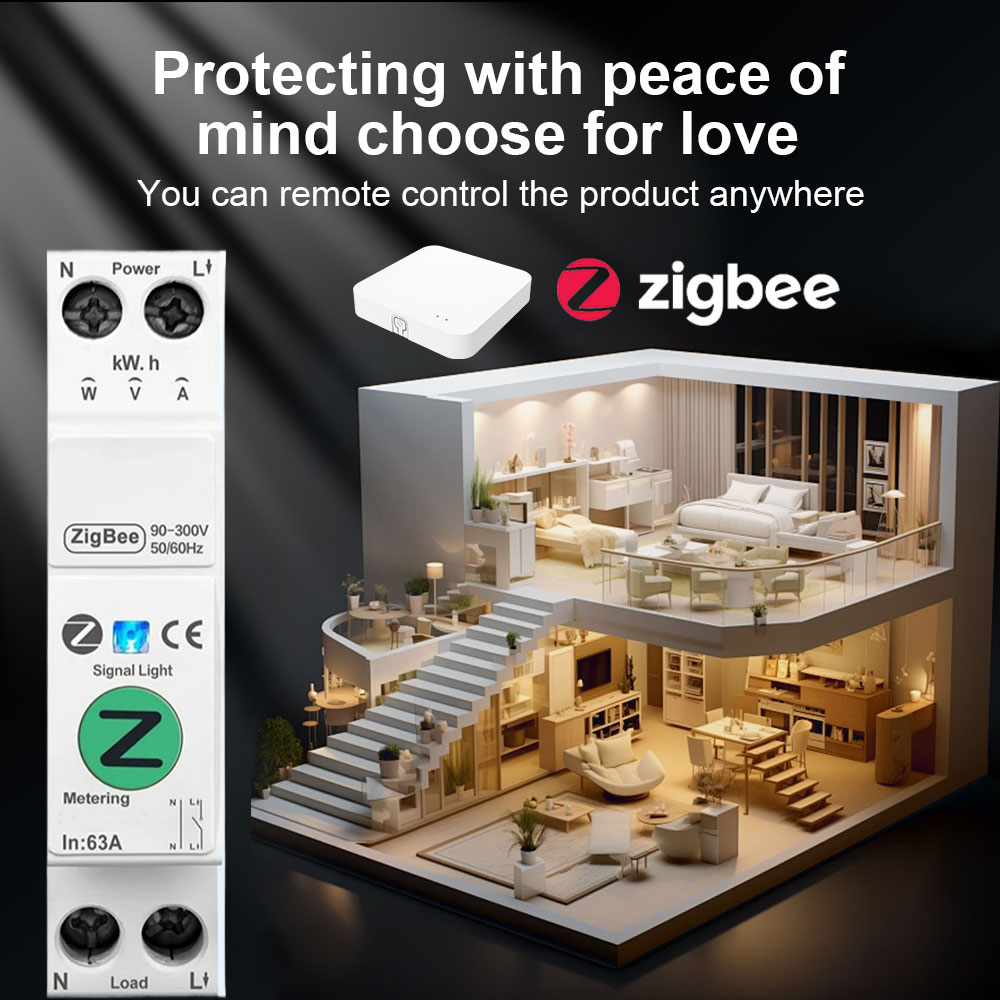

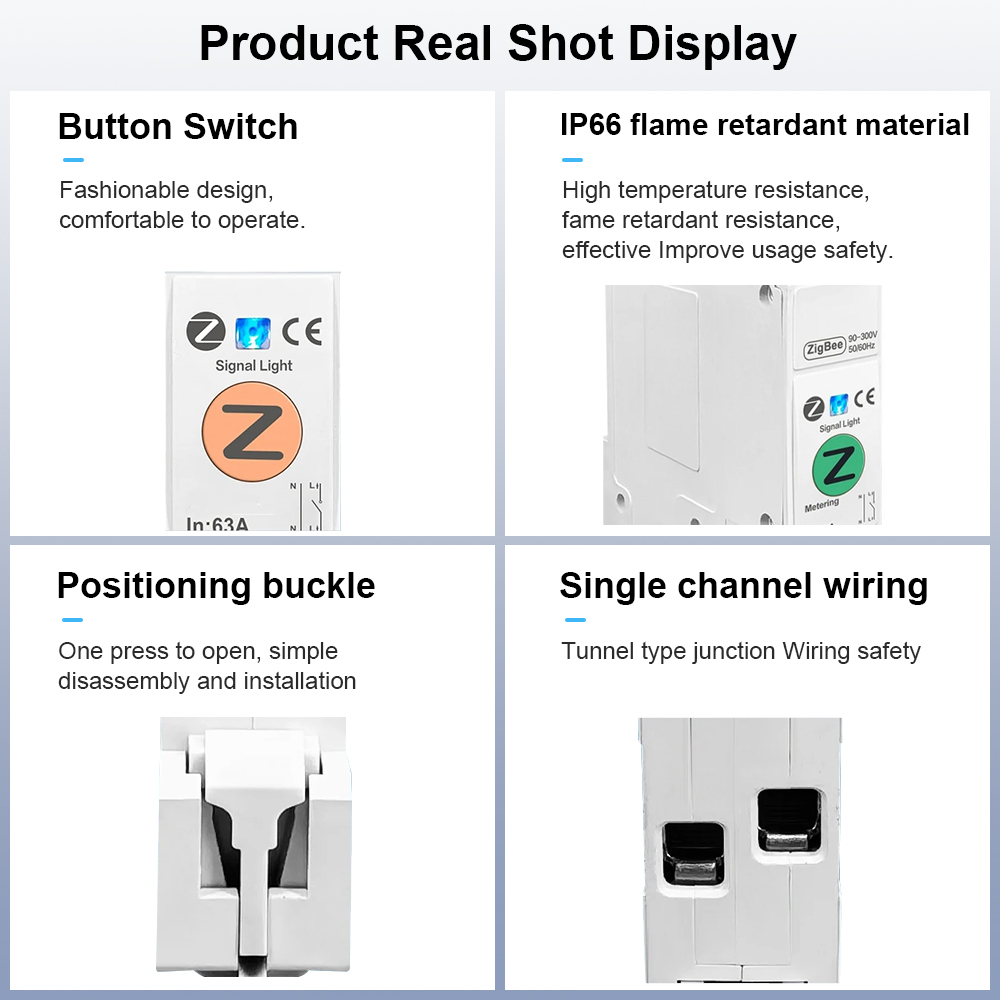

1P 63A Zigbee Smart Circuit Breaker
Notice
Zigbee version requires a zigbee hub/Gateway for remote control
Wiring: Power must enter from the top and must be Live line + Neutral Line (L+N). Live line + Live line (L+L) cannot be used.
this product adopts the emerging zigbee technology and professional manufacturing process
Remote control at anytime from anywhere by TUYA / Smart Life app on mobile ,no distance limit.
Features
1. Remote control at anytime from anywhere

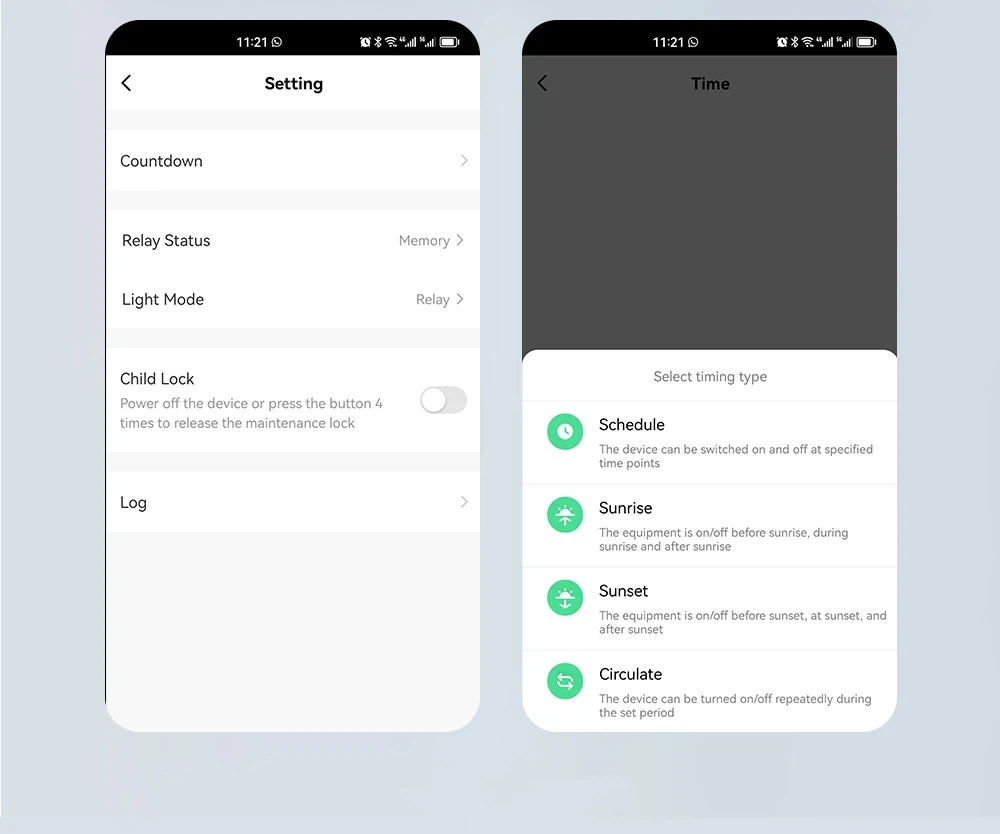

2. Schedule/Timer/loop timer/countdown
3. Voice control by Amazon Alexa / Google assistant

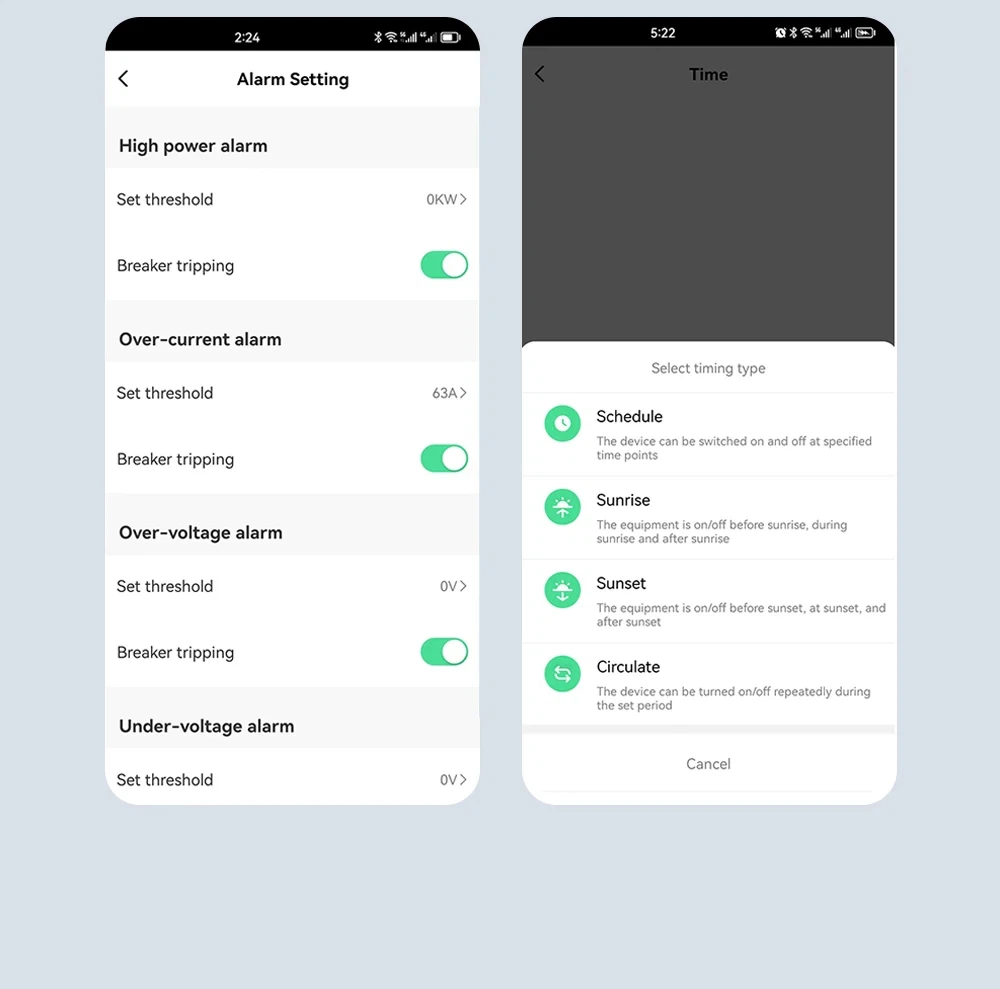

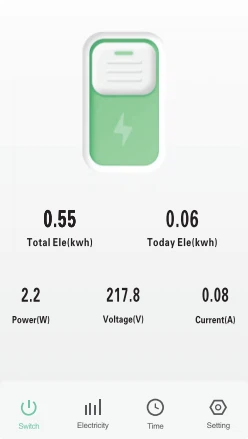

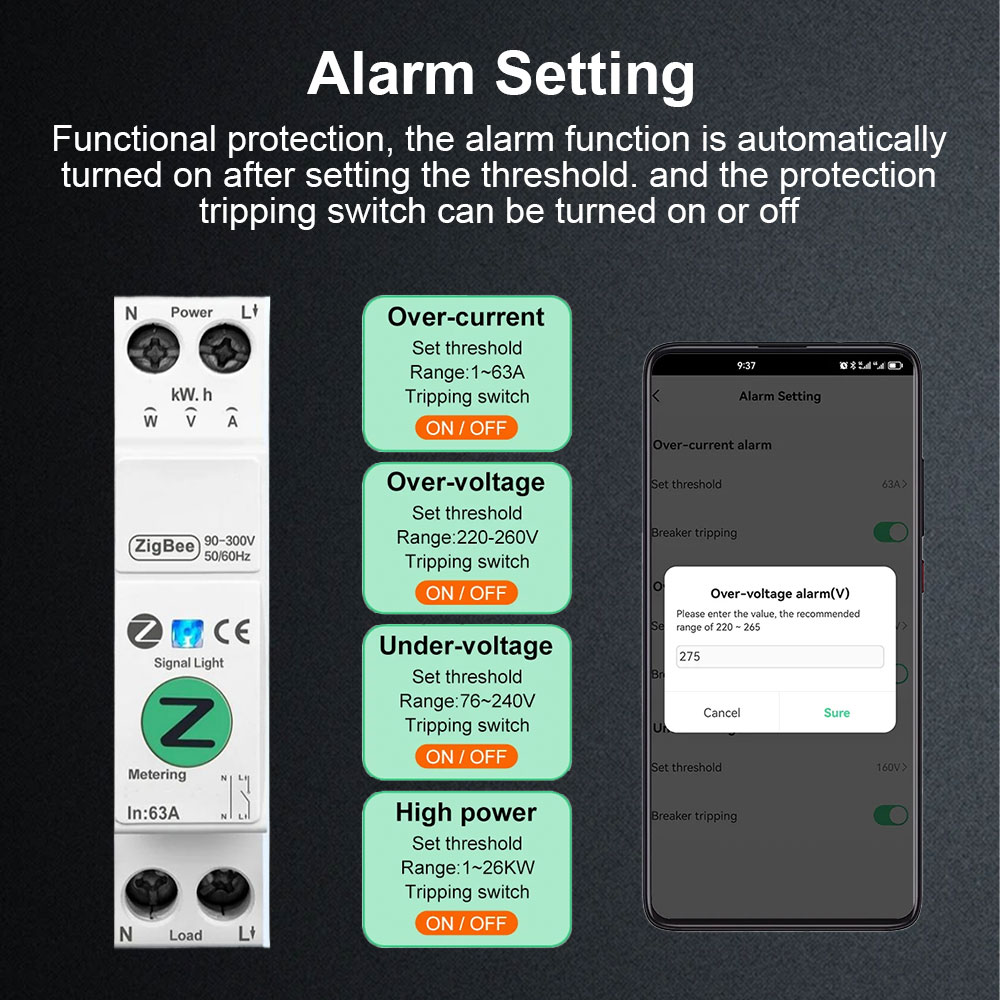

4. Energy monitoring(Metering, 1-63A VA protect)
5. Working Voltage
AC 90-300V 50/60Hz
6. Connect
1P+N
7. Current type
1- 63A
8. Mechanical Life
Over 100000 Times
9. Working Temperature
-25℃-70℃
10. Wireless type
Wifi 2.4GHz
Send a message
Configuration Steps
User Step 1

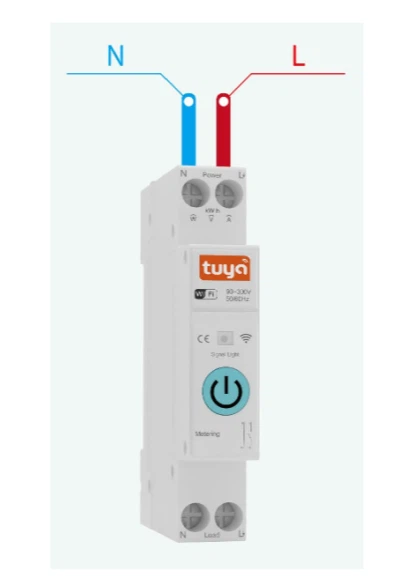

To connect the wire from the up-per of the WiFi Din Rail Switch, the live wire connect to the L pole, and the neutral wire connect to the N pole, please make sure that the wiring is correct and strong WiFi signal.
User Step 2

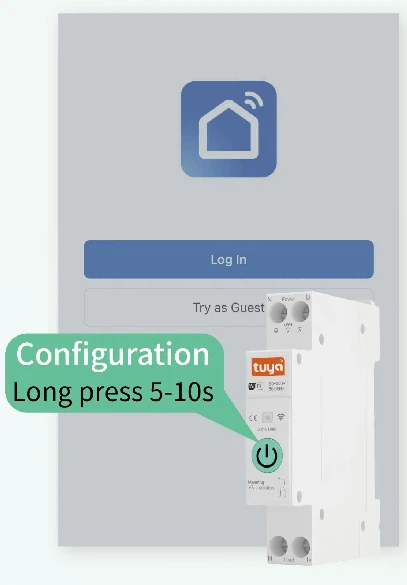

Turn on the Bluetooth and WiFi of the mobile phone, open the APP, and then long press the "power" button, wait forabout 5-10 seconds, the LED indicator will flash blue light slowly.
User Step 3

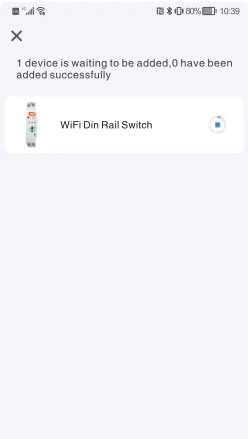

While waiting in Doodle APP. Matching objects or objects will be popped up automatically. Click "+" in the upper right corner, click Add. Wait for the device to be found, then click Add.
User Step 4

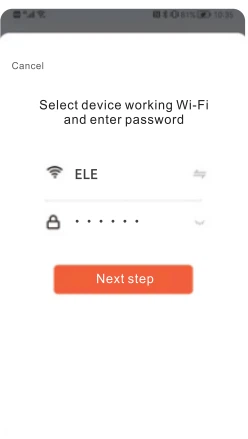

Enter the wifi account password and click next step, wait for the switch to connect the network.
User Step 5User Step 5
This breaker is connected to the network.
User Step 6
After the successful connection, the LED indicator will be changed from blue slow flashing to blue steady light.
