Fingerprint Smart Door Lock
Description

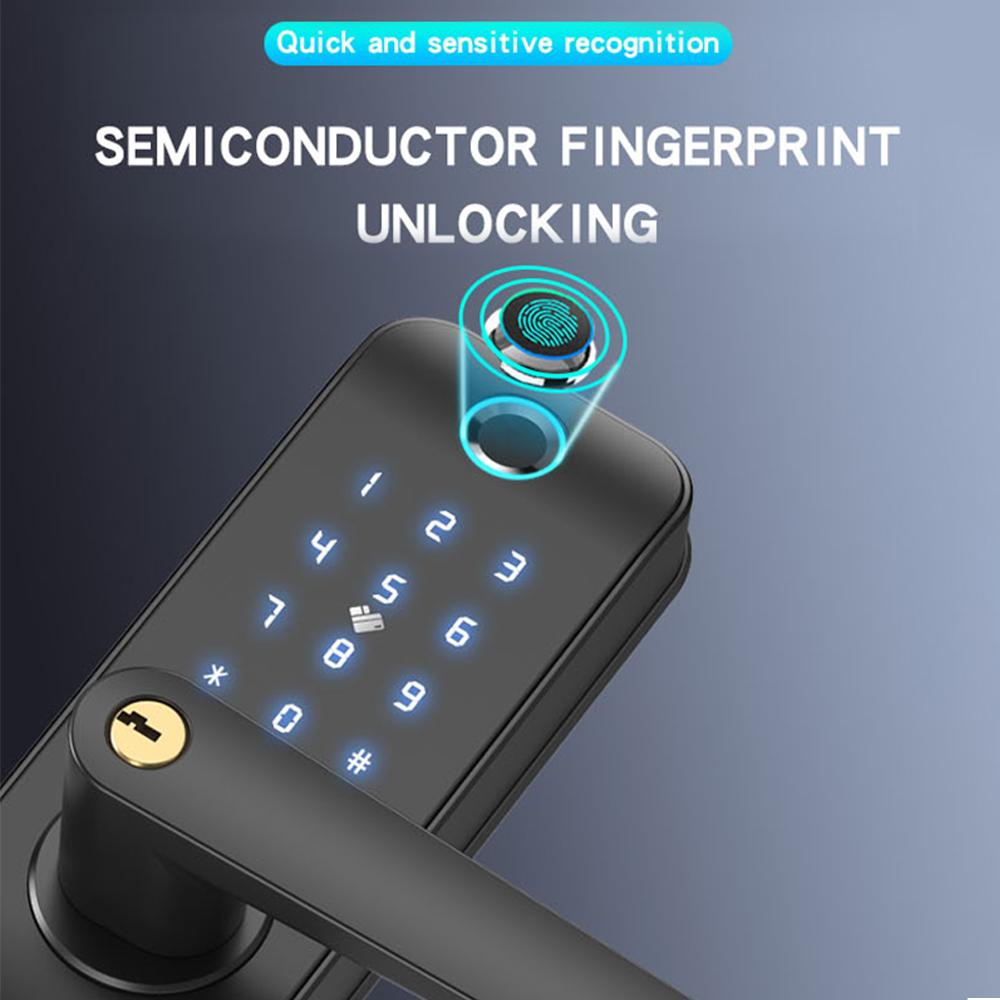

| Sensor: | Press capacitive fingerprint sensorparameters here |
| Resolution: | 508 DPI (Dots Per Inch） |
| False Acceptance Rate (FAR): | Less than or equal to 0.0001% |
| False Rejection Rate (FRR): | Less than 0.01% |

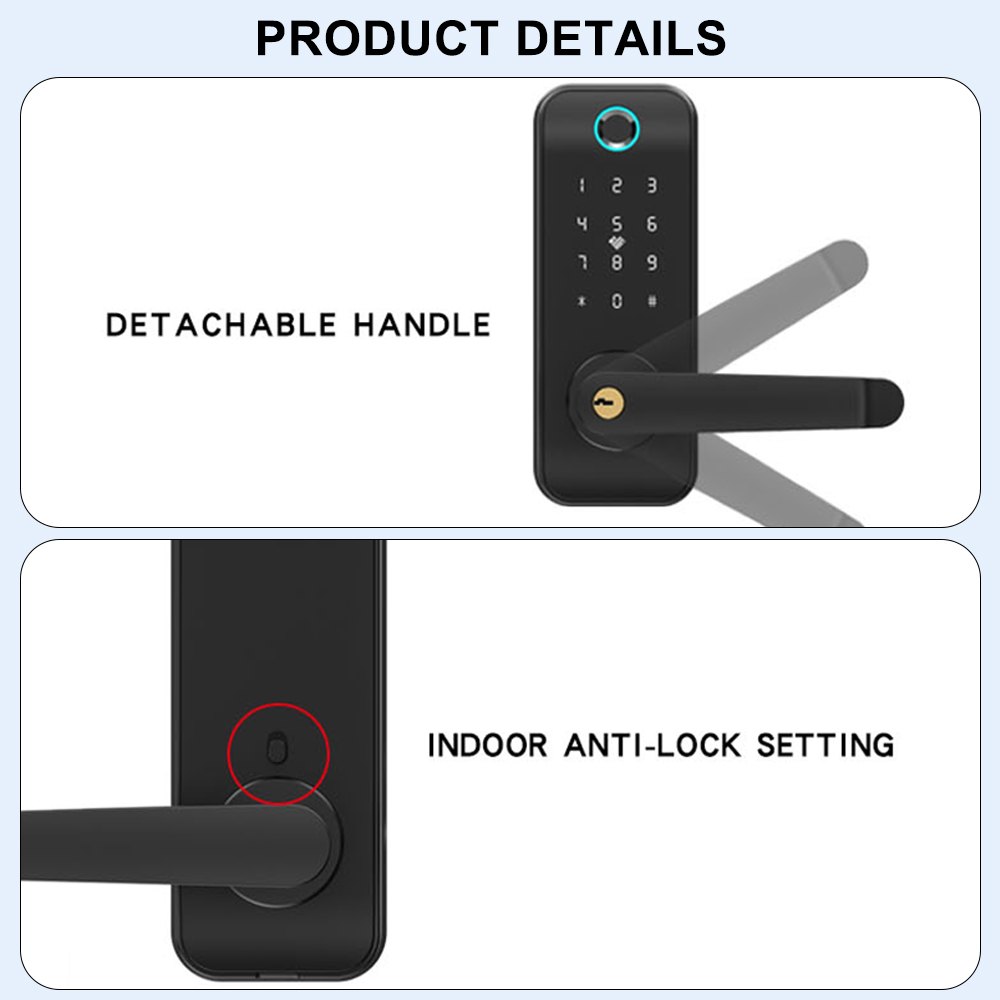

| Anti-lockout Feature: | Electronic Anti-Lock |
| Emergency Mechanical Lock: | Supported |
| Mechanical Key Security Level： | Grade C |
| Door thicknessDoor thickness: | 35-60mm35-60mm |
| Corrosion Resistance: | Level 4 |
| Operating Temperature Range: | -20°C-55°C |
| Working Humidity: | ≤90% (Humidity) |
| Static Power Consumption: | Less than 85 microamperes |
| Dynamic Power Consumption: | Less than 300 milliamperes |
| Language Menu Management: | Supported |
| Administrator Authentication Method: | Fingerprint/Password |
| Add Fingerprint: | Supported |
| Delete Fingerprint: | Supported |
| Number of Fingerprint Users: | 100 pieces (Fingerprint Users) |
| Total Number of Password Users: | 100 sets (Password Users) |
| Total Number of Card Users: | 100 sets (Card Users) |
| Door Opening Record Inquiry: | Supported |
| Information Storage Time: | 10 years (Battery Life) |

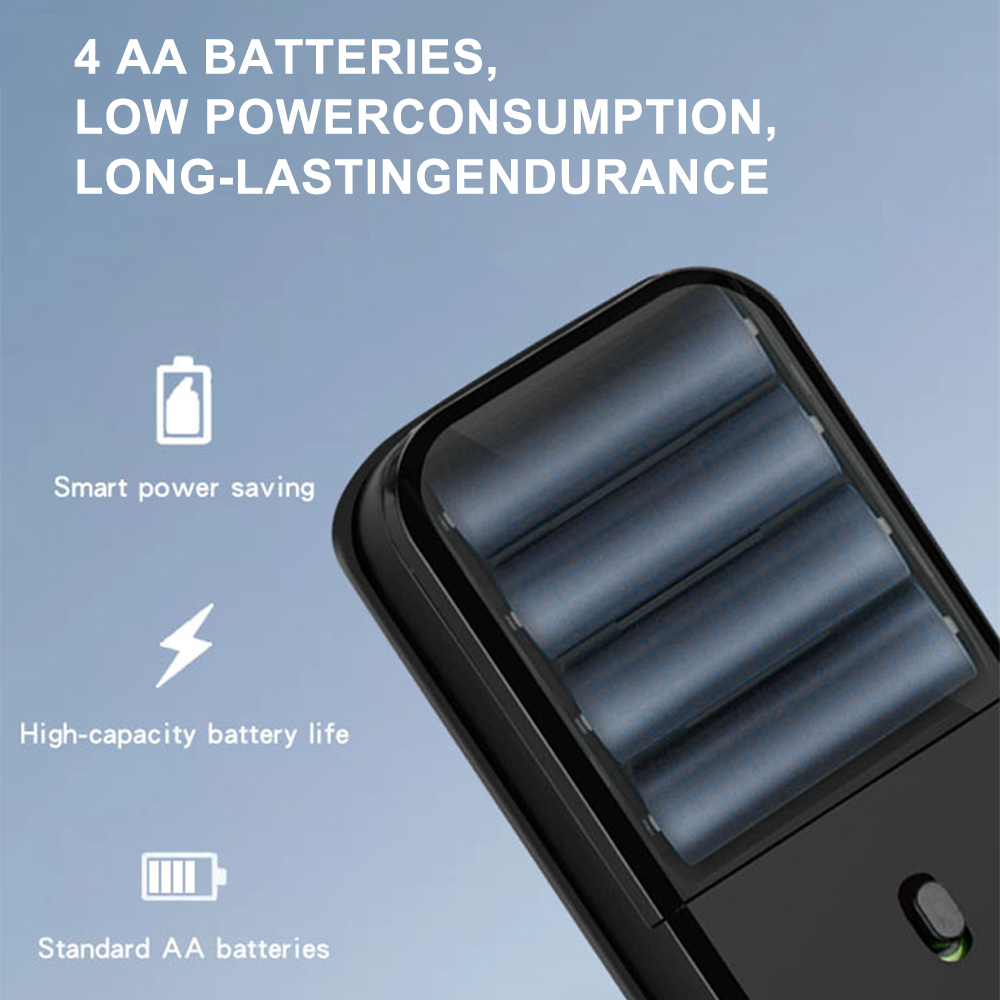

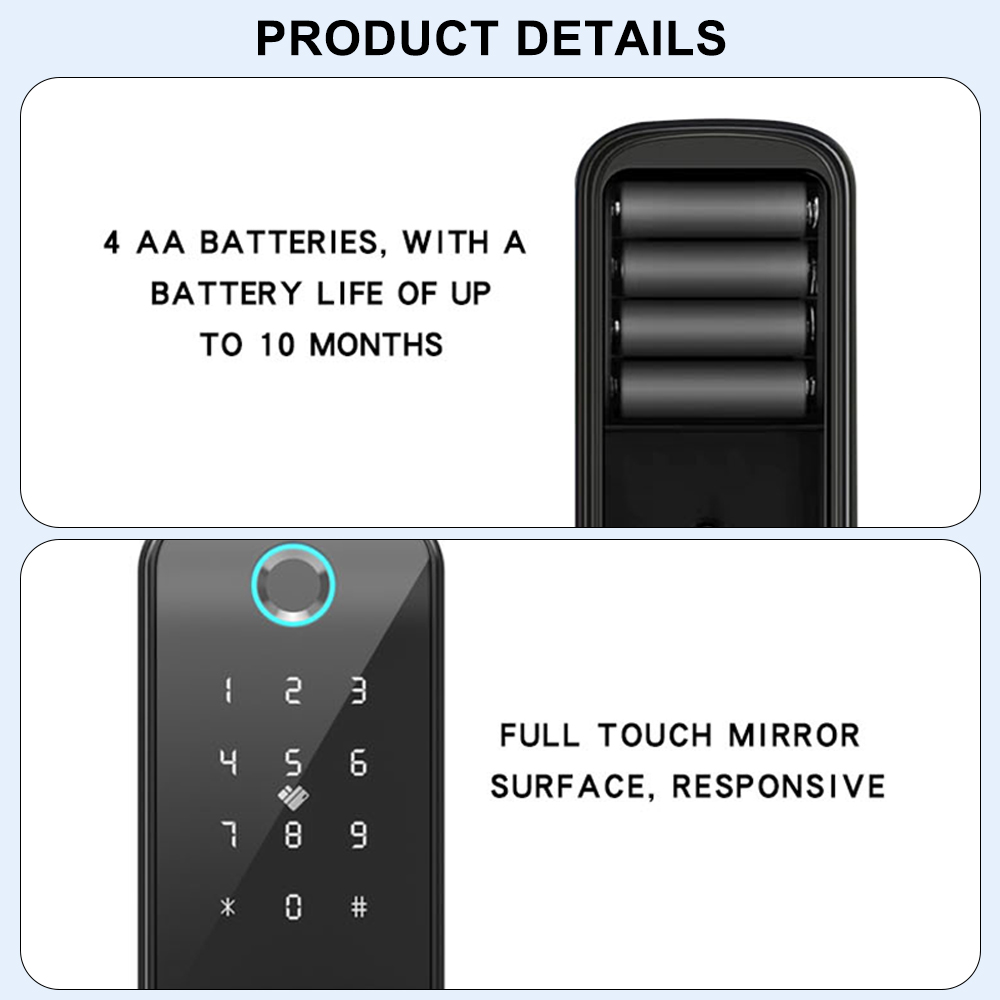

| Power Supply Method: | Four number 5 batteries |
| Battery Life: | 8-10 months |
| Low Voltage Alarm: | ≤4.8V |
| External Emergency Power Supply: | Type-C |

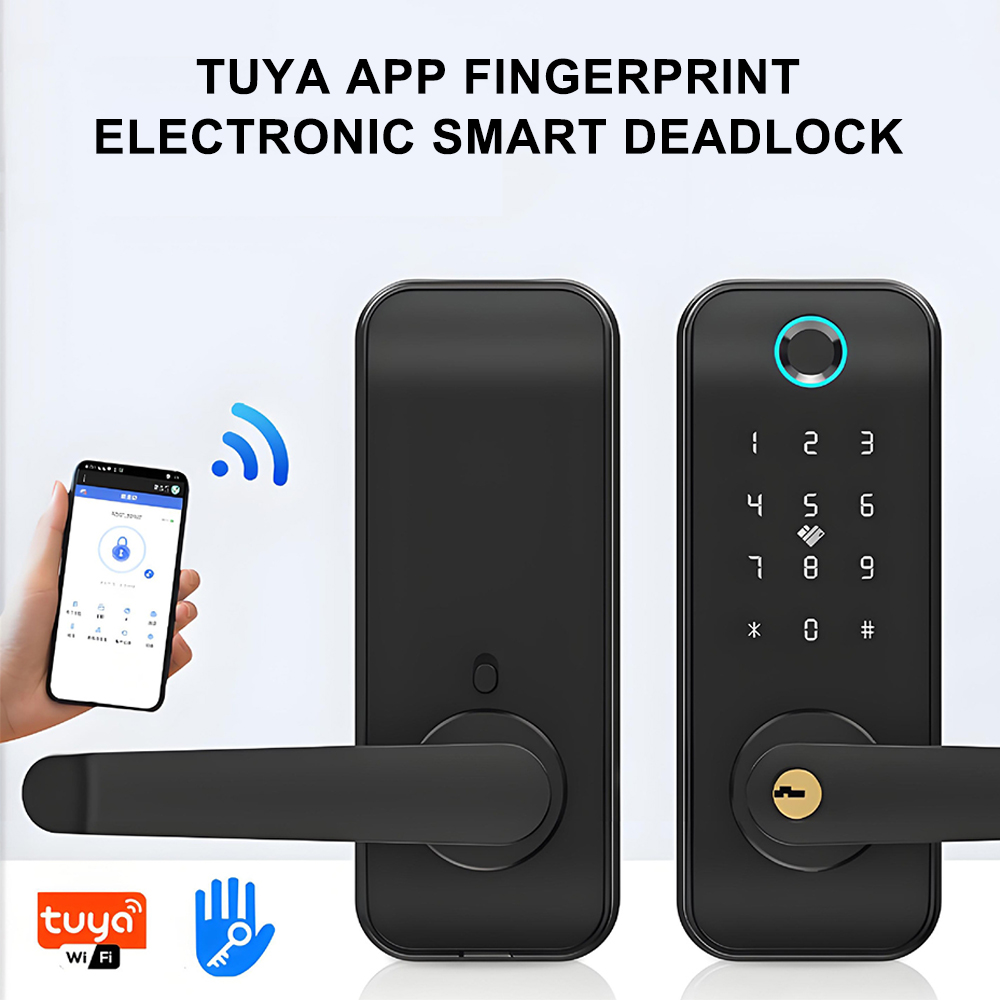

| Networking Capability: | Optional (Tuya WiFi, a brand of smart home IoT platform) |
| Compatible Lock Body Types： | Single Tongue lock body |
| Lock Body Material： | 304 (Stainless Steel Grade) |
| Mechanical Strength： | GA374 (Standard or Model Number) |
Features:
1 Doorbell Function
Touch the doorbell button with your finger, and the smart lock will ring the doorbell.
2 Factory Reset
Press and hold the SET button on the back panel, the voice prompt will say "Restoring to factory settings, confirm by pressing the #key, cancel by pressing the *key", press the # key to confirm, the system will restart to the factory mode. In the factory state, any fingerprint, password, or card can unlock.
3 Low Battery Alert
When the system battery is less than 25%, the system will give a voice prompt "Low battery, please replace the battery" when unlocking. The battery can still unlock about 50 times, but please charge (or replace the battery) in time.

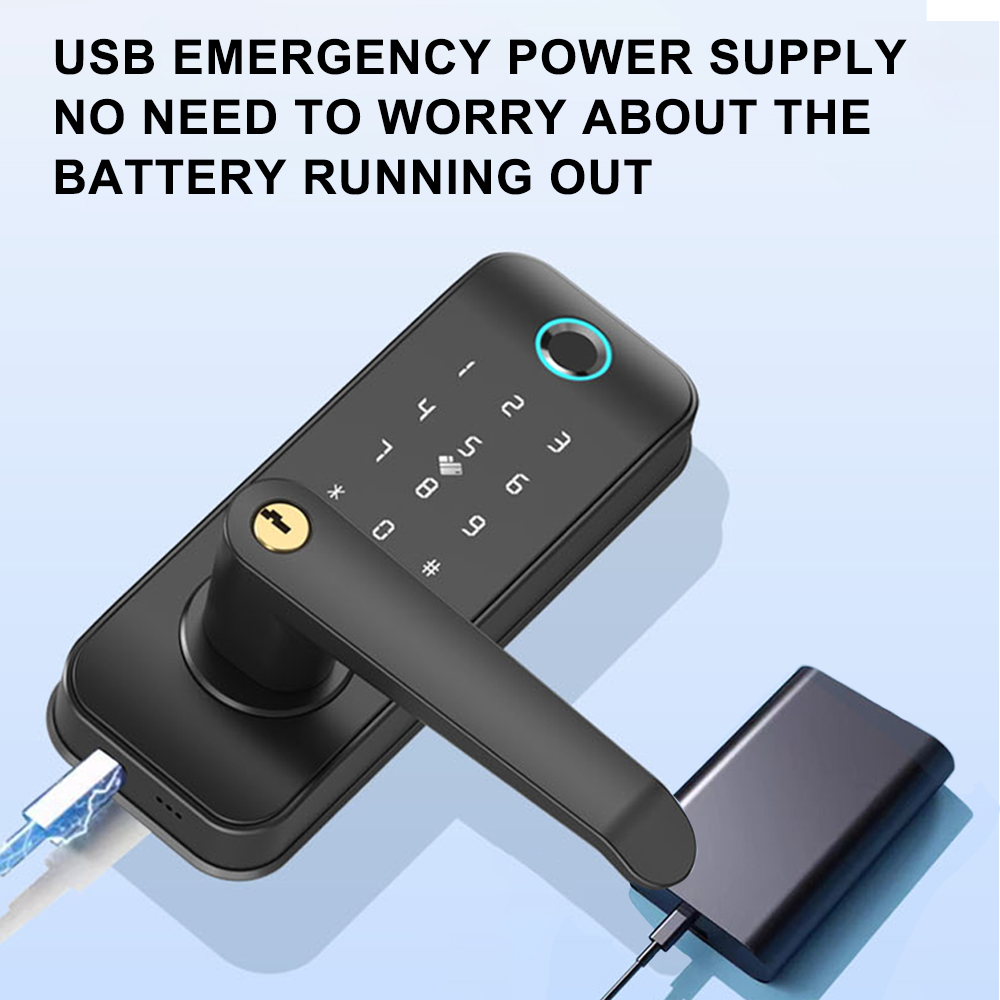

4 External USB Emergency Power Supply
When the battery is out of power or the power is too low, you can connect the data line to a power bank and insert it into the USB port on the front lock body to power the lock as an emergency power supply. The fully automatic USB emergency power supply solution adopts the method of recharging the charging battery, which will take about 30 seconds to unlock.
5 Illegal User Alarm
If an incorrect fingerprint, password, or card is entered continuously5 times, the system will prompt. After the 5th alarm, the system will be locked for 5 minutes, during which it will not respond to the same type of user information. If the fingerprint is locked, you can unlock with a password. Or unlock after 5 minutes.

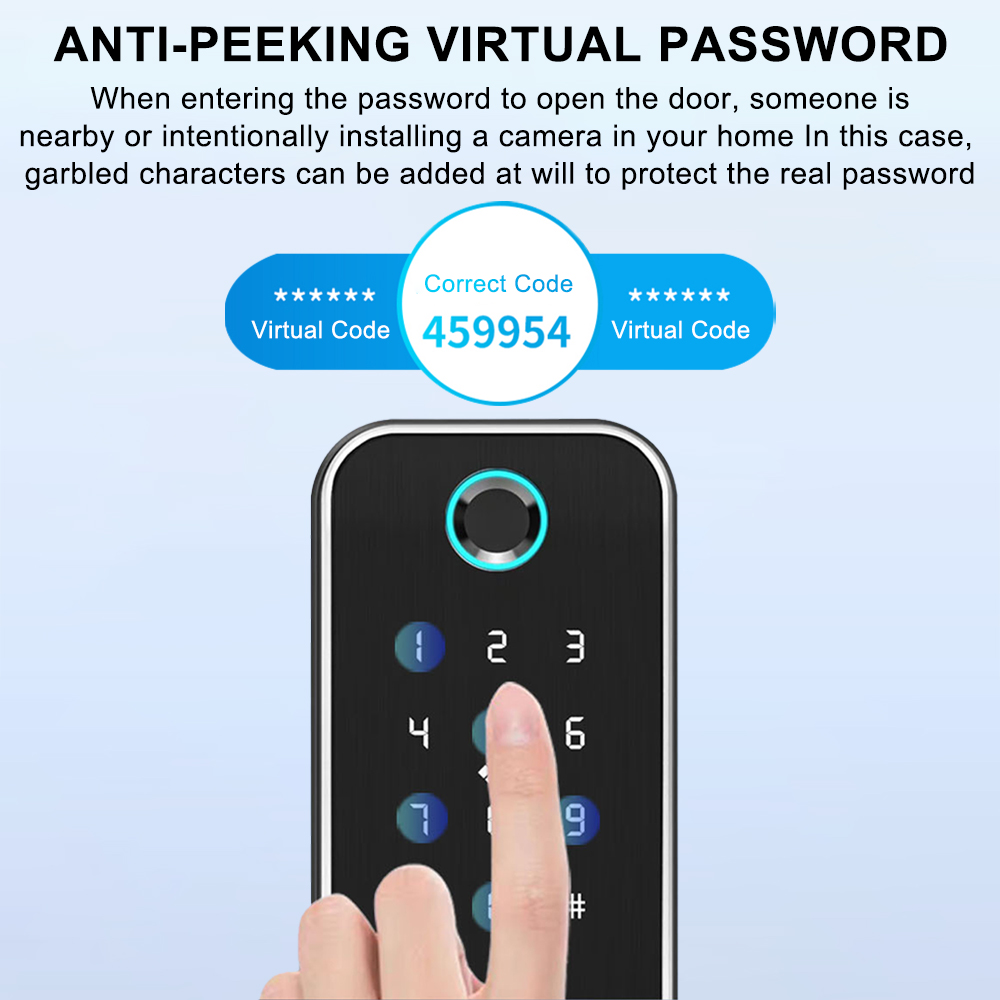

6 Virtual Password
The door lock adds a virtual number function to the digital password. When unlocking with a password, users can add numbers before and after the correct password, press the "#" key to confirm, which can increase the security of the digital password,but the total length of the input should not exceed 32 digits. For example, if the password is "010010", you can enter "001001000"to unlock.
User Setting And Recording Instruction：
Preliminary Work
When using it for the first time, please fully charge the battery first, put the battery into the battery box, cover the battery cover, and the smart lock enters the standby state.
First Use
Press the*key briefly, then press the#key, the voice prompt will say” Please enter administrator information"(the initial administrator password is:123456), press the#key to confirm.
Adding Users
Language prompt"1 Add user", then press "1 Add administrator" to enter the user addition page. The first user added must be an administrator,fingerprints and passwords can be used as administrator information,cards cannot be added as administrator users.
Language prompt"1Add user", then press "2 Add ordinary user" to enter the user addition page. Language prompt"Please enter user information", record fingerprints, passwords, or cards according to the operation.
Recording instructions:
1 Add fingerprint: The user places the finger on the fingerprint sensor,the voice prompt says "Please enter administrator information", the user places the same finger on the sensor, the voice prompt says "Please enter again", enter six times continuously, the voice prompt says"Operation successful, number xxx". You can continue to enter user information.
2 Add password: The voice prompt says"Please enter user information"the user enters a 6-digit password, press the # key to confirm, the voice prompt says "Please enter the same password again", the user enters the same password. The voice prompt says"Operation successful,number xxx".You can continue to enter user information.

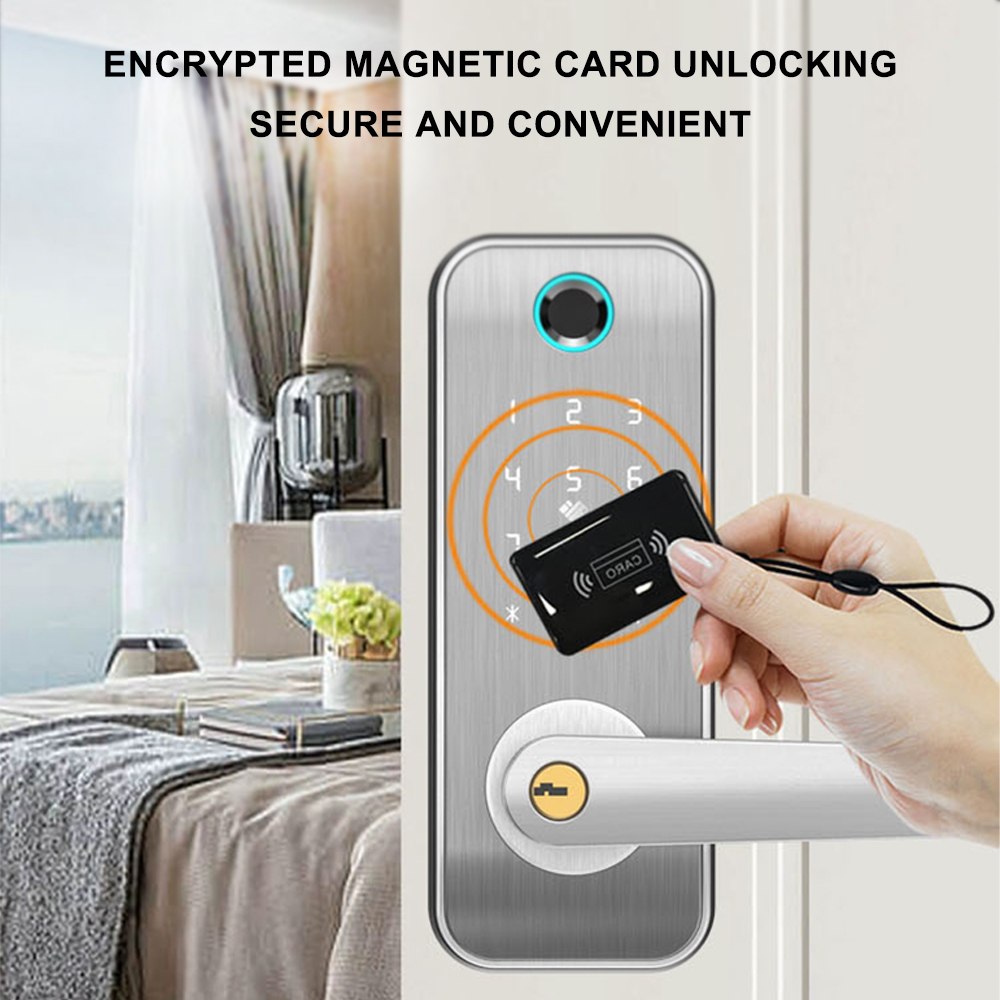

3 Add card: The user brings the card close to the touch keyboard IC card induction area, the system automatically reads and saves the card information, and the voice prompt says "Operation successful, number xxx".You can continue to enter user information.
Deleting Users
Number deletion: The method to query the number is to use the user information that needs to be queried to unlock,press the "5" key after starting, and the voice prompt says "Number xxx".
All deletion: Operate according to the language prompt, after confirmation, all user information will be deleted, including administrator and ordinary users, fingerprints, passwords,and cards.Note: Please confirm clearly before using this function and use it with caution.
Deleting Administrator: After deleting the administrator,the administrator is reset to "123456". Please re-enter the administrator information before using it again to ensure the normal use of the smart lock. Ordinary users can unlock normally after deletion, and ordinary users cannot be added before re-entering the administrator information.Deleting Ordinary Users: According to the language prompt,all ordinary user information will be deleted after deletion.Only administrator users can use it normally.
System Setting：
Voice Mode: There are voice or prompt tones during use.
Silent Mode: There are no voice or prompt tones during use (voice navigation is still available when entering the menu page).
Time Setting: Enter the time recording function according to the language prompt. Style: June 25, 2020, 14:32, the way to enter the time is 20-06-25-14-32.
Normal Open Mode: In the normal open mode, you can unlock without entering any user information, just press down the handle. Enter any correct user information to cancel the normal open mode.
Single Open Mode: Unlock by entering any set of user information.
Double Open Mode: Administrator users can use it normally. Ordinary users need to enter two different sets of user information continuously to unlock normally.
