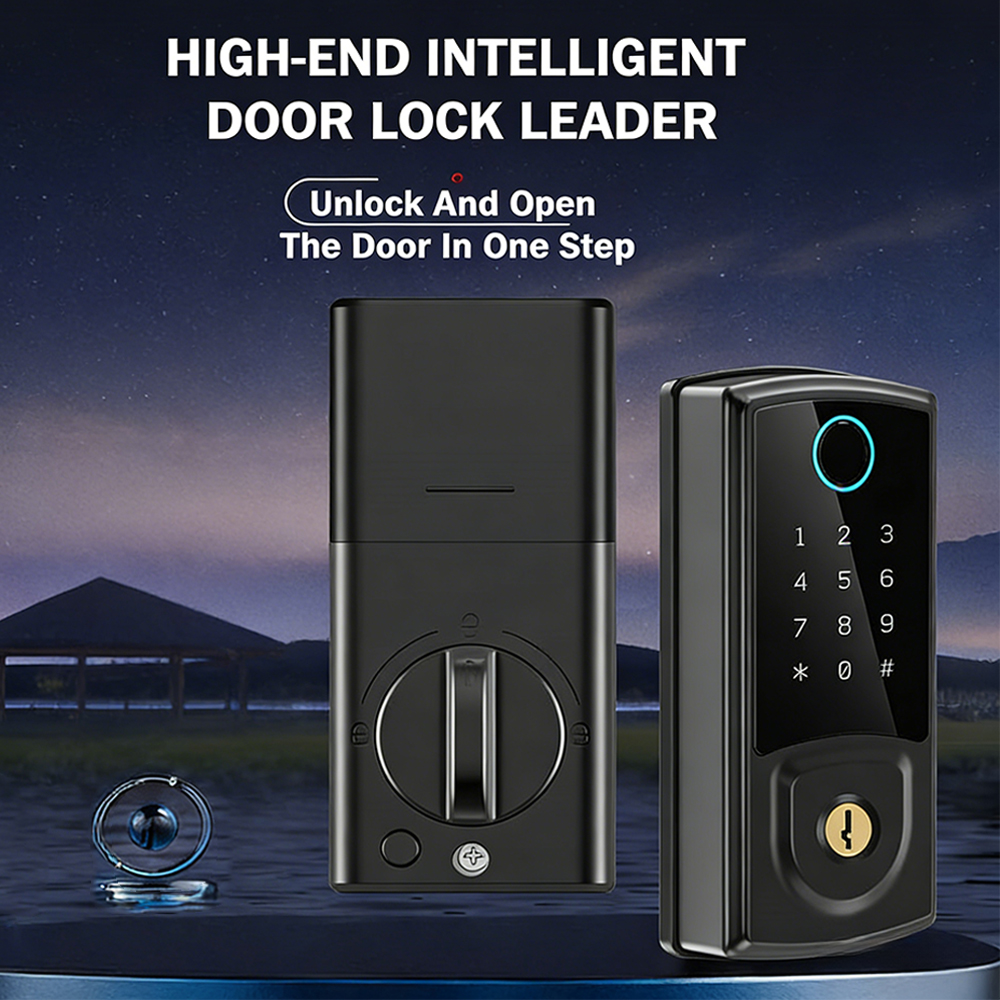

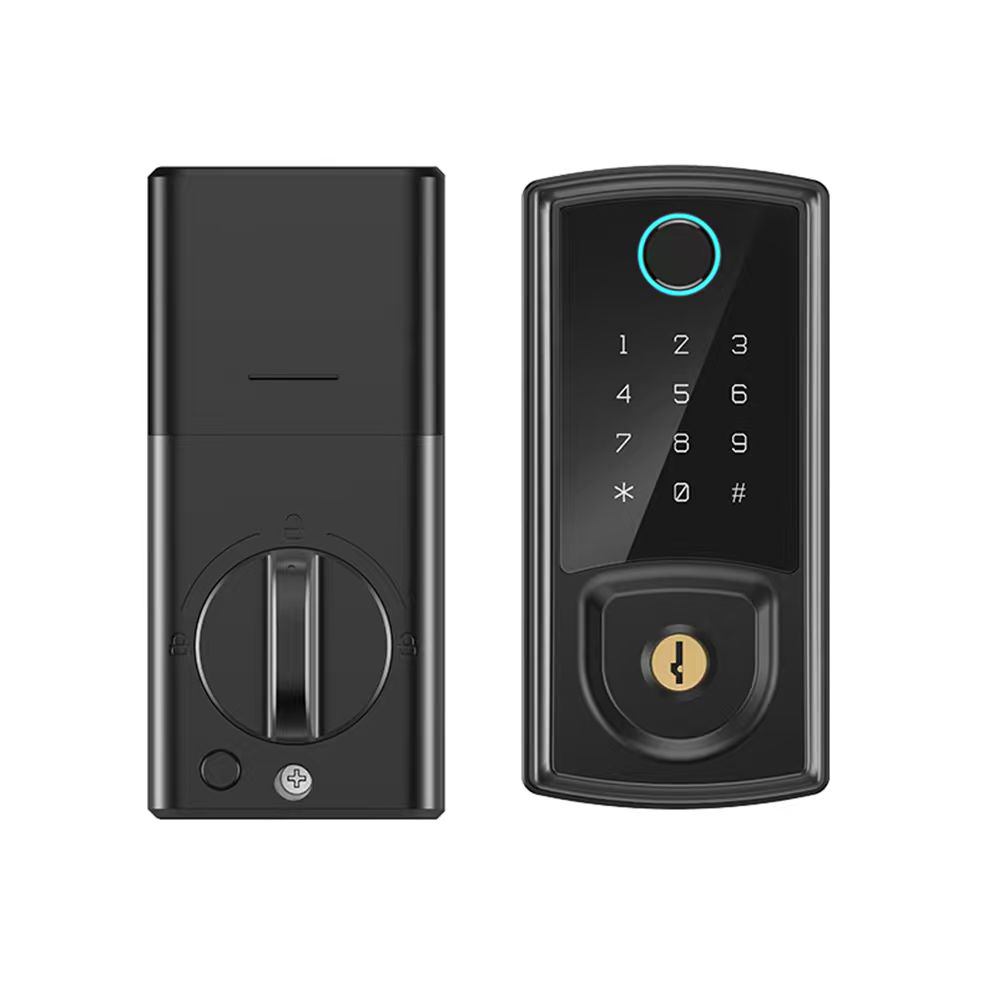

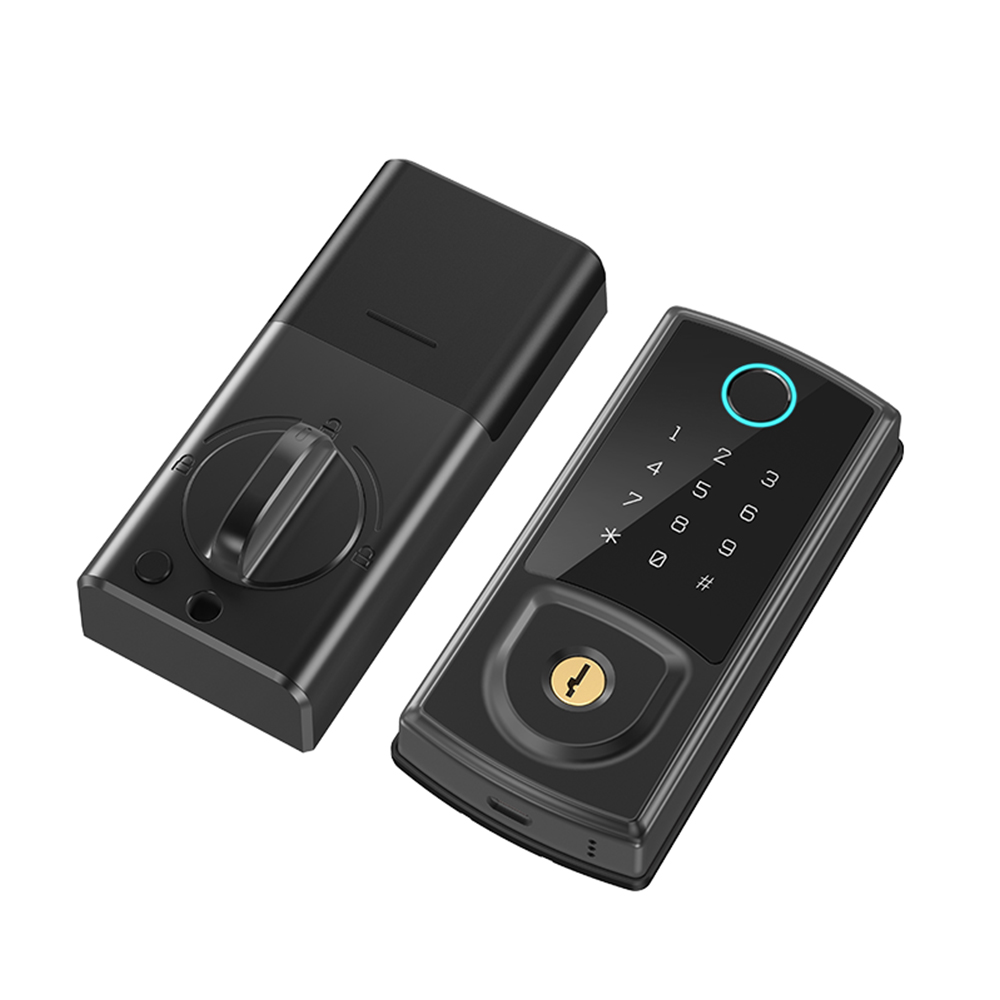

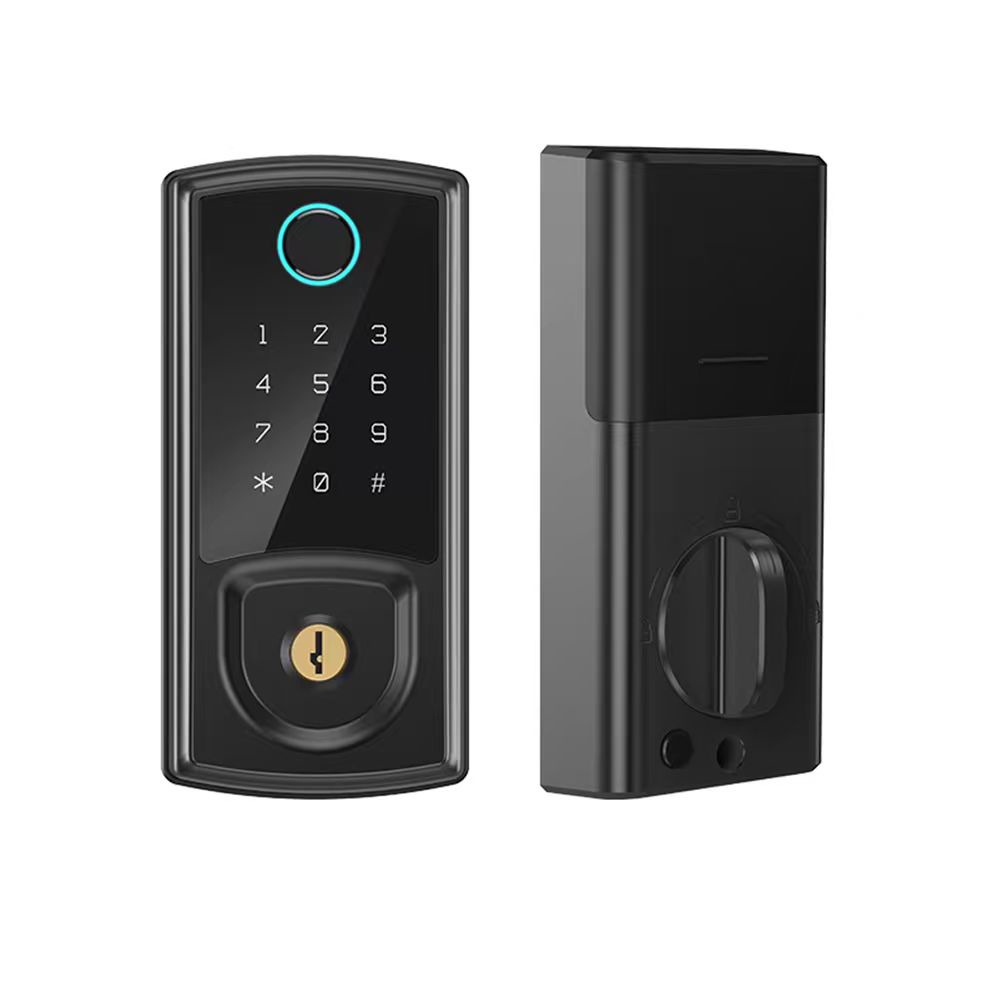

Smart Fingerprint Door Lock with Handle
Description

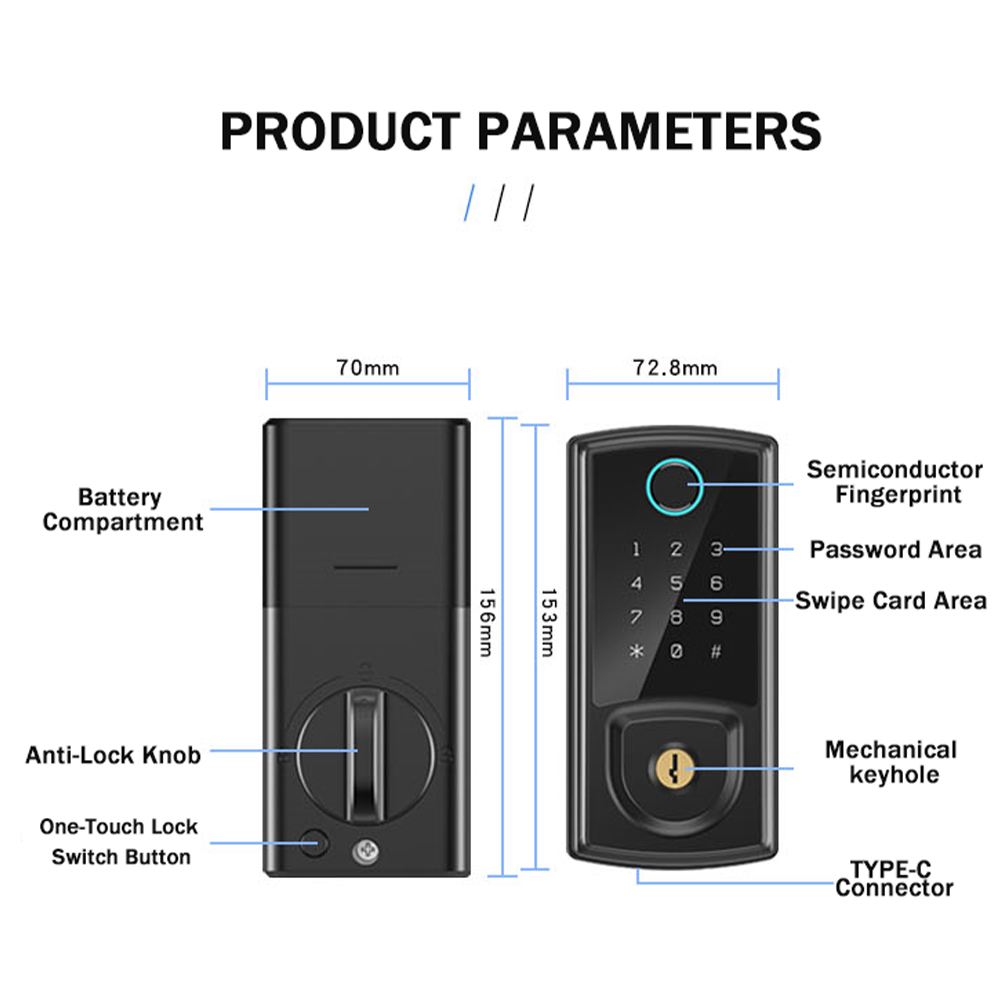

| Sensor: | Press capacitive fingerprint sensorparameters here |
| Resolution: | 508 DPI (Dots Per Inch） |
| False Acceptance Rate (FAR: | Less than or equal to 0.0001% |
| False Rejection Rate (FRR): | Less than 0.01% |
| Anti-lockout Feature: | Electronic Anti-Lock |
| Emergency Mechanical Lock: | Supported |
| Mechanical Key Security Level： | Grade C |
| Corrosion Resistance: | Level 4 |

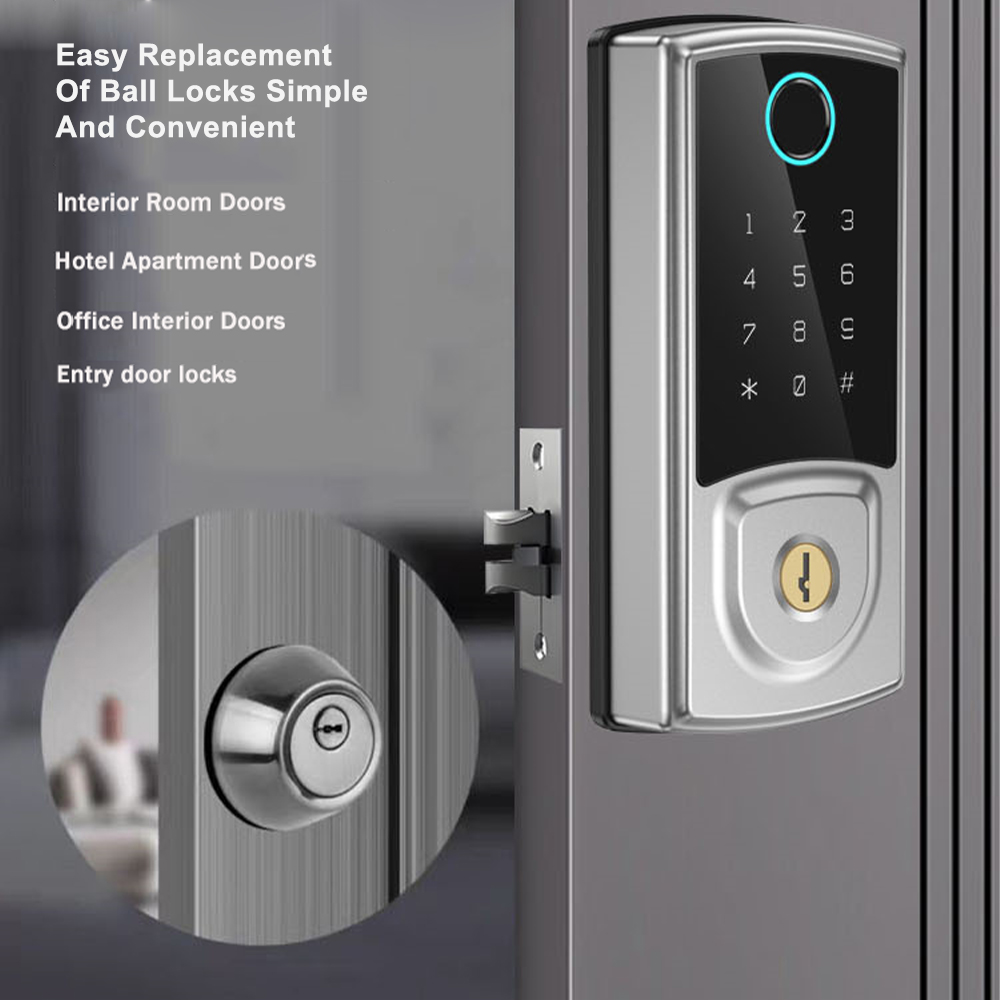

| Door thickness: | 35-50mm |
| Operating Temperature Range: | -20℃-55℃: -20°C to 55°C (Temperature Range) |
| Working Humidity: | ≤90% (Humidity) |
| Static Power Consumption: | Less than 85 microamperes |
| Dynamic Power Consumption: | Less than 300 milliamperes |
| Language Menu Management: | Supported |
| Administrator Authentication Method: | Fingerprint/Password |
| Add Fingerprint: | Supported |
| Delete Fingerprint: | Supported |
| Number of Fingerprint Users: | 100 pieces (Fingerprint Users) |
| Total Number of Password Users: | 100 sets (Password Users) |
| Total Number of Card Users: | 100 sets (Card Users) |
| Door Opening Record Inquiry: | Supported |
| Information Storage Time: | 10 years (Battery Life) |
| Power Supply Method: | Four number 5 batteries |
| Battery Life: | 8-10 months |
| Low Voltage Alarm: | ≤4.8V |
| External Emergency Power Supply: | Type-C |
| Networking Capability: | Optional (Tuya WiFi, a brand of smart home IoT platform) |
| Compatible Lock Body Types： | deadbolt lock body |
| Lock Body Material： | 304 (Stainless Steel Grade) |
| Mechanical Strength： | GA374 (Standard or Model Number) |
Features:

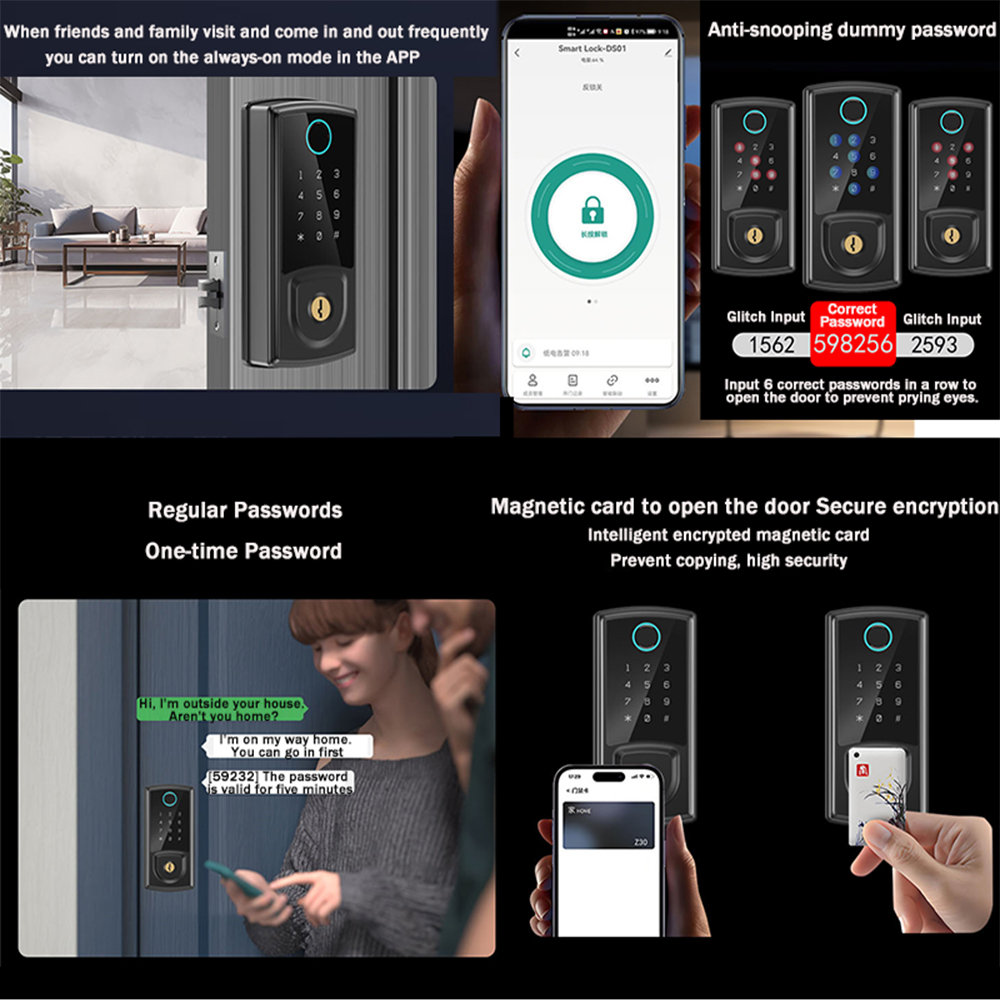

1. Multiple methods of unlocking
Tuya App, fingerprint, card, mechanical key unlock; easy to use it whether children or older. Never worry forget to bring the key.
2.APP remote control
This keyless entry door lock allows you to check the visitor records on Tuya APP, see which visitor at what time unlocked the door, enhance the security level of your home. When the door lock and gateway are used together, the APP can be used to remotely control the unlocking.
3. Mechanical key unlocking

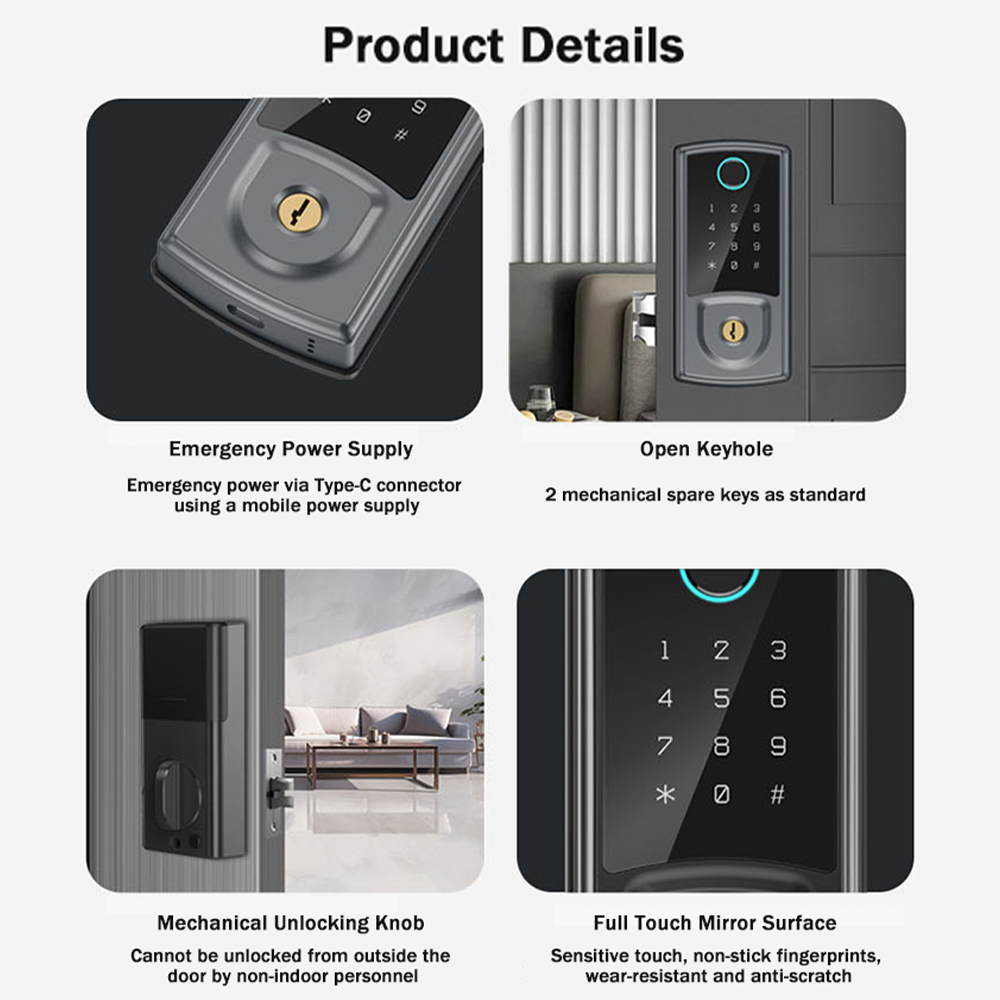

Mechanical keys and emergency power supply (Type-C) can be used when the door lock is out of power
4. Long battery life
4 pcs AA batteries(Not included) can provide 5000 openings (approx. 6 months). Upgraded anti-touch feature. Unlock as long as the numbers you enter contain the correct sequential code.
Main Function Modules：
1. Multiple methods of unlocking
Tuya App, fingerprint, card, mechanical key unlock; easy to use it whether children or older. Never worry forget to bring the key.
2.APP remote control
This keyless entry door lock allows you to check the visitor records on Tuya APP, see which visitor at what time unlocked the door, enhance the security level of your home. When the door lock and gateway are used together, the APP can be used to remotely control the unlocking.
3. Mechanical key unlocking
Mechanical keys and emergency power supply (Type-C) can be used when the door lock is out of power
4. Long battery life
4 pcs AA batteries(Not included) can provide 5000 openings (approx. 6 months). Upgraded anti-touch feature. Unlock as long as the numbers you enter contain the correct sequential code.
MAIN FUNCTION MODULES
1.APP REGISTRATION AND LOGIN: if you do not have an APP account, you can choose to register or log in by SMS verification code.· Click "create a new account" to enter the account registration page. According to the prompt to obtain SMS verification code, set the password.
·If you have an existing account, click "login with an existing account" to log in to the APP. Password, verification code, and social account login are supported.
2. CREATE HOMES
· Create your home after registering and logging in successfully.
· Each account can create and add multiple homes, and devices can be grouped by room in the home.
Weather and other functions depend on the geographical location of the family, which is recommended to set in advance.
3. ADD WIFI LOCK
· On the Tab of "my home", click*+" in the upper right corner to enter the interface in figure 1, select the WiFi door lock insecurity sensor part and enter the page in
figure 2.
· When the device enters the connected mode, continue to operate according to the instructions and APP tips.
4. HOME PAGE
· Home page includes remote unlock, alarm message, member management, record,temporary password and other functions.
· Remote Unlock: initiate a request from the door lock, and the app can respond to allow / refusal door opening
5. DYNAMIC PASSWORD
· Click to get the dynamic password Meanwhile copy the password text for you
6. MESSAGE CENTER
· Message center contains alarm information, doorbell call information and hijacking alarm
information, which can be inquired.
7. USER MANAGEMENT
· User can be added, deleted or changed in member management.
Only the administrator user of app is allowed to do that.

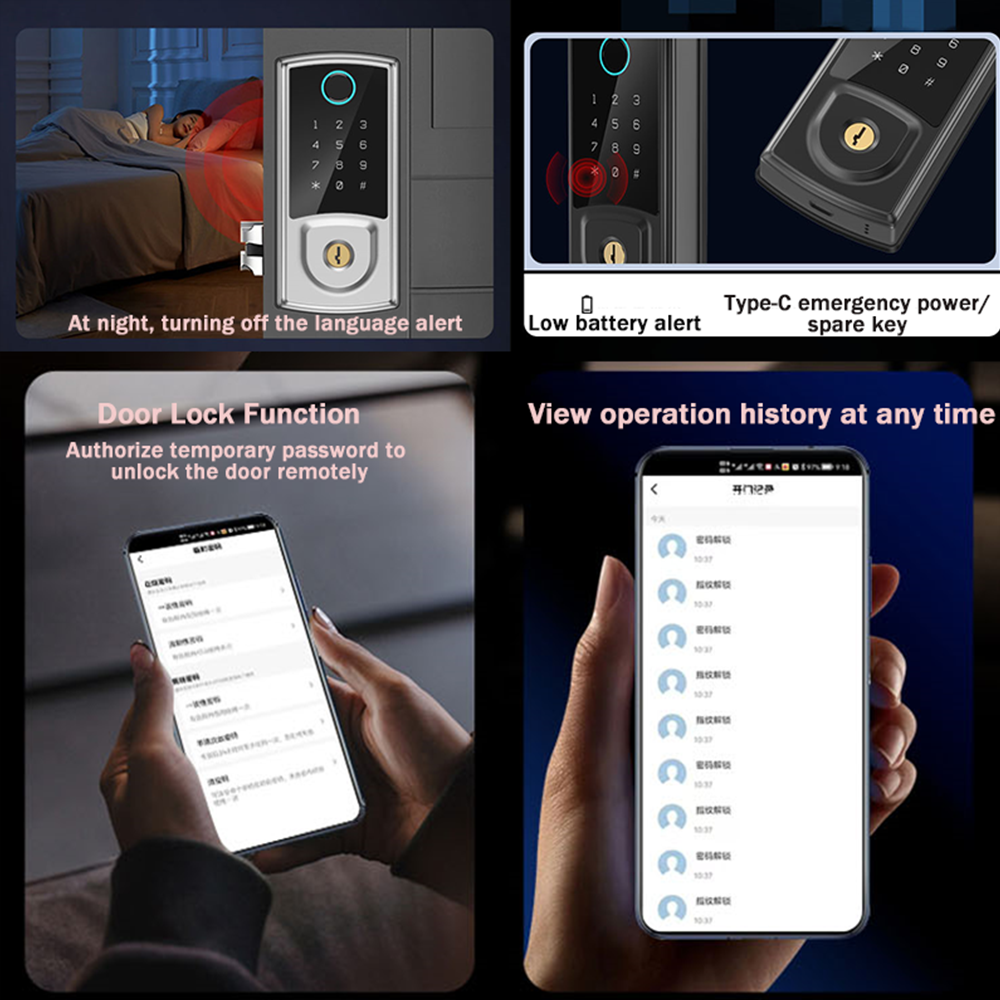

8. RECORD LOG
· 24/7 Record Log, arranged in reverse chronological order. The unlocked ID with the associated user name will directly display the user name, while the unlocked ID without the associated name will display the specific unlock ID
Trouble Shooting：
Q: What to do if the smart lock is ?
A:Reset the smart lock
Unlock with a mechanical key
Q: How to unlock when the smart lock battery is low
A: 1.Use a USB external power source to unlock
2.Unlock with a mechanical key
3.3 Unlock with a mechanical key
Enter the menu bar to adjust the volume
Q: Why is the smart lock's battery consumption so fast
A: Ensure standard batteries are used
Check if the smart lock is installed correctly
· Check if the smart lock can be smoothly locked or unlocked by the toggle switch, if not, please disassemble and reinstall the smart lock
Reinstall the smart lock
· Check if there is any water overflow in the internal components. Contact with water will quickly consume the battery.
