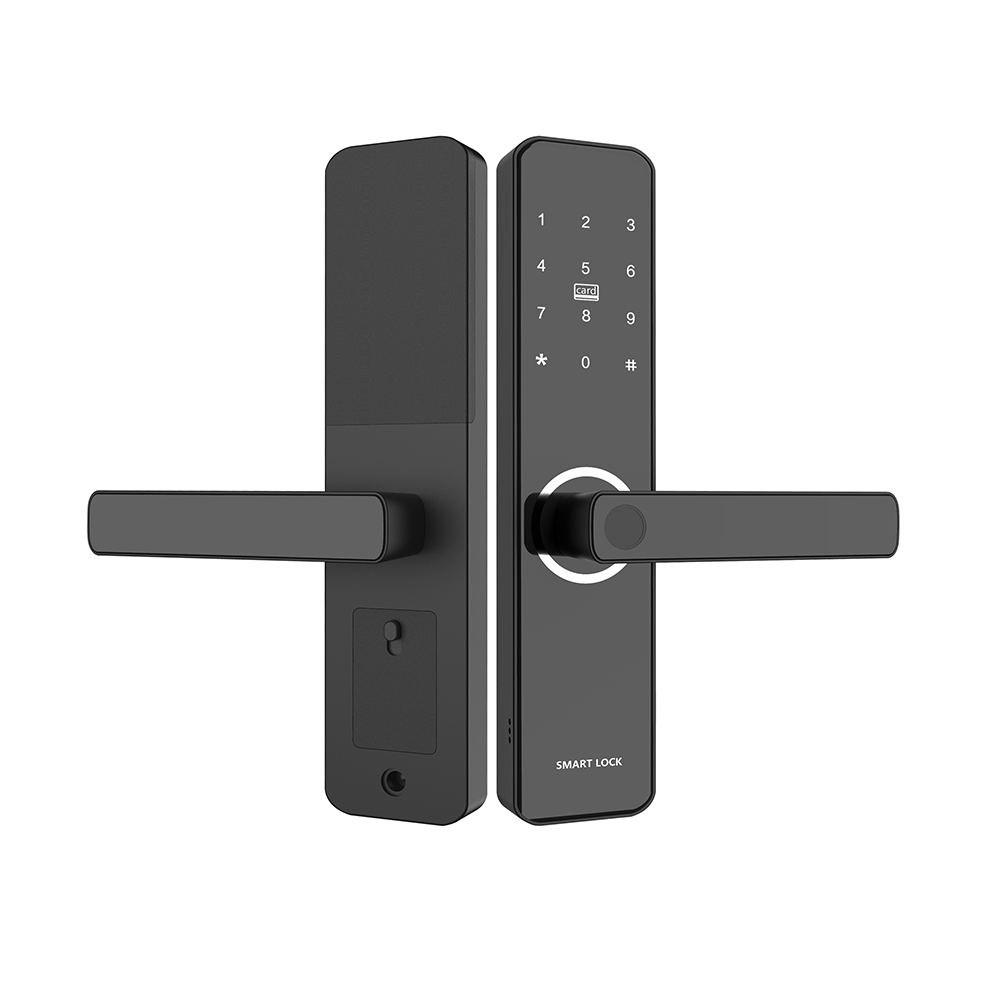

Smart WIFI Fingerprint Password Door Lock
Description
| Sensor: | Press capacitive fingerprint sensorparameters here |
| Resolution: | 508 DPI (Dots Per Inch） |
| False Acceptance Rate (FAR): | Less than or equal to 0.0001% |
| False Rejection Rate (FRR): | Less than 0.01% |
| Anti-lockout Feature: | Electronic Anti-Lock |
| Emergency Mechanical Lock: | Supported |
| Mechanical Key Security Level： | Grade C |
| Corrosion Resistance: | Level 4 |

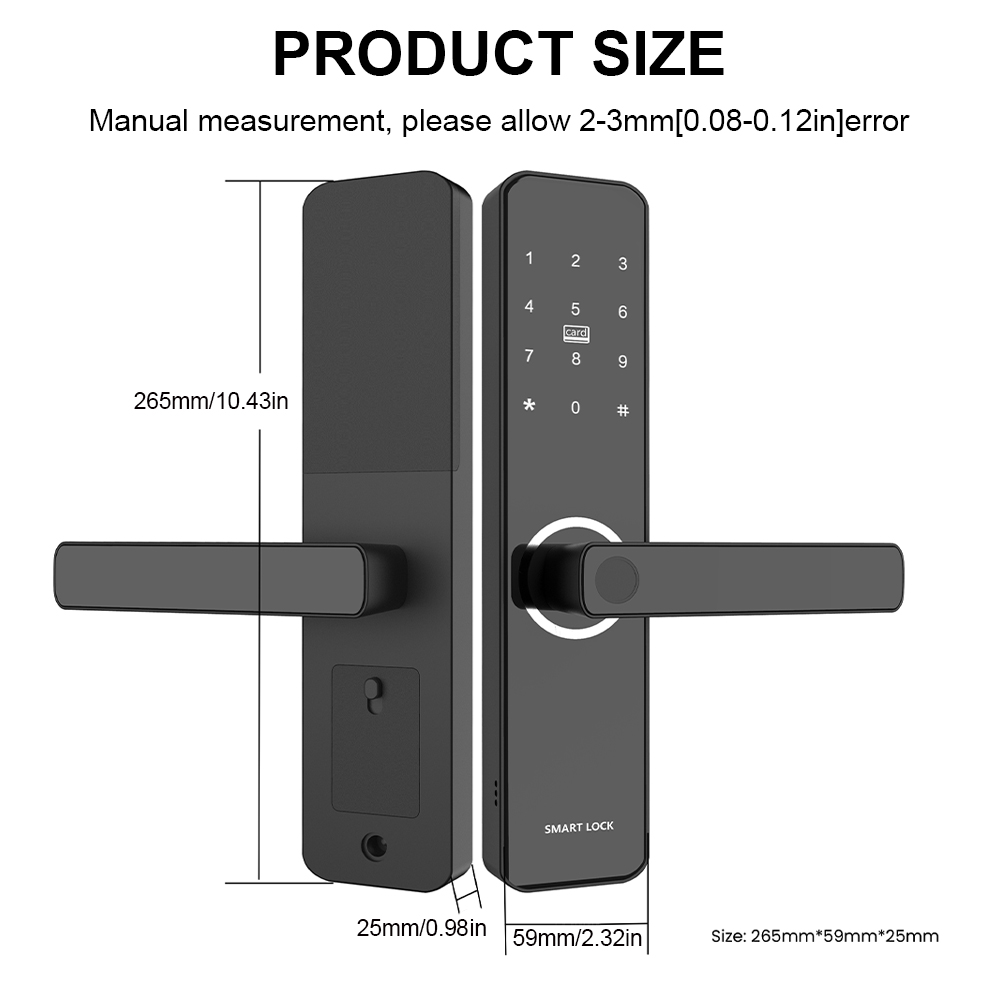

| Door thickness | 40-80mm |
| Operating Temperature Range: | -25°C-55°C |
| Working Humidity: | ≤90% (Humidity) |
| Static Power Consumption: | Less than 85 microamperes |
| Dynamic Power Consumption: | Less than 300 milliamperes |
| Language Menu Management: | Supported |
| Administrator Authentication Method: | Fingerprint/Password |
| Add Fingerprint: | Supported |
| Delete Fingerprint: | Supported |
| Number of Fingerprint Users: | 100 pieces (Fingerprint Users) |
| Total Number of Password Users: | 100 sets (Password Users) |
| Total Number of Card Users: | 100 sets (Card Users) |
| Door Opening Record Inquiry: | Supported |
| Information Storage Time: | 10 years (Battery Life) |
| Power Supply Method: | Four number 5 batteries |
| Battery Life: | 8-10 months |
| Low Voltage Alarm: | 14.8±0.2V |
| External Emergency Power Supply: | Micro USB/Type-C |
| Networking Capability: | Optional (Tuya WiFi, a brand of smart home IoT platform) |
| Compatible Lock Body Types： | 5050(22*160) |
| Lock Body Material： | 304 (Stainless Steel Grade) |
| Mechanical Strength： | GA374 (Standard or Model Number) |
Features:

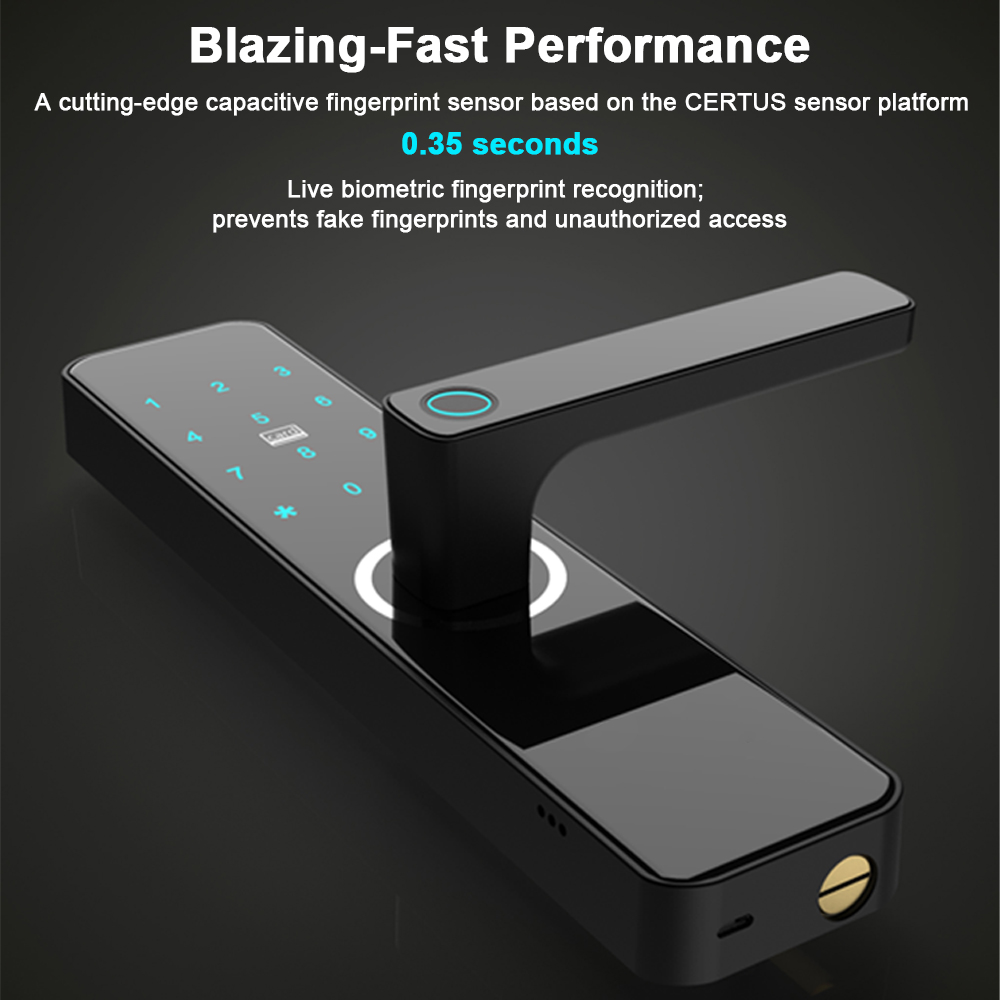

Blazing-Fast Performance
A cutting-edge capacitive fingerprint sensor based on the CERTUS sensor platform
0.35 seconds
Live biometric fingerprint recognition; prevents fake fingerprints and unauthorized access

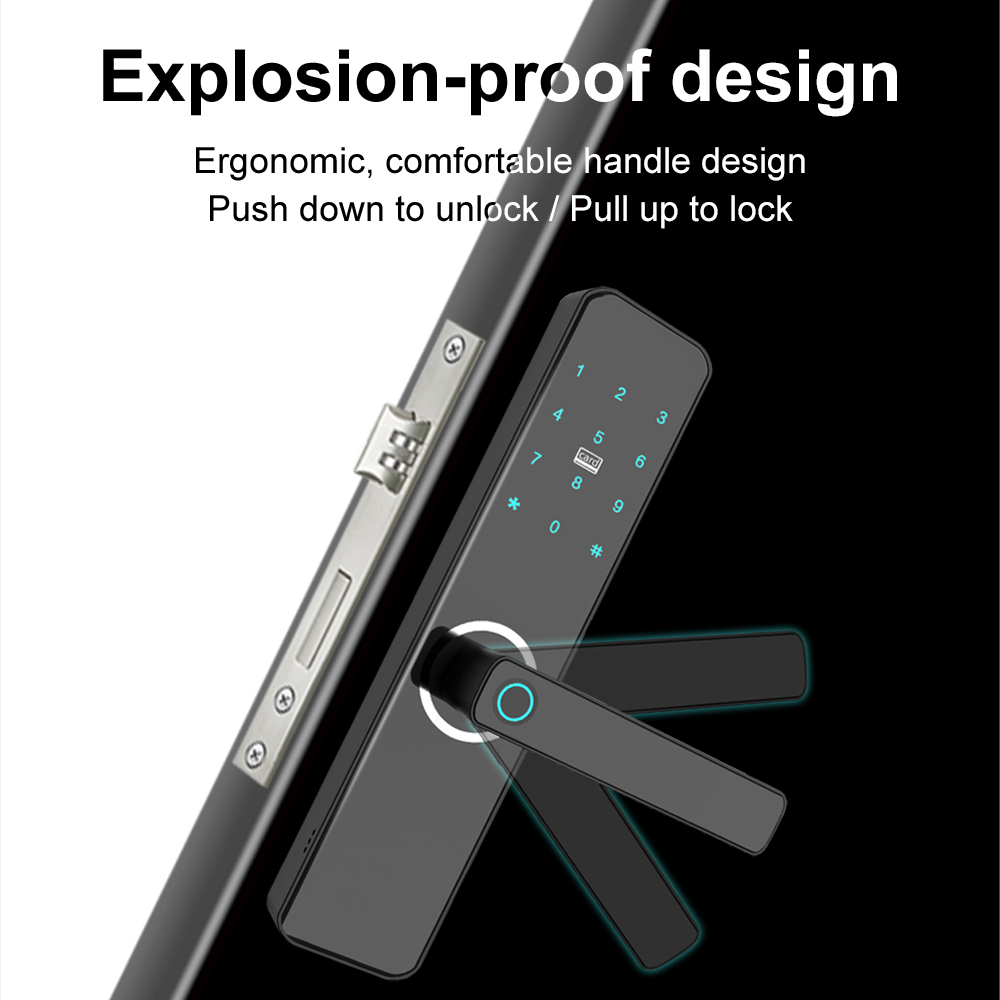

Explosion-proof design
Ergonomic, comfortable handle design
Push down to unlock / Pull up to lock

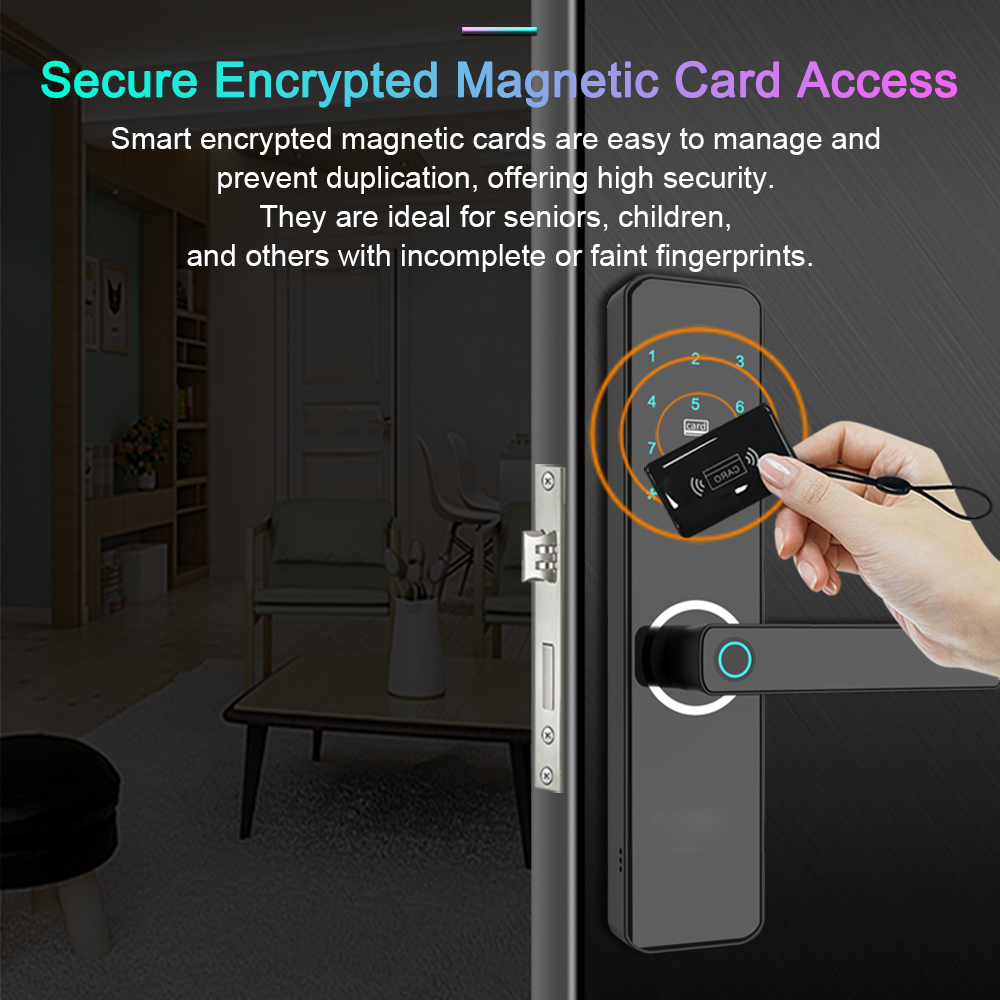

Secure Encrypted Magnetic Card Access
Smart encrypted magnetic cards are easy to manage and prevent duplication, offering high security. They are ideal for seniors, children, and others with incomplete or faint fingerprints.

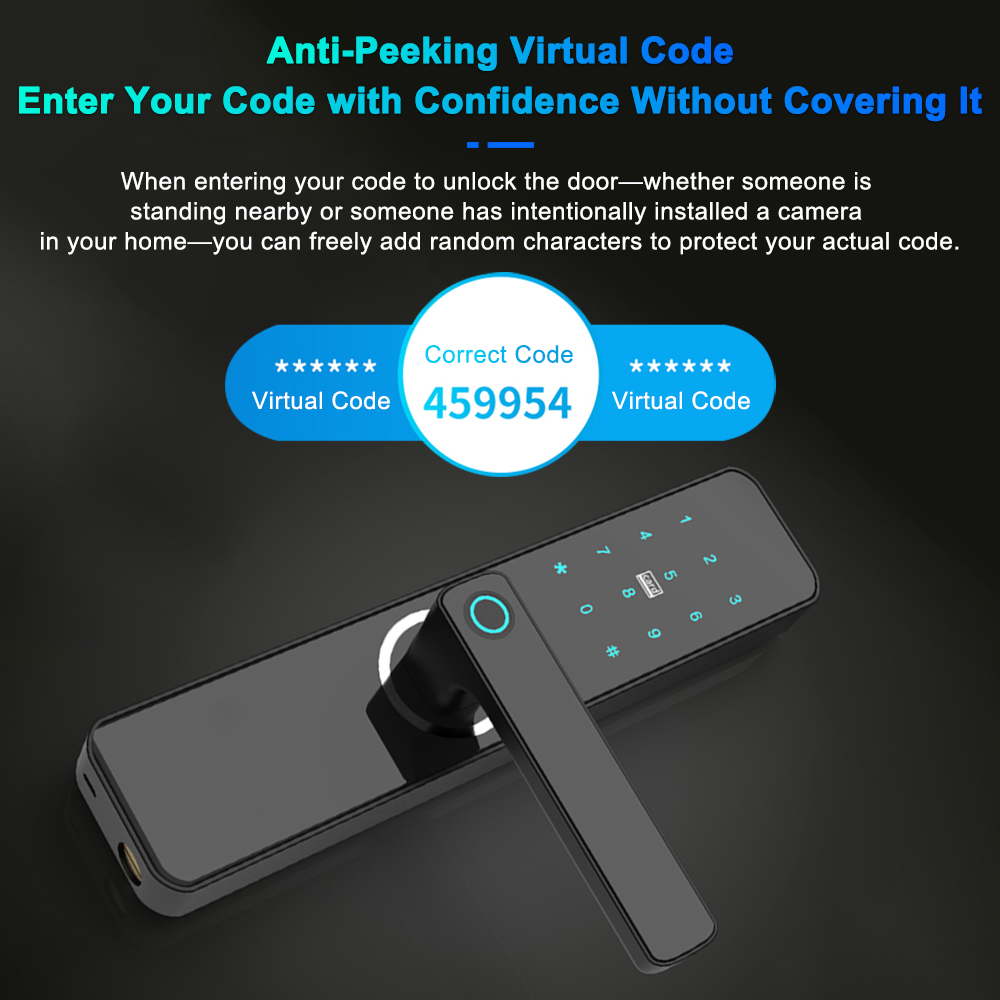

Anti-Peeking Virtual Code
Enter Your Code with Confidence Without Covering It
When entering your code to unlock the door—whether someone is standing nearby or someone has intentionally installed a camera in your home—you can freely add random characters to protect your actual code.

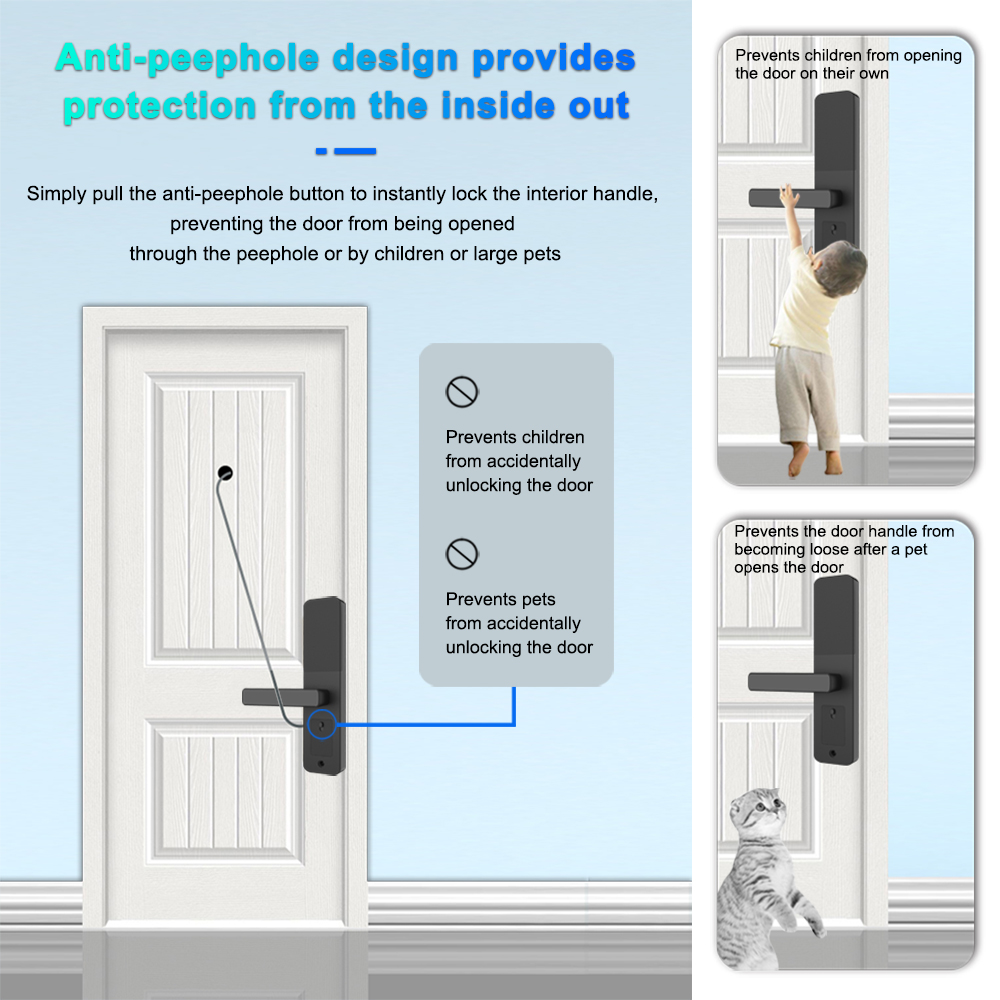

Anti-peephole design provides protection from the inside out
Simply pull the anti-peephole button to instantly lock the interior handle, preventing the door from being opened through the peephole or by children or large pets
Prevents the door handle from becoming loose after a pet opens the door
Prevents children from opening the door on their own

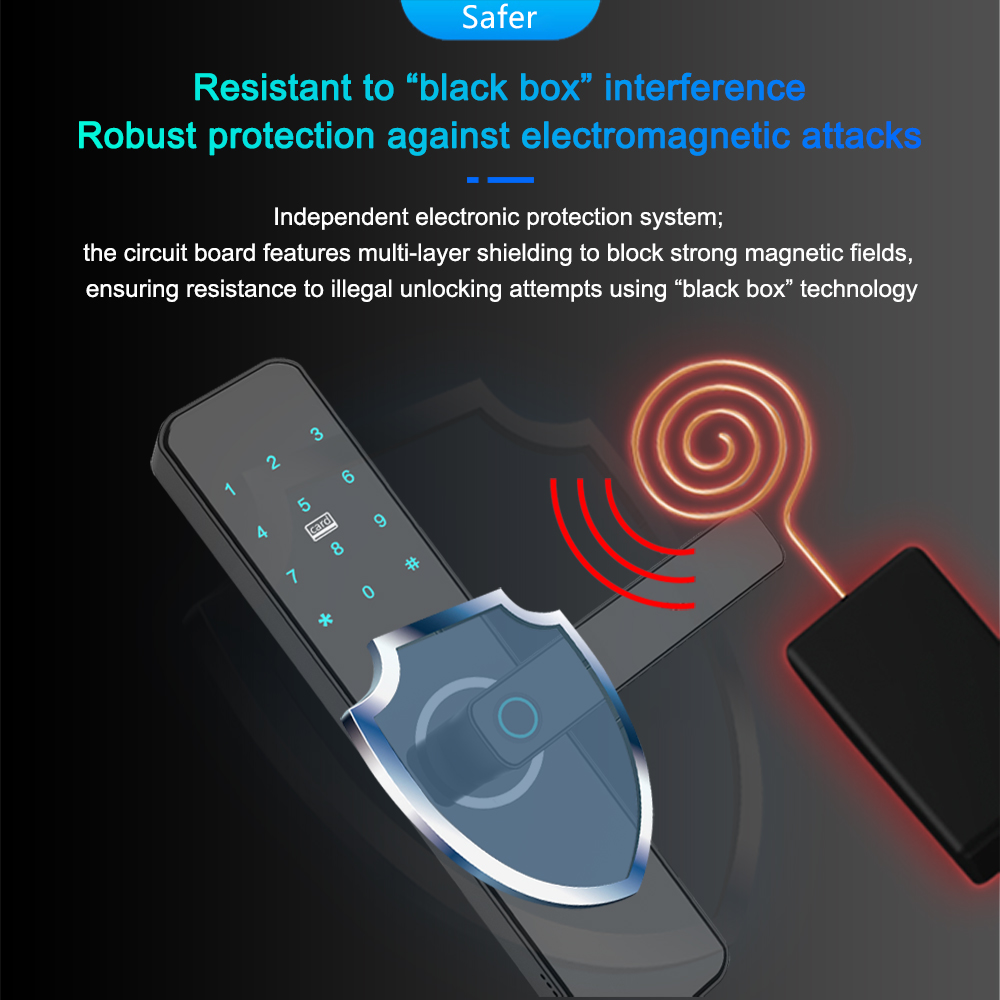

Resistant to “black box” interference
Robust protection against electromagnetic attacks
Independent electronic protection system; the circuit board features multi-layer shielding to block strong magnetic fields, ensuring resistance to illegal unlocking attempts using “black box” technology

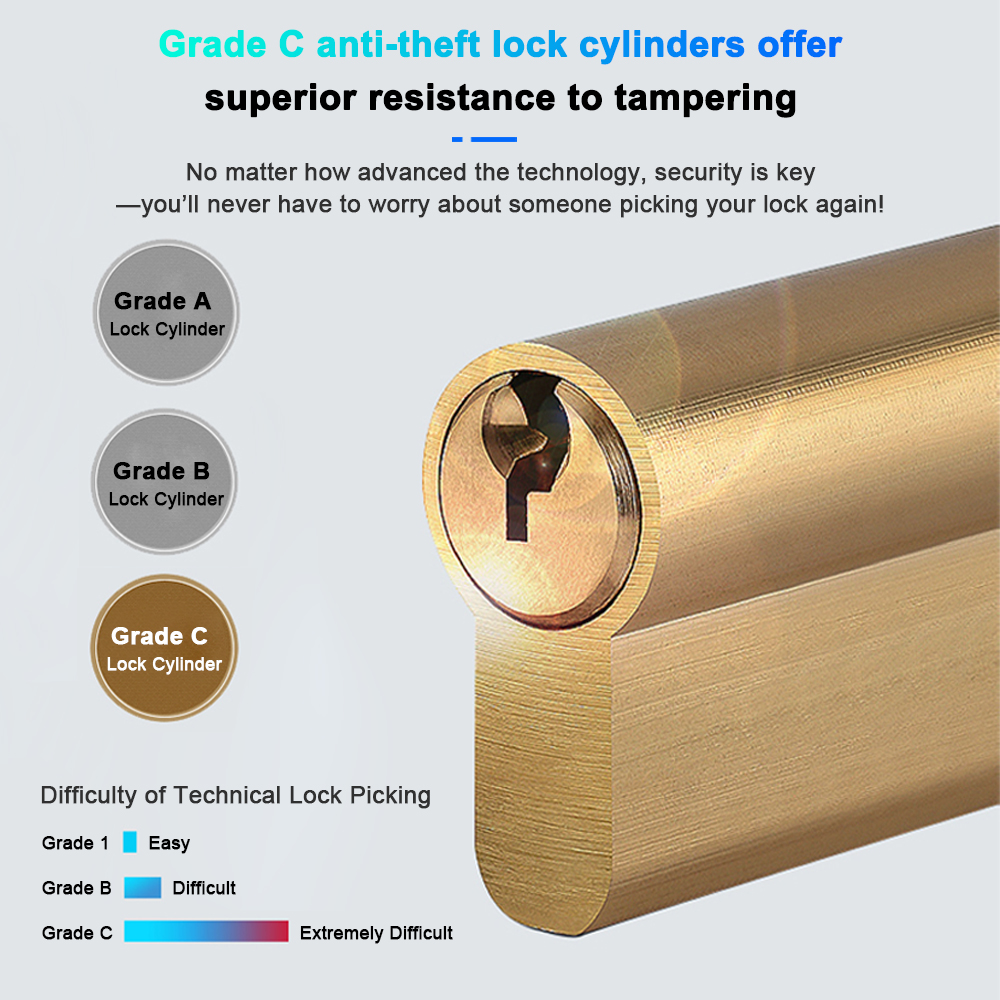

Grade C anti-theft lock cylinders offer superior resistance to tampering
No matter how advanced the technology, security is key—you’ll never have to worry about someone picking your lock again!

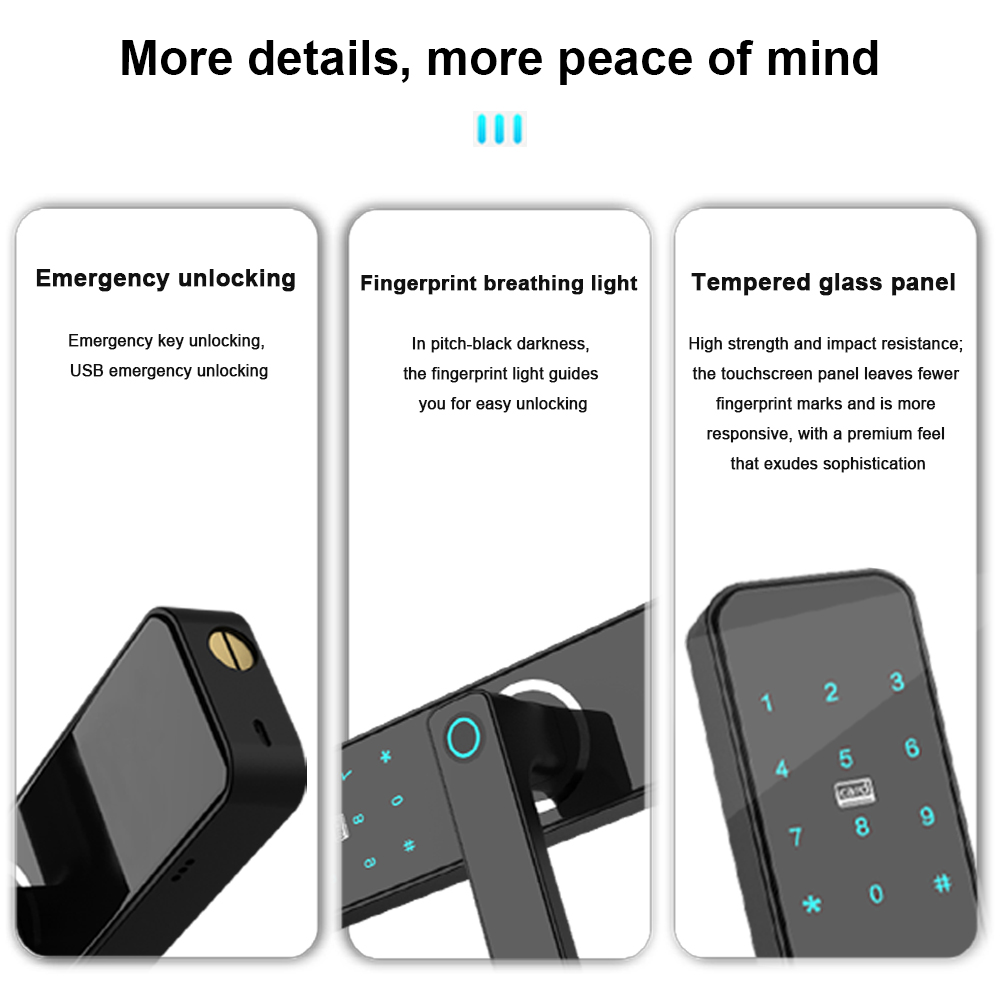

Tempered glass panel
High strength and impact resistance; the touchscreen panel leaves fewer fingerprint marks and is more responsive, with a premium feel that exudes sophistication

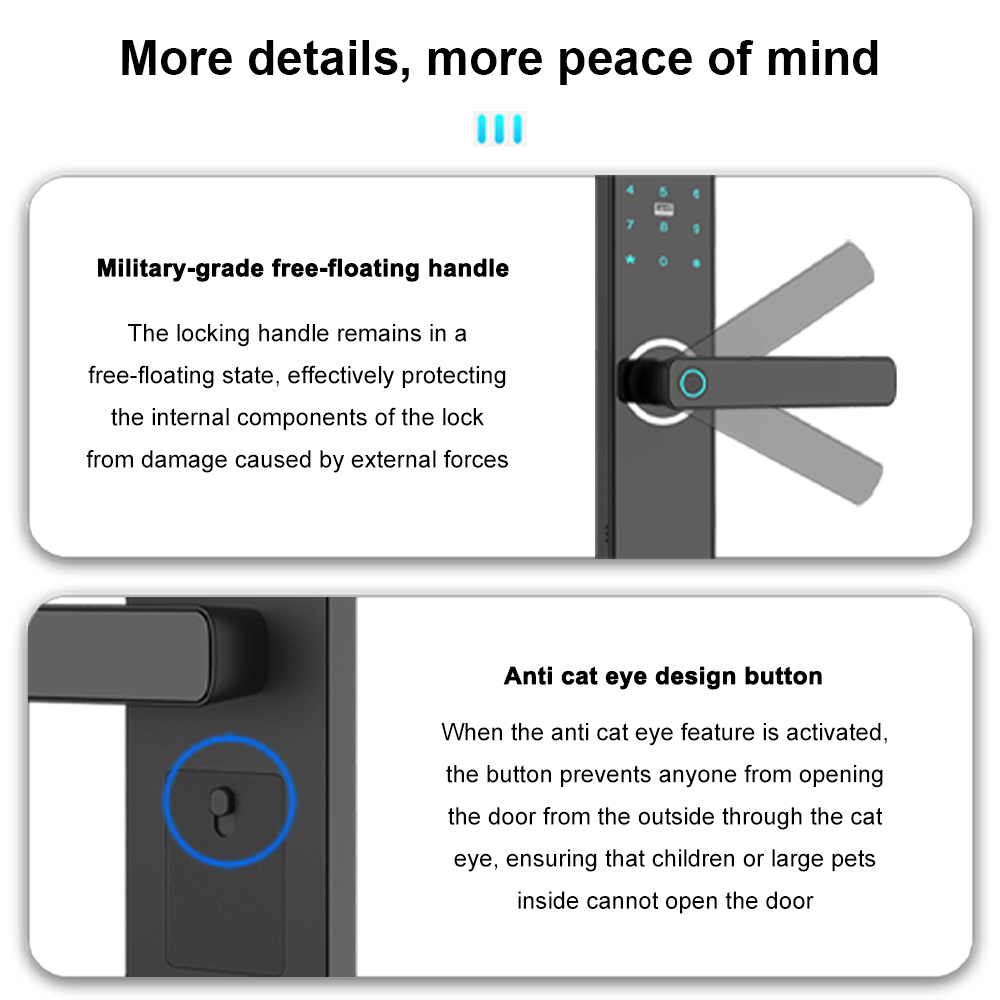

Military-grade free-floating handle
The locking handle remains in a free-floating state, effectively protecting the internal components of the lock from damage caused by external forces
Fingerprint breathing light
In pitch-black darkness, the fingerprint light guides you for easy unlocking
Emergency key unlocking, USB emergency unlocking
Initialization: All the registered user data will be deleted and restored to the factory settings.
User Roles: The lock can be controlled by two user roles: Administrator and User.The Administrator has access to the menu and can open the door. The user can only open the door.
Random Password: Users can secure their passwords by entering random digits before or after the actual password.The maximum number of digits entered must be less than or equal to 32. (including the password). For example, if the correct password is 123456.the random password may be 89123456807,1234562363, 389123456, etc.
Backup Enrollment: Users can change the registered password and card after the first registration,or continue to register the remaining fingerprints.
Passage Mode: This function is to keep the door always unlocked, which is suitable for meeting rooms and places with no access restriction.
Low Battery Warning: When the battery power is low, when the lock is turned on, it will prompt"low power,replace the batteries.
