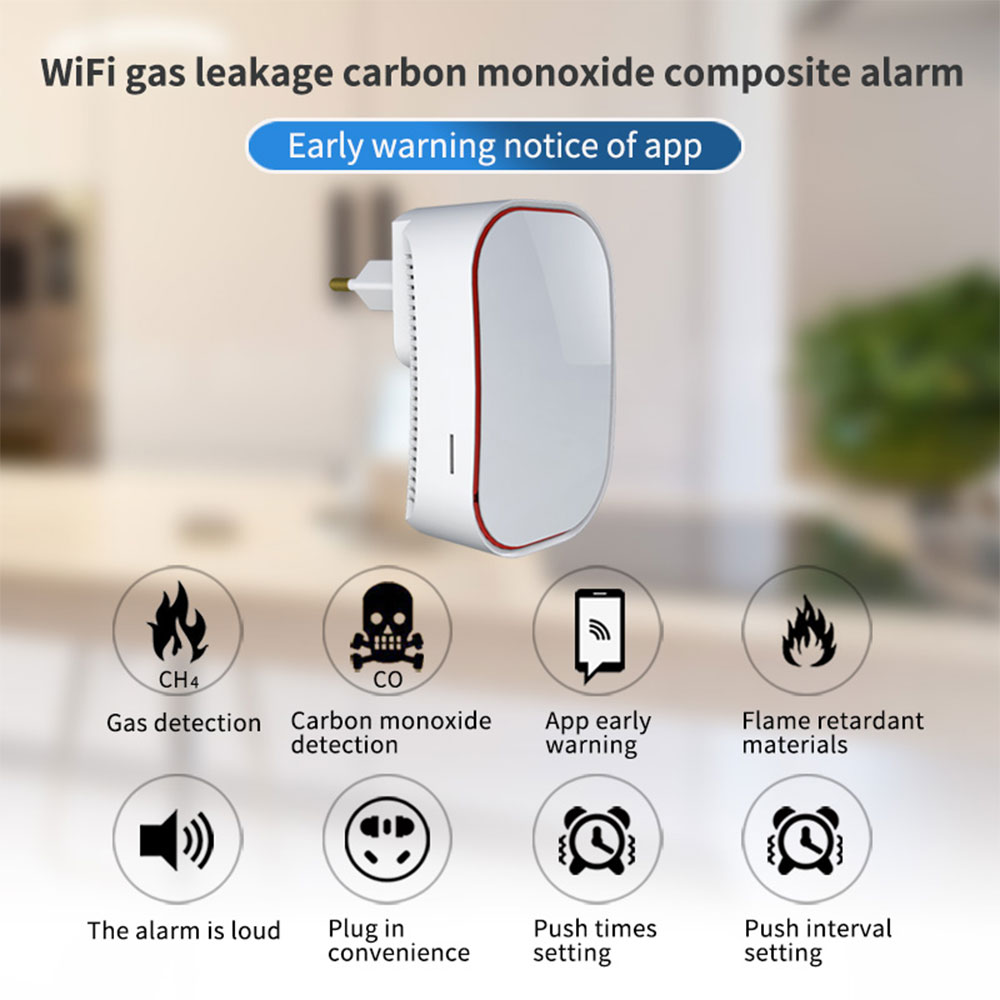

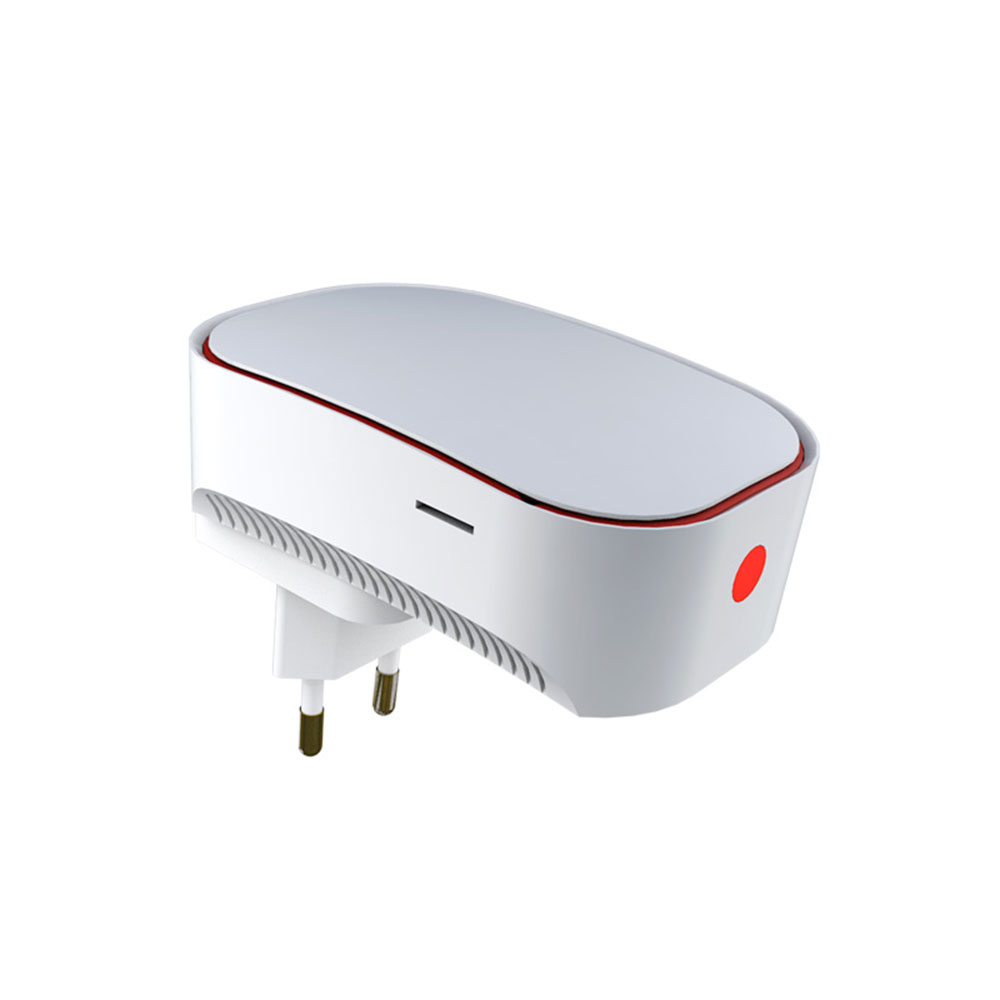

WiFi Gas Carbon leakage Monoxide Alarm
Product Parameters
|
Power supply |
110-240VAC |
|
Power |
<0.5w |
|
Warm-up time |
180s after plug-in |
|
Working temperature |
-10°C-60°C |
|
Working Humidity |
0%--90%RH |
|
Natural gas warning level |
1500PPM-3500PPM |
|
Natural gas alarm level |
3500PPM-10000PPM |
|
Co gas warning level |
30PPM-180PPM |
|
Co gas alarm level |
180PPM-450PPM |
|

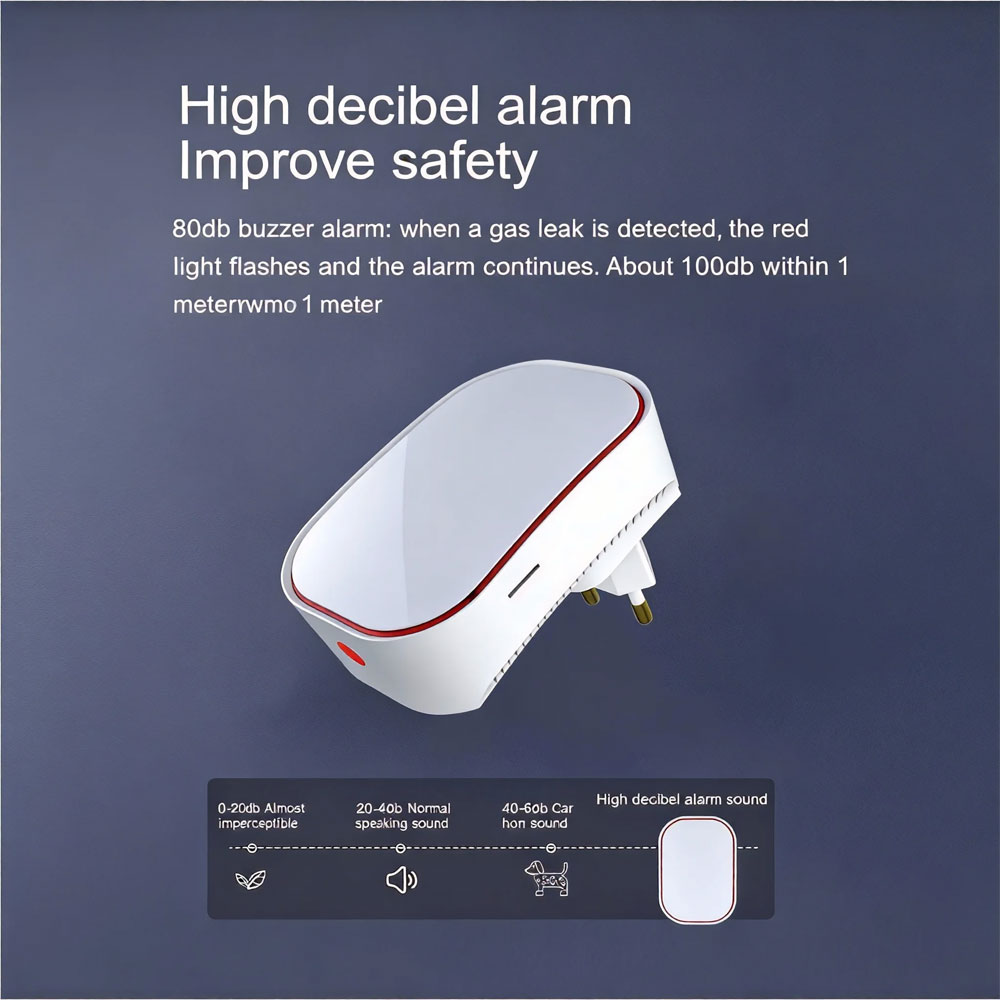

Horn level |
90db |
Product function operation
Warm-up state
Before using the gas detector, it needs to heat its inside sensor to produce a chemical reaction to ensure its detecting stability and reliability. This state is called warm-up state.It goes into warm-up state for 3 minutes after being plugged into the power socket and the blue led blinks slowly during this period.

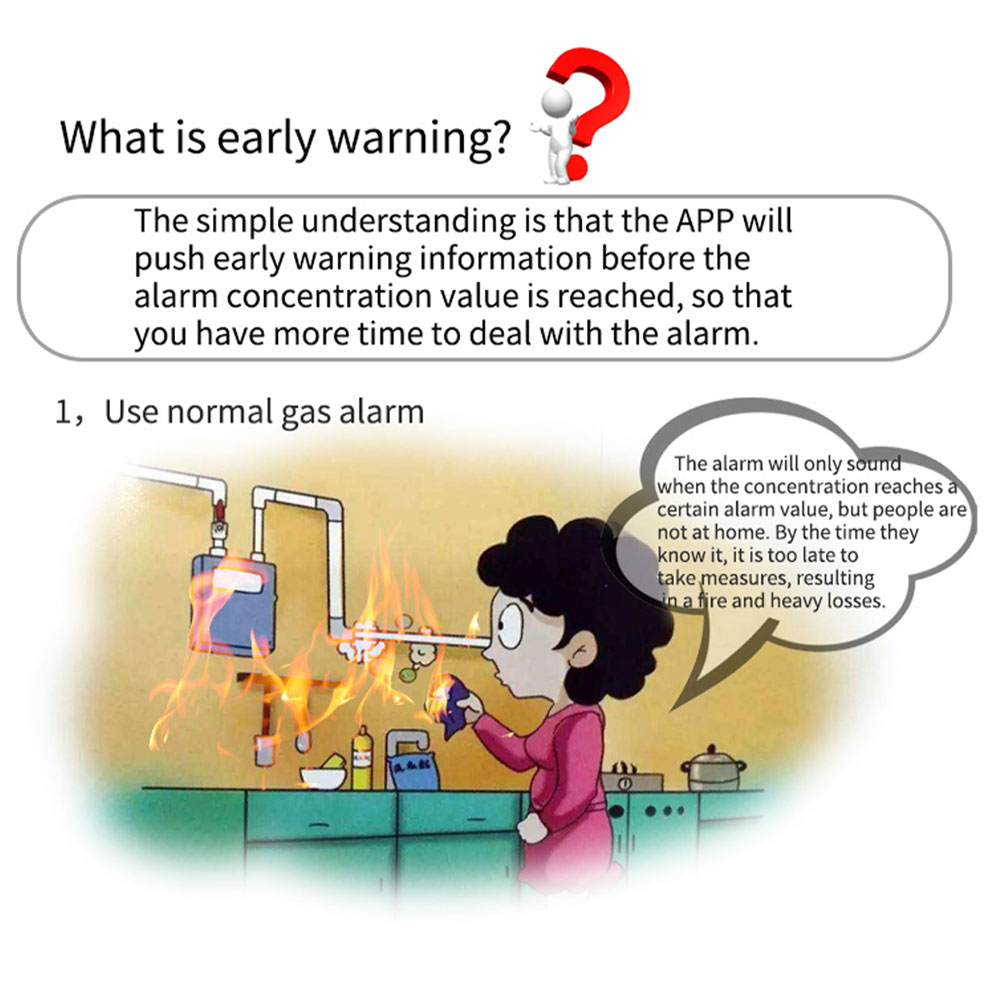

Early warning state

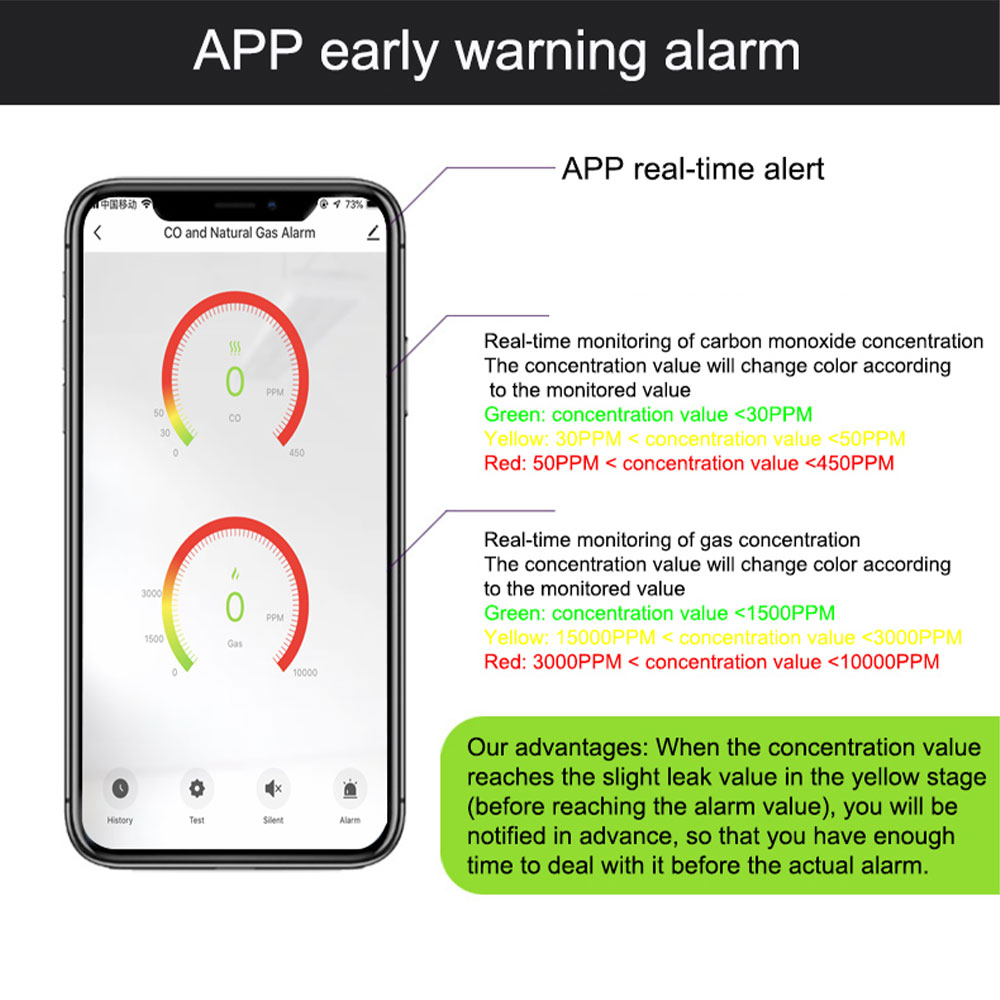

The detector goes into earning warning state when it detects the carbon monoxide concentration is above 30PPM or the combustible gas concentration is above 150oPPM.At this time, the detector would flash and beep as well as push warning notification to user app according to your preset push intervals.
Alarm state (in danger)
When the detector detects the carbon monoxide concentration is above 180PPM or the combustible gas concentration is above 3500PPM (7%LEL), it would alarm. It would make sound, red led flashes and push alarm message to user app according to the preset push intervals. If the gas concentration keeps this high it would keep sounding and flashing.
Alarm test button
Press the test button in the normal state (not in the warm-up state) would simulate the alarming process (sound flash and push "test button alarm" notification) This process would stop after the buzzer sounds 5 times.
APP push times and intervals
Open APP -click device icon to enter its interface- click alarm setting in the lower right corner - set the alarm push times and intervals - so when the product alarms, it would push message to your app multiple times in case you miss it.
Device self-check
Open APP -click device icon to enter its interface- click self-check -it flashes and sounds (which means it is normal) after that, it would exit and goes back to normal state automatically
Sharing & Group Control
When the device is alarming, open the app -click device icon to enter its interface ---click mute
WIFI data upload
In standby state, the device would update ts data to server once every 10 seconds; if there is gas leak, the app icon data wouWhen the detector detects the carbon monoxide concentration is above 180PPM or the combustible gas concentration is above 3500PPM (7%LEL), it would alarm. It would make sound, red led flashes and push alarm message to user app according to the preset push intervals. If the gas concentration keeps this high it would keep sounding and flashing.
ld change every 3 seconds.
Share the device by multiple people
Open tuya app -click device icon to enter its interface- click at upper right corner-choose share device-add other tuya account.
How to distinguish each device
Open app-click device icon to enter its interface --- click at upper right corner - change device name. Then when lit alarms, it would push message by the changed device name.
